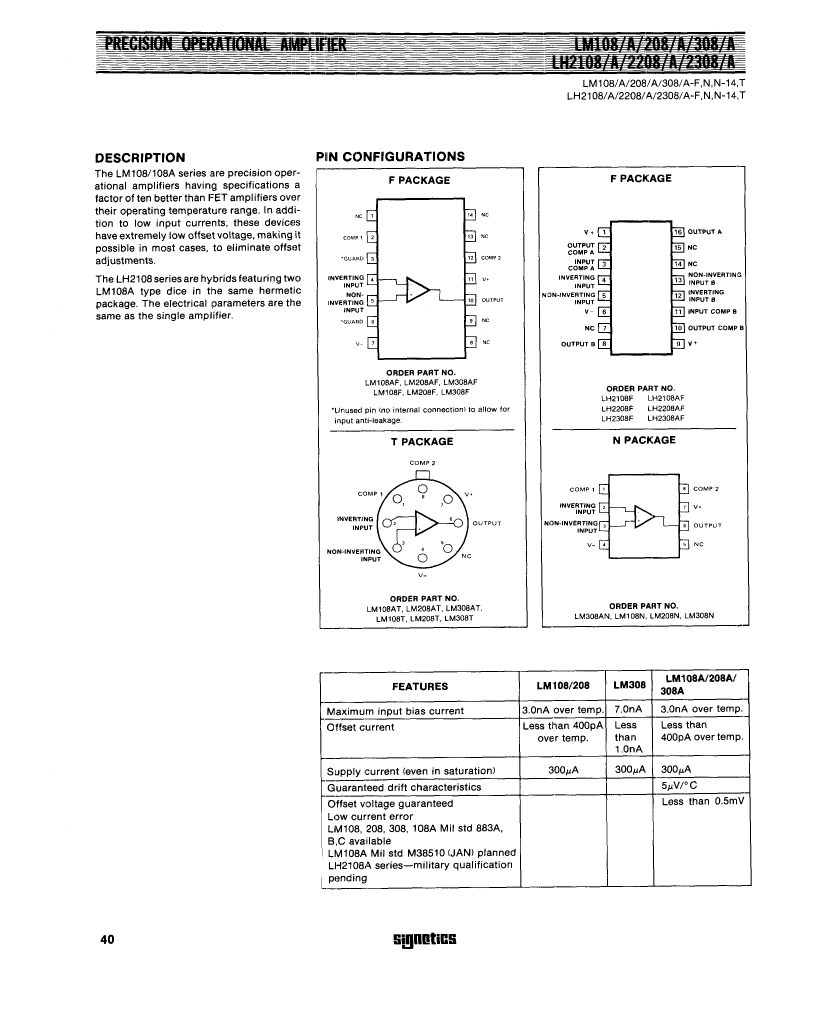

Preview

LM208N: DescriptionBasic information of LM208N amplifier: LM208N is an OPERATIONAL AMPLIFIER. Commonly used packaging methods are PLASTIC, DIP-8 LM208N amplifier core information: The minimum operating temperature of the LM208N is -25 °C and the maximum operating temperature is 85 °C. Its maximum average bias current is 0.003 µA The nominal supply voltage of the LM208N is 15 V, and its corresponding nominal negative supply voltage is -15 V. The input offset voltage of the LM208N is 3000 µV (input offset voltage: the compensation voltage added between the two input terminals to make the output terminal of the operational amplifier 0V (or close to 0V).) Related dimensions of LM208N: LM208N has 8 terminals. Its terminal position type is: DUAL. LM208N amplifier additional information: Its temperature grade is: OTHER. The corresponding JESD-30 code is: R-PDIP-T8. The materials of LM208N package are mostly PLASTIC/EPOXY. The package shape is RECTANGULAR. The LM208N package pin format is: IN-LINE. Its terminal form is: THROUGH-HOLE.; CategoryAnalog mixed-signal IC Amplifier circuit; File Size402KB，9 Pages; ManufacturerSignetics; Alternative parts：LM208N

Download Datasheet Parametric View All

LM208N Overview

Basic information of LM208N amplifier:

LM208N is an OPERATIONAL AMPLIFIER. Commonly used packaging methods are PLASTIC, DIP-8

LM208N amplifier core information:

The minimum operating temperature of the LM208N is -25 °C and the maximum operating temperature is 85 °C. Its maximum average bias current is 0.003 µA

The nominal supply voltage of the LM208N is 15 V, and its corresponding nominal negative supply voltage is -15 V. The input offset voltage of the LM208N is 3000 µV (input offset voltage: the compensation voltage added between the two input terminals to make the output terminal of the operational amplifier 0V (or close to 0V).)

Related dimensions of LM208N:

LM208N has 8 terminals. Its terminal position type is: DUAL.

LM208N amplifier additional information:

Its temperature grade is: OTHER. The corresponding JESD-30 code is: R-PDIP-T8. The materials of LM208N package are mostly PLASTIC/EPOXY. The package shape is RECTANGULAR. The LM208N package pin format is: IN-LINE.

Its terminal form is: THROUGH-HOLE.

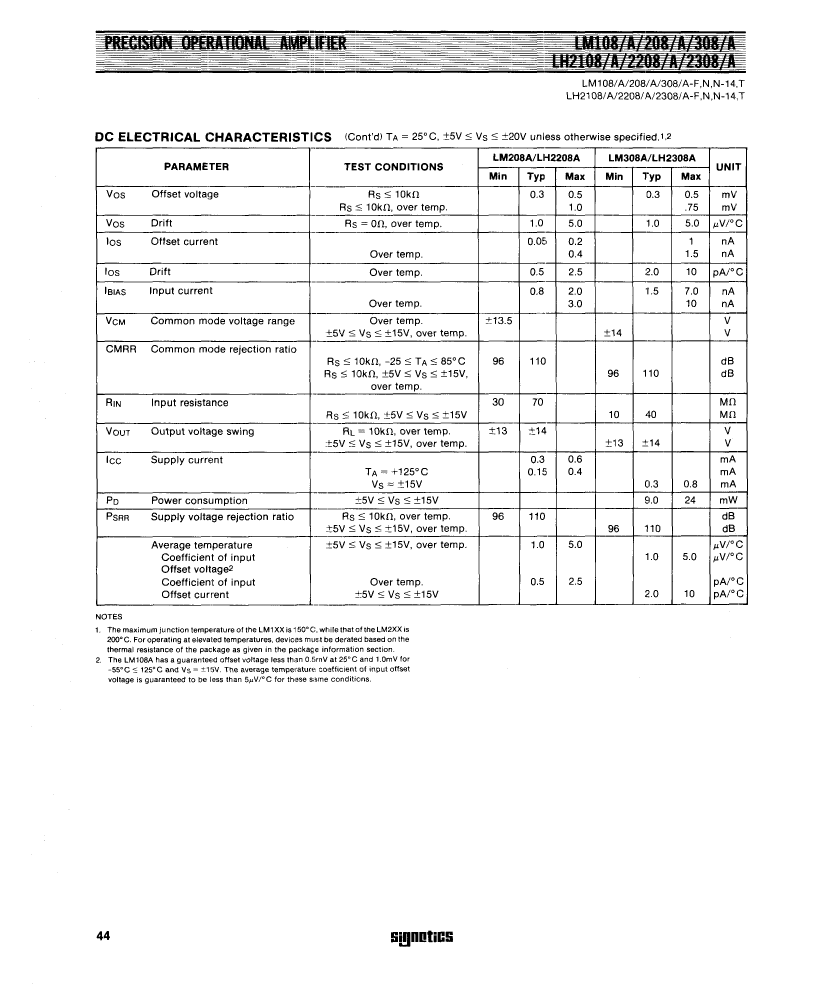

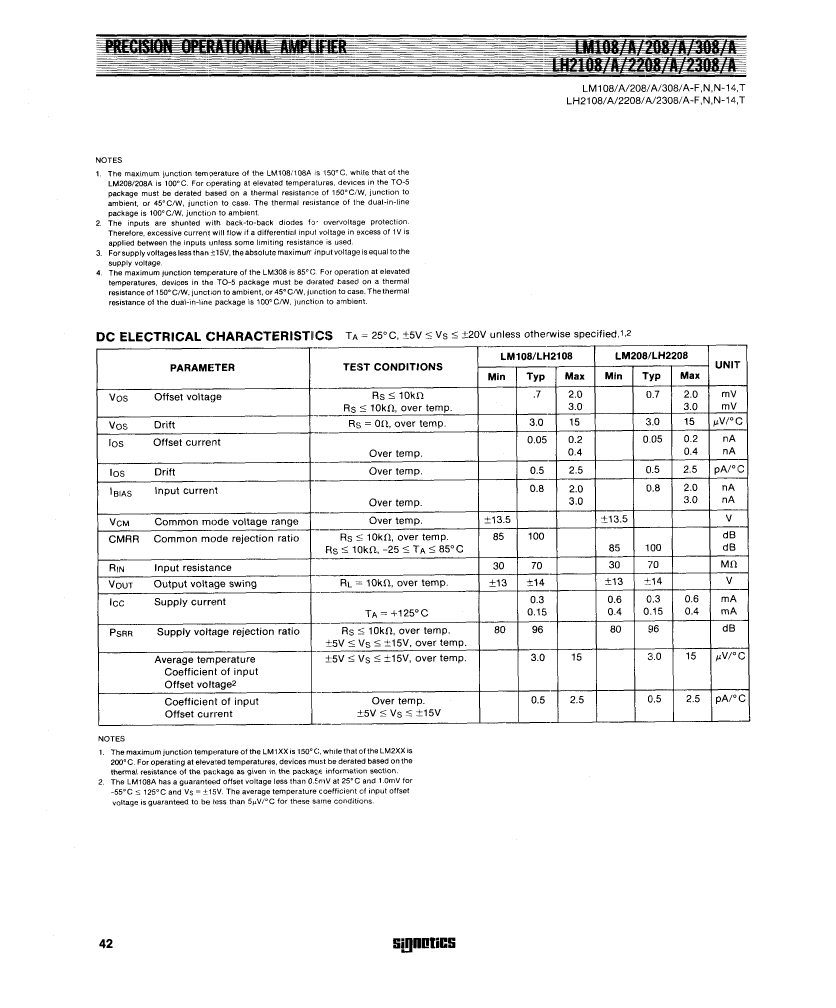

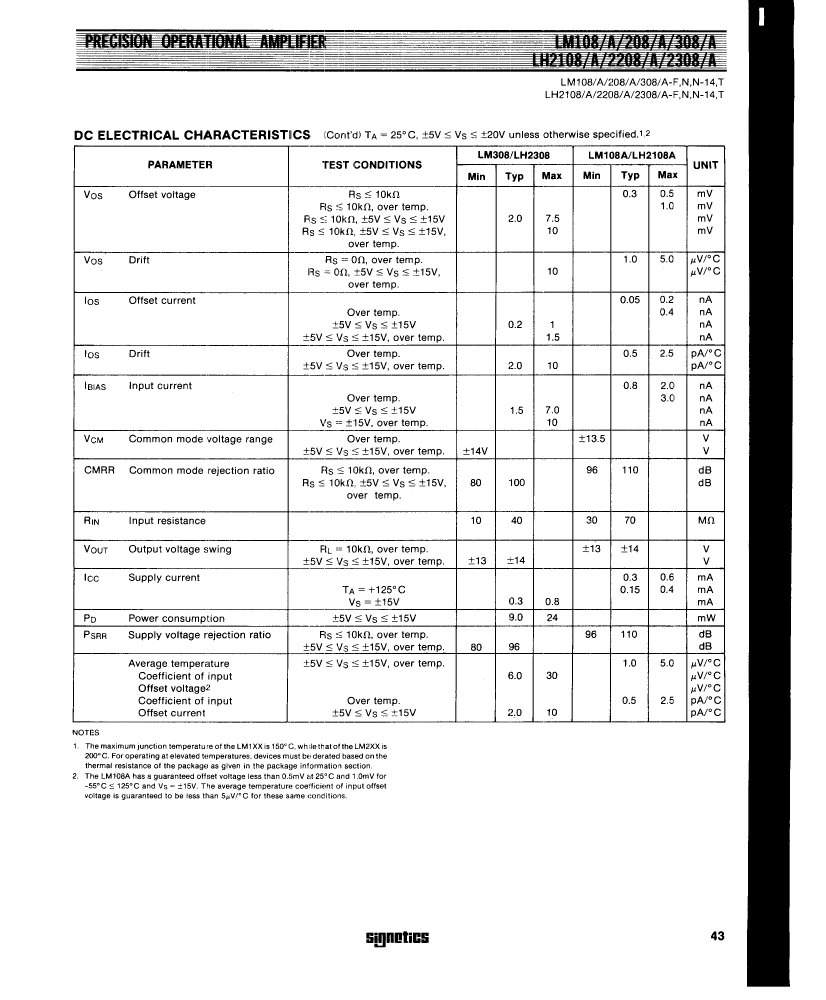

LM208N Parametric

Parameter Name	Attribute value
package instruction	PLASTIC, DIP-8
Reach Compliance Code	unknown
ECCN code	EAR99
Amplifier type	OPERATIONAL AMPLIFIER
Maximum average bias current (IIB)	0.003 µA
Nominal Common Mode Rejection Ratio	100 dB
Maximum input offset voltage	3000 µV
JESD-30 code	R-PDIP-T8
Negative supply voltage upper limit	-20 V
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of functions	1
Number of terminals	8
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Supply voltage upper limit	20 V
Nominal supply voltage (Vsup)	15 V
surface mount	NO
technology	BIPOLAR
Temperature level	OTHER
Terminal form	THROUGH-HOLE
Terminal location	DUAL
Base Number Matches	1

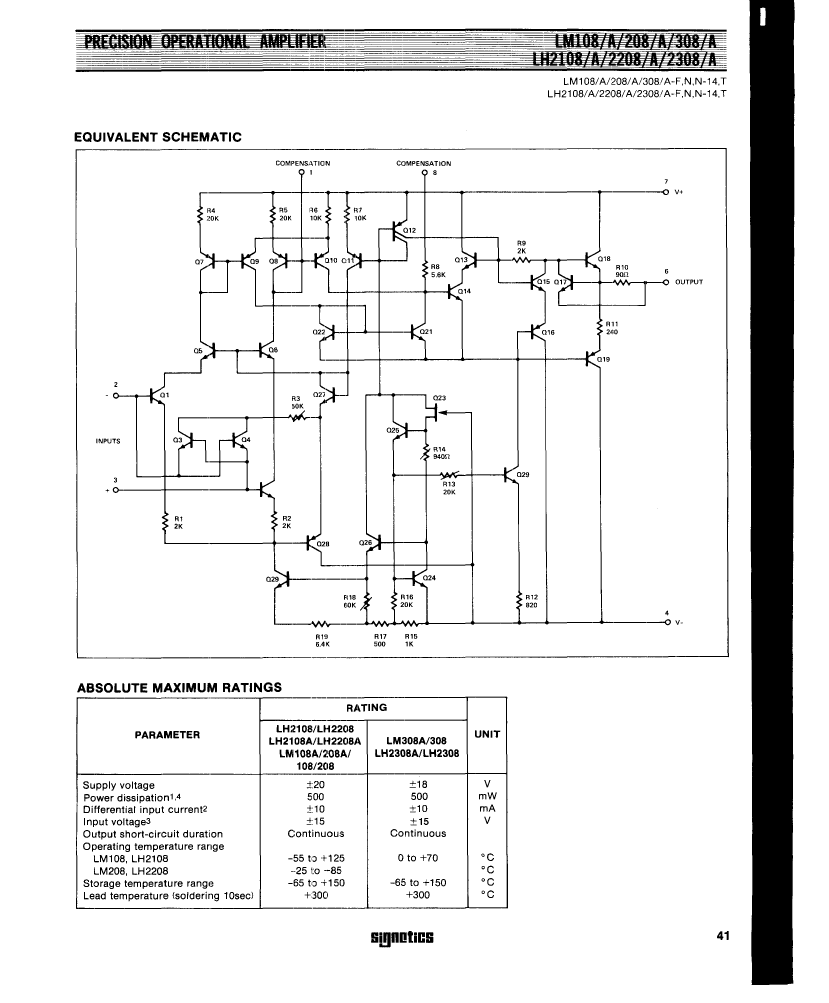

Preview

Download Datasheet

View All
