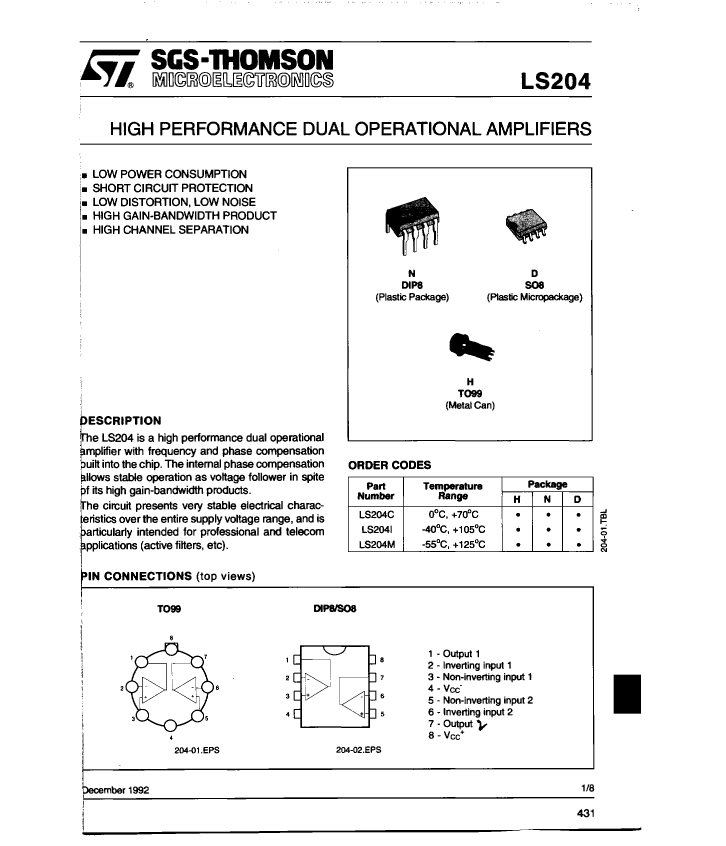

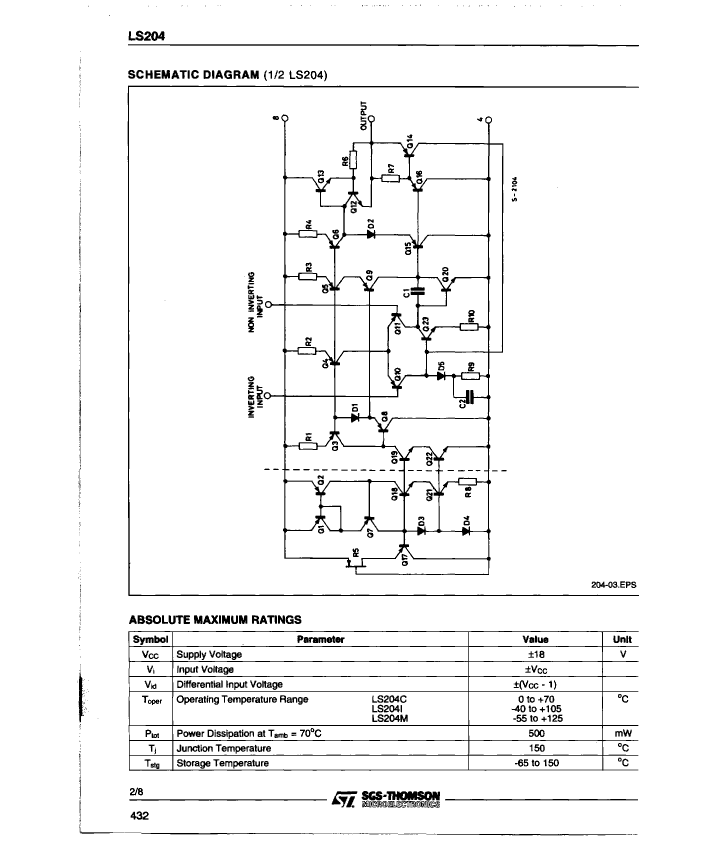

Basic information of LS204IH amplifier:
LS204IH is an OPERATIONAL AMPLIFIER. Commonly used packaging methods are TO-99, 8 PIN
LS204IH amplifier core information:
The minimum operating temperature of the LS204IH is -40 °C and the maximum operating temperature is 105 °C. Its peak reflow temperature is NOT SPECIFIED Its maximum bias current at 25°C is: 0.3 µA Its maximum average bias current is 0.3 µA

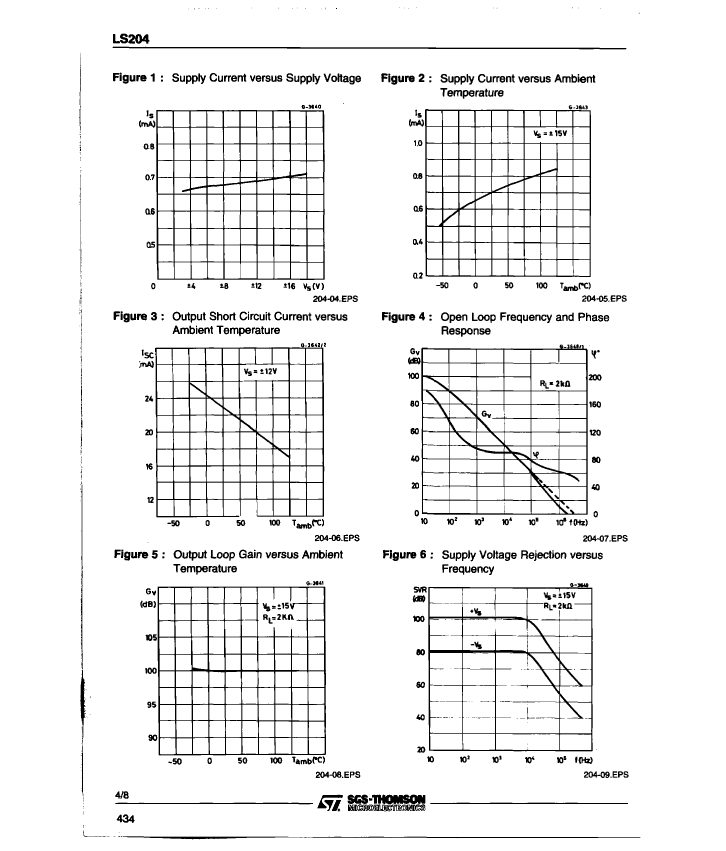

How to simply check the efficiency of an amplifier? Looking at its slew rate, the LS204IH has a nominal slew rate of 1.5 V/us. The maximum slew rate of the LS204IH given by the manufacturer is 1.2 mA, while the minimum slew rate is 0.8 V/us. Its minimum voltage gain is 31600. When the op amp is used in closed loop, at a certain closed-loop gain (usually 1 or 2, 10, etc.), the frequency when the LS204IH gain becomes 0.707 times the low-frequency gain is 3000 kHz.
The nominal supply voltage of LS204IH is 15 V, and its corresponding nominal negative supply voltage is -15 V. The power supply range is: +-15 V. The input offset voltage of LS204IH is 3500 µV (input offset voltage: the compensation voltage added between the two input terminals to make the output terminal of the operational amplifier 0V (or close to 0V).)
Related dimensions of LS204IH:
LS204IH has 8 terminals. Its terminal position type is: BOTTOM. Total pins: 8
LS204IH amplifier additional information:
LS204IH adopts the VOLTAGE-FEEDBACK architecture. It does not belong to the low offset class of amplifiers. The frequency compensation status of LS204IH is: YES. Its temperature grade is: INDUSTRIAL. The LS204IH is not Rohs certified.
It contains lead. The corresponding JESD-30 code is: O-MBCY-W8. The corresponding JESD-609 code is: e0. The material of LS204IH package is mostly METAL. And its package shape is ROUND.
The LS204IH package pin format is: CYLINDRICAL. Its terminal form is: WIRE.
Basic information of LS204IH amplifier:
LS204IH is an OPERATIONAL AMPLIFIER. Commonly used packaging methods are TO-99, 8 PIN
LS204IH amplifier core information:
The minimum operating temperature of the LS204IH is -40 °C and the maximum operating temperature is 105 °C. Its peak reflow temperature is NOT SPECIFIED Its maximum bias current at 25°C is: 0.3 µA Its maximum average bias current is 0.3 µA
How to simply check the efficiency of an amplifier? Looking at its slew rate, the LS204IH has a nominal slew rate of 1.5 V/us. The maximum slew rate of the LS204IH given by the manufacturer is 1.2 mA, while the minimum slew rate is 0.8 V/us. Its minimum voltage gain is 31600. When the op amp is used in closed loop, at a certain closed-loop gain (usually 1 or 2, 10, etc.), the frequency when the LS204IH gain becomes 0.707 times the low-frequency gain is 3000 kHz.
The nominal supply voltage of LS204IH is 15 V, and its corresponding nominal negative supply voltage is -15 V. The power supply range is: +-15 V. The input offset voltage of LS204IH is 3500 µV (input offset voltage: the compensation voltage added between the two input terminals to make the output terminal of the operational amplifier 0V (or close to 0V).)
Related dimensions of LS204IH:
LS204IH has 8 terminals. Its terminal position type is: BOTTOM. Total pins: 8
LS204IH amplifier additional information:
LS204IH adopts the VOLTAGE-FEEDBACK architecture. It does not belong to the low offset class of amplifiers. The frequency compensation status of LS204IH is: YES. Its temperature grade is: INDUSTRIAL. The LS204IH is not Rohs certified.
It contains lead. The corresponding JESD-30 code is: O-MBCY-W8. The corresponding JESD-609 code is: e0. The material of LS204IH package is mostly METAL. And its package shape is ROUND.
The LS204IH package pin format is: CYLINDRICAL. Its terminal form is: WIRE.

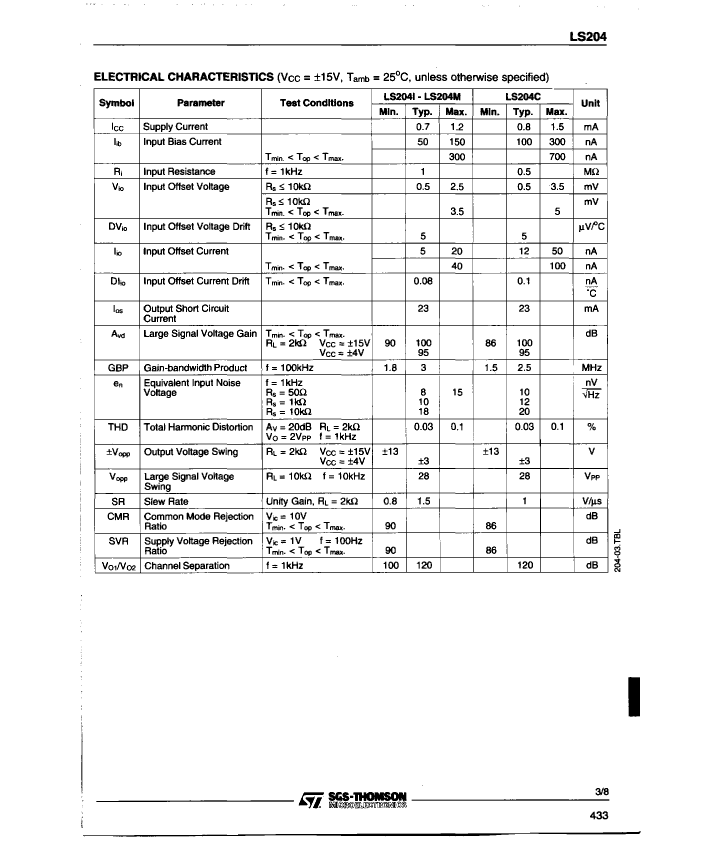

| Parameter Name | Attribute value |
| Is it lead-free? | Contains lead |
| Is it Rohs certified? | incompatible |
| Parts packaging code | TO-99 |
| package instruction | TO-99, 8 PIN |
| Contacts | 8 |
| Reach Compliance Code | not_compliant |
| ECCN code | EAR99 |
| Amplifier type | OPERATIONAL AMPLIFIER |
| Architecture | VOLTAGE-FEEDBACK |
| Maximum average bias current (IIB) | 0.3 µA |
| Maximum bias current (IIB) at 25C | 0.3 µA |
| Nominal Common Mode Rejection Ratio | 90 dB |
| frequency compensation | YES |
| Maximum input offset voltage | 3500 µV |
| JESD-30 code | O-MBCY-W8 |
| JESD-609 code | e0 |
| low-dissonance | NO |
| Nominal Negative Supply Voltage (Vsup) | -15 V |
| Number of functions | 2 |
| Number of terminals | 8 |
| Maximum operating temperature | 105 °C |
| Minimum operating temperature | -40 °C |
| Package body material | METAL |
| Encapsulate equivalent code | TO-5,8PIN,DIL |
| Package shape | ROUND |
| Package form | CYLINDRICAL |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| power supply | +-15 V |
| Certification status | Not Qualified |
| minimum slew rate | 0.8 V/us |
| Nominal slew rate | 1.5 V/us |
| Maximum slew rate | 1.2 mA |
| Supply voltage upper limit | 18 V |
| Nominal supply voltage (Vsup) | 15 V |
| surface mount | NO |
| technology | BIPOLAR |
| Temperature level | INDUSTRIAL |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | WIRE |
| Terminal location | BOTTOM |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| Nominal Uniform Gain Bandwidth | 3000 kHz |
| Minimum voltage gain | 31600 |
| Base Number Matches | 1 |
| LS204IH | LS204CH | LS204MH | |
|---|---|---|---|
| Description | DUAL OP-AMP, 3500uV OFFSET-MAX, 3MHz BAND WIDTH, MBCY8, TO-99, 8 PIN | DUAL OP-AMP, 5000uV OFFSET-MAX, 2.5MHz BAND WIDTH, MBCY8, TO-99, 8 PIN | DUAL OP-AMP, 3500uV OFFSET-MAX, 3MHz BAND WIDTH, MBCY8, TO-99, 8 PIN |
| Is it lead-free? | Contains lead | Contains lead | Contains lead |
| Is it Rohs certified? | incompatible | incompatible | incompatible |
| Parts packaging code | TO-99 | TO-99 | TO-99 |
| package instruction | TO-99, 8 PIN | TO-99, 8 PIN | TO-99, 8 PIN |
| Contacts | 8 | 8 | 8 |
| Reach Compliance Code | not_compliant | not_compliant | not_compliant |
| ECCN code | EAR99 | EAR99 | EAR99 |
| Amplifier type | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER |
| Architecture | VOLTAGE-FEEDBACK | VOLTAGE-FEEDBACK | VOLTAGE-FEEDBACK |
| Maximum average bias current (IIB) | 0.3 µA | 0.7 µA | 0.3 µA |
| Maximum bias current (IIB) at 25C | 0.3 µA | 0.7 µA | 0.3 µA |
| Nominal Common Mode Rejection Ratio | 90 dB | 86 dB | 90 dB |
| frequency compensation | YES | YES | YES |
| Maximum input offset voltage | 3500 µV | 5000 µV | 3500 µV |
| JESD-30 code | O-MBCY-W8 | O-MBCY-W8 | O-MBCY-W8 |
| JESD-609 code | e0 | e0 | e0 |
| low-dissonance | NO | NO | NO |
| Nominal Negative Supply Voltage (Vsup) | -15 V | -15 V | -15 V |
| Number of functions | 2 | 2 | 2 |
| Number of terminals | 8 | 8 | 8 |
| Maximum operating temperature | 105 °C | 70 °C | 125 °C |
| Minimum operating temperature | -40 °C | - | -55 °C |
| Package body material | METAL | METAL | METAL |
| Encapsulate equivalent code | TO-5,8PIN,DIL | TO-5,8PIN,DIL | TO-5,8PIN,DIL |
| Package shape | ROUND | ROUND | ROUND |
| Package form | CYLINDRICAL | CYLINDRICAL | CYLINDRICAL |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| power supply | +-15 V | +-15 V | +-15 V |
| Certification status | Not Qualified | Not Qualified | Not Qualified |
| Nominal slew rate | 1.5 V/us | 1 V/us | 1.5 V/us |
| Maximum slew rate | 1.2 mA | 1.5 mA | 1.2 mA |
| Supply voltage upper limit | 18 V | 18 V | 18 V |
| Nominal supply voltage (Vsup) | 15 V | 15 V | 15 V |
| surface mount | NO | NO | NO |
| technology | BIPOLAR | BIPOLAR | BIPOLAR |
| Temperature level | INDUSTRIAL | COMMERCIAL | MILITARY |
| Terminal surface | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Terminal form | WIRE | WIRE | WIRE |
| Terminal location | BOTTOM | BOTTOM | BOTTOM |
| Maximum time at peak reflow temperature | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Nominal Uniform Gain Bandwidth | 3000 kHz | 2500 kHz | 3000 kHz |
| Minimum voltage gain | 31600 | 20000 | 31600 |
| minimum slew rate | 0.8 V/us | - | 0.8 V/us |
| Base Number Matches | 1 | 1 | - |
