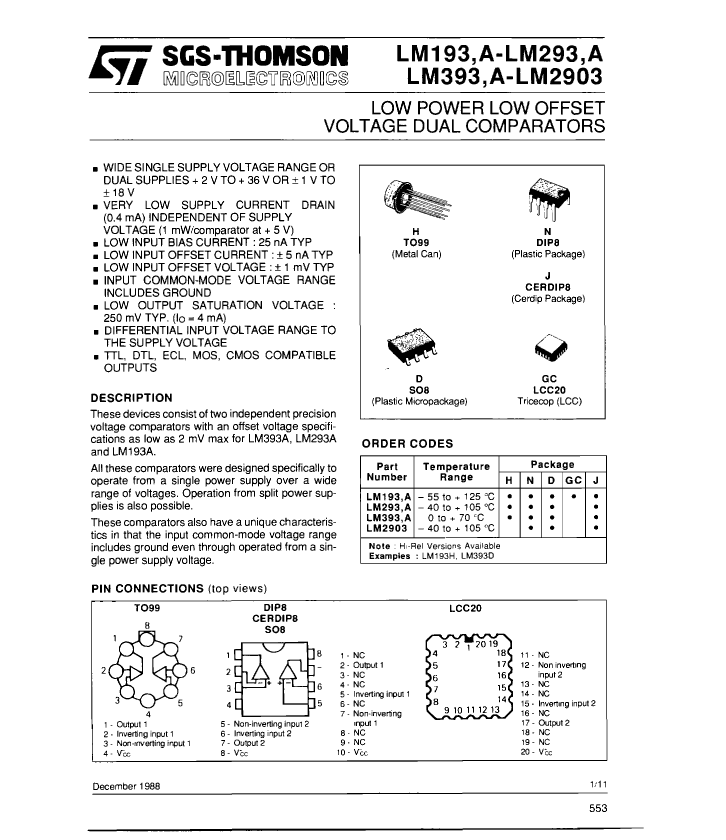

Basic information of LM193AGC amplifier:
LM193AGC is a COMPARATOR. The commonly used packaging method is LCC-20

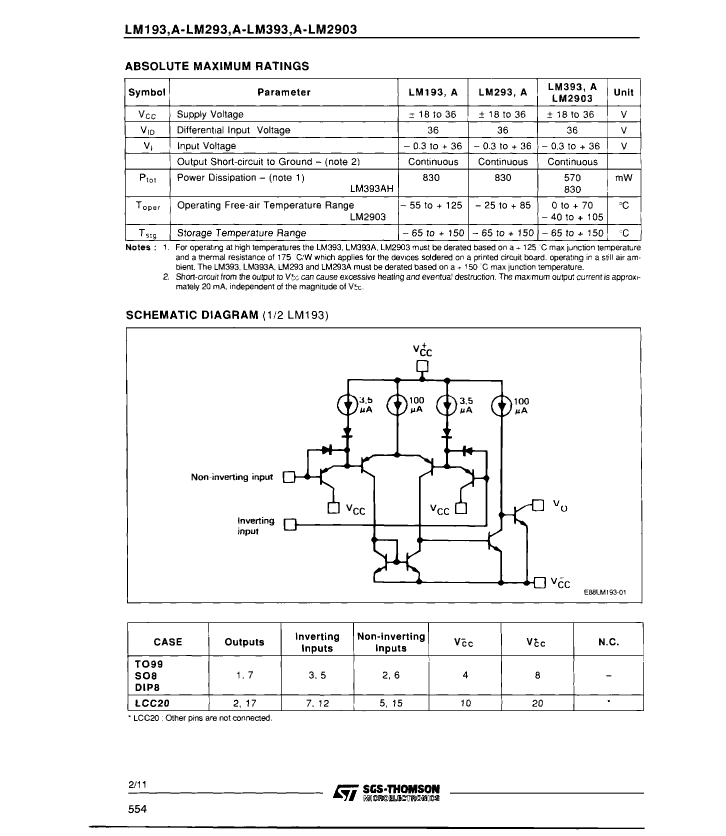

LM193AGC amplifier core information:

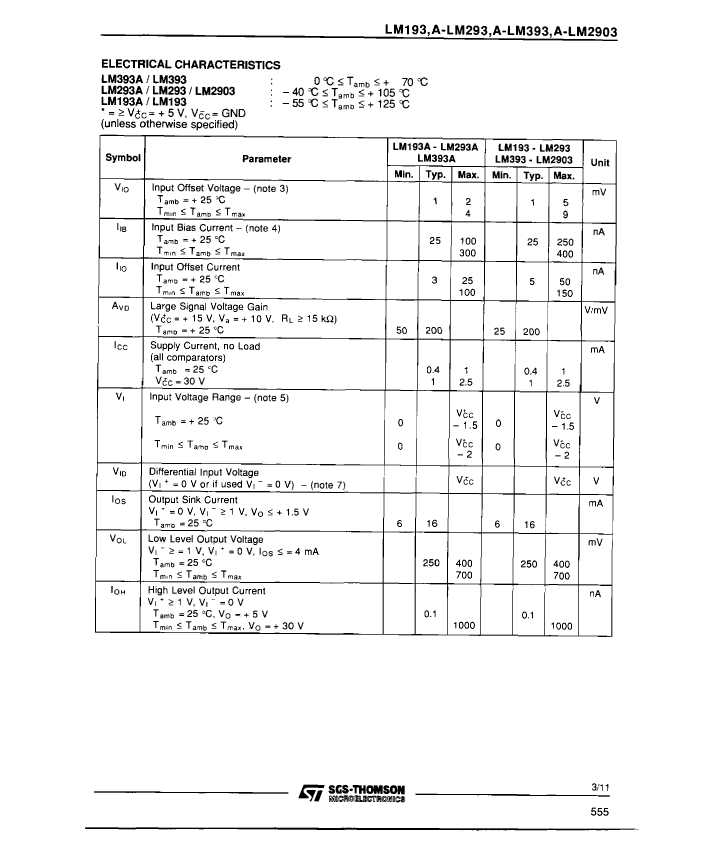

The minimum operating temperature of the LM193AGC is -55 °C and the maximum operating temperature is 125 °C. Maximum bias current at 25°C: 0.1 µA Maximum average bias current is 0.3 µA
When it comes to an amplifier's sensitivity, nothing is better than its nominal response time. The LM193AGC only takes 1300 ns to complete the response. The maximum slew rate of the LM193AGC given by the manufacturer is 2.5 mA.
The nominal supply voltage of LM193AGC is 5 V, and its corresponding nominal negative supply voltage is. The input offset voltage of the LM193AGC is 4000 µV (input offset voltage: the compensation voltage added between the two input terminals to make the output terminal of the operational amplifier 0V (or close to 0V).)
Related dimensions of LM193AGC:
The width of LM193AGC is: 8.89 mm, the length is 8.89 mm. LM193AGC has 20 terminals. Its terminal position type is: QUAD. Terminal pitch is 1.27 mm. Total pins: 20
LM193AGC amplifier additional information:
Its temperature grade is: MILITARY. The LM193AGC is not Rohs certified. The corresponding JESD-30 code is: S-CQCC-N20. The corresponding JESD-609 code is: e0. The packaging code of LM193AGC is: QCCN.
The materials used in the LM193AGC package are mostly CERAMIC, METAL-SEALED COFIRED. The package shape is SQUARE. The LM193AGC package pin format is: CHIP CARRIER. Its terminal forms are: NO LEAD. The maximum seat height is 1.86 mm.
Basic information of LM193AGC amplifier:
LM193AGC is a COMPARATOR. The commonly used packaging method is LCC-20

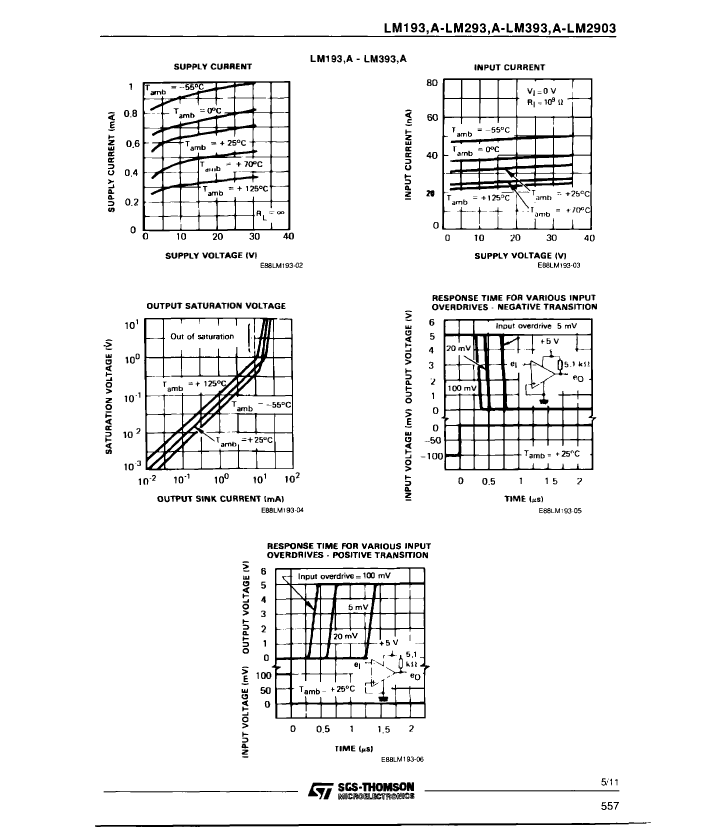

LM193AGC amplifier core information:
The minimum operating temperature of the LM193AGC is -55 °C and the maximum operating temperature is 125 °C. Maximum bias current at 25°C: 0.1 µA Maximum average bias current is 0.3 µA

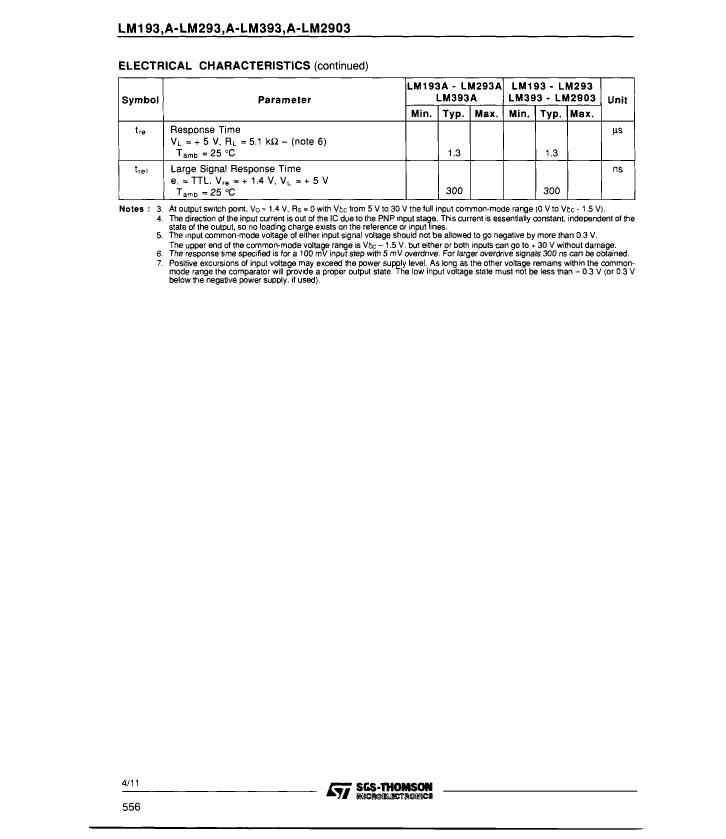

When it comes to an amplifier's sensitivity, nothing is better than its nominal response time. The LM193AGC only takes 1300 ns to complete the response. The maximum slew rate of the LM193AGC given by the manufacturer is 2.5 mA.
The nominal supply voltage of LM193AGC is 5 V, and its corresponding nominal negative supply voltage is. The input offset voltage of the LM193AGC is 4000 µV (input offset voltage: the compensation voltage added between the two input terminals to make the output terminal of the operational amplifier 0V (or close to 0V).)
Related dimensions of LM193AGC:
The width of LM193AGC is: 8.89 mm, the length is 8.89 mm. LM193AGC has 20 terminals. Its terminal position type is: QUAD. Terminal pitch is 1.27 mm. Total pins: 20
LM193AGC amplifier additional information:
Its temperature grade is: MILITARY. The LM193AGC is not Rohs certified. The corresponding JESD-30 code is: S-CQCC-N20. The corresponding JESD-609 code is: e0. The packaging code of LM193AGC is: QCCN.
The materials used in the LM193AGC package are mostly CERAMIC, METAL-SEALED COFIRED. The package shape is SQUARE. The LM193AGC package pin format is: CHIP CARRIER. Its terminal forms are: NO LEAD. The maximum seat height is 1.86 mm.
| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Parts packaging code | QLCC |
| package instruction | LCC-20 |
| Contacts | 20 |
| Reach Compliance Code | not_compliant |
| ECCN code | EAR99 |
| Amplifier type | COMPARATOR |
| Maximum average bias current (IIB) | 0.3 µA |
| Maximum bias current (IIB) at 25C | 0.1 µA |
| Maximum input offset voltage | 4000 µV |
| JESD-30 code | S-CQCC-N20 |
| JESD-609 code | e0 |
| length | 8.89 mm |
| Negative supply voltage upper limit | |
| Nominal Negative Supply Voltage (Vsup) | |
| Number of functions | 2 |
| Number of terminals | 20 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Output type | OPEN-COLLECTOR |
| Package body material | CERAMIC, METAL-SEALED COFIRED |
| encapsulated code | QCCN |
| Encapsulate equivalent code | LCC20,.35SQ |
| Package shape | SQUARE |
| Package form | CHIP CARRIER |
| power supply | 5 V |
| Certification status | Not Qualified |
| Nominal response time | 1300 ns |
| Maximum seat height | 1.86 mm |
| Maximum slew rate | 2.5 mA |
| Supply voltage upper limit | 36 V |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | YES |
| technology | BIPOLAR |
| Temperature level | MILITARY |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | NO LEAD |
| Terminal pitch | 1.27 mm |
| Terminal location | QUAD |
| width | 8.89 mm |
| Base Number Matches | 1 |
| LM193AGC | LM193GC | |
|---|---|---|
| Description | DUAL COMPARATOR, 4000uV OFFSET-MAX, 1300ns RESPONSE TIME, CQCC20, LCC-20 | DUAL COMPARATOR, 9000uV OFFSET-MAX, 1300ns RESPONSE TIME, CQCC20, LCC-20 |
| Is it Rohs certified? | incompatible | incompatible |
| Parts packaging code | QLCC | QLCC |
| package instruction | LCC-20 | QCCN, LCC20,.35SQ |
| Contacts | 20 | 20 |
| Reach Compliance Code | not_compliant | not_compliant |
| ECCN code | EAR99 | EAR99 |
| Amplifier type | COMPARATOR | COMPARATOR |
| Maximum average bias current (IIB) | 0.3 µA | 0.4 µA |
| Maximum bias current (IIB) at 25C | 0.1 µA | 0.25 µA |
| Maximum input offset voltage | 4000 µV | 9000 µV |
| JESD-30 code | S-CQCC-N20 | S-CQCC-N20 |
| JESD-609 code | e0 | e0 |
| length | 8.89 mm | 8.89 mm |
| Number of functions | 2 | 2 |
| Number of terminals | 20 | 20 |
| Maximum operating temperature | 125 °C | 125 °C |
| Minimum operating temperature | -55 °C | -55 °C |
| Output type | OPEN-COLLECTOR | OPEN-COLLECTOR |
| Package body material | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED |
| encapsulated code | QCCN | QCCN |
| Encapsulate equivalent code | LCC20,.35SQ | LCC20,.35SQ |
| Package shape | SQUARE | SQUARE |
| Package form | CHIP CARRIER | CHIP CARRIER |
| power supply | 5 V | 5 V |
| Certification status | Not Qualified | Not Qualified |
| Nominal response time | 1300 ns | 1300 ns |
| Maximum seat height | 1.86 mm | 1.86 mm |
| Maximum slew rate | 2.5 mA | 2.5 mA |
| Supply voltage upper limit | 36 V | 36 V |
| Nominal supply voltage (Vsup) | 5 V | 5 V |
| surface mount | YES | YES |
| technology | BIPOLAR | BIPOLAR |
| Temperature level | MILITARY | MILITARY |
| Terminal surface | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Terminal form | NO LEAD | NO LEAD |
| Terminal pitch | 1.27 mm | 1.27 mm |
| Terminal location | QUAD | QUAD |
| width | 8.89 mm | 8.89 mm |
