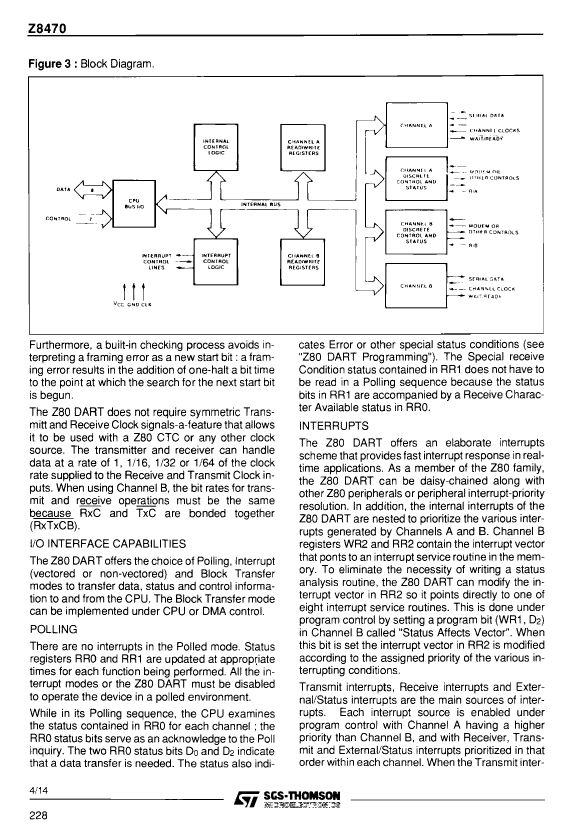

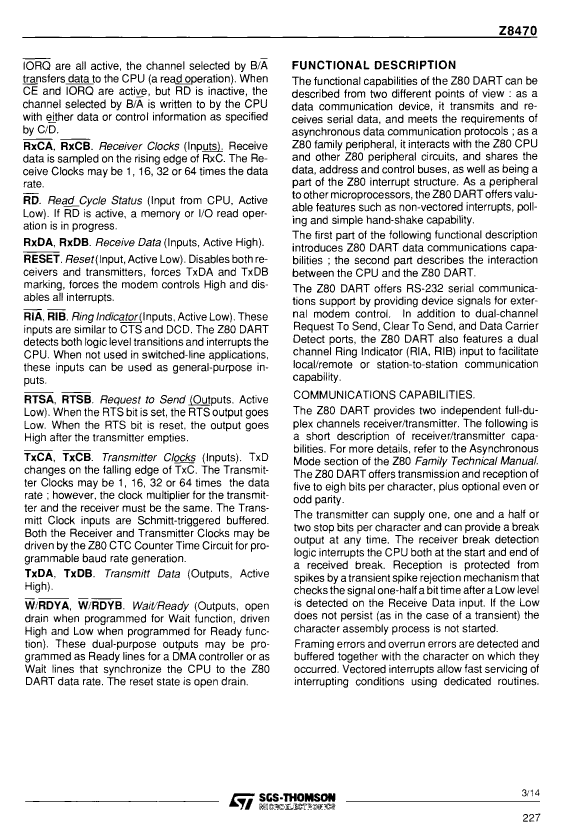

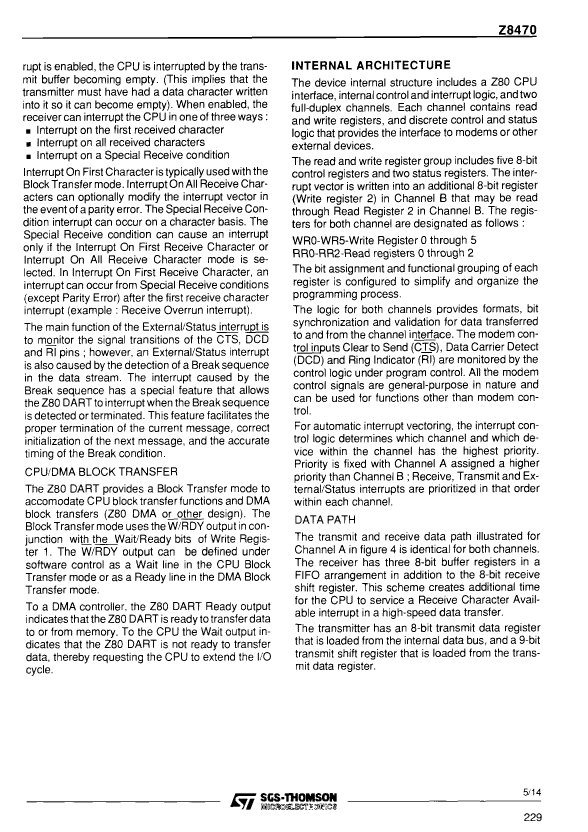

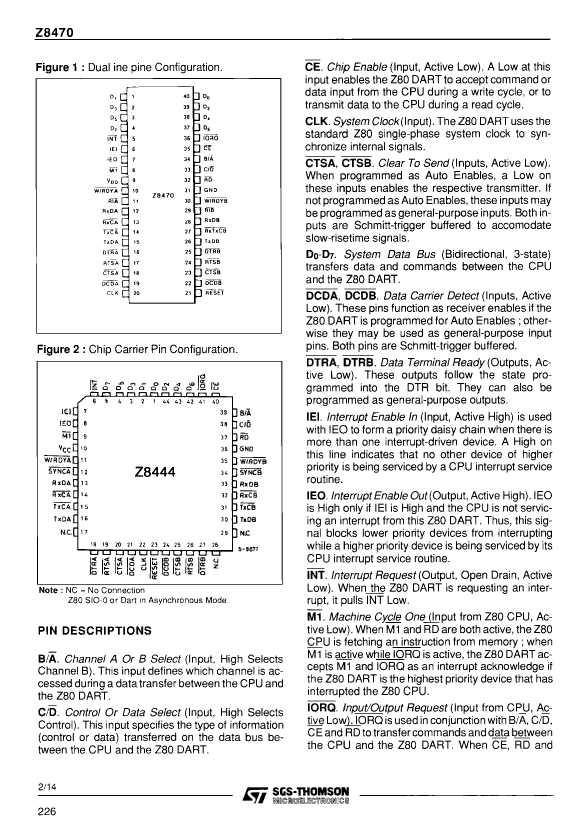

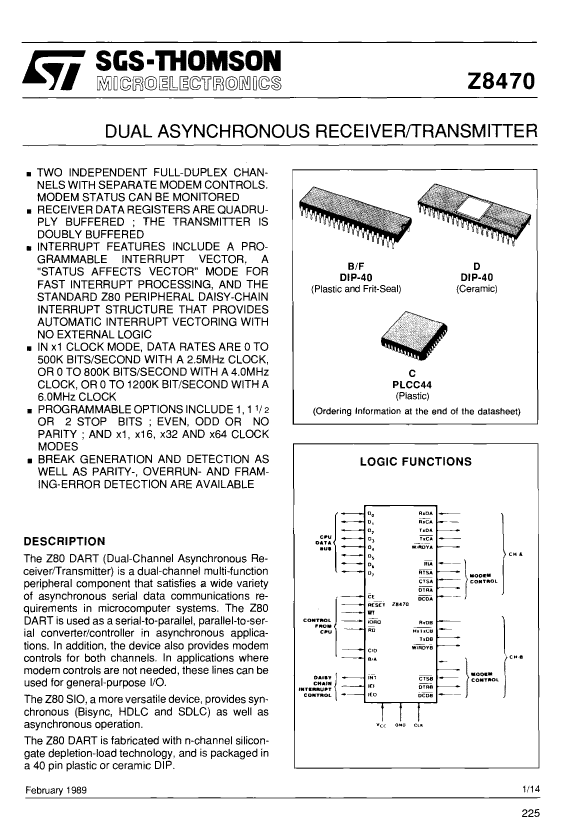

Preview

Z8474C1: Description2 CHANNEL(S), 500Kbps, SERIAL COMM CONTROLLER, PQCC44, PLASTIC, LCC-44; CategoryThe embedded processor and controller Microcontrollers and processors; File Size541KB，14 Pages; ManufacturerSTMicroelectronics; Websitehttp://www.st.com/

Download Datasheet Parametric Compare View All

Z8474C1 Overview

2 CHANNEL(S), 500Kbps, SERIAL COMM CONTROLLER, PQCC44, PLASTIC, LCC-44

Z8474C1 Parametric

Parameter Name	Attribute value
Parts packaging code	LCC
package instruction	QCCJ,
Contacts	44
Reach Compliance Code	unknown
Other features	MODEM CONTROL I/OS USABLE AS GENERAL PURPOSE I/OS
boundary scan	NO
Bus compatibility	Z80
maximum clock frequency	2.5 MHz
letter of agreement	ASYNC, BIT
Data encoding/decoding methods	NRZ
Maximum data transfer rate	0.06103515625 MBps
External data bus width	8
JESD-30 code	S-PQCC-J44
length	16.5862 mm
low power mode	NO
Number of DMA channels
Number of I/O lines
Number of serial I/Os	2
Number of terminals	44
On-chip data RAM width
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	QCCJ
Package shape	SQUARE
Package form	CHIP CARRIER
Certification status	Not Qualified
RAM (number of words)	0
Maximum seat height	4.57 mm
Maximum slew rate	100 mA
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	YES
technology	NMOS
Temperature level	COMMERCIAL
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	QUAD
width	16.5862 mm
uPs/uCs/peripheral integrated circuit type	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL
Base Number Matches	1

Preview

Download Datasheet

View All

Z8474C1 Related Products

	Z8474C1	Z8474AC1	Z8474BC1
Description	2 CHANNEL(S), 500Kbps, SERIAL COMM CONTROLLER, PQCC44, PLASTIC, LCC-44	2 CHANNEL(S), 800Kbps, SERIAL COMM CONTROLLER, PQCC44, PLASTIC, LCC-44	2 CHANNEL(S), 1200Kbps, SERIAL COMM CONTROLLER, PQCC44, PLASTIC, LCC-44
Parts packaging code	LCC	LCC	LCC
package instruction	QCCJ,	QCCJ,	QCCJ,
Contacts	44	44	44
Reach Compliance Code	unknown	unknown	unknown
Other features	MODEM CONTROL I/OS USABLE AS GENERAL PURPOSE I/OS	MODEM CONTROL I/OS USABLE AS GENERAL PURPOSE I/OS	MODEM CONTROL I/OS USABLE AS GENERAL PURPOSE I/OS
boundary scan	NO	NO	NO
Bus compatibility	Z80	Z80	Z80
maximum clock frequency	2.5 MHz	4 MHz	6 MHz
letter of agreement	ASYNC, BIT	ASYNC, BIT	ASYNC, BIT
Data encoding/decoding methods	NRZ	NRZ	NRZ
Maximum data transfer rate	0.06103515625 MBps	0.09765625 MBps	0.146484375 MBps
External data bus width	8	8	8
JESD-30 code	S-PQCC-J44	S-PQCC-J44	S-PQCC-J44
length	16.5862 mm	16.5862 mm	16.5862 mm
low power mode	NO	NO	NO
Number of serial I/Os	2	2	2
Number of terminals	44	44	44
Maximum operating temperature	70 °C	70 °C	70 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QCCJ	QCCJ	QCCJ
Package shape	SQUARE	SQUARE	SQUARE
Package form	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	4.57 mm	4.57 mm	4.57 mm
Maximum slew rate	100 mA	100 mA	100 mA
Maximum supply voltage	5.25 V	5.25 V	5.25 V
Minimum supply voltage	4.75 V	4.75 V	4.75 V
Nominal supply voltage	5 V	5 V	5 V
surface mount	YES	YES	YES
technology	NMOS	NMOS	NMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	J BEND	J BEND	J BEND
Terminal pitch	1.27 mm	1.27 mm	1.27 mm
Terminal location	QUAD	QUAD	QUAD
width	16.5862 mm	16.5862 mm	16.5862 mm
uPs/uCs/peripheral integrated circuit type	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL
Base Number Matches	1	1	-
