SHOULDER
SPECIFICATION
Item:
Type:
Ceramic Filter
LTS…W
Optional
SHOULDER
LTS...W
Scope
This specification shall cover the characteristics of the XT…MB Ceramic Filter.
Ceramic Filters LTM 455/450W Series are miniaturized versions of
the CFU/CFWS lines. These compact, highly selective
characteristics are recommended for use in applications ranging
from two-way radio to auxiliary filters in high class
transceivers.These ultra-miniature versions consume approximately
40% less volume while still offering the same high performance
characteristics.
Table 1
Part Number
LTS450BW
LTS455BW
LTS450CW
LTS455CV
LTS450DW
LTS455DW
LTS450EW
LTS455EW
LTS450FW
LTS455FW
LTS450GW
LTS455GW
LTS450HW
LTS455HW
LTS450IW
LTS455IW
LTS450HTW
LTS455HTW
Center
Frequency
In (KHz)
450 + 2.0
455 + 2.0
450 + 2.0
455 + 2.0
450 + 1.5
455 + 1.5
450 + 1.5
455 + 1.5
450 + 1.5
455 + 1.5
450 + 1.5
455 + 1.5
450 + 1.0
455 + 1.0
450 + 1.0
455 + 1.0
450 + 1.0
455 + 1.0
Insertion
Loss (dB)
4
4
4
4
4
4
6
6
6
6
6
6
6
6
6
6
6
6
Pass Band
Ripple (dB) max
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
6dB
Bandwidth
(KHz) min
+
15
+
15
+
12.5
+
12.5
+
10
+
10
+
7.5
+
7.5
+
6
+
6
+
4.5
+
4.5
+
3
+
3
+
2
+
2
+
3
+
3
50dB
Bandwidth
(KHz) min
+
30
+
30
+
24
+
24
+
20
+
20
+
15
+
15
+
12.5
+
12.5
+
10
+
10
+
9
+
9
+
7.5
+
7.5
+
9
+
9
Stop Band
Att. 10KHz
(dB) min
Input/Output
Impedance
(Ω)
45
45
45
45
45
45
45
45
45
45
45
45
45
45
45
45
60
60
1500
1500
1500
1500
1500
1500
1500
1500
2000
2000
2000
2000
2000
2000
2000
2000
2000
2000
SHOULDER INDÚSTRIA ELETRÔNICA LTDA
Rua Vereador Antonio Zamarioni, 105 (Portal de Extrema)
CEP 37640-000 Extrema / MG
Page 2 of 4
www.hdshoulder.com.br
SHOULDER
LTS...W

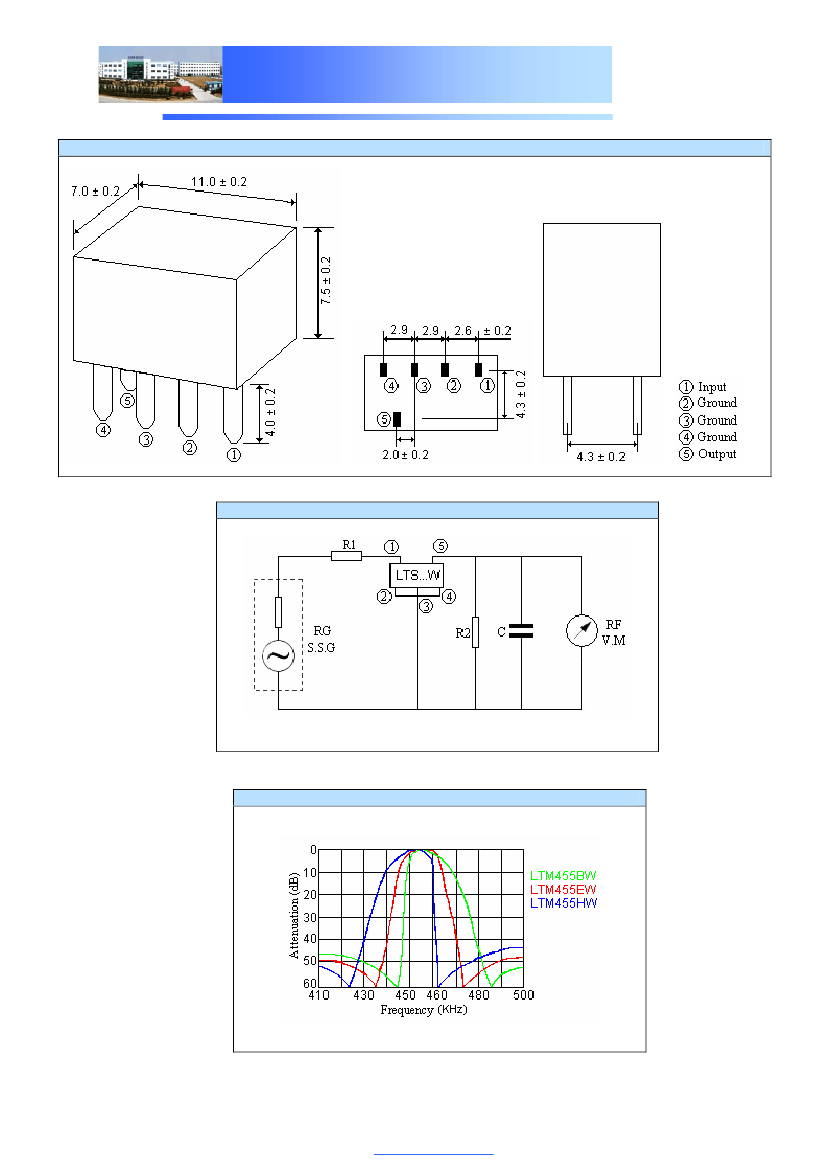

Mechanical Dimensions (All in mm) LTS...W
Test Circuit LTS...W
Rg + R1= R2= Input/Output Impedance
Series Characteristics LTS...W
SHOULDER INDÚSTRIA ELETRÔNICA LTDA
Rua Vereador Antonio Zamarioni, 105 (Portal de Extrema)
CEP 37640-000 Extrema / MG
Page 3 of 4
www.hdshoulder.com.br
SHOULDER
LTS...W
Through Hole Ceramic Filter Part Numbering System (Example)
LTS455EW
455
S
Part Number
Center Frequency In
(KHz)
See Table (1)
Option
(can be blank)
S = Standard
X = Additional Specifications
See Table (1)
SHOULDER INDÚSTRIA ELETRÔNICA LTDA
Rua Vereador Antonio Zamarioni, 105 (Portal de Extrema)
CEP 37640-000 Extrema / MG
Page 4 of 4
www.hdshoulder.com.br
