QUESTO DISEGNO E' DI PROPRIETA' DELLA KONTEK COMATEL S.p.a. E NON PUO' ESSERE USATO,
E/O CEDUTO A TERZI SENZA IL PERMESSO SCRITTO DELLA KONTEK COMATEL S.p.a.
THIS DRAWING IS THE PROPERTY OF KONTEK COMATEL S.p.a. AND IT CAN NOT BE USED, REPRODUCED
AND OR LOANED TO THIRD PARTIES WITHOUT THE WRITTEN PERMISSION OF KONTEK COMATEL S.p.a.
(N/2) x2.00 + 0.75±0.30
(N/2 -1) x2.00±0.20
2.0±0.10
4.90±0.15
5.15±0.15
1.60
1.50
0.90
PIN 0.60X0.20
2.00xN of position-8.00±0.15
2.87
8.30±0.25
1.00
2.0
Packaging:
??= T: Tube
??= R: Tape & reel
9.00
Ø1.10
A
INDEX
21-08-06
DATE
Updating quote, 5.15 was 5.10, 4.90 was 5.00, 1.60 was 1.65, add locating Peg, updating PCB layout
MODIFICATION
UNIT:mm
2.20
.X 0.25mm
Insulator: Nylon 6T
Pin: copper alloy
Material_____________________________________________________________________________________________________________
.XX 0.20mm
Date
Y= 0: GOLD PLATED 0.25µm
Y= 1: GOLD FLASH
Y= 4: TIN PLATED
Y= 7: SELECTIVE GOLD 0.25µm
28-09-05
Platings_____________________________________________________________________________________________________________ _____________
general tolerance
4.80
Design
Recommended PCB Layout
(PCB TOLERANCE ±0.05)
XX= N: Number of contacts (04÷100) for 100 sign 00.
Z=1=with locating Peg
Z=0=without locating Peg
Pandiscia M.
Protection____________________________________________________________________________________________________________ _____________
Contr.
Denomination___________________________________ Cod.________________________________ _____________

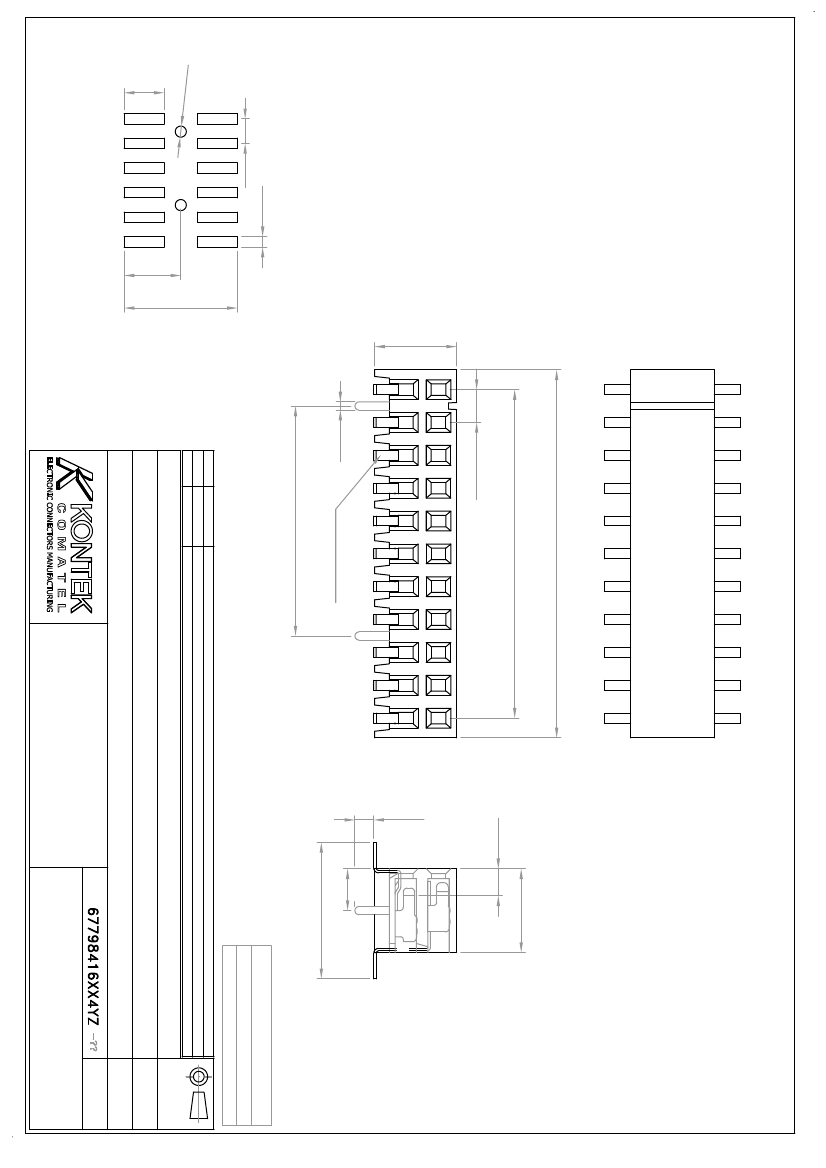

FEMALE HEADER 2.0mm SIDE ENTRY SMT
______________________________________________
File: 67798416XX4YZ
______________________________________________
MOD. M640
A
Dis. Nr._______________I_I_I_I_I_I_I
