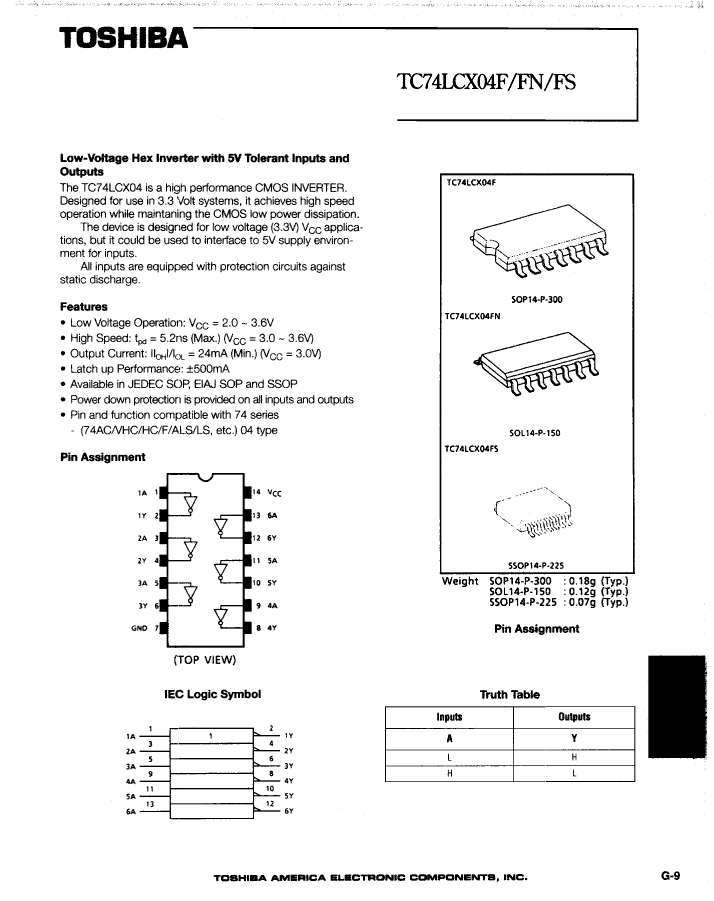

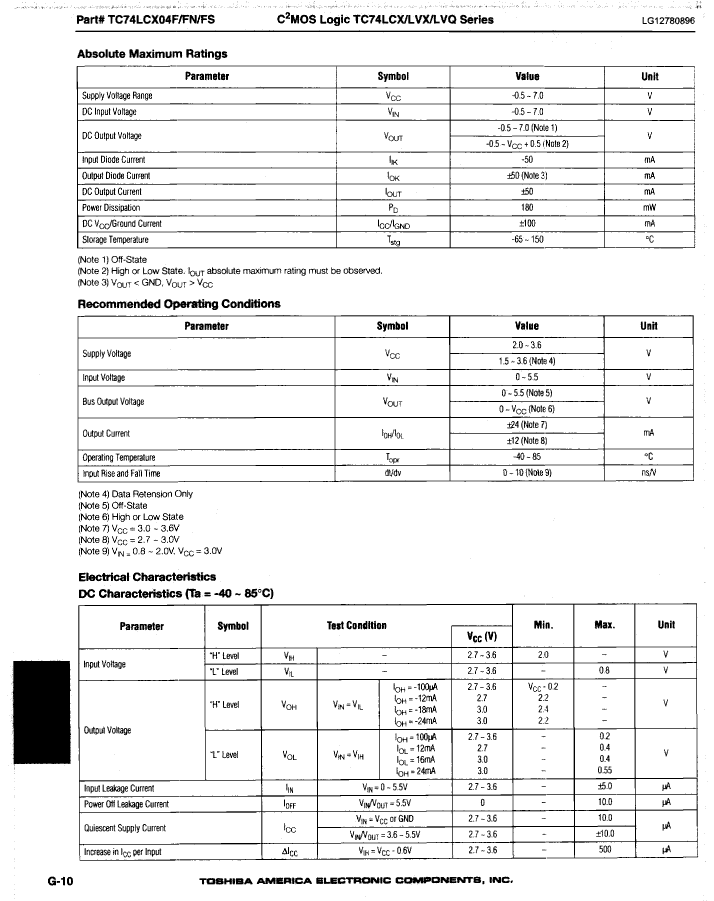

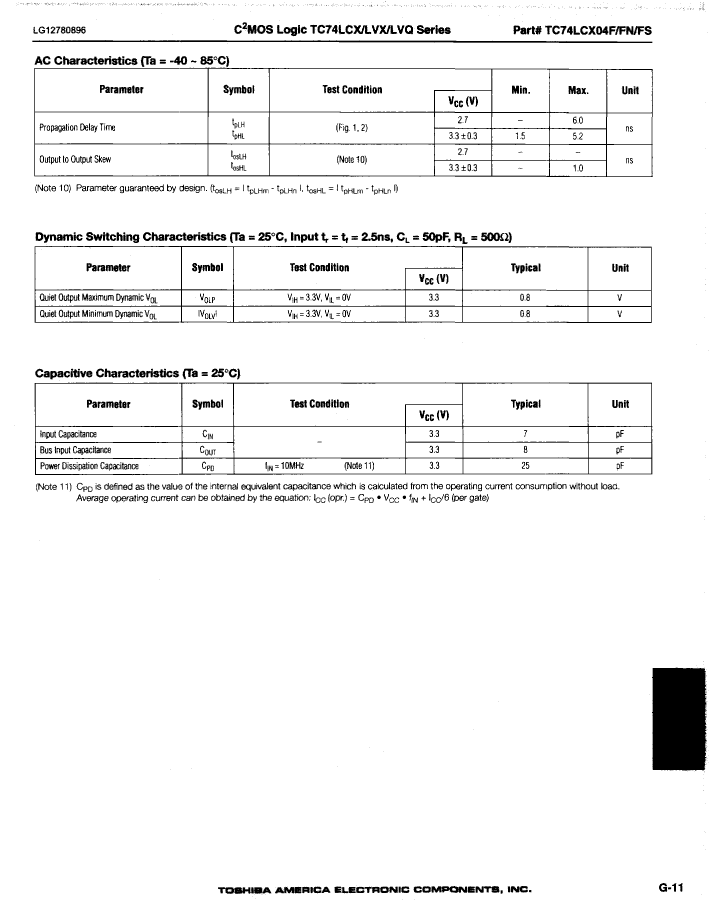

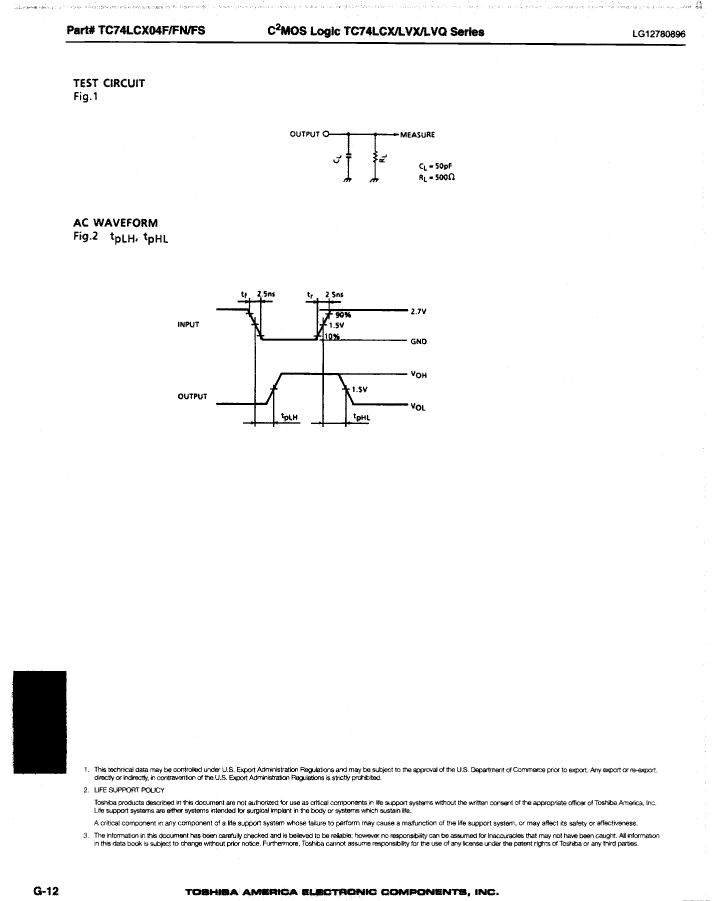

TC74LCX04FS-EL: DescriptionIC LVC/LCX/Z SERIES, HEX 1-INPUT INVERT GATE, PDSO14, 0.225 INCH, EIAJ TYPE1, PLASTIC, SSOP-14, Gate; Categorylogic logic; File Size118KB，4 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric Compare View All

TC74LCX04FS-EL Overview

IC LVC/LCX/Z SERIES, HEX 1-INPUT INVERT GATE, PDSO14, 0.225 INCH, EIAJ TYPE1, PLASTIC, SSOP-14, Gate

TC74LCX04FS-EL Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Parts packaging code	SSOP
package instruction	0.225 INCH, EIAJ TYPE1, PLASTIC, SSOP-14
Contacts	14
Reach Compliance Code	unknown
series	LVC/LCX/Z
JESD-30 code	R-PDSO-G14
JESD-609 code	e0
length	5 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	INVERTER
Number of functions	6
Number of entries	1
Number of terminals	14
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	LSSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	240
propagation delay (tpd)	5.2 ns
Certification status	Not Qualified
Maximum seat height	1.6 mm
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	2 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	TIN LEAD
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	4.4 mm
Base Number Matches	1

Preview

Download Datasheet

View All

TC74LCX04FS-EL Related Products

	TC74LCX04FS-EL	TC74LCX04F(ELP)	TC74LCX04F(EL)	TC74LCX04FN(EL)
Description	IC LVC/LCX/Z SERIES, HEX 1-INPUT INVERT GATE, PDSO14, 0.225 INCH, EIAJ TYPE1, PLASTIC, SSOP-14, Gate	IC LVC/LCX/Z SERIES, HEX 1-INPUT INVERT GATE, PDSO14, 0.300 INCH, EIAJ TYPE2, PLASTIC, SOP-14, Gate	IC LVC/LCX/Z SERIES, HEX 1-INPUT INVERT GATE, PDSO14, 0.300 INCH, EIAJ TYPE2, PLASTIC, SOP-14, Gate	IC LVC/LCX/Z SERIES, HEX 1-INPUT INVERT GATE, PDSO14, 0.150 INCH, PLASTIC, SOP-14, Gate
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Parts packaging code	SSOP	SOIC	SOIC	SOIC
package instruction	0.225 INCH, EIAJ TYPE1, PLASTIC, SSOP-14	SOP,	SOP,	SOP, SOP14,.25
Contacts	14	14	14	14
Reach Compliance Code	unknown	unknown	unknown	unknown
series	LVC/LCX/Z	LVC/LCX/Z	LVC/LCX/Z	LVC/LCX/Z
JESD-30 code	R-PDSO-G14	R-PDSO-G14	R-PDSO-G14	R-PDSO-G14
length	5 mm	10.3 mm	10.3 mm	8.65 mm
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF
Logic integrated circuit type	INVERTER	INVERTER	INVERTER	INVERTER
Number of functions	6	6	6	6
Number of entries	1	1	1	1
Number of terminals	14	14	14	14
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	LSSOP	SOP	SOP	SOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	240	240	240	240
propagation delay (tpd)	5.2 ns	5.2 ns	5.2 ns	5.2 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.6 mm	1.9 mm	1.9 mm	1.75 mm
Maximum supply voltage (Vsup)	3.6 V	3.6 V	3.6 V	3.6 V
Minimum supply voltage (Vsup)	2 V	2 V	2 V	2 V
Nominal supply voltage (Vsup)	3.3 V	3.3 V	3.3 V	3.3 V
surface mount	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	0.65 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	4.4 mm	5.3 mm	5.3 mm	3.9 mm
JESD-609 code	e0	e0	e0	-
Terminal surface	TIN LEAD	TIN LEAD	TIN LEAD	-
Base Number Matches	1	1	1	-
