74HC/HCT173
Quad D-type flip-flop; positive-edge
trigger; 3-state
Product specification
File under Integrated Circuits, IC06
December 1990
Philips Semiconductors
Product specification
Quad D-type flip-flop; positive-edge trigger; 3-state
FEATURES
•
Gated input enable for hold (do nothing) mode
•
Gated output enable control
•
Edge-triggered D-type register
•
Asynchronous master reset
•
Output capability: bus driver
•
I
CC
category: MSI
GENERAL DESCRIPTION
The 74HC/HCT173 are high-speed Si-gate CMOS devices
and are pin compatible with low power Schottky TTL
(LSTTL). They are specified in compliance with JEDEC
standard no. 7A.
The 74HC/HCT173 are 4-bit parallel load registers with
clock enable control, 3-state buffered outputs (Q
0
to Q
3
)
and master reset (MR).
When the two data enable inputs (E
1
and E
2
) are LOW, the
data on the D
n
inputs is loaded into the register
QUICK REFERENCE DATA
GND = 0 V; T
amb
= 25
°C;
t
r
= t
f
= 6 ns
74HC/HCT173
synchronously with the LOW-to-HIGH clock (CP)
transition. When one or both E
n
inputs are HIGH one
set-up time prior to the LOW-to-HIGH clock transition, the
register will retain the previous data. Data inputs and clock
enable inputs are fully edge-triggered and must be stable
only one set-up time prior to the LOW-to-HIGH clock
transition.
The master reset input (MR) is an active HIGH
asynchronous input. When MR is HIGH, all four flip-flops
are reset (cleared) independently of any other input
condition.
The 3-state output buffers are controlled by a 2-input NOR
gate. When both output enable inputs (OE
1
and OE
2
) are
LOW, the data in the register is presented to the Q
n
outputs. When one or both OE
n
inputs are HIGH, the
outputs are forced to a high impedance OFF-state. The
3-state output buffers are completely independent of the
register operation; the OE
n
transition does not affect the
clock and reset operations.
TYPICAL
SYMBOL
t
PHL
/ t
PLH
PARAMETER
propagation delay
CP to Q
n
MR to Q
n
maximum clock frequency
input capacitance
power dissipation
capacitance per flip-flop
notes 1 and 2
CONDITIONS
HC
C
L
= 15 pF; V
CC
= 5 V
17
13
88
3.5
20
17
17
88
3.5
20
ns
ns
MHz
pF
pF
HCT
UNIT
f
max
C
I
C
PD
Notes
1. C
PD
is used to determine the dynamic power dissipation (P
D
in
µW):
P
D
= C
PD
×
V
CC2
×
f
i
+ ∑
(C
L
×
V
CC2
×
f
o
) where:
f
i
= input frequency in MHz
f
o
= output frequency in MHz
∑
(C
L
×
V
CC2
×
f
o
) = sum of outputs
C
L
= output load capacitance in pF
V
CC
= supply voltage in V
2. For HC the condition is V
I
= GND to V
CC
For HCT the condition is V
I
= GND to V
CC
−1.5
V
ORDERING INFORMATION
See
“74HC/HCT/HCU/HCMOS Logic Package Information”.
December 1990
2
Philips Semiconductors
Product specification
Quad D-type flip-flop; positive-edge trigger; 3-state
74HC/HCT173

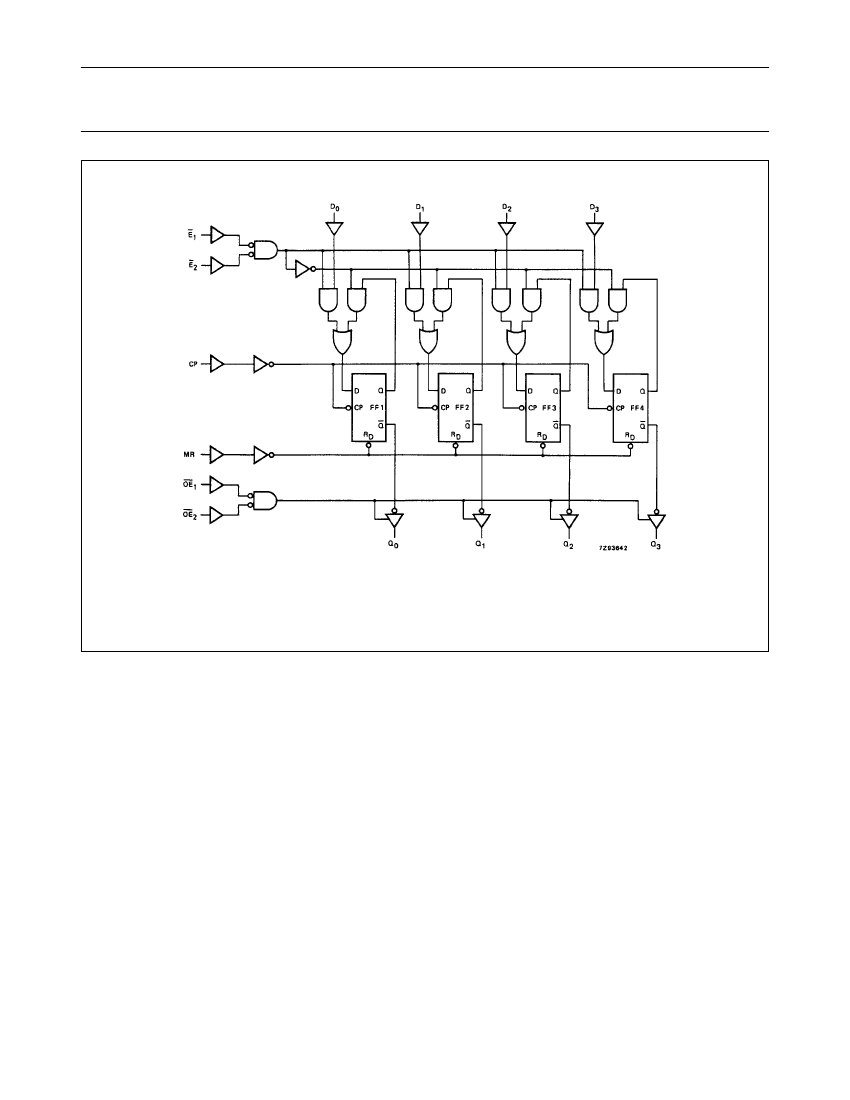

Fig.4 Functional diagram.
FUNCTION TABLE
INPUTS
REGISTER OPERATING MODES
MR
reset (clear)
parallel load
hold (no change)
H
L
L
L
L
CP
X
↑
↑
X
X
E
1
X
l
l
h
X
l
l
X
h
E
2
X
D
n
X
l
h
X
X
Q
n
(register)
L
L
H
q
n
q
n
OUTPUTS
Q
0
L
H
Z
Z
Q
1
L
H
Z
Z
Q
2
L
H
Z
Z
Q
3
L
H
Z
Z
OUTPUTS
INPUTS
3-STATE BUFFER OPERATING MODES
Q
n
(register)
read
disabled
Notes
1. H = HIGH voltage level
h = HIGH voltage level one set-up time prior to the LOW-to-HIGH CP transition
L = LOW voltage level
I = LOW voltage level one set-up time prior to the LOW-to-HIGH CP transition
q = lower case letters indicate the state of the referenced input (or output)
one set-up time prior to the LOW-to-HIGH CP transition
X = don’t care
Z = high impedance OFF-state
↑
= LOW-to-HIGH CP transition
L
H
X
X
OE
1
OE
2
L
L
H
X
L
L
X
H
December 1990
4
