SM9119: Description10 MHz - 1000 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, TO-8, 4 PIN; CategoryWireless rf/communication Radio frequency and microwave; File Size201KB，4 Pages; ManufacturerSpectrum Microwave

Download Datasheet Parametric View All

SM9119 Overview

10 MHz - 1000 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, TO-8, 4 PIN

SM9119 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Other features	I/P POWER-MAX (PEAK)=27DBM
structure	COMPONENT
Gain	7 dB
Maximum input power (CW)	18 dBm
Maximum operating frequency	1000 MHz
Minimum operating frequency	10 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2
Base Number Matches	1

Preview

Download Datasheet

View All

Cross Reference Guide

TM9119 / SM9119*

* Part number for additional environmental screening.

Performance Data

Frequency

Gain

Noise Figure

1dB

Order Intercept

VSWR

Reverse Isolation

Power Supply

Operating Temperature

10.0 - 1000.0 MHz

9.0 dB Typical

7.0 dB Min

8.5 dB Typical

11.0 dB Max

21.0 dBm Typical

19.0 dBm Min

34.0 dBm Typical

40.0 dBm Typical

1.5/2.0 Input Typ/Max

1.5/2.0 Output Typ/Max

-13.0 dB Typical

-12.0 dB Min

15.0 Volts

100.0 mA

-55.0 - 85.0 °C

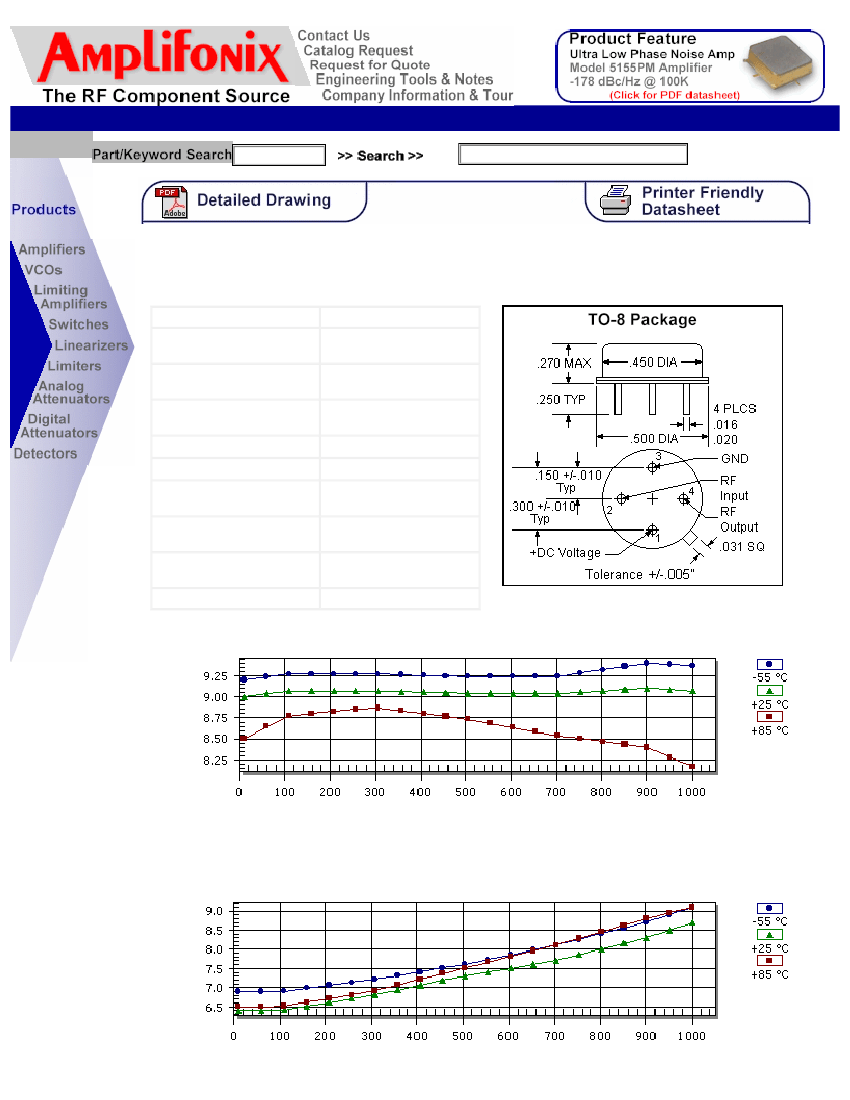

Package Drawing

Gain

Frequency (MHz)

Noise Figure
