DDU-66F-40AME7 datasheet, PDF - EEWORLD Datasheet

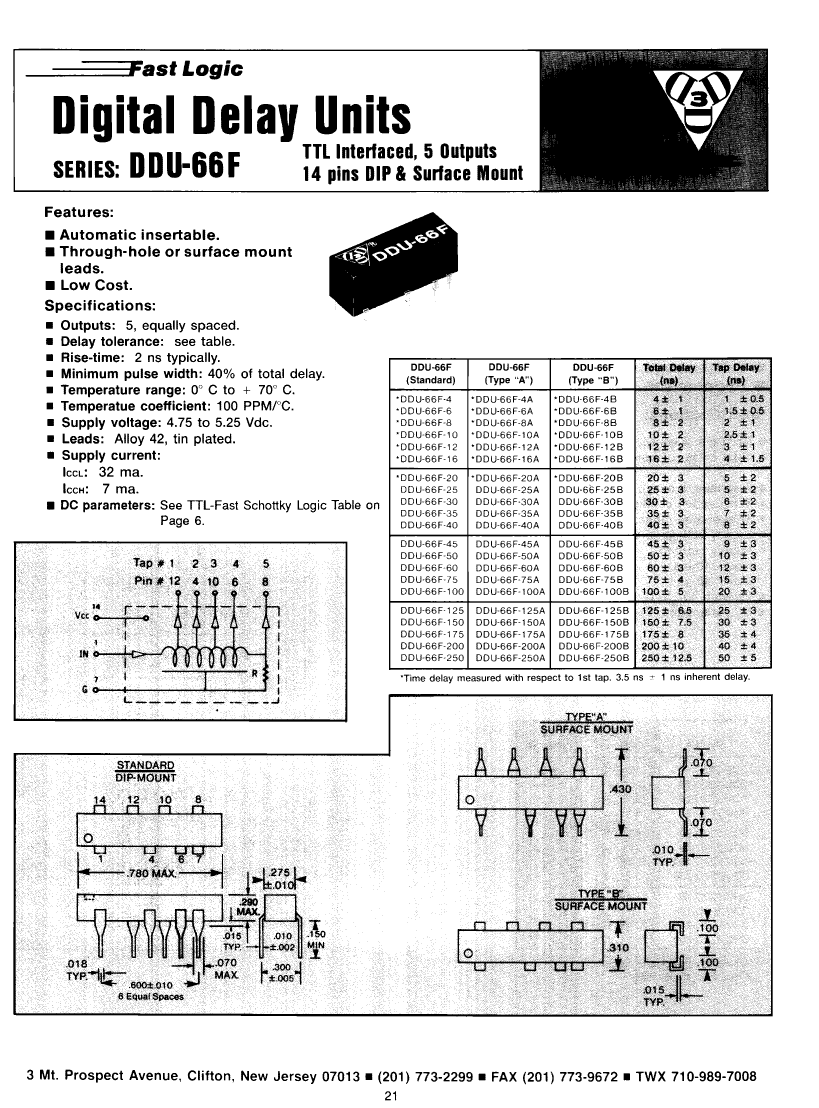

DDU-66F-40AME7: DescriptionActive Delay Line, 1-Func, 5-Tap, True Output, TTL, CDIP8, CERAMIC, DIP-14/8; Categorylogic logic; File Size368KB，1 Pages; ManufacturerData Delay Devices; Environmental Compliance

Download Datasheet Parametric View All

DDU-66F-40AME7 Overview

Active Delay Line, 1-Func, 5-Tap, True Output, TTL, CDIP8, CERAMIC, DIP-14/8

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Parts packaging code	DIP
package instruction	DIP,
Contacts	14
Reach Compliance Code	compliant
Other features	MEETS MIL-D-23859
series	F
JESD-30 code	R-CDIP-T8
JESD-609 code	e3
Logic integrated circuit type	ACTIVE DELAY LINE
Number of functions	1
Number of taps/steps	5
Number of terminals	8
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output polarity	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Maximum supply current (ICC)	32 mA
programmable delay line	NO
Certification status	Not Qualified
Maximum seat height	8.636 mm
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	MILITARY
Terminal surface	TIN
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Total delay nominal (td)	40 ns
width	7.62 mm
Base Number Matches	1
