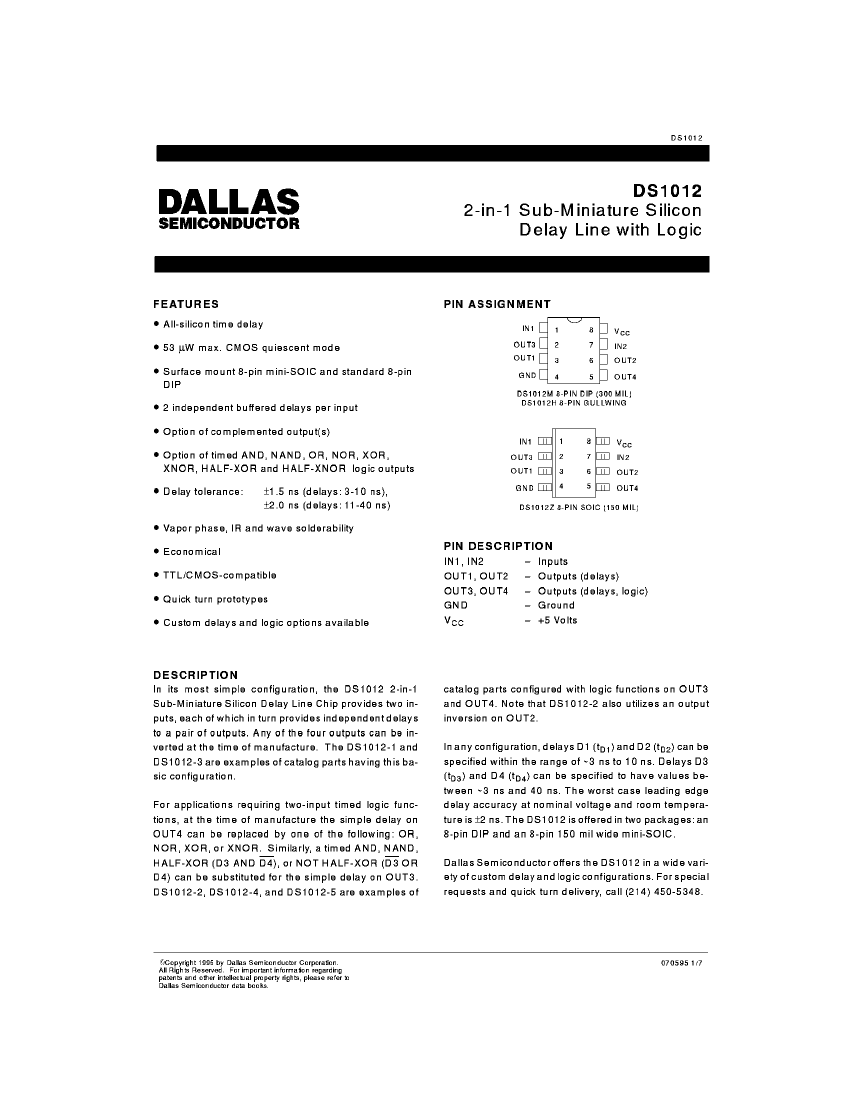

DS1012H-1 Overview

Silicon Delay Line, 2-Func, 1-Tap, True Output, CMOS, PDSO8,

Parameter Name	Attribute value
Reach Compliance Code	unknown
Other features	DELAY TRAILING EDGE[TYP.] = +-1NS OVER LEADING EDGE DELAY
series	CMOS/TTL
Input frequency maximum value (fmax)	16.6667 MHz
JESD-30 code	R-PDSO-G8
Logic integrated circuit type	SILICON DELAY LINE
Number of functions	2
Number of taps/steps	1
Number of terminals	8
Maximum operating temperature	70 °C
Minimum operating temperature
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
programmable delay line	NO
Certification status	Not Qualified

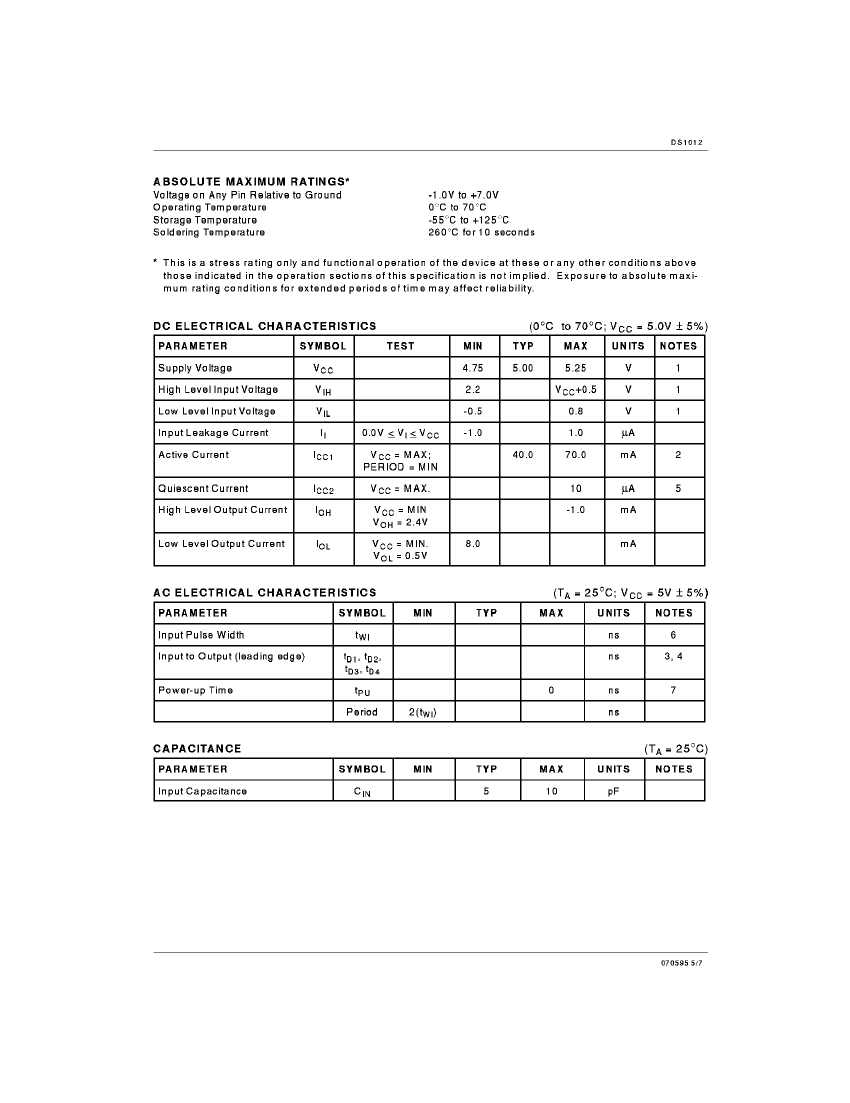

Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal location	DUAL

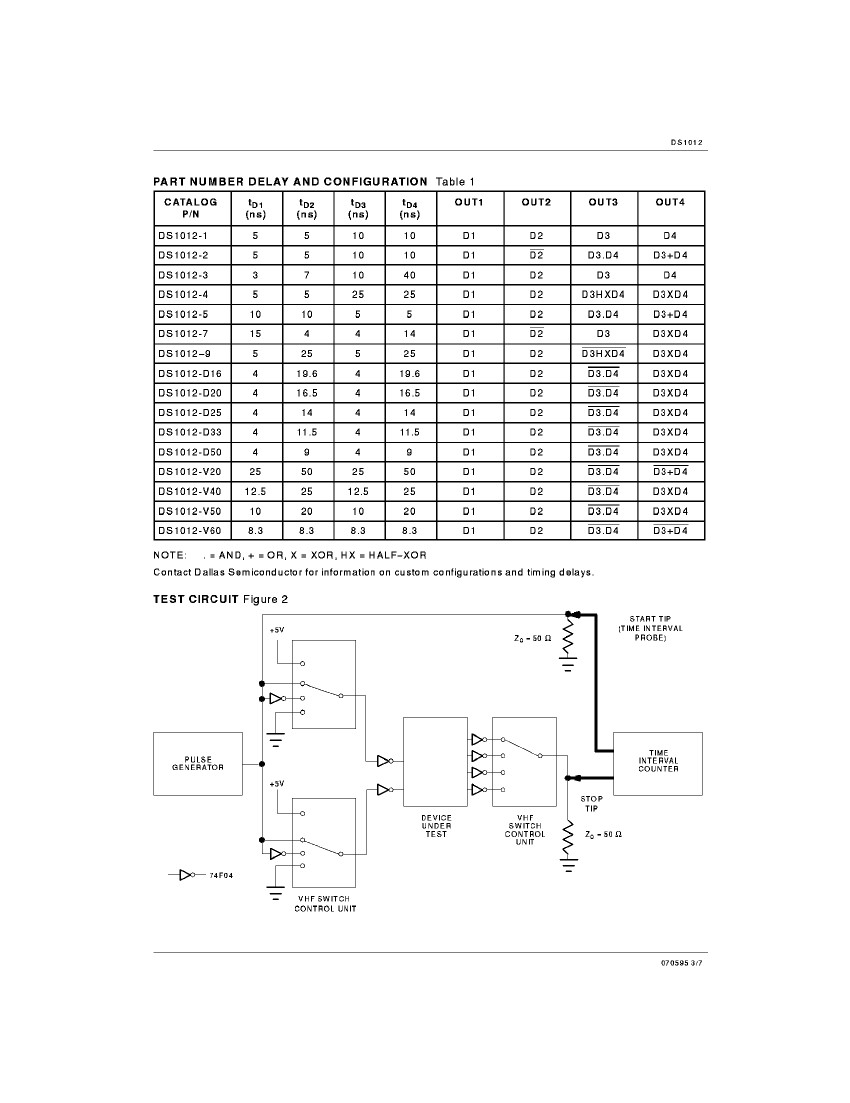

Total delay nominal (td)	10 ns
Base Number Matches	1
