DV74HC20D datasheet, PDF - EEWORLD Datasheet

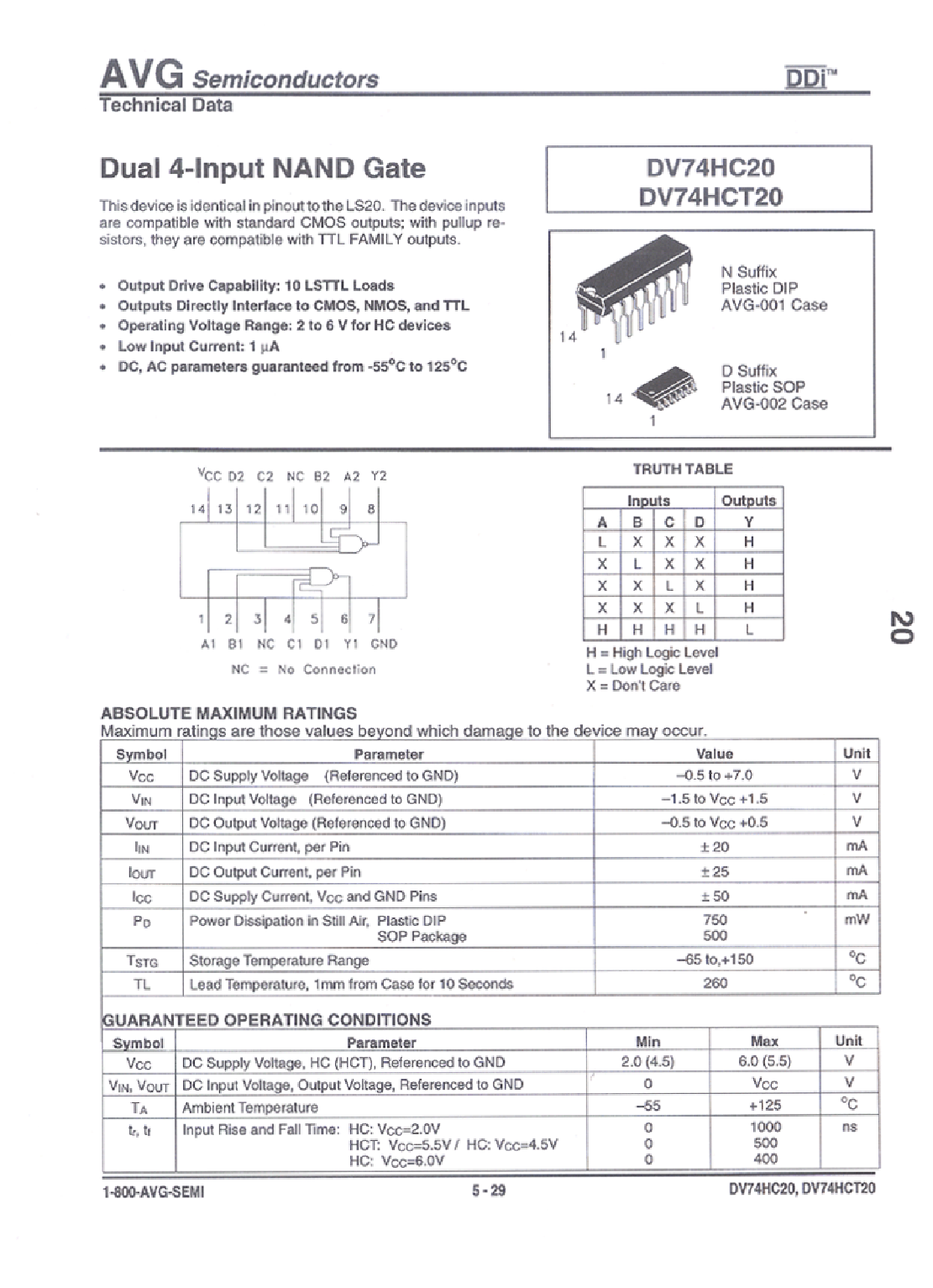

DV74HC20D: DescriptionNAND Gate, HC/UH Series, 2-Func, 4-Input, CMOS, PDSO14, PLASTIC, SOP-14; Categorylogic logic; File Size494KB，3 Pages; ManufacturerAVG [AVG Semiconductors(HITEK)]

Download Datasheet Parametric Compare View All

DV74HC20D Overview

NAND Gate, HC/UH Series, 2-Func, 4-Input, CMOS, PDSO14, PLASTIC, SOP-14

Parameter Name	Attribute value
Parts packaging code	SOIC
package instruction	SOP, SOP14(UNSPEC)
Contacts	14
Reach Compliance Code	unknown
series	HC/UH
JESD-30 code	R-PDSO-G14
length	8.65 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	NAND GATE
MaximumI(ol)	0.004 A
Number of functions	2
Number of entries	4
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP14(UNSPEC)
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
power supply	2/6 V
Prop。Delay @ Nom-Sup	135 ns
propagation delay (tpd)	135 ns
Certification status	Not Qualified
Schmitt trigger	NO
Maximum seat height	1.75 mm
Maximum supply voltage (Vsup)	6 V
Minimum supply voltage (Vsup)	2 V
Nominal supply voltage (Vsup)	4.5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	3.9 mm
Base Number Matches	1

	DV74HC20D	DV74HC20N
Description	NAND Gate, HC/UH Series, 2-Func, 4-Input, CMOS, PDSO14, PLASTIC, SOP-14	NAND Gate, HC/UH Series, 2-Func, 4-Input, CMOS, PDIP14, PLASTIC, DIP-14
Parts packaging code	SOIC	DIP
package instruction	SOP, SOP14(UNSPEC)	DIP, DIP14(UNSPEC)
Contacts	14	14
Reach Compliance Code	unknown	unknown
series	HC/UH	HC/UH
JESD-30 code	R-PDSO-G14	R-PDIP-T14
length	8.65 mm	18.86 mm
Load capacitance (CL)	50 pF	50 pF
Logic integrated circuit type	NAND GATE	NAND GATE
MaximumI(ol)	0.004 A	0.004 A
Number of functions	2	2
Number of entries	4	4
Number of terminals	14	14
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	DIP
Encapsulate equivalent code	SOP14(UNSPEC)	DIP14(UNSPEC)
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE
power supply	2/6 V	2/6 V
Prop。Delay @ Nom-Sup	135 ns	135 ns
propagation delay (tpd)	135 ns	135 ns
Certification status	Not Qualified	Not Qualified
Schmitt trigger	NO	NO
Maximum seat height	1.75 mm	4.69 mm
Maximum supply voltage (Vsup)	6 V	6 V
Minimum supply voltage (Vsup)	2 V	2 V
Nominal supply voltage (Vsup)	4.5 V	4.5 V
surface mount	YES	NO
technology	CMOS	CMOS
Temperature level	MILITARY	MILITARY
Terminal form	GULL WING	THROUGH-HOLE
Terminal pitch	1.27 mm	2.54 mm
Terminal location	DUAL	DUAL
width	3.9 mm	7.62 mm
