DV74ACT86N datasheet, PDF - EEWORLD Datasheet

DV74ACT86N: DescriptionXOR Gate, ACT Series, 4-Func, 2-Input, CMOS, PDIP14, PLASTIC, DIP-14; Categorylogic logic; File Size440KB，3 Pages; ManufacturerAVG [AVG Semiconductors(HITEK)]

Download Datasheet Parametric Compare View All

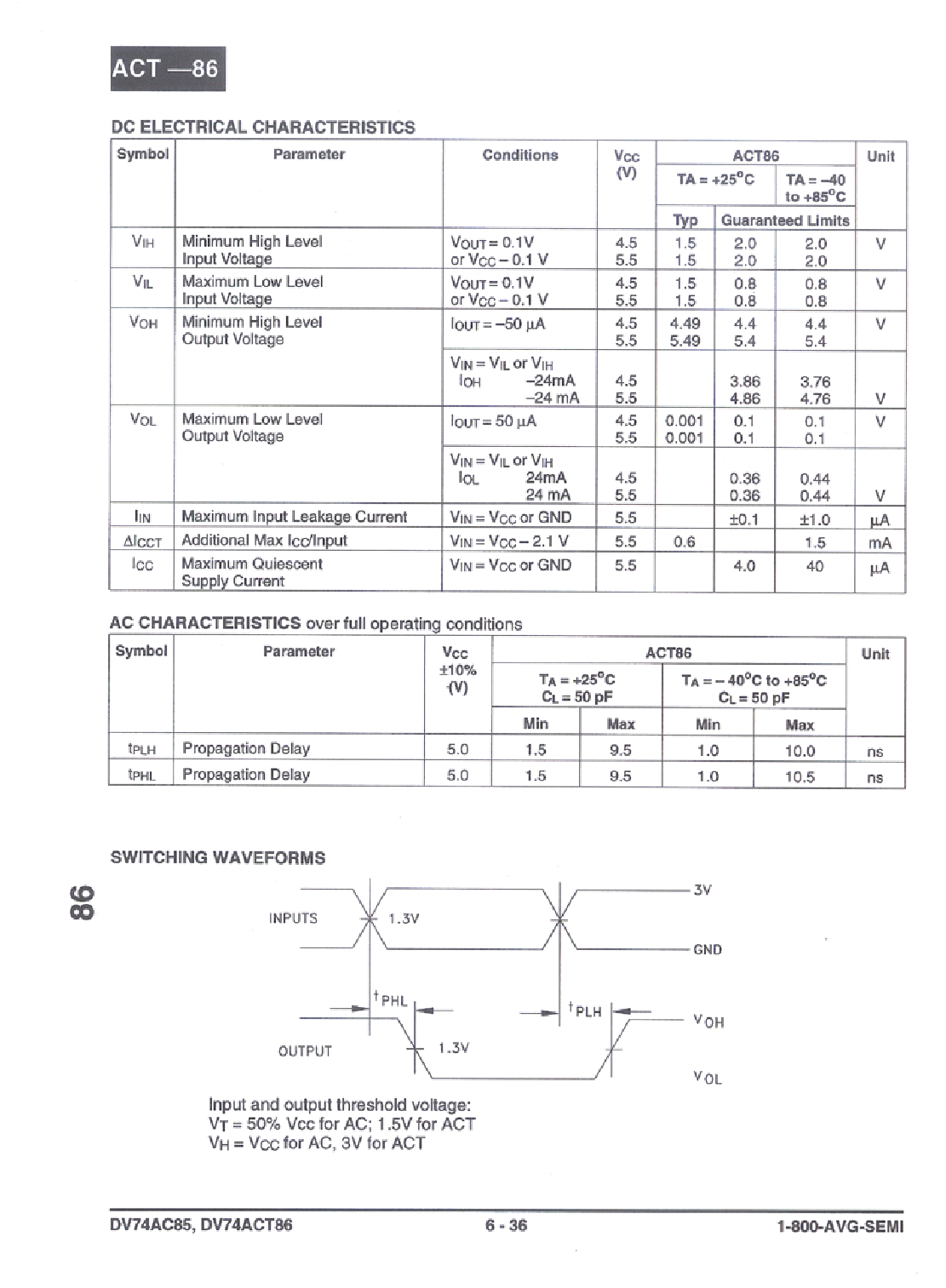

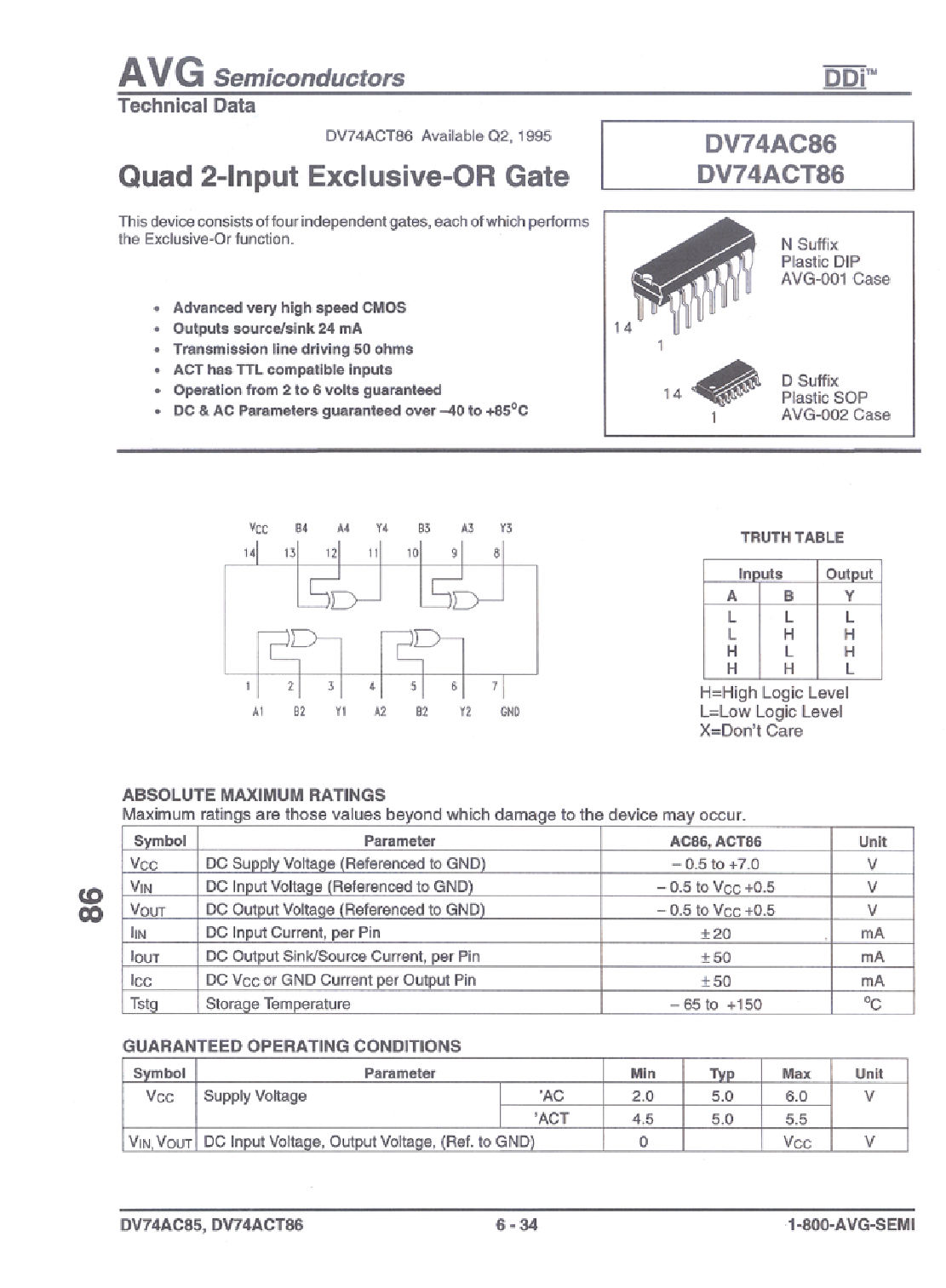

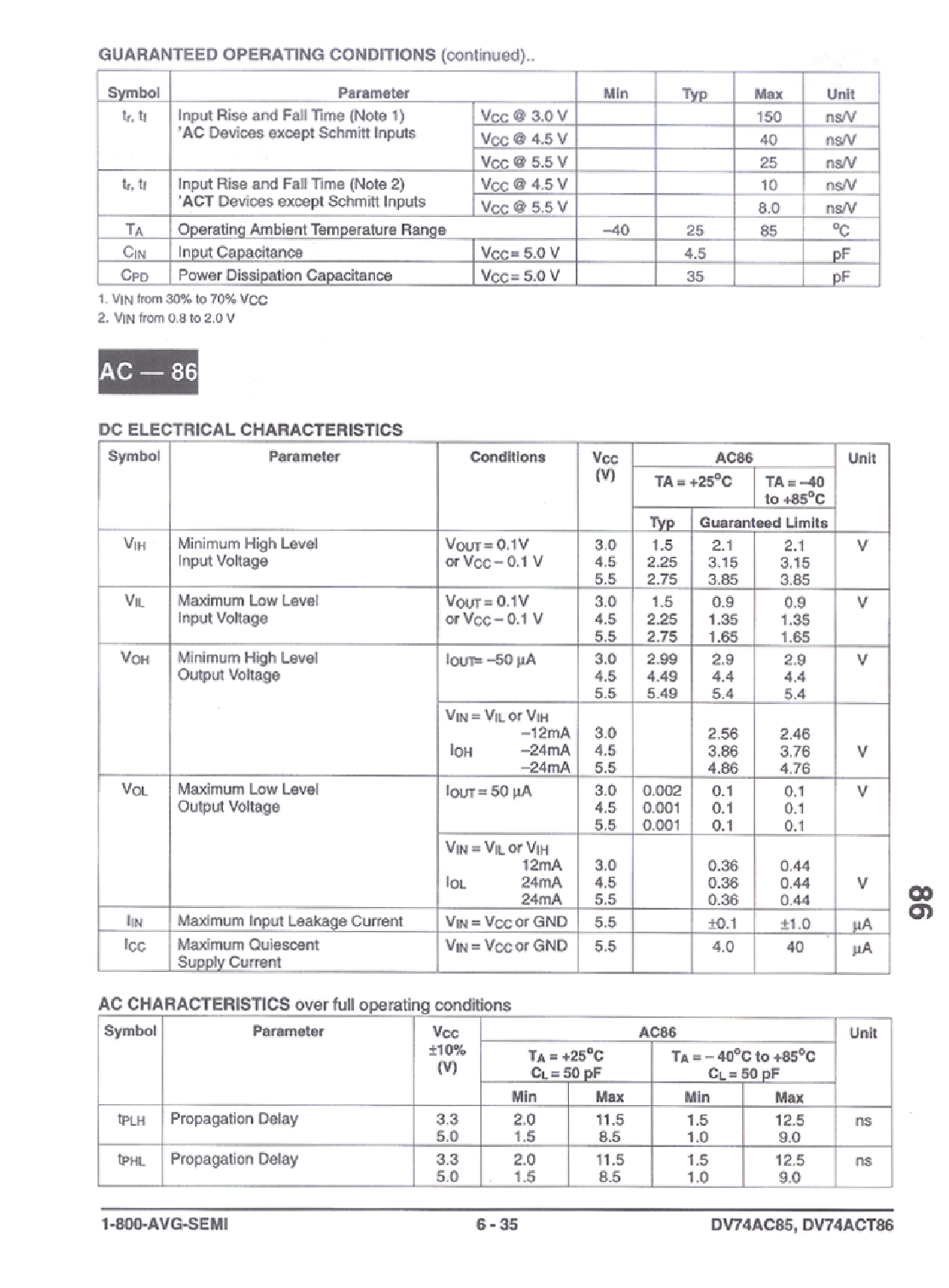

DV74ACT86N Overview

XOR Gate, ACT Series, 4-Func, 2-Input, CMOS, PDIP14, PLASTIC, DIP-14

Parameter Name	Attribute value
Parts packaging code	DIP
package instruction	DIP,
Contacts	14
Reach Compliance Code	unknown
series	ACT
JESD-30 code	R-PDIP-T14
length	18.86 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	XOR GATE
Number of functions	4
Number of entries	2
Number of terminals	14
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
propagation delay (tpd)	10.5 ns
Certification status	Not Qualified
Maximum seat height	4.69 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm
Base Number Matches	1

	DV74ACT86N	DV74AC86N	DV74ACT86D
Description	XOR Gate, ACT Series, 4-Func, 2-Input, CMOS, PDIP14, PLASTIC, DIP-14	XOR Gate, AC Series, 4-Func, 2-Input, CMOS, PDIP14, PLASTIC, DIP-14	XOR Gate, ACT Series, 4-Func, 2-Input, CMOS, PDSO14, PLASTIC, SOP-14
Parts packaging code	DIP	DIP	SOIC
package instruction	DIP,	PLASTIC, DIP-14	SOP,
Contacts	14	14	14
Reach Compliance Code	unknown	unknown	unknown
series	ACT	AC	ACT
JESD-30 code	R-PDIP-T14	R-PDIP-T14	R-PDSO-G14
length	18.86 mm	18.86 mm	8.65 mm
Load capacitance (CL)	50 pF	50 pF	50 pF
Logic integrated circuit type	XOR GATE	XOR GATE	XOR GATE
Number of functions	4	4	4
Number of entries	2	2	2
Number of terminals	14	14	14
Maximum operating temperature	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	DIP	SOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	SMALL OUTLINE
propagation delay (tpd)	10.5 ns	12.5 ns	10.5 ns
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	4.69 mm	4.69 mm	1.75 mm
Maximum supply voltage (Vsup)	5.5 V	6 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	2 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V
surface mount	NO	NO	YES
technology	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	THROUGH-HOLE	THROUGH-HOLE	GULL WING
Terminal pitch	2.54 mm	2.54 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL
width	7.62 mm	7.62 mm	3.9 mm
Base Number Matches	1	1	1
