SM9321

Description
5 MHz - 1000 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, TO-8, 4 PIN
CategoryWireless rf/communication    Radio frequency and microwave
File Size200KB,4 Pages
ManufacturerSpectrum Microwave
Download Datasheet Parametric View All

SM9321 Overview

5 MHz - 1000 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, TO-8, 4 PIN

SM9321 Parametric

Parameter NameAttribute value
Reach Compliance Codeunknown
Other featuresI/P POWER-MAX (PEAK)=27DBM
structureCOMPONENT
Gain21 dB
Maximum input power (CW)13 dBm
Maximum operating frequency1000 MHz
Minimum operating frequency5 MHz
Maximum operating temperature85 °C
Minimum operating temperature-55 °C
RF/Microwave Device TypesWIDE BAND LOW POWER
Maximum voltage standing wave ratio2
Base Number Matches1
Cross Reference Guide
TM9321 / SM9321*
* Part number for additional environmental screening.
Performance Data
Frequency
Gain
Noise Figure
P
1dB
3
rd
Order Intercept
2
nd
Order Intercept
VSWR
Reverse Isolation
Power Supply
Operating Temperature
5.0 - 1000.0 MHz
23.0 dB Typical
21.0 dB Min
4.2 dB Typical
5.0 dB Max
14.0 dBm Typical
12.0 dBm Min
27.0 dBm Typical
45.0 dBm Typical
1.6/2.0 Input Typ/Max
1.6/2.0 Output Typ/Max
-32.0 dB Typical
-30.0 dB Min
15.0 Volts
64.0 mA
-55.0 - 85.0 °C

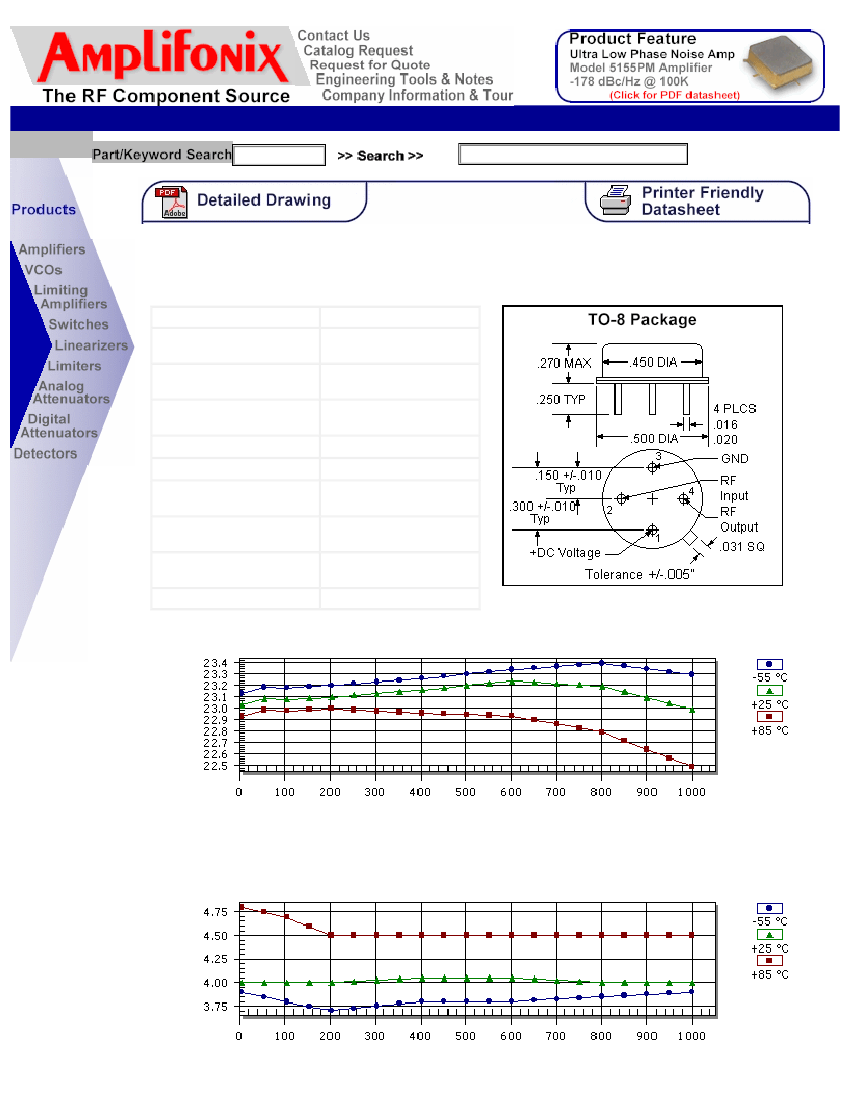

Package Drawing
Gain
dB
Frequency (MHz)
Noise Figure
dB
