The SY10/100EL58 are 2:1 multiplexers. These devices
are functionally equivalent to the E158 devices, with
higher performance capabilities. With propagation delays
and output transition times significantly faster than the
E158, the EL58 is ideally suited for those applications
which require the ultimate in AC performance.
TRUTH TABLE
SEL
H
L
Data
a
b
PIN NAMES
Pin
D
a
, D
b
Q
SEL
Function
Data Inputs
Data Outputs
Select Input
M9999-121205
hbwhelp@micrel.com or (408) 955-1690
Rev.: G
Amendment: /0
1
Issue Date: December 2005
Micrel, Inc.
SY10EL58
SY100EL58
PACKAGE/ORDERING INFORMATION
Ordering Information
(1)
NC
D
a
D
b
SEL
1
2
3
4
1
MUX
0
8
7
6
5
V
CC
Q
Q
V
EE
Part Number
SY10EL58ZC
SY10EL58ZCTR
(2)
SY100EL58ZC
SY100EL58ZCTR
(2)
SY10EL58ZI
SY10EL58ZITR
(2)
Package
Type
Z8-1
Z8-1
Z8-1
Z8-1
Z8-1
Z8-1
Z8-1
Z8-1
Z8-1
Z8-1
Z8-1
Z8-1
Operating
Range
Commercial
Commercial
Commercial
Commercial
Industrial
Industrial
Industrial
Industrial
Industrial
Industrial
Industrial
Industrial
Package
Marking
HEL58
HEL58
XEL58
XEL58
HEL58
HEL58
XEL58
XEL58
HEL58 with
Pb-Free bar-line indicator
HEL58 with
Pb-Free bar-line indicator
XEL58 with
Pb-Free bar-line indicator
XEL58 with
Pb-Free bar-line indicator
Lead
Finish
Sn-Pb
Sn-Pb
Sn-Pb
Sn-Pb
Sn-Pb
Sn-Pb
Sn-Pb
Sn-Pb
Pb-Free
NiPdAu
Pb-Free
NiPdAu
Pb-Free
NiPdAu
Pb-Free
NiPdAu
8-Pin SOIC (Z8-1)
SY100EL58ZI
SY100EL58ZITR
(2)
SY10EL58ZG
(3)
SY10EL58ZGTR
(2, 3)
SY100EL58ZG
(3)
SY100EL58ZGTR
(2, 3)
Notes:
1. Contact factory for die availability. Dice are guaranteed at T
A
= 25°C, DC Electricals only.
2. Tape and Reel.
3. Pb-Free package is recommended for new designs.
M9999-121205
hbwhelp@micrel.com or (408) 955-1690
2
Micrel, Inc.
SY10EL58
SY100EL58
DC ELECTRICAL CHARACTERISTICS
V
EE
= V
EE
(Min.) to V
EE
(Max.); V
CC
= GND
T
A
= -40
°
C
Symbol
I
EE
Parameter
Power Supply Current
10EL
100EL
Min.
—
—
Typ.
14
14
–5.2
–4.5
—
Max.
17
17
–5.5
–5.5
150
Min.
11
11
–4.75
–4.20
—
T
A
= 0
°
C
Typ.
14
14
–5.2
–4.5
—
Max.
17
17
–5.5
–5.5
150
T
A
= +25
°
C
Min.
11
11
–4.75
–4.20
—
Typ.
14
14
–5.2
–4.5
—
Max.
17
17
–5.5
–5.5
150
T
A
= +85˚C
Min.
11
13
–4.75
–4.20
—
Typ.
14
16
–5.2
–4.5
—
Max.
17
19
V
–5.5
–5.5
150
µA
Unit
mA
V
EE
Power Supply Voltage
10EL –4.75
100EL –4.20
Input HIGH Current
—
I
IH
AC ELECTRICAL CHARACTERISTICS
V
EE
= V
EE
(Min.) to V
EE
(Max.); V
CC
= GND
T
A
= -40
°
C
Symbol
t
PD
t
r
t
f
Parameter
Propagation Delay to
Output D
Output Rise/Fall Times Q
(20% to 80%)
Min.
60
90
100
Typ.
220
250
225
Max.
380
410
350
Min.
110
140
100
T
A
= 0
°
C
Typ.
220
250
225
Max.
330
360
350
120
150
100
T
A
= +25
°
C
Min.
Typ.
230
260
225
Max.
340
370
350
Min.
140
170
100
T
A
= +85˚C
Typ.
250
280
225
Max.
360
390
350
Unit
ps
ps
M9999-121205
hbwhelp@micrel.com or (408) 955-1690
3
Micrel, Inc.
SY10EL58
SY100EL58

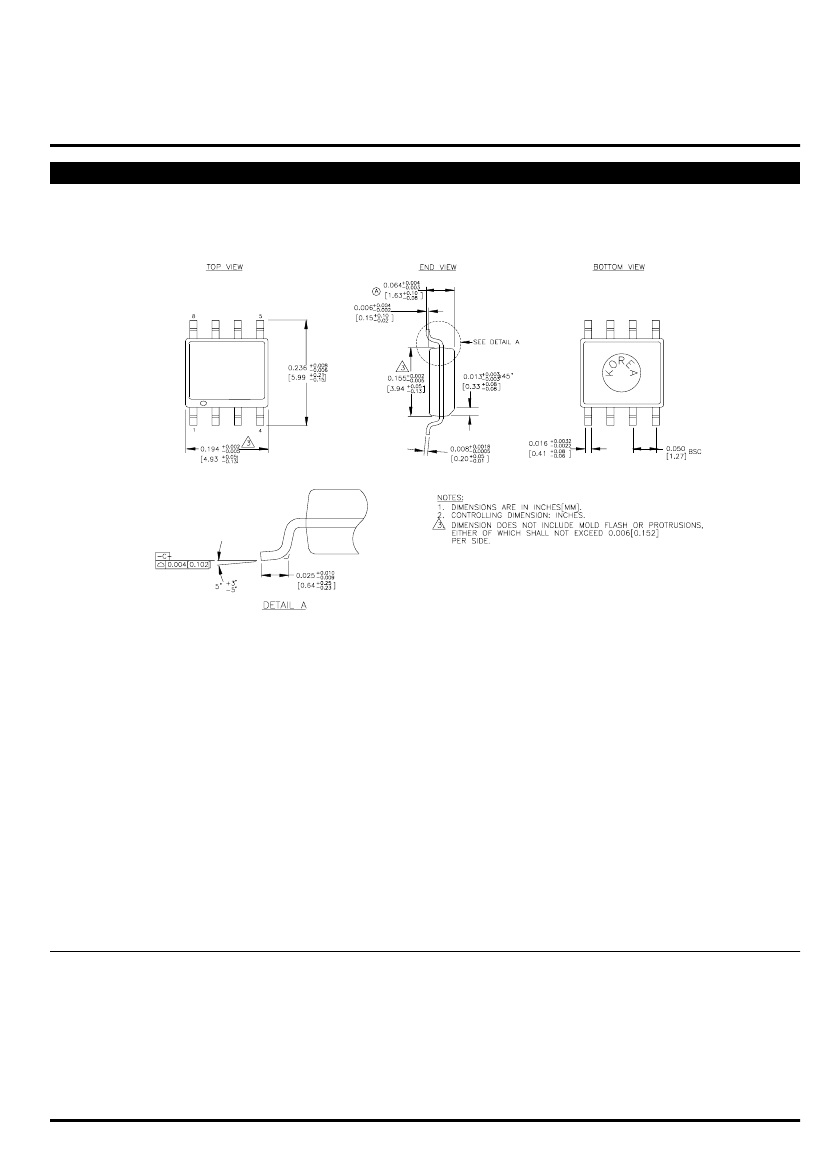

8-PIN SOIC .150" WIDE (Z8-1)
Rev. 03
MICREL, INC. 2180 FORTUNE DRIVE SAN JOSE, CA 95131
TEL
USA
+ 1 (408) 944-0800
FAX
+ 1 (408) 474-1000
WEB
http://www.micrel.com
The information furnished by Micrel in this datasheet is believed to be accurate and reliable. However, no responsibility is assumed by Micrel for its use.
Micrel reserves the right to change circuitry and specifications at any time without notification to the customer.
Micrel Products are not designed or authorized for use as components in life support appliances, devices or systems where malfunction of a product can
reasonably be expected to result in personal injury. Life support devices or systems are devices or systems that (a) are intended for surgical implant into
the body or (b) support or sustain life, and whose failure to perform can be reasonably expected to result in a significant injury to the user. A Purchaser’s
use or sale of Micrel Products for use in life support appliances, devices or systems is at Purchaser’s own risk and Purchaser agrees to fully indemnify
Micrel for any damages resulting from such use or sale.
