8857-0-15-15-32-02-04-0 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> terminals> 8857-0-15-15-32-02-04-0

Preview

8857-0-15-15-32-02-04-0: DescriptionPCB Terminal; CategoryThe connector terminals; File Size142KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com

Download Datasheet Parametric View All

8857-0-15-15-32-02-04-0 Overview

PCB Terminal

8857-0-15-15-32-02-04-0 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Reach Compliance Code	compli
ECCN code	EAR99
Manufacturer's serial number	8857
terminal gender	FEMALE
Terminal and terminal strip types	PCB TERMINAL
Base Number Matches	1

Preview

Download Datasheet

View All

PR

E

CI

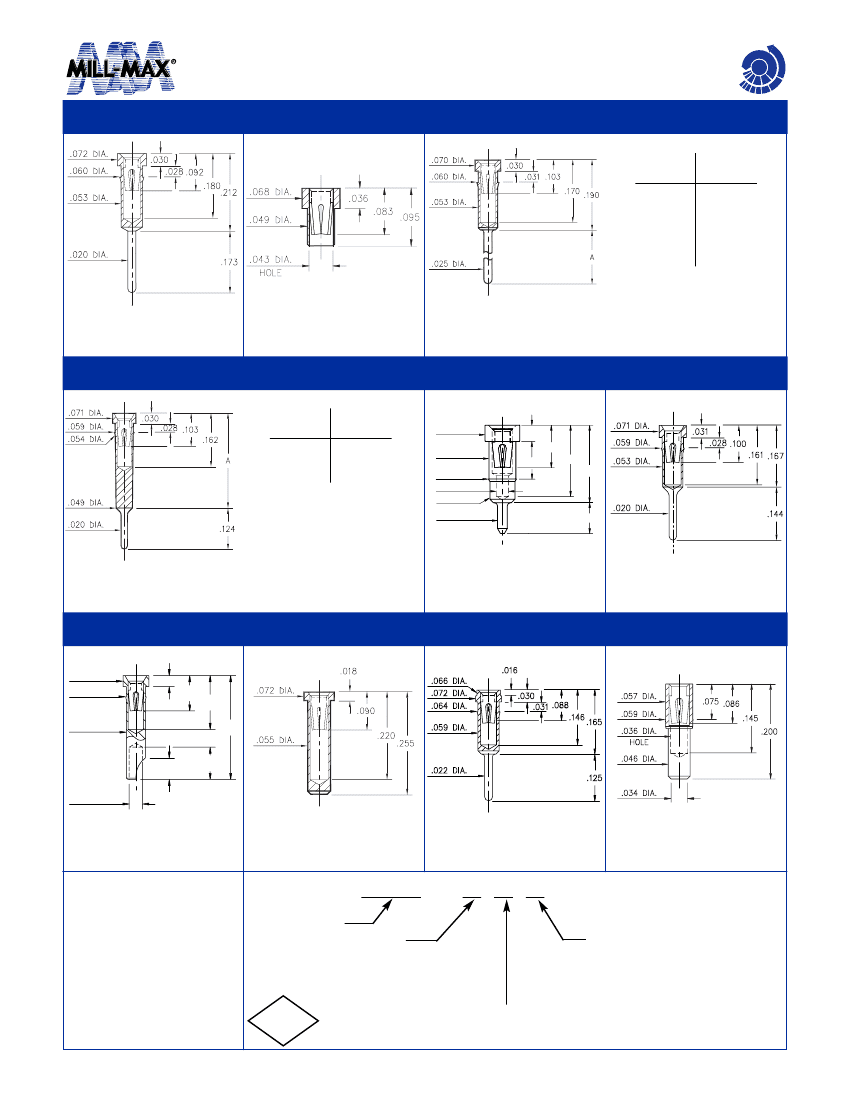

PIN RECEPTACLES

for .015” - .025” diameter pins

M

ON

S

I

CHI

A

PINS

NE

D

8964

5342

8857

Basic Part

Number

Length

A

8857-0

8857-1

8857-2

8857-3

8857-4

.311

.448

.589

.731

.871

8964-0-15-XX-30-XX-04-0

Press-fit in .057 mounting hole

5342-0-15-XX-35-XX-10-0

Solder mount in .051 min.

mounting hole

8857-X-15-XX-32-XX-04-0

Press-fit in .057 mounting hole

8862/8877

Basic Part

Number

Length

A

1334

8862-0

8877-0

.300

.350

8855

88XX-0-15-XX-30-XX-04-0

Press-fit in .056 mounting hole

1334-0-15-XX-30-XX-04-0

Press-fit in .057 mounting hole

8855-0-15-XX-30-XX-34-0

Press-fit in .057 mounting hole

2954

.072 DIA.

.058 DIA.

.031

.100

.150

.290

9363

1023

.016

.066 DIA.

.072 DIA.

.064 DIA.

.059 DIA.

.030

.031 .088

.146

.165

1701

.057 DIA.

.059 DIA.

.036 DIA.

HOLE

.046 DIA.

.075 .086

.145

.200

.053 DIA.

.060

.038 DIA.

HOLE

.090

.022 DIA.

.125

.034 DIA.

2954-0-18-XX-30-XX-10-0

Press-fit in .057 mounting hole

9363-0-15-XX-35-XX-10-0

Solder mount in .057 min.

mounting hole

1023-0-15-XX-30-XX-04-0

Press-fit in .061 mounting hole

1701-0-15-XX-30-XX-10-0

Press-fit in .057 mounting hole

SPECIFICATIONS

SHELL MATERIAL:

Brass Alloy 360, 1/2 Hard

CONTACT MATERIAL:

Beryllium Copper Alloy 172, HT

DIMENSION IN INCHES

TOLERANCES ON:

LENGTHS:

±.005

DIAMETERS: ±.002

ANGLES:

± 2°

ORDER CODE: XXXX - X - 15 - XX - XX - XX - XX - 0

BASIC PART #

SPECIFY SHELL FINISH:

01

200μ” TIN/LEAD OVER NICKEL

80

200μ” TIN OVER NICKEL

15

10μ” GOLD OVER NICKEL

RoHS

SPECIFY CONTACT FINISH:

02

100μ” TIN/LEAD OVER NICKEL

84

100μ” TIN OVER NICKEL

27

30μ” GOLD OVER NICKEL

2002/95/EC

SELECT CONTACT

#30, #32 or #35

CONTACT (DATA ON PAGE 218 & 219)

w w w. m i l l - m a x . c o m

142

516-922-6000
