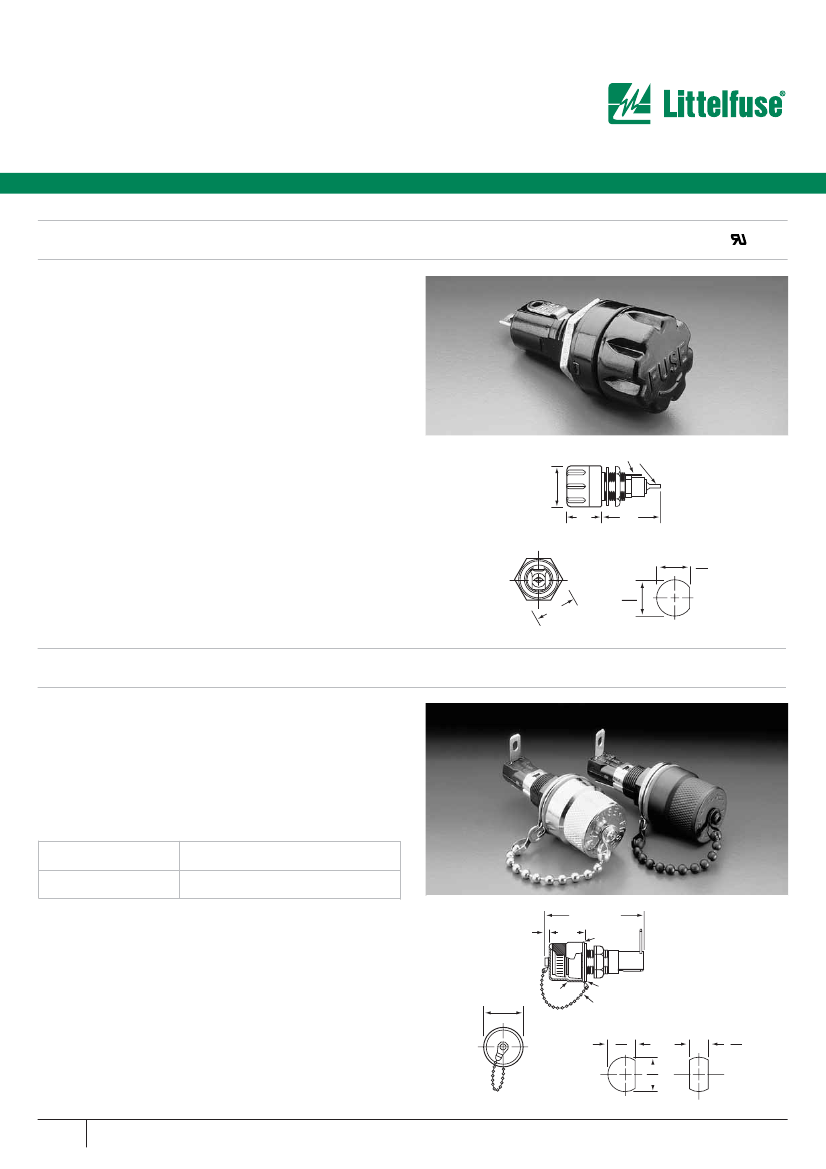

Fuseholders
For 3AG Fuses
Watertight
Panel Mount Type
APPROVALS:
Recognized under the Components Program of
Underwriters Laboratories.
SPECIFICATIONS:
Electrical:
Rated at 20 amperes for any voltage up to 250 volts.
Dielectric Strength:
1500 volts minimum.
Mounting:
Withstands 15 lb.-in. mounting torque; maximum panel
thickness is .250".
Molded Parts:
Black thermoset (UL 94V0).
Knob:
Screw type.
Seal:
O-ring provides a watertight seal on the front side of the panel
per MIL-PRF-19207.
Terminals:
Copper & copper alloy. Tin plated. Solder type.
Ambient Temperature:
– 40°C to +85°C.
Hardware:
O-rings (2) and hex nut, unassembled
.
®
QPL
.12" DIA.
HOLES
.94"
DIA.
.81"
1.3 "
FUSEHOLDERS TO MIL SPEC:
See Military Section
.
ORDERING INFORMATION:
Catalog Number:
342
006
MOUNTING HOLE
.570"
.575"
.625"
.635"
* Please refer to Fuseology section for information on
proper fuseholder de-rating.
"
.81
RF Shielded/Watertight
Panel Mount Type
Radio frequency shielded fuseholders eliminate possible transmission or
reception of RF signals through the hole in the chassis in which the fuse-
holder is mounted. These fuseholders comply with the watertight con-
struction requirement of MIL-PRF-19207 and the Shock-Safe require-
ments of IEC 60065 and 60127-6. A rubber O-ring and conductive gas-
ket maintain RF shielding and watertight construction.
340
300
Series
QPL
SPECIFICATIONS:
The basic fuseholder used is the
345
603 Shock-Safe holder.
ORDERING INFORMATION:
Catalog
Number
340
312
340
313
Brass Shielding
Cap Finish
Nickel plated
Dull Black
.17"
MAX.
2.35" MAX.
1"
MAX.
O-RING
* Please refer to Fuseology section for information on
proper fuseholder de-rating.
.88"
DIA.
CAP
R.F.I. GASKET
KEEP CHAIN
MOUNTING HOLES
.475"
.480"
.500"
.505"
.460"
.465"
476
