DS1003G-25 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> DS1003G-25

DS1003G-25: DescriptionSilicon Delay Line, 1-Func, 4-Tap, True Output, CMOS, PDSO14,; Categorylogic logic; File Size161KB，7 Pages; ManufacturerDALLAS; Websitehttp://www.dalsemi.com

Download Datasheet Parametric Compare View All

DS1003G-25 Overview

Silicon Delay Line, 1-Func, 4-Tap, True Output, CMOS, PDSO14,

DS1003G-25 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Other features	DELAY FROM INPUT TO 4 TAPS[NS] = 8,14,14.2,20.2; FOR RISC APPLICATIONS
series	CMOS/TTL
Input frequency maximum value (fmax)	52.63 MHz
JESD-30 code	R-PDSO-G14
Logic integrated circuit type	SILICON DELAY LINE
Number of functions	1
Number of taps/steps	4
Number of terminals	14
Maximum operating temperature	70 °C
Minimum operating temperature
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
programmable delay line	NO
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal location	DUAL
Total delay nominal (td)	20.2 ns
Base Number Matches	1

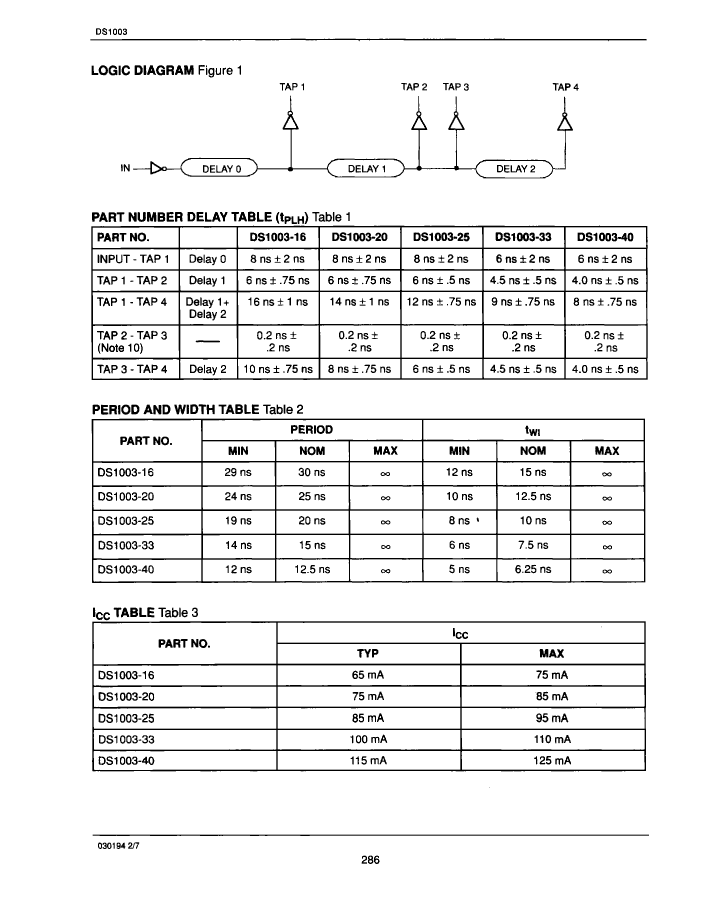

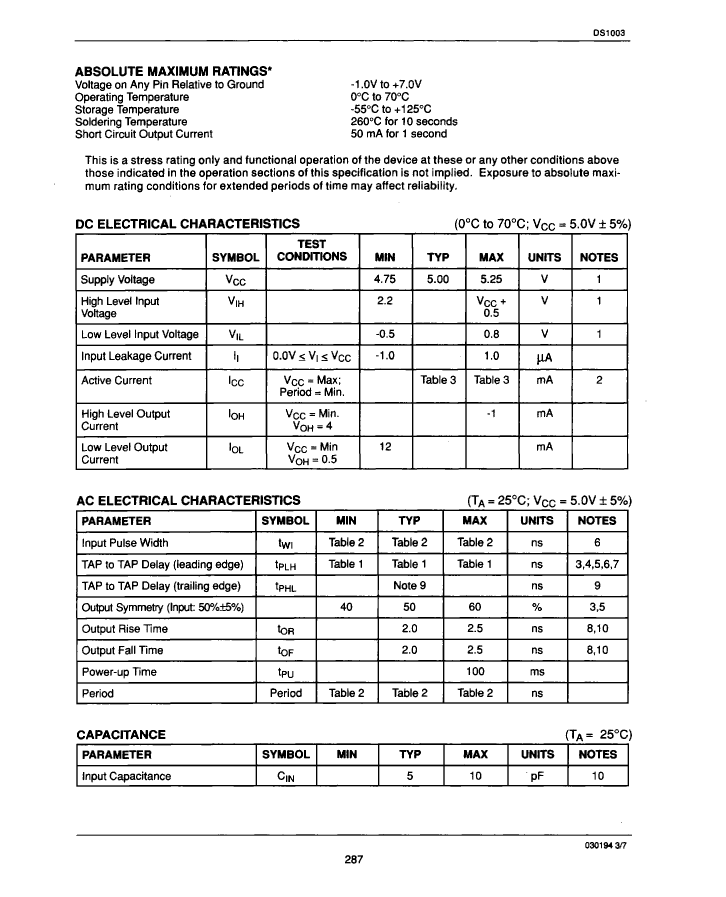

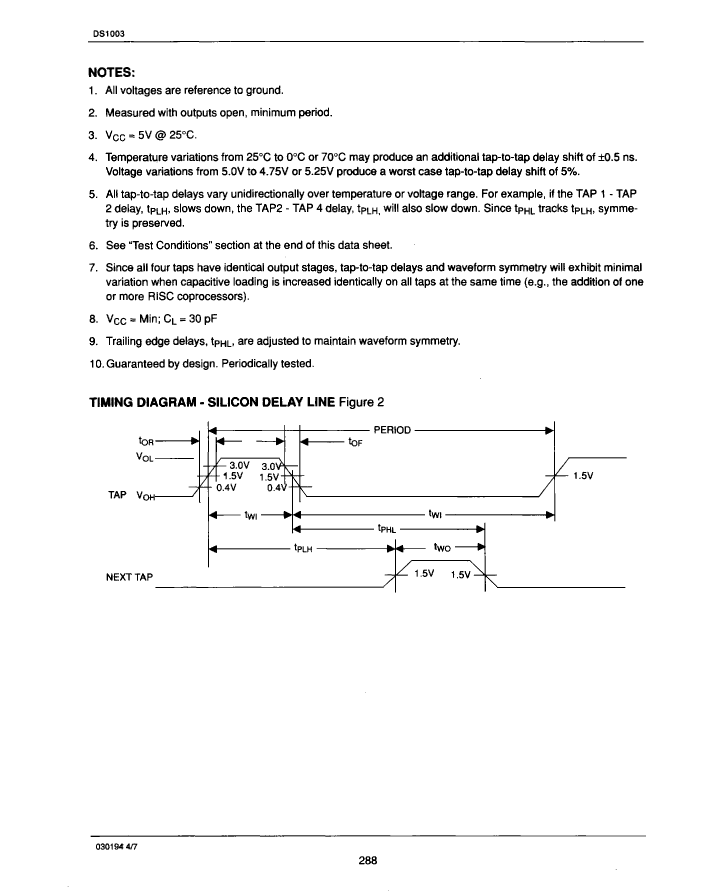

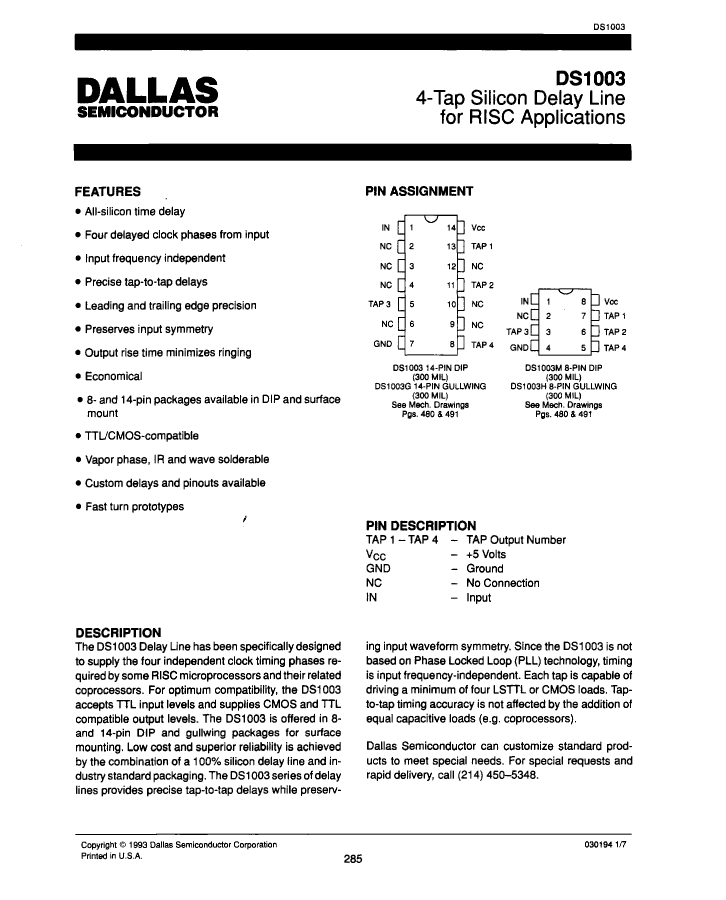

Preview

Download Datasheet

View All

DS1003G-25 Related Products

	DS1003G-25	DS1003G-33	DS1003G-20	DS1003H-25	DS1003H-20	DS1003G-16	DS1003H-33	DS1003H-40	DS1003H-16	DS1003G-40
Description	Silicon Delay Line, 1-Func, 4-Tap, True Output, CMOS, PDSO14,	Silicon Delay Line, 1-Func, 4-Tap, True Output, CMOS, PDSO14,	Silicon Delay Line, 1-Func, 4-Tap, True Output, CMOS, PDSO14,	Silicon Delay Line, 1-Func, 4-Tap, True Output, CMOS, PDSO8,	Silicon Delay Line, 1-Func, 4-Tap, True Output, CMOS, PDSO8,	Silicon Delay Line, 1-Func, 4-Tap, True Output, CMOS, PDSO14,	Silicon Delay Line, 1-Func, 4-Tap, True Output, CMOS, PDSO8,	Silicon Delay Line, 1-Func, 4-Tap, True Output, CMOS, PDSO8,	Silicon Delay Line, 1-Func, 4-Tap, True Output, CMOS, PDSO8,	Silicon Delay Line, 1-Func, 4-Tap, True Output, CMOS, PDSO14,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknow
Other features	DELAY FROM INPUT TO 4 TAPS[NS] = 8,14,14.2,20.2; FOR RISC APPLICATIONS	DELAY FROM INPUT TO 4 TAPS[NS] = 6,10.5,10.7,15.2; FOR RISC APPLICATIONS	DELAY FROM INPUT TO 4 TAPS[NS] = 8,14,14.2,22.2; FOR RISC APPLICATIONS	DELAY FROM INPUT TO 4 TAPS[NS] = 8,14,14.2,20.2; FOR RISC APPLICATIONS	DELAY FROM INPUT TO 4 TAPS[NS] = 8,14,14.2,22.2; FOR RISC APPLICATIONS	DELAY FROM INPUT TO 4 TAPS[NS] = 8,14,14.2,24.2; FOR RISC APPLICATIONS	DELAY FROM INPUT TO 4 TAPS[NS] = 6,10.5,10.7,15.2; FOR RISC APPLICATIONS	DELAY FROM INPUT TO 4 TAPS[NS] = 6,10,10.2,14.2; FOR RISC APPLICATIONS	DELAY FROM INPUT TO 4 TAPS[NS] = 8,14,14.2,24.2; FOR RISC APPLICATIONS	DELAY FROM INPUT TO 4 TAPS[NS] = 6,10,10.2,14.2; FOR RISC APPLICATIONS
series	CMOS/TTL	CMOS/TTL	CMOS/TTL	CMOS/TTL	CMOS/TTL	CMOS/TTL	CMOS/TTL	CMOS/TTL	CMOS/TTL	CMOS/TTL
Input frequency maximum value (fmax)	52.63 MHz	71.43 MHz	41.67 MHz	52.63 MHz	41.67 MHz	34.48 MHz	71.43 MHz	83.33 MHz	34.48 MHz	83.33 MHz
JESD-30 code	R-PDSO-G14	R-PDSO-G14	R-PDSO-G14	R-PDSO-G8	R-PDSO-G8	R-PDSO-G14	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8	R-PDSO-G14
Logic integrated circuit type	SILICON DELAY LINE	SILICON DELAY LINE	SILICON DELAY LINE	SILICON DELAY LINE	SILICON DELAY LINE	SILICON DELAY LINE	SILICON DELAY LINE	SILICON DELAY LINE	SILICON DELAY LINE	SILICON DELAY LINE
Number of functions	1	1	1	1	1	1	1	1	1	1
Number of taps/steps	4	4	4	4	4	4	4	4	4	4
Number of terminals	14	14	14	8	8	14	8	8	8	14
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
Output polarity	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
programmable delay line	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V
Minimum supply voltage (Vsup)	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Total delay nominal (td)	20.2 ns	15.2 ns	22.2 ns	20.2 ns	22.2 ns	24.2 ns	15.2 ns	14.2 ns	24.2 ns	14.2 ns
Maker	-	DALLAS	DALLAS	-	DALLAS	DALLAS	DALLAS	DALLAS	DALLAS	DALLAS
