BYT11-600RL datasheet, PDF - EEWORLD Datasheet

BYT11-600RL: Description1A, 600V, SILICON, SIGNAL DIODE; CategoryDiscrete semiconductor diode; File Size74KB，4 Pages; ManufacturerSTMicroelectronics; Websitehttp://www.st.com/

Download Datasheet Parametric Compare View All

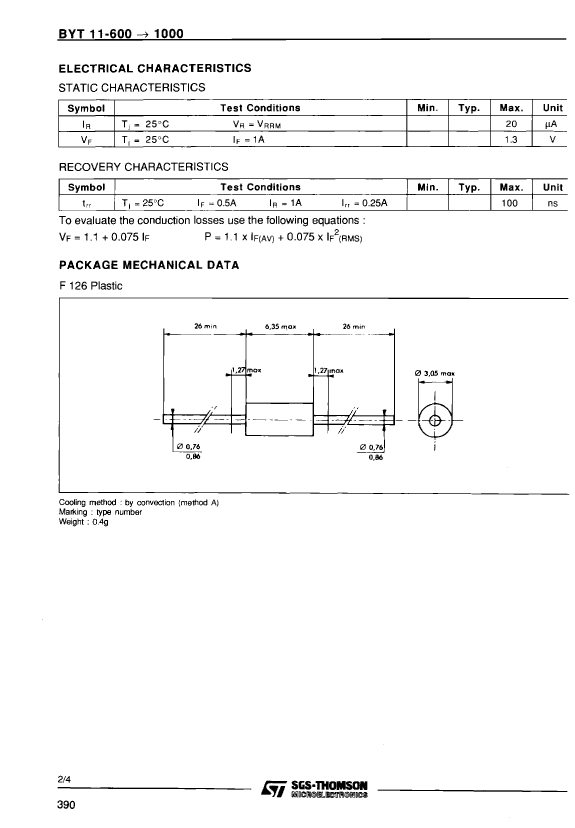

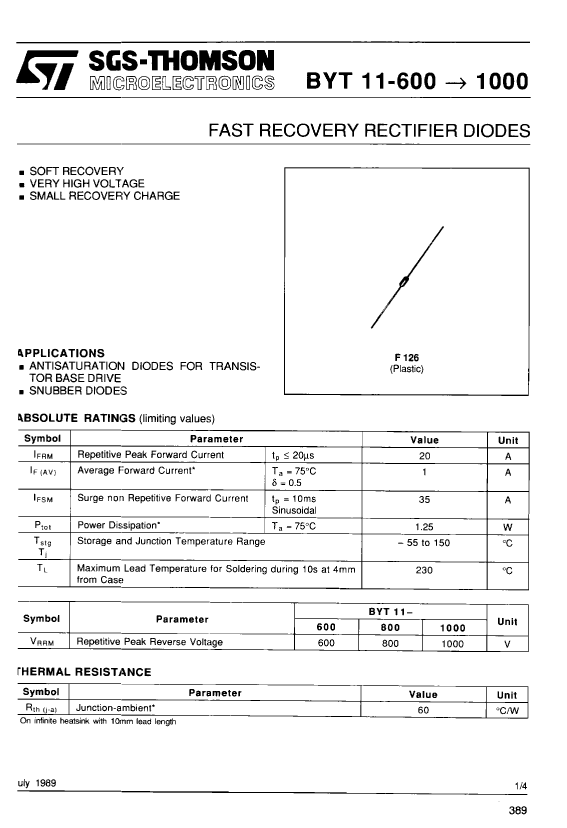

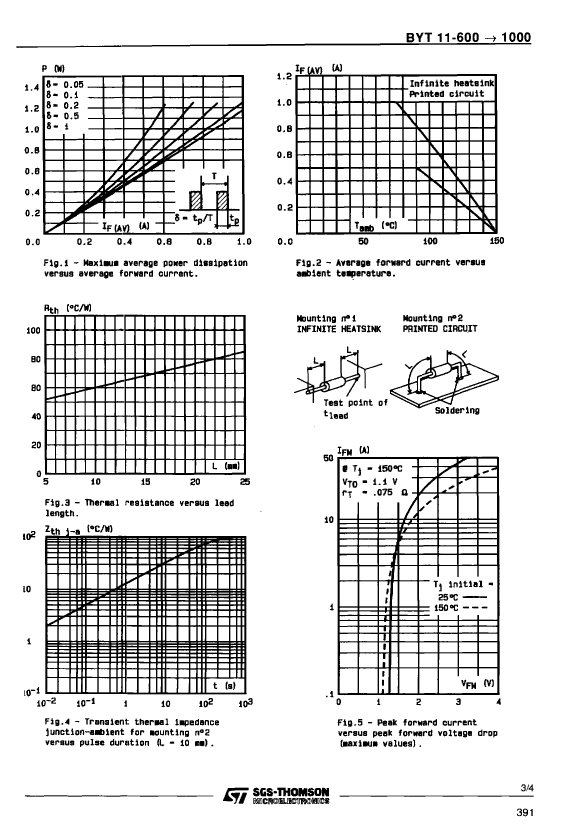

BYT11-600RL Overview

1A, 600V, SILICON, SIGNAL DIODE

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	SNUBBER DIODE
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JESD-30 code	O-PALF-W2
Number of components	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Maximum output current	1 A
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	LONG FORM
Maximum power dissipation	1.25 W
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	600 V
Maximum reverse recovery time	0.1 µs
surface mount	NO
Terminal form	WIRE
Terminal location	AXIAL
Base Number Matches	1

	BYT11-600RL	BYT11-1000RL	BYT11-800RL
Description	1A, 600V, SILICON, SIGNAL DIODE	1A, 1000V, SILICON, SIGNAL DIODE	1A, 800V, SILICON, SIGNAL DIODE
Reach Compliance Code	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99
Other features	SNUBBER DIODE	SNUBBER DIODE	SNUBBER DIODE
Shell connection	ISOLATED	ISOLATED	ISOLATED
Configuration	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
JESD-30 code	O-PALF-W2	O-PALF-W2	O-PALF-W2
Number of components	1	1	1
Number of terminals	2	2	2
Maximum operating temperature	150 °C	150 °C	150 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Maximum output current	1 A	1 A	1 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	ROUND	ROUND	ROUND
Package form	LONG FORM	LONG FORM	LONG FORM
Maximum power dissipation	1.25 W	1.25 W	1.25 W
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	600 V	1000 V	800 V
Maximum reverse recovery time	0.1 µs	0.1 µs	0.1 µs
surface mount	NO	NO	NO
Terminal form	WIRE	WIRE	WIRE
Terminal location	AXIAL	AXIAL	AXIAL
Base Number Matches	1	1	-
package instruction	-	O-PALF-W2	O-PALF-W2
