AM26LS33CD-T datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Drivers and interfaces> AM26LS33CD-T

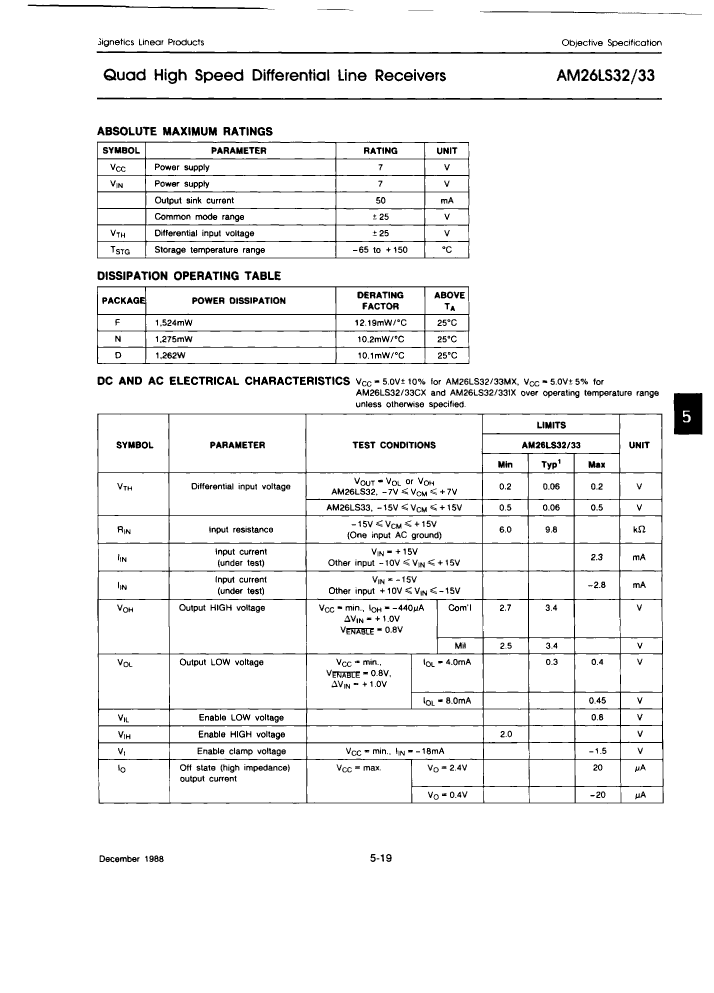

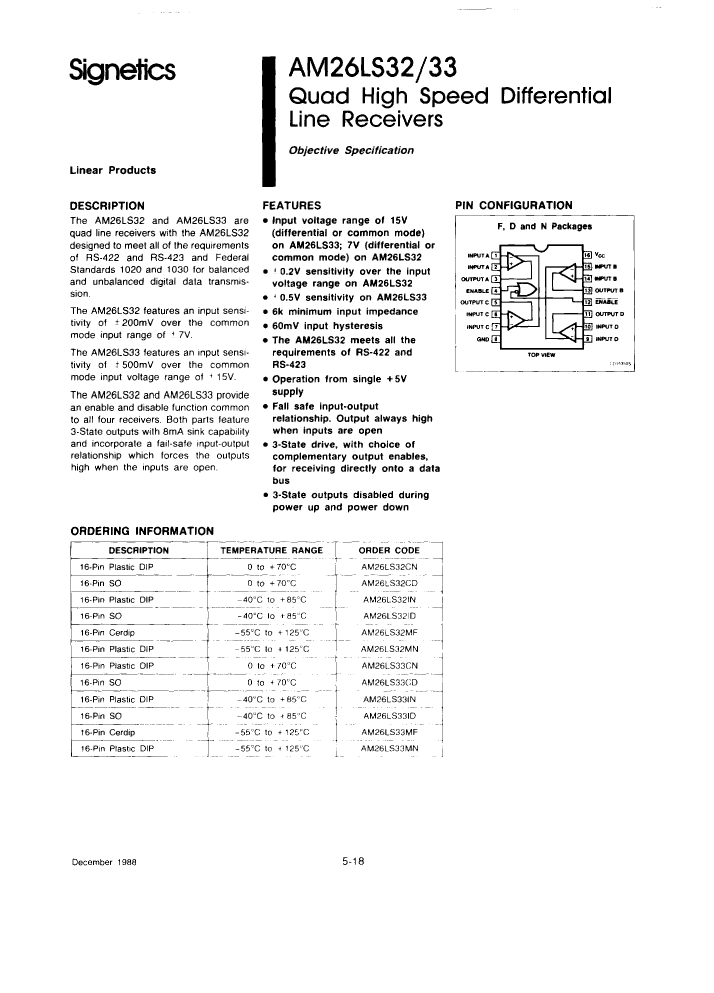

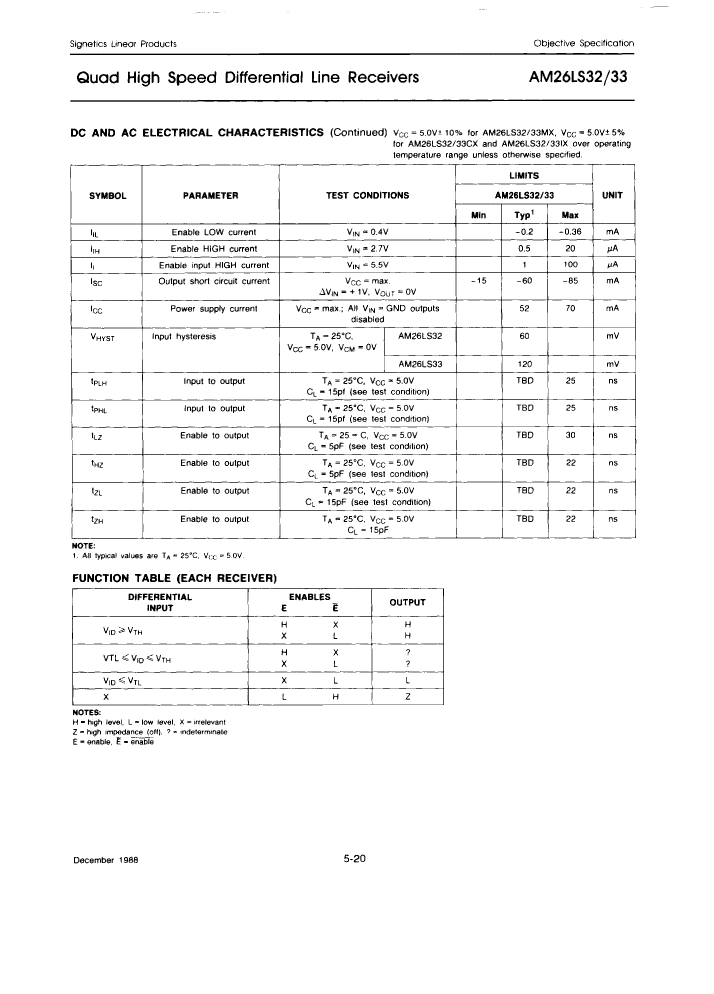

Preview

AM26LS33CD-T: DescriptionIC QUAD LINE RECEIVER, PDSO16, PLASTIC, SO-16, Line Driver or Receiver; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size104KB，4 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

AM26LS33CD-T Overview

IC QUAD LINE RECEIVER, PDSO16, PLASTIC, SO-16, Line Driver or Receiver

AM26LS33CD-T Parametric

Parameter Name	Attribute value
Parts packaging code	SOIC
package instruction	SOP,
Contacts	16
Reach Compliance Code	unknown
ECCN code	EAR99
Input properties	DIFFERENTIAL SCHMITT TRIGGER
Interface integrated circuit type	LINE RECEIVER
Interface standards	EIA-422; EIA-423; FED STD 1020; FED STD 1030
JESD-30 code	R-PDSO-G16
length	9.9 mm
Number of functions	4
Number of terminals	16
Maximum operating temperature	70 °C
Minimum operating temperature
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
Maximum receive delay	25 ns
Number of receiver bits	4
Maximum seat height	1.75 mm
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	YES
technology	BIPOLAR
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	3.9 mm
Base Number Matches	1

Preview

Download Datasheet

View All

AM26LS33CD-T Related Products

	AM26LS33CD-T	AM26LS32MF	AM26LS32CD-T	AM26LS32ID-T	AM26LS33ID-T	AM26LS33MF
Description	IC QUAD LINE RECEIVER, PDSO16, PLASTIC, SO-16, Line Driver or Receiver	IC QUAD LINE RECEIVER, CDIP16, CERDIP-16, Line Driver or Receiver	IC QUAD LINE RECEIVER, PDSO16, PLASTIC, SO-16, Line Driver or Receiver	IC QUAD LINE RECEIVER, PDSO16, PLASTIC, SO-16, Line Driver or Receiver	IC QUAD LINE RECEIVER, PDSO16, PLASTIC, SO-16, Line Driver or Receiver	IC QUAD LINE RECEIVER, CDIP16, CERDIP-16, Line Driver or Receiver
Parts packaging code	SOIC	DIP	SOIC	SOIC	SOIC	DIP
package instruction	SOP,	DIP,	SOP,	SOP,	SOP,	DIP,
Contacts	16	16	16	16	16	16
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Input properties	DIFFERENTIAL SCHMITT TRIGGER	DIFFERENTIAL SCHMITT TRIGGER	DIFFERENTIAL SCHMITT TRIGGER	DIFFERENTIAL SCHMITT TRIGGER	DIFFERENTIAL SCHMITT TRIGGER	DIFFERENTIAL SCHMITT TRIGGER
Interface integrated circuit type	LINE RECEIVER	LINE RECEIVER	LINE RECEIVER	LINE RECEIVER	LINE RECEIVER	LINE RECEIVER
Interface standards	EIA-422; EIA-423; FED STD 1020; FED STD 1030	EIA-422; EIA-423; FED STD 1020; FED STD 1030	EIA-422; EIA-423; FED STD 1020; FED STD 1030	EIA-422; EIA-423; FED STD 1020; FED STD 1030	EIA-422; EIA-423; FED STD 1020; FED STD 1030	GENERAL PURPOSE
JESD-30 code	R-PDSO-G16	R-GDIP-T16	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16	R-GDIP-T16
length	9.9 mm	19.535 mm	9.9 mm	9.9 mm	9.9 mm	19.535 mm
Number of functions	4	4	4	4	4	4
Number of terminals	16	16	16	16	16	16
Maximum operating temperature	70 °C	125 °C	70 °C	85 °C	85 °C	125 °C
Minimum operating temperature	-	-55 °C	-	-40 °C	-40 °C	-55 °C
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Output polarity	TRUE	INVERTED	TRUE	TRUE	TRUE	INVERTED
Package body material	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED
encapsulated code	SOP	DIP	SOP	SOP	SOP	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum receive delay	25 ns	25 ns	25 ns	25 ns	25 ns	25 ns
Number of receiver bits	4	4	4	4	4	4
Maximum seat height	1.75 mm	5.08 mm	1.75 mm	1.75 mm	1.75 mm	5.08 mm
Maximum supply voltage	5.25 V	5.5 V	5.25 V	5.25 V	5.25 V	5.5 V
Minimum supply voltage	4.75 V	4.5 V	4.75 V	4.75 V	4.75 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	NO	YES	YES	YES	NO
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	COMMERCIAL	MILITARY	COMMERCIAL	INDUSTRIAL	INDUSTRIAL	MILITARY
Terminal form	GULL WING	THROUGH-HOLE	GULL WING	GULL WING	GULL WING	THROUGH-HOLE
Terminal pitch	1.27 mm	2.54 mm	1.27 mm	1.27 mm	1.27 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
width	3.9 mm	7.62 mm	3.9 mm	3.9 mm	3.9 mm	7.62 mm
Base Number Matches	1	1	1	1	1	1
