Part Number

Search

BAS19212

Description
DIODE 0.2 A, 120 V, SILICON, SIGNAL DIODE, Signal Diode
CategoryDiscrete semiconductor    diode
File Size127KB,6 Pages
ManufacturerNXP
Websitehttps://www.nxp.com
Download Datasheet Parametric Compare View All

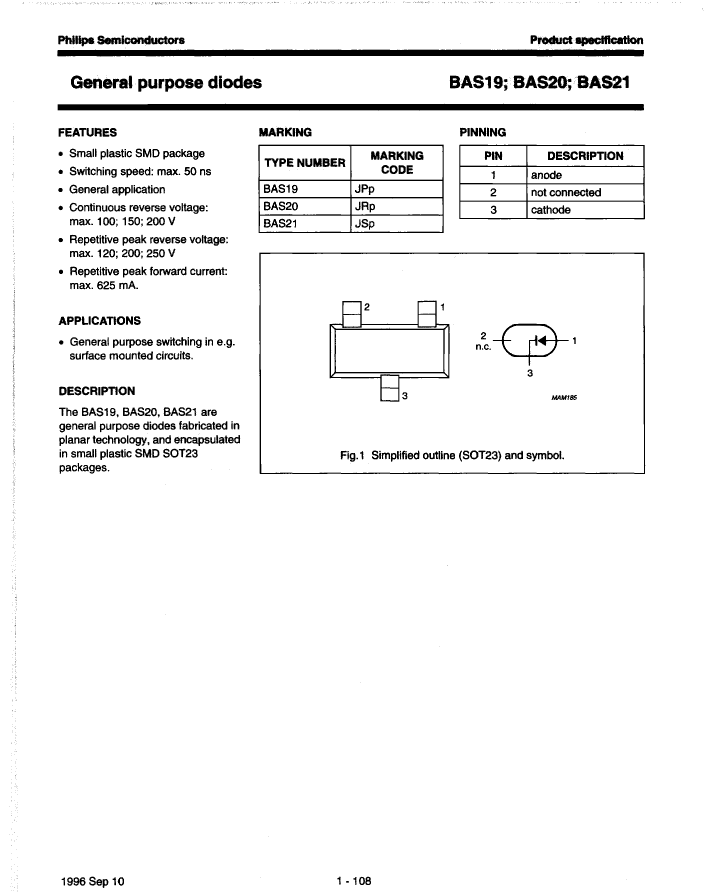

BAS19212 Overview

DIODE 0.2 A, 120 V, SILICON, SIGNAL DIODE, Signal Diode

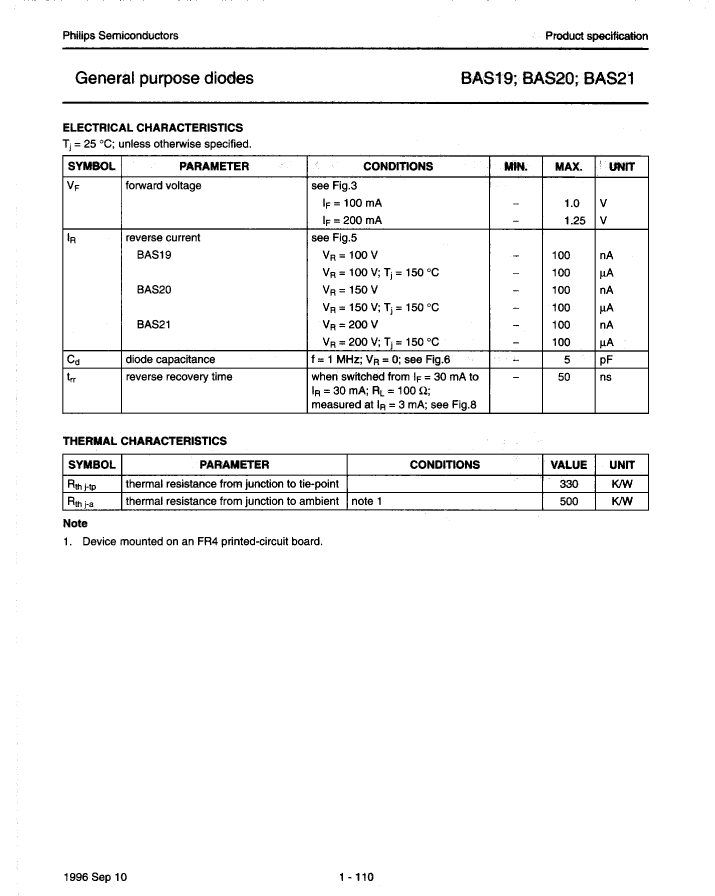

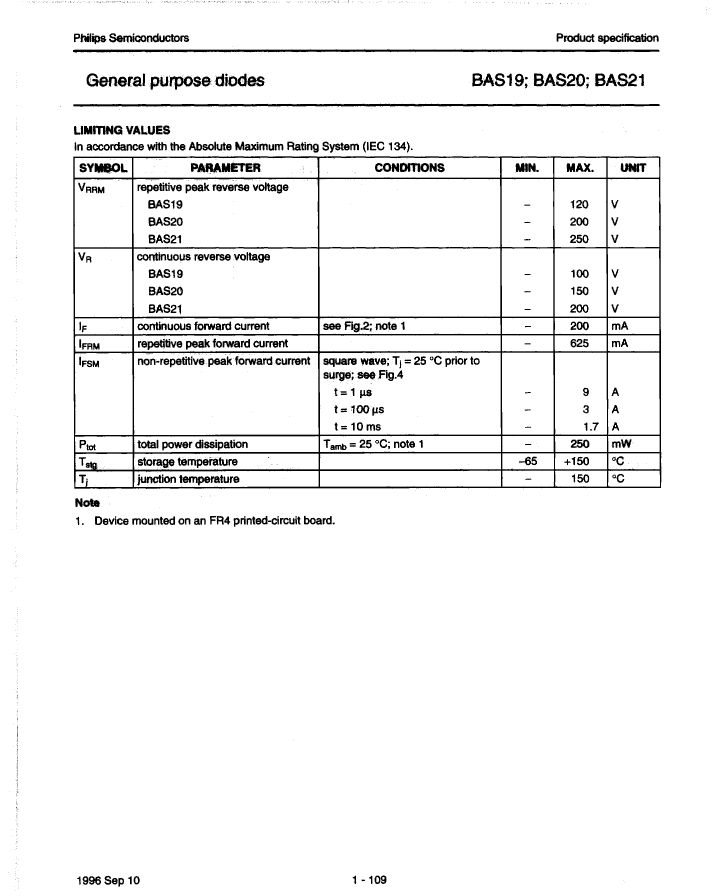

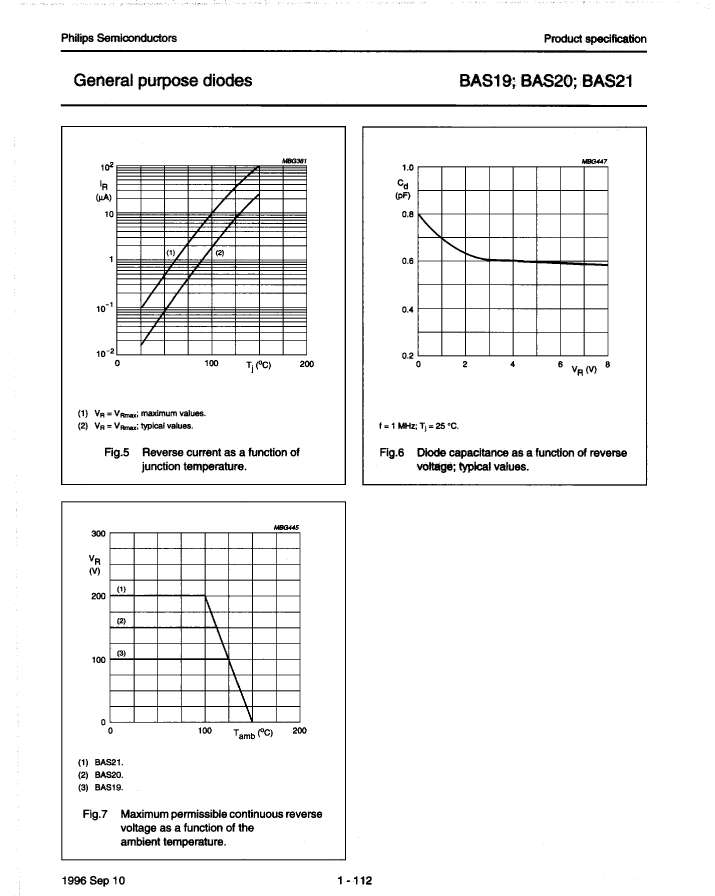

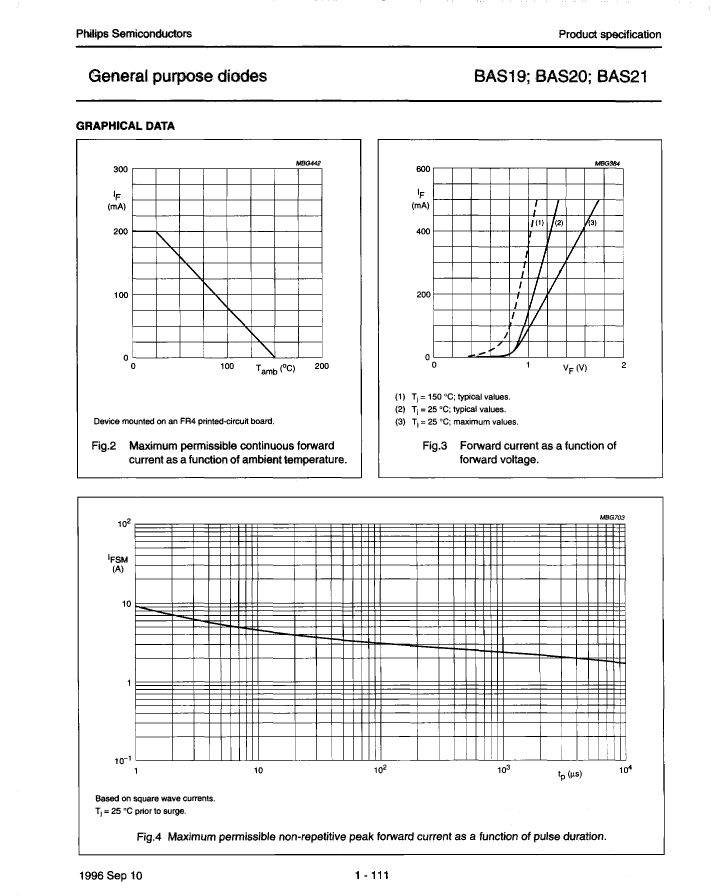

BAS19212 Parametric

Parameter NameAttribute value
package instructionR-PDSO-G3
Reach Compliance Codeunknown
ECCN codeEAR99
ConfigurationSINGLE
Diode component materialsSILICON
Diode typeRECTIFIER DIODE
Maximum forward voltage (VF)1.25 V
JESD-30 codeR-PDSO-G3
Maximum non-repetitive peak forward current9 A
Number of components1
Number of terminals3
Maximum operating temperature150 °C
Maximum output current0.2 A
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Maximum power dissipation0.25 W
Certification statusNot Qualified
Maximum repetitive peak reverse voltage120 V
Maximum reverse current0.1 µA
Maximum reverse recovery time0.05 µs
surface mountYES
Terminal formGULL WING
Terminal locationDUAL
Base Number Matches1

BAS19212 Related Products

BAS19212 BAS20212 BAS21212
Description DIODE 0.2 A, 120 V, SILICON, SIGNAL DIODE, Signal Diode 0.2A, 200V, SILICON, SIGNAL DIODE 0.2A, 250V, SILICON, SIGNAL DIODE
package instruction R-PDSO-G3 R-PDSO-G3 R-PDSO-G3
Reach Compliance Code unknown unknown unknown
ECCN code EAR99 EAR99 EAR99
Configuration SINGLE SINGLE SINGLE
Diode component materials SILICON SILICON SILICON
Diode type RECTIFIER DIODE RECTIFIER DIODE RECTIFIER DIODE
Maximum forward voltage (VF) 1.25 V 1.25 V 1.25 V
JESD-30 code R-PDSO-G3 R-PDSO-G3 R-PDSO-G3
Maximum non-repetitive peak forward current 9 A 9 A 9 A
Number of components 1 1 1
Number of terminals 3 3 3
Maximum operating temperature 150 °C 150 °C 150 °C
Maximum output current 0.2 A 0.2 A 0.2 A
Package body material PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY
Package shape RECTANGULAR RECTANGULAR RECTANGULAR
Package form SMALL OUTLINE SMALL OUTLINE SMALL OUTLINE
Maximum power dissipation 0.25 W 0.25 W 0.25 W
Certification status Not Qualified Not Qualified Not Qualified
Maximum repetitive peak reverse voltage 120 V 200 V 250 V
Maximum reverse current 0.1 µA 0.1 µA 0.1 µA
Maximum reverse recovery time 0.05 µs 0.05 µs 0.05 µs
surface mount YES YES YES
Terminal form GULL WING GULL WING GULL WING
Terminal location DUAL DUAL DUAL
Maker - NXP NXP
