Industrial Environment
AC-DC Converters >100 Watt
PC Series
190/230 Watt AC-DC Front End with PFC
Universal AC-input range
Single outputs for 70 and 85 V DC loads
No electrical isolation input to output
• Step-down converter with single stage AC to DC
conversion and PFC
• Immunity to IEC/EN 61000-4-2, -3, -4, -5, -6
• Harmonics below IEC/EN 61000-3-2
• No electrical isolation input to output
• Complete solution with input and output filters
• Input over- and undervoltage protection
• Very high efficiency up to 95%
• Output no load, overload and short-circuit proof
• Output overvoltage protection
• Thermal protection with automatic restart
• Ambient operating temperature range –40...71°C
• Plug-in type for 19" rack systems with H15 connector
• Extremely slim case (4TE wide) fully enclosed
• Very high reliability
Safety according to IEC/EN 60950, UL 1950

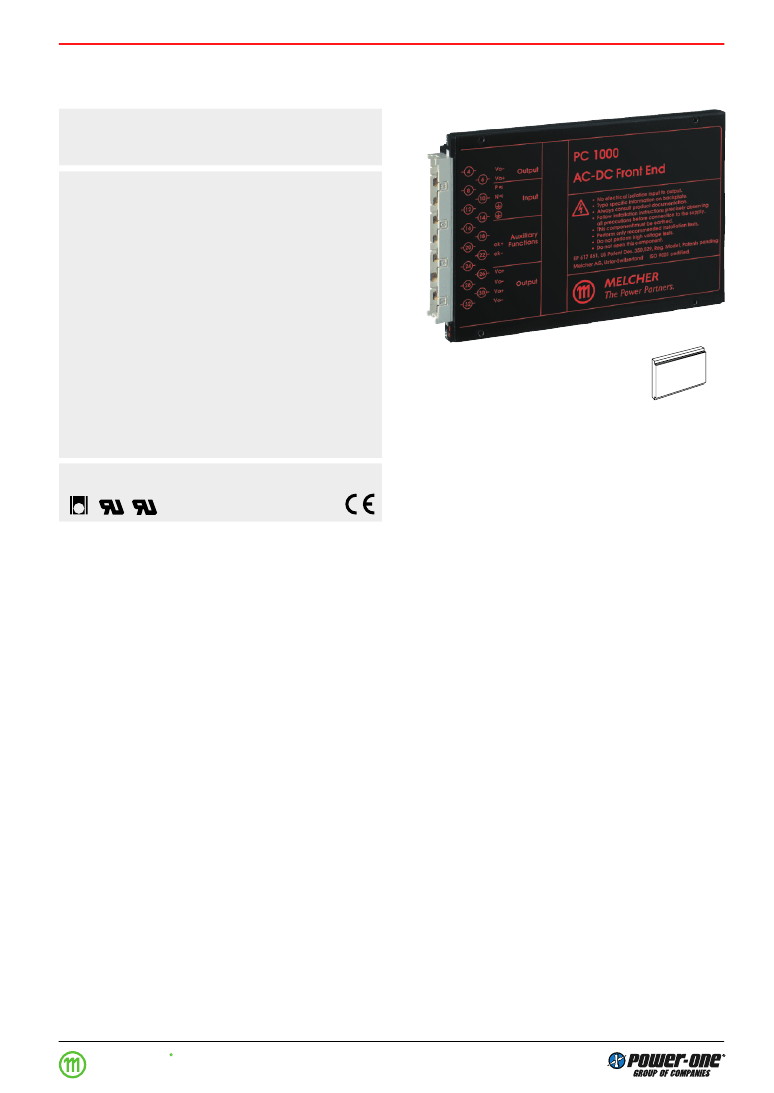

LGA
C
PC Series
111
4.4"
3U
20
0.8"
4 TE
164
6.5"
LGA approval pending
Summary
The LPC series is a range of non isolated AC-DC convert-
ers for use as power factor corrected front ends capable of
delivering up to 230 Watt at nominal output voltages of up to
85V. For higher power requirements, several units may be
connected in parallel.
The AC-DC converters are ideally adapted to mains opera-
tion due to their universal input voltage range. Key features
are: Power factor correction, low input harmonic distortion,
no inrush current, low RFI, high immunity to electrical dis-
turbances and high efficiency over the entire input voltage
range.
The outputs are no load, overload and short-circuit proof
and are protected against overvoltages by means of a built-
in suppressor diode.
The converters are especially suited to powering Melcher
DC-DC converters of the P and Q series which, depending
on the mains input voltage level, provide the necessary
electrical isolation for SELV (Safety Extra Low Voltage) out-
puts.
The OK LED displays the status of the converter and allows
visual monitoring of the system at any time.
The AC-DC converters are designed and built according to
the international safety standards IEC/EN 60950, UL 1950,
CAN/CSA C22.2 No.950-95, LGA , UL and cUL. Approvals
are in progress.
The converters are based on a single PCB with high power
density. The thermal concept allows operation at full load
up to an ambient temperature of 71°C in free air without
forced cooling. If forced air cooling is provided the ambient
temperature may exceed 71°C but the case temperature
T
C
must remain below 95°C under all operating conditions.
Semiconductors and other heat generating components
are mounted in such a way that the generated heat is
transfered directly to the rugged metallic case. High effi-
ciency, low heat dissipation and careful consideration of
possible thermal stresses ensure no hot spots and high re-
liability. A built-in temperature sensor generates an inhibit
signal which disables the output if the case temperature
T
C
exceeds 95°C. The output is automatically re-enabled
when the temperature returns below this limit.
A special feature of the LPC front end is the extremely slim
case, just 4TE wide.
The modules are plug-in types fitted with an H15 connector
for use in 19" rack systems according to DIN 41494.
Table of Contents
Page
Page
Mechanical Data .............................................................. 3
Safety and Installation Instructions .................................. 4
Description of Options ...................................................... 5
Summary .......................................................................... 1
Type Survey and Key Data .............................................. 2
Type Key and Product Marking ........................................ 2
MELCHER
The Power Partners.
Edition 4/7.99
1/5
Preliminary
PC Series
AC-DC Converters >100 Watt
Industrial Environment
Preliminary
Type Survey and Key Data
Table 1: Type survey
Nominal
1
output
voltage
U
o nom
[V]
72
85
1
2
3
4
Output
current
Output
power
I
o nom
[A]
2.7
2.7
P
o nom
[W]
190
230
Input voltage
range
47...63 Hz
U
i min
...U
i max
[V AC]
85...255
95...255
Efficiency
Type
designation
Options
h
[%]
2
94
94
LPC 1901-7
3
LPC 1902-7
4
-9
D
No electrical isolation input to output.
Measured at
U
i nom
.
For use with Melcher P units and Q units based on an AC input voltage of up to 150 V.
For use with Melcher P units based on an AC input voltage of up to 250 V.
Type Key and Product Marking
Type Key
L PC 1 901 -7 D
Input voltage range
U
i
85/95...255 V AC, 47...63 Hz ....................... L
Series ............................................................................ PC
Number of outputs ............................................................ 1
Nominal voltage output 1
72 V ......................................................... 901
85 V ......................................................... 902
Ambient temperature range
T
A
:
–25...71°C .................................................. -7
–40...71°C .................................................. -9
Customer specific ................................. -0...-6
Option:
Example:
Converter OK signal ................................... D
LPC 1901-7: Power factor corrected AC-DC converter, input voltage range 85...255 V AC, non isolated out-
put providing 72 V DC, 2.7 A.
Product Marking
Basic type designation, applicable safety approval and recognition marks, CE mark, warnings, pin allocations of inputs and
outputs, Melcher patents and company logo.
Identification of LED
Specific type designation, operating input voltage range, maximum input current, nominal output voltage and output cur-
rent, degree of protection and pin allocations of auxiliary functions.
Batch no., serial no. and data code including production site, modification status and date of production.
MELCHER
The Power Partners.
Edition 4/7.99
2/5
Industrial Environment
Mechanical Data
AC-DC Converters >100 Watt
PC Series
Dimensions in mm. Tolerances
±0.3
mm unless otherwise indicated.
09106
European
Projection
104
±0.15
Front plate
35
Measuring point of
case temperature
T
C
M3; through
20
Rear
face
171.93 (DIN 41494)
164
±0.5
127
±0.15
Main
face
8
±0.5
65
111
Back plate
100
95
20.32 (4 TE)
13.43
Fig. 1
Case Q03, weight 480 g
Aluminium, fully enclosed,
black finish and self cooling
LED "OK" green
Note:
Long case, elongated by 60 mm for 220 mm rack
depth, available on request.
