DTA-3G-3-CA-V datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The sensor> Sensor/transducer> DTA-3G-3-CA-V

DTA-3G-3-CA-V: DescriptionLVDT AC Sensor, 3mm Min, 3mm Max, Cylindrical; CategoryThe sensor Sensor/transducer; File Size247KB，6 Pages; ManufacturerMICRO-EPSILON

Download Datasheet Parametric Compare View All

DTA-3G-3-CA-V Overview

LVDT AC Sensor, 3mm Min, 3mm Max, Cylindrical

DTA-3G-3-CA-V Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Other features	IP 54
body height	92.1 mm
Body length or diameter	10 mm
Excitation frequency	5 kHz
shell	STAINLESS STEEL
Linearity(%)	0.3 %
Maximum measuring range (mm)	3 mm
Minimum measuring range (mm)	3 mm
Maximum operating temperature	80 °C
Minimum operating temperature	-20 °C
Output type	ANALOG VOLTAGE
Package Shape/Form	CYLINDRICAL
Repeatability	0.00045
Sensitivity (mV/V/mm)	85 mV/V/mm
Sensor/Transducer Type	LINEAR POSITION SENSOR,LVDT,AC OUTPUT
Termination type	CABLE
Base Number Matches	1

Preview

Download Datasheet

View All

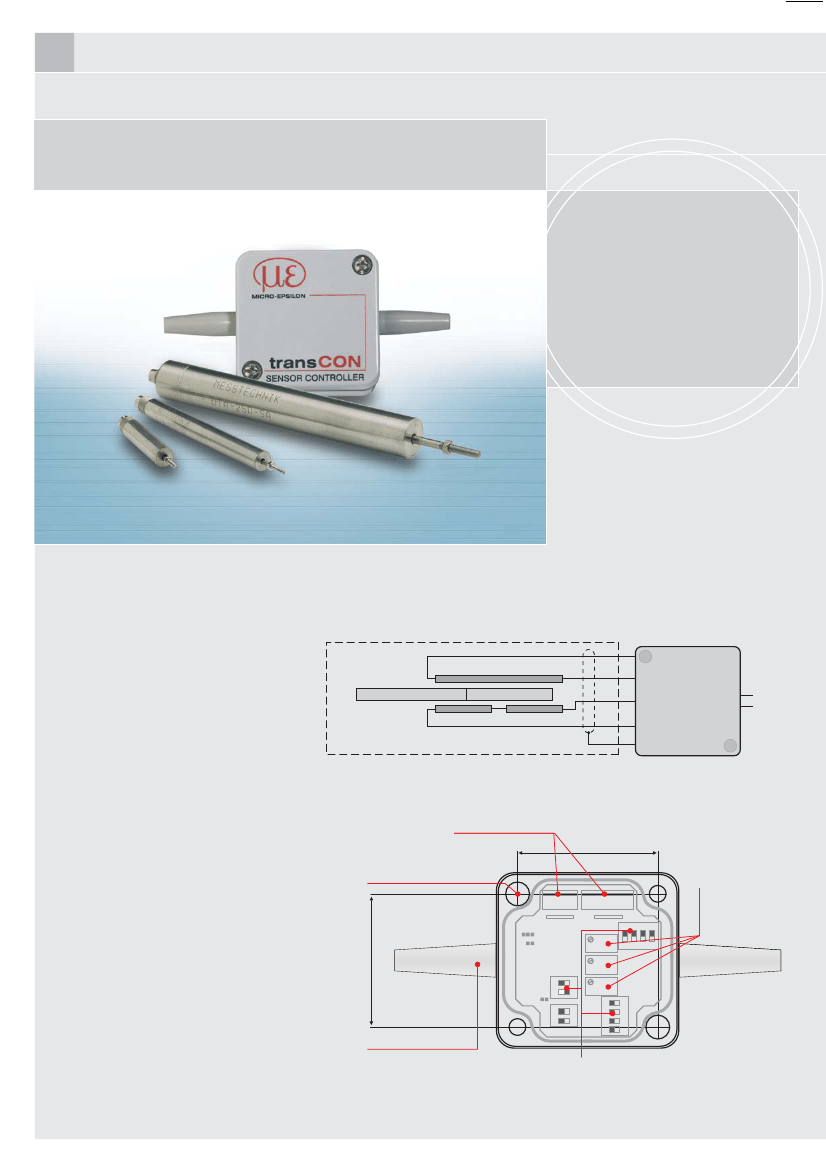

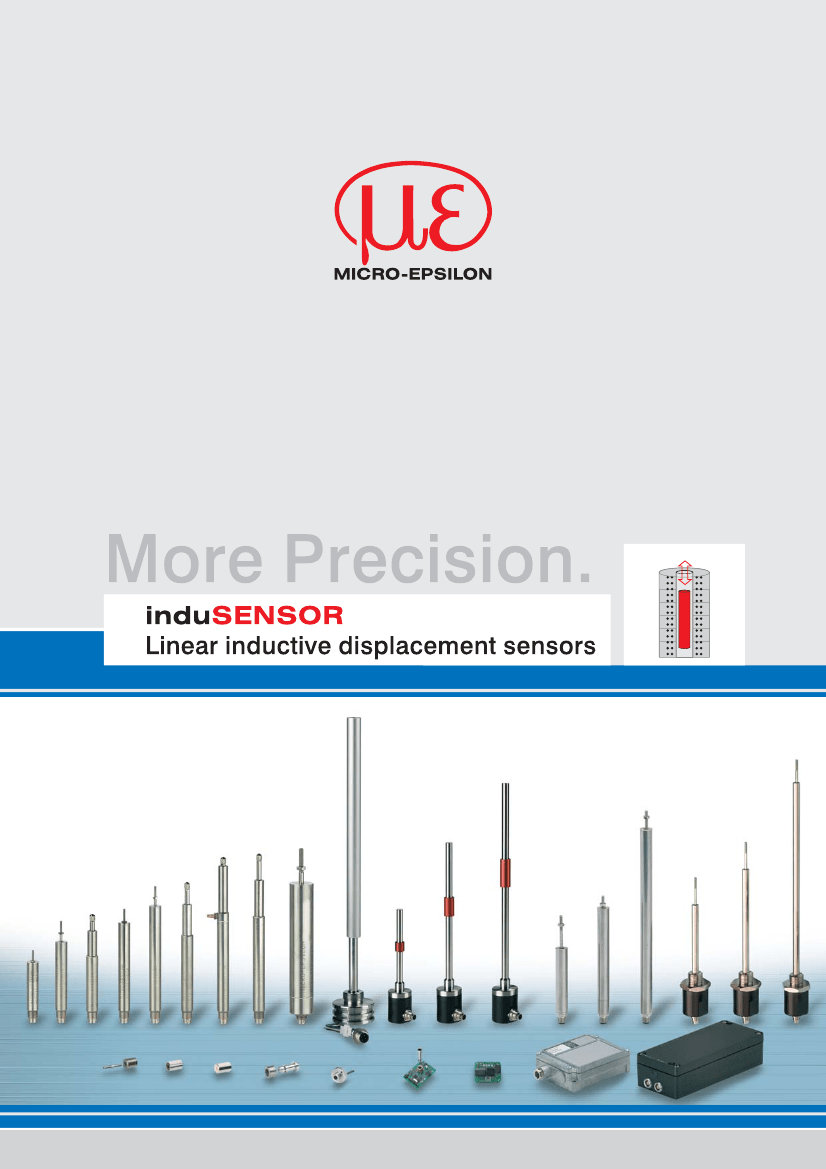

Inductive and LVDT sensors for

displacement, distance and position

Linear sensors and gaging sensors for industrial and OEM applications

for integration in machines and systems. Accurate displacement and

position sensors to favourable conditions

inductive displacement sensors, LVDT gaging sensors, displacement transducers, displacement sensors,

distance, transducers, automation, automobile, automotive, loading sensor, non-contact, pressure resistant,

pressure-resistant, immersion depth, spring travel, filling level, stroke, hydraulics, inductive sensors and

gaging sensors, automotive engineering, pistons, clutch, measurement of lengths, linear sensor, LVDT,

measurement devices, OEM sensors, Oil resistant, pneumatics, position sensor, position measurement,

sensor, series sensors, unbalance sensor, valve, wear-free, displacement sensor, displacement

measurement, also customer-specific OEM sensors, automotive engineering test and test-rigs, automotive

sensors for large-scale production

DTA-3G-3-CA-V Related Products

	DTA-3G-3-CA-V	DTA-10G-3-CA-V	DTA-10G-1.5-CA-V	DTA-3G-1.5-CA-V	DTA-5G-1.5-CA-V	DTA-5G-3-CA-V	DTA-1G-1.5-CA-V
Description	LVDT AC Sensor, 3mm Min, 3mm Max, Cylindrical	LVDT AC Sensor, 10mm Min, 10mm Max, Cylindrical	LVDT AC Sensor, 10mm Min, 10mm Max, Cylindrical	LVDT AC Sensor, 3mm Min, 3mm Max, Cylindrical	LVDT AC Sensor, 5mm Min, 5mm Max, Cylindrical	LVDT AC Sensor, 5mm Min, 5mm Max, Cylindrical	LVDT AC Sensor, 1mm Min, 1mm Max, Cylindrical
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Other features	IP 54	IP 54	IP 54	IP 54	IP 54	IP 54	IP 54
body height	92.1 mm	145 mm	145 mm	92.1 mm	120 mm	120 mm	69 mm
Body length or diameter	10 mm	10 mm	10 mm	10 mm	10 mm	10 mm	10 mm
Excitation frequency	5 kHz	2 kHz	2 kHz	5 kHz	5 kHz	5 kHz	5 kHz
shell	STAINLESS STEEL	STAINLESS STEEL	STAINLESS STEEL	STAINLESS STEEL	STAINLESS STEEL	STAINLESS STEEL	STAINLESS STEEL
Linearity(%)	0.3 %	0.3 %	1.5 %	1.5 %	1.5 %	0.3 %	1.5 %
Maximum measuring range (mm)	3 mm	10 mm	10 mm	3 mm	5 mm	5 mm	1 mm
Minimum measuring range (mm)	3 mm	10 mm	10 mm	3 mm	5 mm	5 mm	1 mm
Maximum operating temperature	80 °C	80 °C	80 °C	80 °C	80 °C	80 °C	80 °C
Minimum operating temperature	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C
Output type	ANALOG VOLTAGE	ANALOG VOLTAGE	ANALOG VOLTAGE	ANALOG VOLTAGE	ANALOG VOLTAGE	ANALOG VOLTAGE	ANALOG VOLTAGE
Package Shape/Form	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL
Repeatability	0.00045	0.0015	0.0015	0.00045	0.00075	0.00075	0.00015
Sensitivity (mV/V/mm)	85 mV/V/mm	44 mV/V/mm	44 mV/V/mm	85 mV/V/mm	53 mV/V/mm	53 mV/V/mm	133 mV/V/mm
Termination type	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE
Sensor/Transducer Type	LINEAR POSITION SENSOR,LVDT,AC OUTPUT	LINEAR POSITION SENSOR,LVDT,AC OUTPUT	LINEAR POSITION SENSOR,LVDT,AC OUTPUT	LINEAR POSITION SENSOR,LVDT,AC OUTPUT	LINEAR POSITION SENSOR,LVDT,AC OUTPUT	LINEAR POSITION SENSOR,LVDT,AC OUTPUT	-
Base Number Matches	1	1	1	1	-	-	-
