FHW0805UCR18GGT datasheet, PDF

Datasheet> All Categories > Passive components> inductor> FHW0805UCR18GGT

FHW0805UCR18GGT: DescriptionGeneral Purpose Inductor, 0.18uH, 2%, Ceramic-Core, 0805; CategoryPassive components inductor; File Size1MB，9 Pages; ManufacturerFenghua (HK) Electronics Ltd.

Download Datasheet Parametric View All

FHW0805UCR18GGT Overview

General Purpose Inductor, 0.18uH, 2%, Ceramic-Core, 0805

FHW0805UCR18GGT Parametric

Parameter Name	Attribute value
package instruction	0805
Reach Compliance Code	unknown
uppercase and lowercase codes	0805
structure	Wirewound Chip
core material	Ceramic
DC Resistance	0.64 Ω
Nominal inductance(L)	0.18 µH
Inductor type	GENERAL PURPOSE INDUCTOR
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package height	1.52 mm
Package length	2 mm
Package form	SMT
Package width	1.2 mm
method of packing	TR
Minimum quality factor (at nominal inductance)	45
Maximum rated current	0.4 A
self resonant frequency	870 MHz
Tolerance	2%
Base Number Matches	1

Preview

Download Datasheet

View All

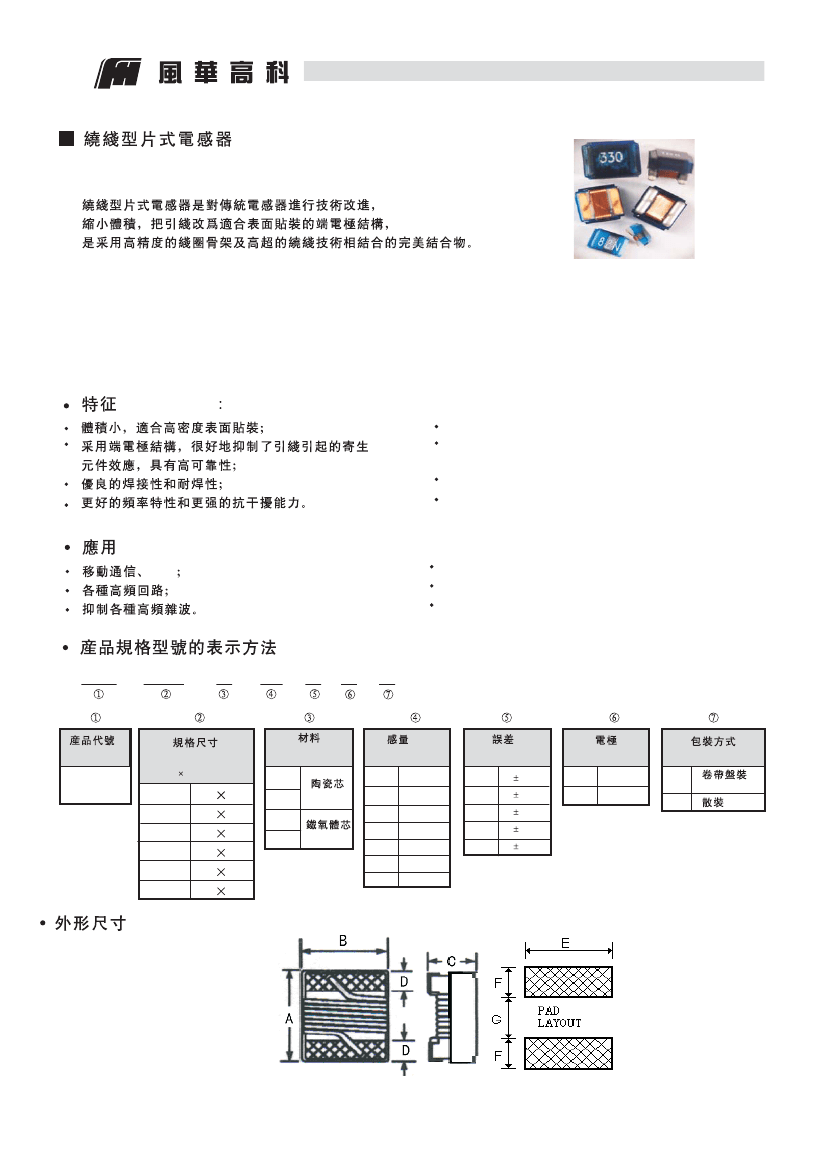

WIRE WOUND CHIP INDUCTORS

Wire wound chip inductor is a perfect combine by means of

combining hing precision coil framework with superb wound

technology. Comparable with traditional inductor, it is improved

technology, reduced volume and changed the lead into a kind of

terminal electrode structure suitable for SMT.

FEATURES

Minature size, suitable for SMT;

Using terminal electrode structure to restrain the

parasitic component effect quite caused by lead;

Execellent in solderability and heat resistance;

Best frequency special property and intense ability to

resist interference.

APPLICATIONS

PDA

Portable communication equipment and PDA;

High speed electronic device;

Used for radiation high speed noise suppression.

ORDERING CODE

FHW

0805

068

(nH)

Code

FHW

Dimensions

(L W ) (mm)

0402

0603

0805

1008

1210

1812

1.0

1.6

2.0

2.5

3.2

4.5

0.5

0.8

1.2

2.0

2.5

3.2

Material

Ferrite

Ceramic

Inductance

1N0

010

R10

1R0

100

101

102

1.0

100

1000

10000

100000

1000000

(%)

Tolerance

Terminal

GOLD

TIN

Packaging Style

Tape&Reel

Bulk

DIMENSIONS
