350-Z1-116-00-206: Description16 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SURFACE MOUNT; Categorysemiconductor Other integrated circuit (IC); File Size49KB，1 Pages; ManufacturerPRECI-DIP; Websitehttp://www.precidip.com/en/index.html

Download Datasheet Compare View All

350-Z1-116-00-206 Overview

16 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SURFACE MOUNT

Preview

Download Datasheet

View All

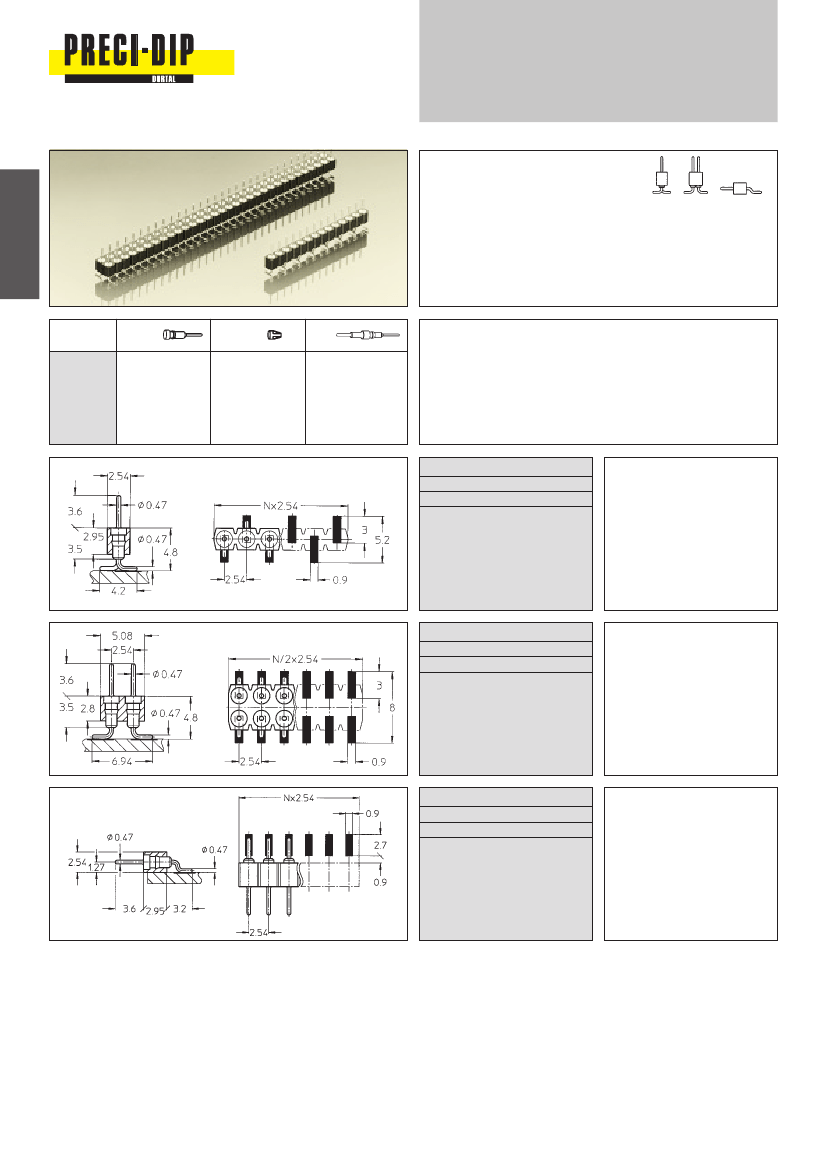

Series 350 / 450

46

PCB connectors 2.54 mm

Single row / double row

Surface mount

Pin connectors, surface mount

With screw machined pins

∅

0.47 mm

For corresponding receptacles see

pages 36 to 42 and 47, 48

New:

Pin connectors with selective plated precision screw machined

pin, plating code Z1.

Connecting side 1: gold plated

soldering/PCB side 2: tin plated

Platings

10

90

Z1

Sleeve

Clip

0.25

µm

Au

5

µm

Sn Pb

1: 0.25

µm

Au

2: 5

µm

Sn Pb

Ordering information

Replace

xx

with the number of poles, e.g. 350-10-1xx-00-106

for a single row version with 16 contacts becomes:

350-10-116-00-106

350-10-1xx-00-106

350-90-1xx-00-106

350-Z1-1xx-00-106

SMD pin connector: single row,

perpendicular mount

Availability from: 3 to 64 contacts

Standard number of contacts 5,

6, 8, 10, 14, 16, 20, 21, 25, 30,

32, 48, 56, 60, 64

450-10-2xx-00-106

450-90-2xx-00-106

450-Z1-2xx-00-106

SMD pin connector: double row,

perpendicular mount

Availability from: 4 to 72 contacts

Standard number of contacts 40,

44, 56, 64, 72

350-10-1xx-00-206

350-90-1xx-00-206

350-Z1-1xx-00-206

SMD pin connector: single row,

parallel mount

Availability from: 1 to 64 contacts

Standard number of contacts 5,

6, 8, 10, 14, 16, 20, 21, 25, 30,

32, 48, 56, 60, 64

350-Z1-116-00-206 Related Products

	350-Z1-116-00-206	350-10-116-00-106	350-10-116-00-206	350-90-116-00-106	350-90-116-00-206	350-Z1-116-00-106	450-10-216-00-106	450-90-216-00-106	450-Z1-216-00-106
Description	16 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SURFACE MOUNT	16 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SURFACE MOUNT	16 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SURFACE MOUNT	16 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SURFACE MOUNT	16 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SURFACE MOUNT	16 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SURFACE MOUNT	16 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SURFACE MOUNT	16 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SURFACE MOUNT	16 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SURFACE MOUNT
