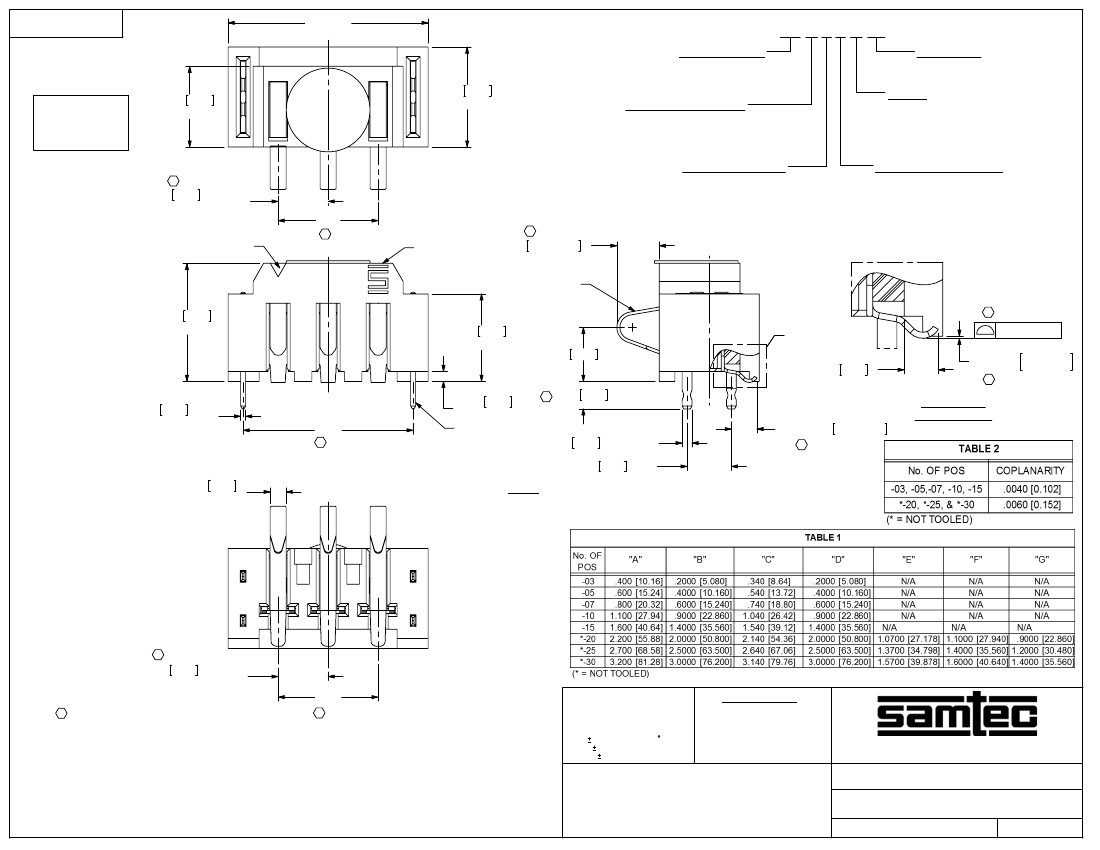

REVISION B
"A" REF
C
L
DESIGNED & DIMENSIONED
IN INCHES[MILLIMETERS]
SIR1-XX-X-S-X-X-XX
No OF POSITIONS
-03, -05, -07, -10, -15,
*-20, *-25, *-30
(PER ROW)
PACKAGING
-TR: TAPE & REEL FOR OPTIONAL
OPTION
-A: ALIGNMENT PIN
(USE SIR1-XX-A-X)
-K: POLYAMIDE FILM
(USE K-DOT-.157-.250-.005,
SEE FIG. 3, SHT 2)
THREADED INSERT OPTION
*-E: THREADED INSERT (ENGLISH)
(USE INS-14-2-56-115,)
*-M: THREADED INSERT (METRIC)
(USE INS-14-M2-115-N)
DO NOT
SCALE FROM
THIS PRINT
.162 4.10
REF
.200 5.08
REF
PLATING SPECIFICATION
-L: 10µ" GOLD IN CONTACT AREA,
MATTE TIN ON TAIL
-S: 30µ" GOLD IN CONTACT AREA,
MATTE TIN ON TAIL
ROW SPECIFICATION
-S: SINGLE ROW
C
.100 2.54 (TYP)
(TOL. NON-ACCUM.)
01
"B"
C
03
(* = NOT TOOLED)
C
POSITION #1
INDICATOR
SIR1-XX-S
.085±.006 2.15±0.15
C
L
C-322-01-X
.236 6.00
REF
C
.175 4.45
REF
'A'
.108 2.75 REF
.034 0.87
.055 1.40
.051±.008 1.30±0.20
C
C
SEE TABLE 2
.002
- .001
0.05
- 0.025
+.004
+0.102
C
L
.010 0.25 REF
(2 PLCS)
"C"
.020 0.51
REF
WT-54-01-X
C
DETAIL 'A'
SCALE 10 : 1
C
.020 0.50 REF (TYP)
.089 2.25 REF
.032 0.81
REF (TYP)
C
L
SIR1-03-X-S SHOWN
(FOR POSITIONS -03, -05, -10, & -15)
FIG 1
C
NOTES:
.100 2.54 (TYP)
(TOL. NON-ACCUM.)
"D"
C
1.
C
REPRESENTS A CRITICAL DIMENSION.
2. BURR ALLOWANCE: .0015[.038] MAX.
3. MINIMUM PUSHOUT FORCE: .5 LB[2.2 N].
4. LOAD INSERTS IN DIRECTION OF THE ARROW USING HAND LOAD THERMAL INSERTION PRESS.
5. THREADED INSERT MUST BE ABLE TO HANDLE 20 in-oz's OF
TORQUE MIN WITHOUT ROTATING OR "LOOSENING".
6. THREADED INSERT RETENSION TO BE 7lbs. MIN.
7. THREADED INSERT TO BE FLUSH TO .005[0.13] BELOW HOUSING SURFACE.
8. NOTE DELETED.
9. ASSEMBLIES TO BE PACKAGED IN TUBES, UNLESS -TR IS SPECIFIED.
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
DECIMALS
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
.XX: .01 [.3]

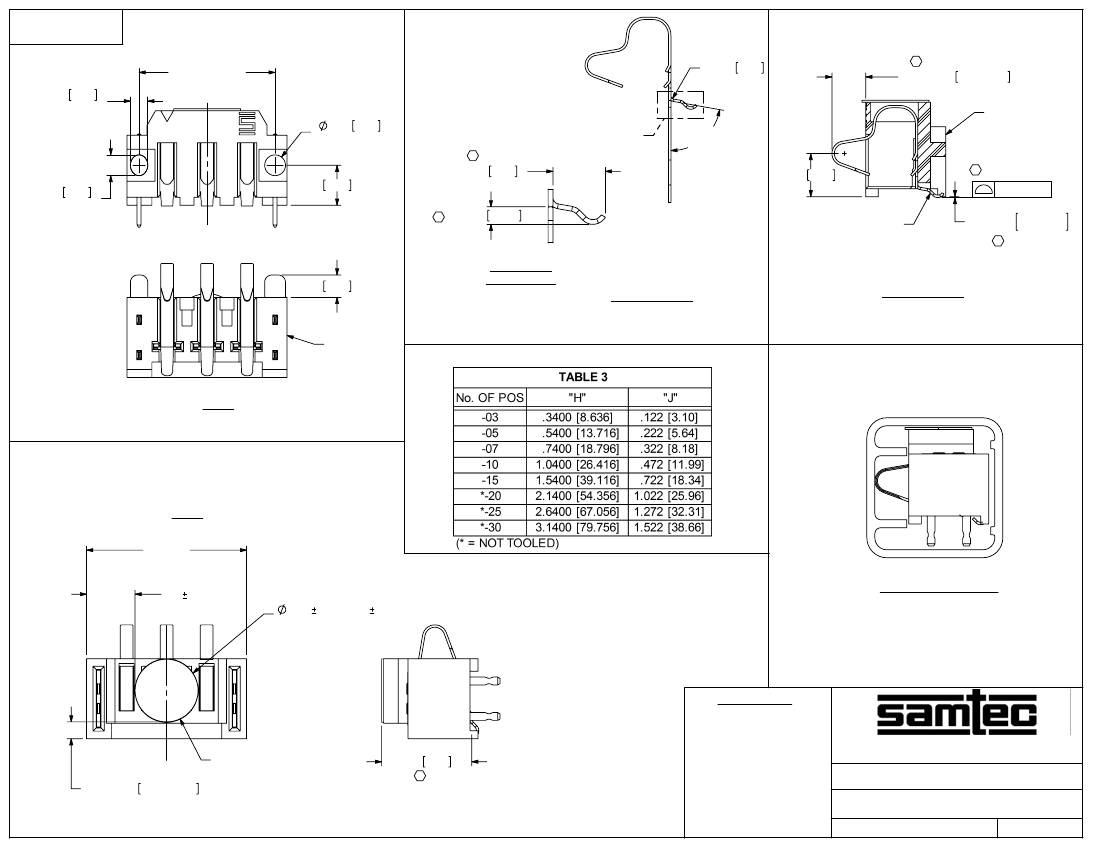

2
.XXX: .005 [.13]
.XXXX: .0020 [.051]
ANGLES
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
MATERIAL:
DO NOT SCALE DRAWING
SHEET SCALE: 5:1
INSULATOR: LCP, COLOR: BLACK
CONTACT: PHOS BRONZE
WELD TAB: PHOS BRONZE
F:\DWG\MISC\MKTG\SIR1-XX-X-S-X-X-XX-MKT.SLDDRW
ONE PIECE POWER RIGHT ANGLE ASSEMBLY
SIR1-XX-X-S-X-X-XX
5/20/2010
SHEET
1
OF
3
BY:
ROY LUO
REVISION B
"H" REF
(SEE TABLE 2)
.043 1.10
REF
R.008 0.20
C
.085±.006 2.15±0.15
C
L
.052 1.32
REF
C
SIR1-XX-S
'B'
.066 1.67
80°
REF
.108 2.75
C
.052 1.32
REF
.100 2.54 REF
C
.004[0.10]
.0220 0.559
C-322-01-X
.002
- .001
0.05
- 0.025
C
+.004
+0.102
.056 1.42 REF
DETAIL 'B'
SCALE 8 : 1
(FORM CONTACT C-322-01-X)
IN-PROCESS 1
(FILL CONTACT C-322-01-X)
IN-PROCESS 2
SIR1-XX-S-A
(SIR1-03-X-S-A SHOWN)
(SAME AS FIG 1, EXCEPT AS SHOWN)
FIG 2
(SIR1-03-X-S-K SHOWN)
(SAME AS FIG 1, EXCEPT AS SHOWN)
"A" REF
FIG 3
"J" .020[0.50]
PACKAGING VIEW
.157 .010 [3.99 0.254]
TUBE: PT-1-24-11-63
PLUG: TP-09
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
C
L
.042±.020 1.07±0.508
K-DOT-.157-.250-.005
.225 5.72
C
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 4:1
ONE PIECE POWER RIGHT ANGLE ASSEMBLY
SIR1-XX-X-S-X-X-XX
5/20/2010
SHEET
2
OF
3
F:\DWG\MISC\MKTG\SIR1-XX-X-S-X-X-XX-MKT.SLDDRW
BY:
ROY LUO
REVISION B

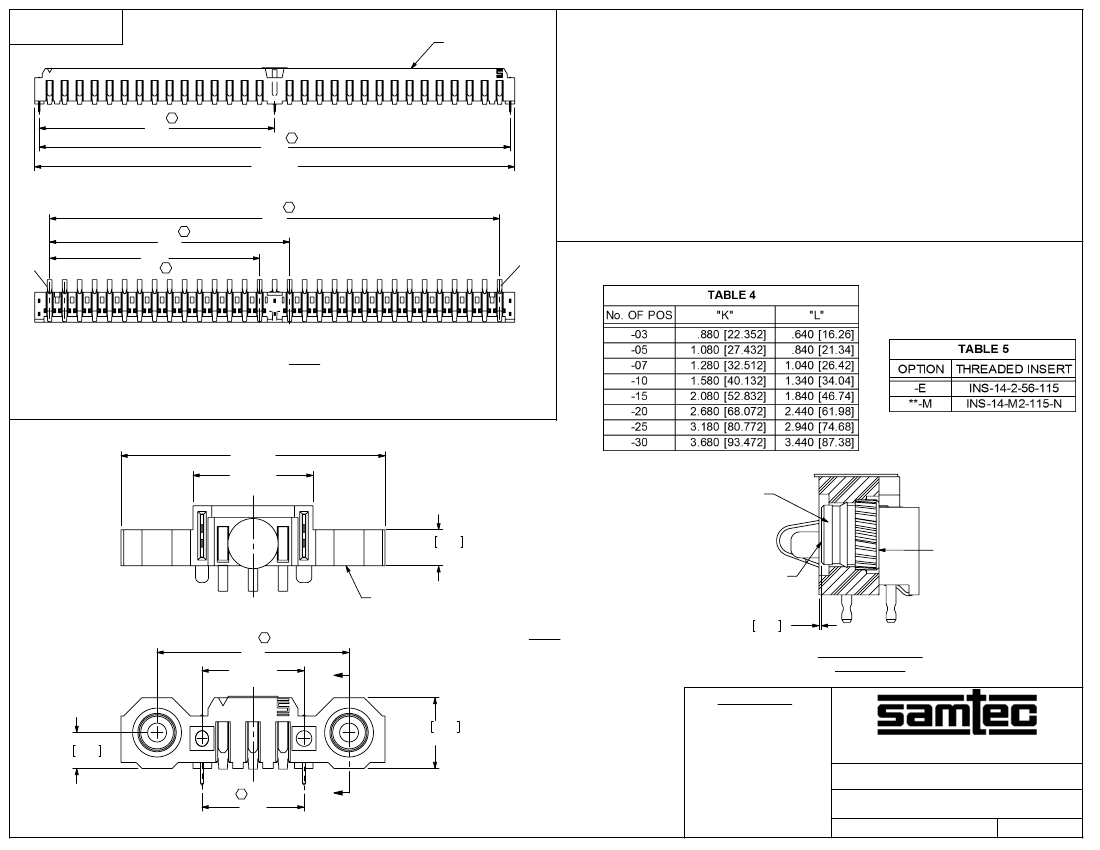

SIR1-XX-S
"E"
C
"C"
C
"A" REF
"F"
C
"B"
C
01
"G"
C
30
(SIR1-30-X-S SHOWN)
(SAME AS FIG 1, EXCEPT AS SHOWN)
(FOR POSITIONS -20, -25, & -30)
(NOT TOOLED)
** = METRIC THREADED INSERTS
TO BE FLASH NICKEL PLATED
"K" REF
"A" REF
FIG 4
C
L
SEE TABLE 5
.120 3.05
REF
SEE NOTE 7
LOAD INSERT
FROM THIS SIDE
(SEE NOTE 4)
SIR1-XX-S-E-A
C
"L"
"G" REF
C
L
"C"
-E & -M OPTION
(SIR1-03-X-S-X-A SHOWN)
(SAME AS FIG 2, EXCEPT AS SHOWN)
(NOT TOOLED)
PROPRIETARY NOTE
FIG 5
.005 0.13
SECTION "C"-"C"
SCALE 5 : 1
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
.120 3.05
.236 6.00
REF
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
C
"C"
"C"
F:\DWG\MISC\MKTG\SIR1-XX-X-S-X-X-XX-MKT.SLDDRW
DO NOT SCALE DRAWING
SHEET SCALE: 3:1
ONE PIECE POWER RIGHT ANGLE ASSEMBLY
SIR1-XX-X-S-X-X-XX
5/20/2010
SHEET
3
OF
3
BY:
ROY LUO
