SIR1-05-S-S-E-A-TR: DescriptionCard Edge Connector, 5 Contact(s), 1 Row(s), Male, Right Angle, Surface Mount Terminal,; CategoryThe connector The connector; File Size288KB，3 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/

Download Datasheet Parametric View All

SIR1-05-S-S-E-A-TR Overview

Card Edge Connector, 5 Contact(s), 1 Row(s), Male, Right Angle, Surface Mount Terminal,

SIR1-05-S-S-E-A-TR Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
Connector type	CARD EDGE CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL (50)
Contact completed and terminated	TIN
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	SIR1
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SURFACE MOUNT
Total number of contacts	5
Base Number Matches	1

Preview

Download Datasheet

View All

REVISION A

DO NOT

SCALE FROM

THIS PRINT

"A" REF

DESIGNED & DIMENSIONED

IN INCHES[MILLIMETERS]

SIR1-XX-X-S-X-X-XX

No OF POSITIONS

-03, -05, -10, -15,

*-20, *-25, *-30

(PER ROW)

PACKAGING

-TR: TAPE & REEL FOR OPTIONAL

OPTION

-A: ALIGNMENT PIN

(USE SIR1-XX-A-X)

-K: POLYAMIDE FILM

(USE K-DOT-.157-.250-.005,

SEE FIG. 3, SHT 2)

.162 4.10

REF

.200 5.08

REF

PLATING SPECIFICATION

-L: 10u" MIN Au/50u" Ni

IN CONTACT, TIN ON TAIL

-S: 30u" MIN Au/50u" Ni

IN CONTACT, TIN ON TAIL

ROW SPECIFICATION

-S: SINGLE ROW

.100 2.54 (TYP)

(TOL. NON-ACCUM.)

"B"

(* = NOT TOOLED)

.085±.006 2.15±0.15

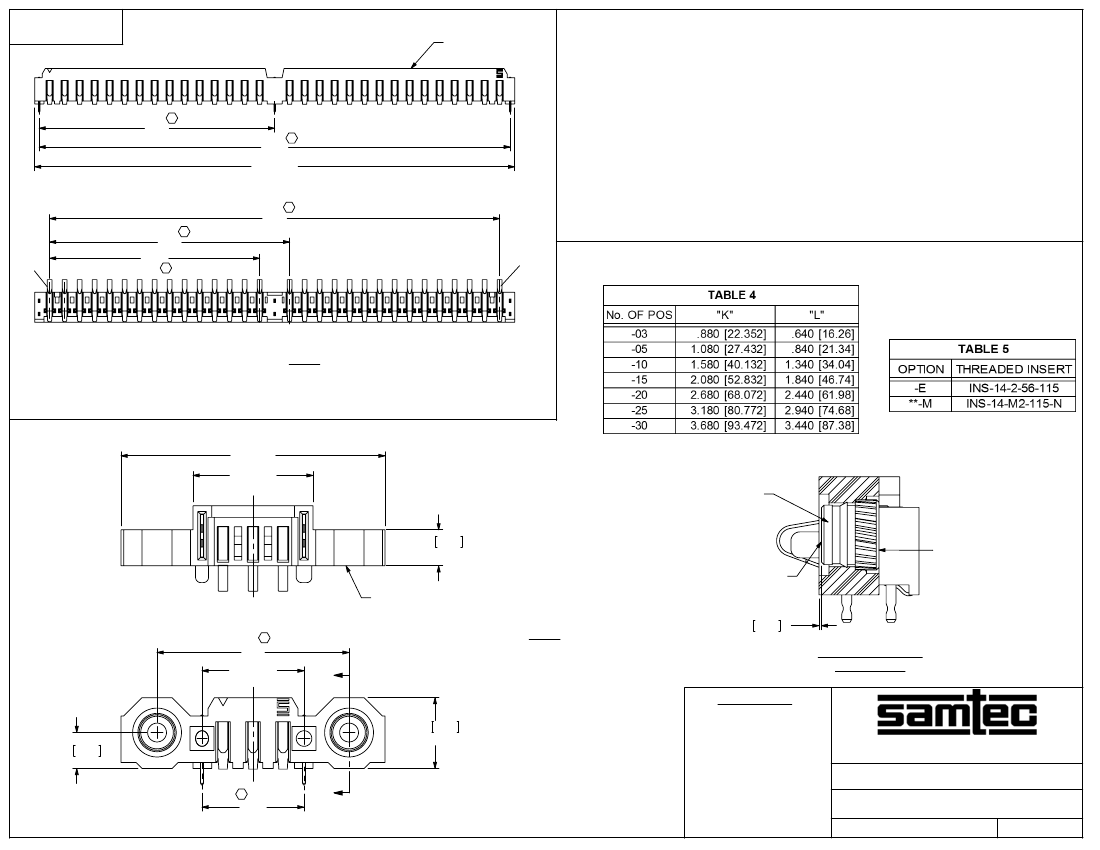

THREADED INSERT OPTION

*-E: THREADED INSERT (ENGLISH)

(USE INS-14-2-56-115,)

*-M: THREADED INSERT (METRIC)

(USE INS-14-M2-115-N)

POSITION #1

INDICATOR

SIR1-XX-S

C-322-01-X

.236 6.00

REF

.175 4.45

REF

'A'

.108 2.75

.034 0.87

.055 1.40

.051±.008 1.30±0.20

SEE TABLE 2

.002

- .001

0.05

- 0.025

+.004

+0.102

.010 0.25 REF

(2 PLCS)

"C"

.020 0.51

REF

WT-54-01-X

DETAIL 'A'

SCALE 10 : 1

.020 0.50 REF (TYP)

.089 2.25 REF

.032 0.81

REF (TYP)

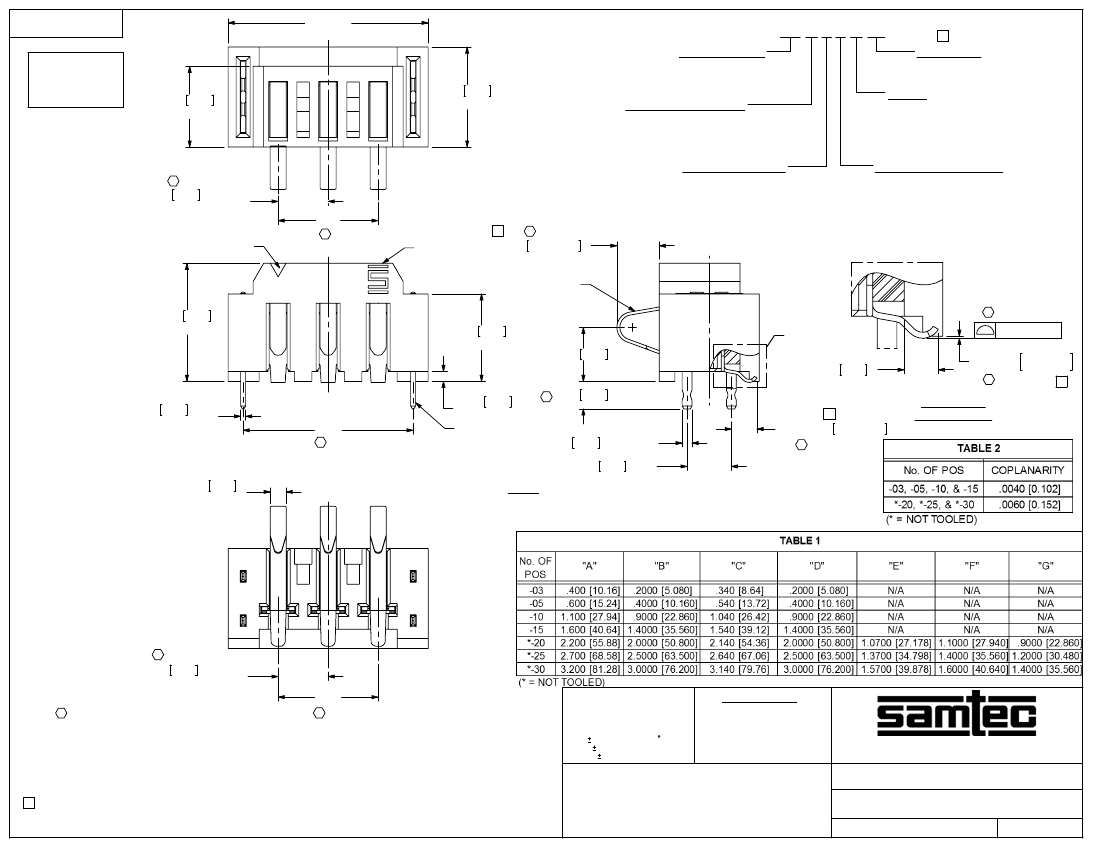

SIR1-03-X-S SHOWN

(FOR POSITIONS -03, -05, -10, & -15)

FIG 1

NOTES:

.100 2.54 (TYP)

(TOL. NON-ACCUM.)

"D"

REPRESENTS A CRITICAL DIMENSION.

2. BURR ALLOWANCE: .0015[.038] MAX.

3. MINIMUM PUSHOUT FORCE: .5 LB[2.2 N].

4. LOAD INSERTS IN DIRECTION OF THE ARROW USING HAND LOAD THERMAL INSERTION PRESS.

5. THREADED INSERT MUST BE ABLE TO HANDLE 20 in-oz's OF

TORQUE MIN WITHOUT ROTATING OR "LOOSENING".

6. THREADED INSERT RETENSION TO BE 7lbs. MIN.

7. THREADED INSERT TO BE FLUSH TO .005[0.13] BELOW HOUSING SURFACE.

8. NOTE DELETED.

9. ASSEMBLIES TO BE PACKAGED IN TUBES, UNLESS -TR IS SPECIFIED.

UNLESS OTHERWISE SPECIFIED,

DIMENSIONS ARE IN INCHES.

TOLERANCES ARE:

DECIMALS

PROPRIETARY NOTE

THIS DOCUMENT CONTAINS INFORMATION

CONFIDENTIAL AND PROPRIETARY TO

SAMTEC, INC. AND SHALL NOT BE REPRODUCED

OR TRANSFERRED TO OTHER DOCUMENTS OR

DISCLOSED TO OTHERS OR USED FOR ANY

PURPOSE OTHER THAN THAT WHICH IT WAS

OBTAINED WITHOUT THE EXPRESSED WRITTEN

CONSENT OF SAMTEC, INC.

.XX: .01 [.3]

.XXX: .005 [.13]

.XXXX: .0020 [.051]

ANGLES

520 PARK EAST BLVD, NEW ALBANY, IN 47150

PHONE: 812-944-6733

FAX: 812-948-5047

e-Mail info@SAMTEC.com

code 55322

DESCRIPTION:

DWG. NO.

MATERIAL:

DO NOT SCALE DRAWING

SHEET SCALE: 5:1

INSULATOR: LCP, COLOR: BLACK

CONTACT: PHOS BRONZE

WELD TAB: PHOS BRONZE

F:\DWG\MISC\MKTG\SIR1-XX-X-S-X-X-XX-MKT.SLDDRW

ONE PIECE POWER RIGHT ANGLE ASSEMBLY

SIR1-XX-X-S-X-X-XX

5/20/2010

SHEET

BY:

ROY LUO
