DATA SHEET
BIPOLAR ANALOG INTEGRATED CIRCUIT
µ
PC29xx Series
THREE TERMINAL LOW DROPOUT VOLTAGE REGULATOR
The
µ

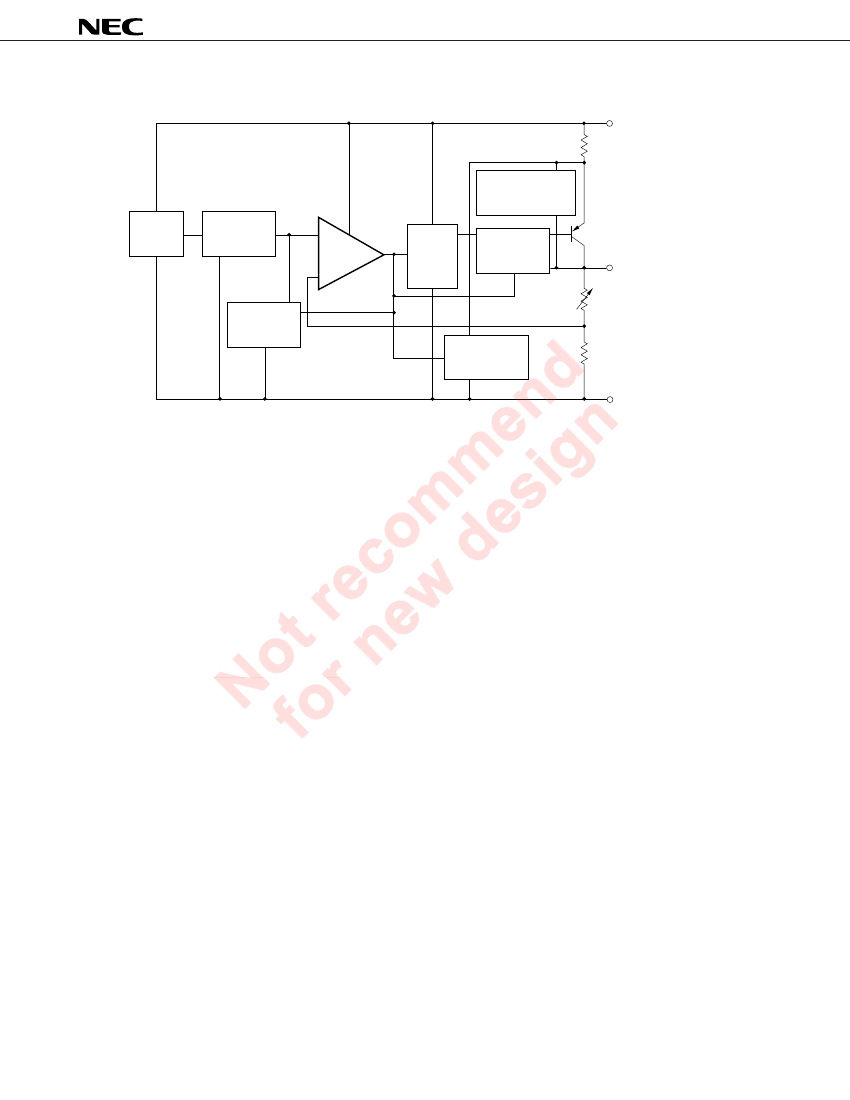

PC29xx series of low dropout voltage three terminal positive regulators is constructed with PNP output
transistor. The
µ
PC29xx series feature the ability to source 1 A of output current with a low dropout voltage of typically
0.7 V.
The power dissipation of the
µ
PC29xx series can be drastically reduced compared with the conventional three
terminal positive voltage regulators that is constructed with NPN output transistor. Also, this series corresponds to
the low voltage output (3.0 V, 3.3 V) which is not in the conventional low dropout regulators (
µ
PC24xxA series).
FEATURES
• Output current in excess of 1.0 A
• Low dropout voltage
V
DIF
= 0.7 V TYP. (I
O
= 1 A)
• On-chip over-current and thermal protection circuit
• On-chip output transistor safe operating area protection circuit
<R>

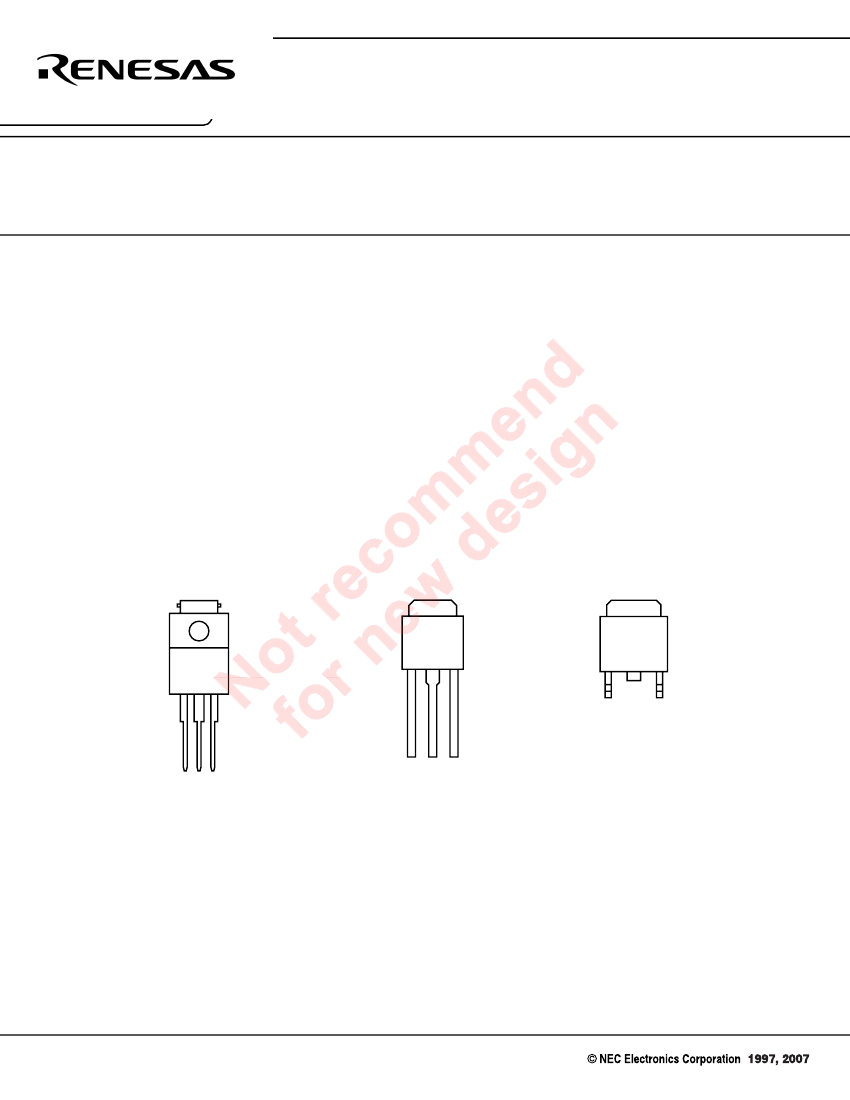

PIN CONFIGURATIONS (Marking Side)
µ
PC29xxHF Series: Isolated TO-220 (MP-45G)
µ
PC29xxHB Series: SC-64 (MP-3)
µ
PC29xxT Series: SC-63 (MP-3Z)
4
4
1 2 3
1: INPUT
2: GND
3: OUTPUT
1
2
3
1: INPUT
Note1
2: GND
3: OUTPUT
4: GND (Fin)
1
2
3
1: INPUT
2: GND
Note2
3: OUTPUT
4: GND (Fin)
Notes 1.
No.2 pin and No.4 fin are common GND.
2.
No.2 pin is cut. No.2 pin and No.4 fin are common GND.
The information in this document is subject to change without notice. Before using this document, please
confirm that this is the latest version.
Not all products and/or types are available in every country. Please check with an NEC Electronics
sales representative for availability and additional information.
Document No. G10026EJ4V0DS00 (4th edition)
Date Published September 2007 N
Printed in Japan
The mark <R> shows major revised points.
The revised points can be easily searched by copying an "<R>" in the PDF file and specifying it in the "Find what." field.
