MC14174B datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > semiconductor> logic> MC14174B

MC14174B: Description4000/14000/40000 SERIES, POSITIVE EDGE TRIGGERED D FLIP-FLOP, TRUE OUTPUT, PDIP16; Categorysemiconductor logic; File Size93KB，8 Pages; ManufacturerON Semiconductor; Websitehttp://www.onsemi.cn

Download Datasheet Parametric Compare View All

MC14174B Overview

4000/14000/40000 SERIES, POSITIVE EDGE TRIGGERED D FLIP-FLOP, TRUE OUTPUT, PDIP16

MC14174B Parametric

Parameter Name	Attribute value
Number of functions	1
Number of terminals	16
Maximum operating temperature	125 Cel
Minimum operating temperature	-55 Cel
Maximum supply/operating voltage	18 V
Minimum supply/operating voltage	3 V
Rated supply voltage	5 V
state	TRANSFERRED
Craftsmanship	CMOS
packaging shape	RECTANGULAR
Package Size	IN-LINE
Terminal form	THROUGH-HOLE
Terminal spacing	2.54 mm
terminal coating	TIN LEAD
Terminal location	DUAL
Packaging Materials	PLASTIC/EPOXY
Temperature level	MILITARY
series	4000/14000/40000
Logic IC type	D FLIP-FLOP
Number of digits	6
Output polarity	TRUE
propagation delay TPD	400 ns
Trigger type	POSITIVE EDGE
Max-Min frequency	2 MHz

Preview

Download Datasheet

View All

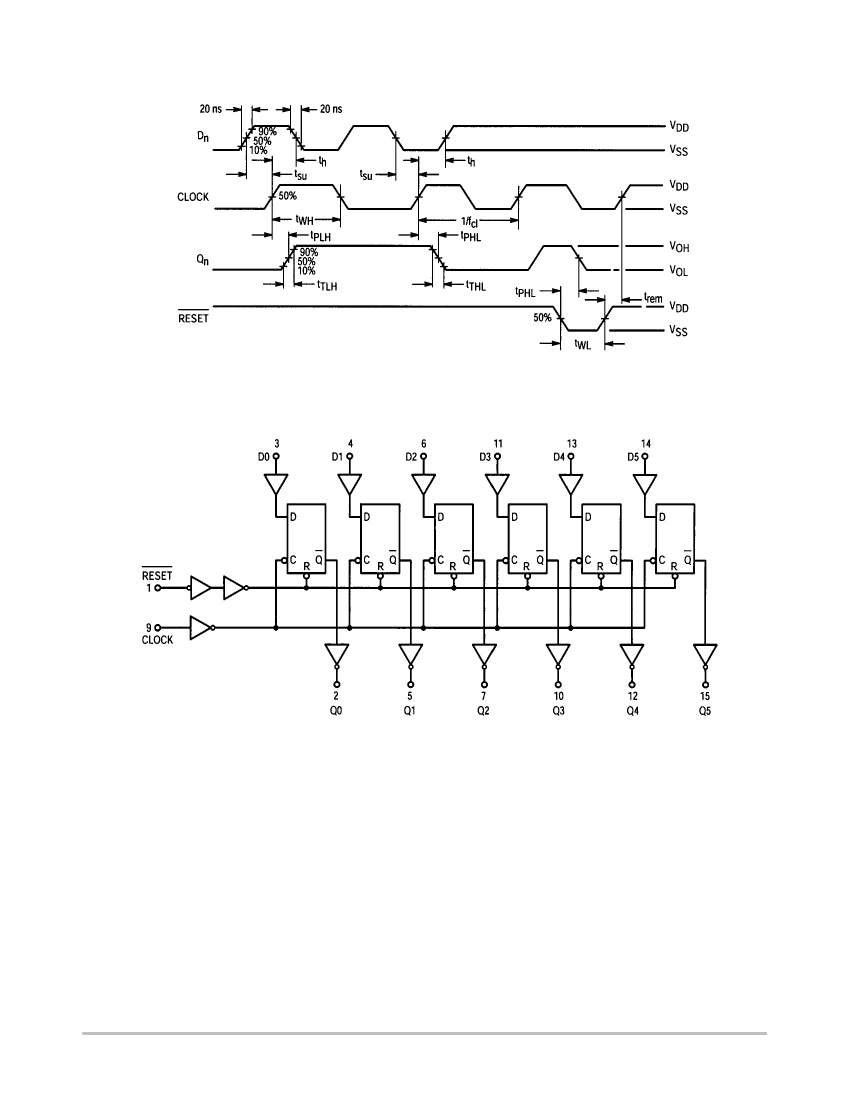

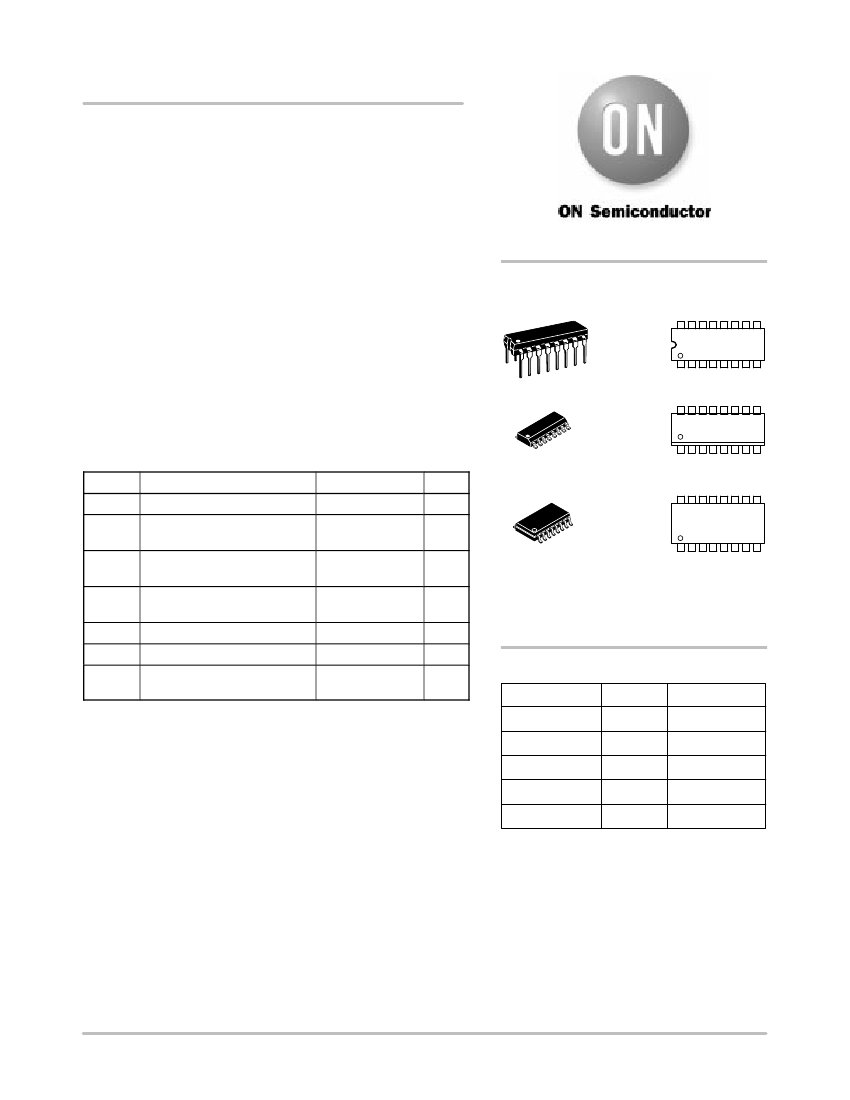

MC14174B

Hex Type D Flip-Flop

The MC14174B hex type D flip–flop is constructed with MOS

P–channel and N–channel enhancement mode devices in a single

monolithic structure. Data on the D inputs which meets the setup time

requirements is transferred to the Q outputs on the positive edge of the

clock pulse. All six flip–flops share common clock and reset inputs.

The reset is active low, and independent of the clock.

http://onsemi.com

MARKING

DIAGRAMS

PDIP–16

P SUFFIX

CASE 648

MC14174BCP

AWLYYWW

SOIC–16

D SUFFIX

CASE 751B

14174B

AWLYWW

•

Static Operation

All Inputs and Outputs Buffered

Diode Protection on All Inputs

Supply Voltage Range = 3.0 Vdc to 18 Vdc

Capable of Driving Two Low–Power TTL Loads or One Low–Power

Schottky TTL Load over the Rated Temperature Range

•

Functional Equivalent to TTL 74174

MAXIMUM RATINGS

(Voltages Referenced to V

) (Note 2.)

Symbol

, V

out

, I

out

stg

Parameter

DC Supply Voltage Range

Input or Output Voltage Range

(DC or Transient)

Input or Output Current

(DC or Transient) per Pin

Power Dissipation,

per Package (Note 3.)

Ambient Temperature Range

Storage Temperature Range

Lead Temperature

(8–Second Soldering)

Value

–0.5 to +18.0

–0.5 to V

+ 0.5

±10

500

–55 to +125

–65 to +150

260

Unit

°C

WL, L

YY, Y

WW, W

SOEIAJ–16

F SUFFIX

CASE 966

MC14174B

ALYW

= Assembly Location

= Wafer Lot

= Year

= Work Week

ORDERING INFORMATION

Device

MC14174BCP

MC14174BD

MC14174BDR2

MC14174BF

MC14174BFEL

Package

PDIP–16

SOIC–16

SOEIAJ–16

Shipping

2000/Box

48/Rail

2500/Tape & Reel

See Note 1.

2. Maximum Ratings are those values beyond which damage to the device

may occur.

3. Temperature Derating:

Plastic “P and D/DW” Packages: – 7.0 mW/_C From 65_C To 125_C

This device contains protection circuitry to guard against damage due to high

static voltages or electric fields. However, precautions must be taken to avoid

applications of any voltage higher than maximum rated voltages to this

high–impedance circuit. For proper operation, V

and V

out

should be constrained

to the range V

or V

out

)

Unused inputs must always be tied to an appropriate logic voltage level (e.g.,

either V

or V

). Unused outputs must be left open.

1. For ordering information on the EIAJ version of

the SOIC packages, please contact your local

ON Semiconductor representative.

Semiconductor Components Industries, LLC, 2000

August, 2000 – Rev. 4

Publication Order Number:

MC14174B/D

MC14174B Related Products

	MC14174B	14174B	MC14174B_0008	MC14174BFEL	MC14174BD	MC14174BF
Description	4000/14000/40000 SERIES, POSITIVE EDGE TRIGGERED D FLIP-FLOP, TRUE OUTPUT, PDIP16	4000/14000/40000 SERIES, POSITIVE EDGE TRIGGERED D FLIP-FLOP, TRUE OUTPUT, PDIP16	4000/14000/40000 SERIES, POSITIVE EDGE TRIGGERED D FLIP-FLOP, TRUE OUTPUT, PDIP16	4000/14000/40000 SERIES, POSITIVE EDGE TRIGGERED D FLIP-FLOP, TRUE OUTPUT, PDIP16	4000/14000/40000 SERIES, POSITIVE EDGE TRIGGERED D FLIP-FLOP, TRUE OUTPUT, PDIP16	4000/14000/40000 SERIES, POSITIVE EDGE TRIGGERED D FLIP-FLOP, TRUE OUTPUT, PDIP16
Number of functions	1	1	1	1	1	1
Number of terminals	16	16	16	16	16	16
Maximum operating temperature	125 Cel	125 Cel	125 Cel	125 °C	125 °C	125 °C
Minimum operating temperature	-55 Cel	-55 Cel	-55 Cel	-55 °C	-55 °C	-55 °C
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	GULL WING	GULL WING	GULL WING
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
series	4000/14000/40000	4000/14000/40000	4000/14000/40000	4000/14000/40000	4000/14000/40000	4000/14000/40000
Number of digits	6	6	6	6	6	6
Output polarity	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE
Trigger type	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE
