3511-51 Overview

CMOS SERIES, PRESCALER, PDSO6

3511-51 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerpSemi (peregrine semiconductor)
Parts packaging codeSOIC
package instructionTSSOP, TSOP6,.08,26
Contacts6
Reach Compliance Codecompliant
seriesCMOS
JESD-30 codeR-PDSO-G6
JESD-609 codee3
length2 mm
Load capacitance (CL)10 pF
Logic integrated circuit typePRESCALER
Maximum Frequency@Nom-Sup1500000000 Hz
Humidity sensitivity level1
Number of data/clock inputs1
Number of functions1
Number of terminals6
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
Output polarityTRUE
Package body materialPLASTIC/EPOXY
encapsulated codeTSSOP
Encapsulate equivalent codeTSOP6,.08,26
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Maximum supply current (ICC)12 mA
propagation delay (tpd)2.8 ns
Certification statusNot Qualified
Maximum seat height1.1 mm
Maximum supply voltage (Vsup)3.15 V
Minimum supply voltage (Vsup)2.85 V
Nominal supply voltage (Vsup)3 V
surface mountYES
technologyCMOS
Temperature levelINDUSTRIAL
Terminal surfaceMatte Tin (Sn)
Terminal formGULL WING
Terminal pitch0.65 mm
Terminal locationDUAL
width1.25 mm
minfmax1500 MHz
Product Specification
PE3511

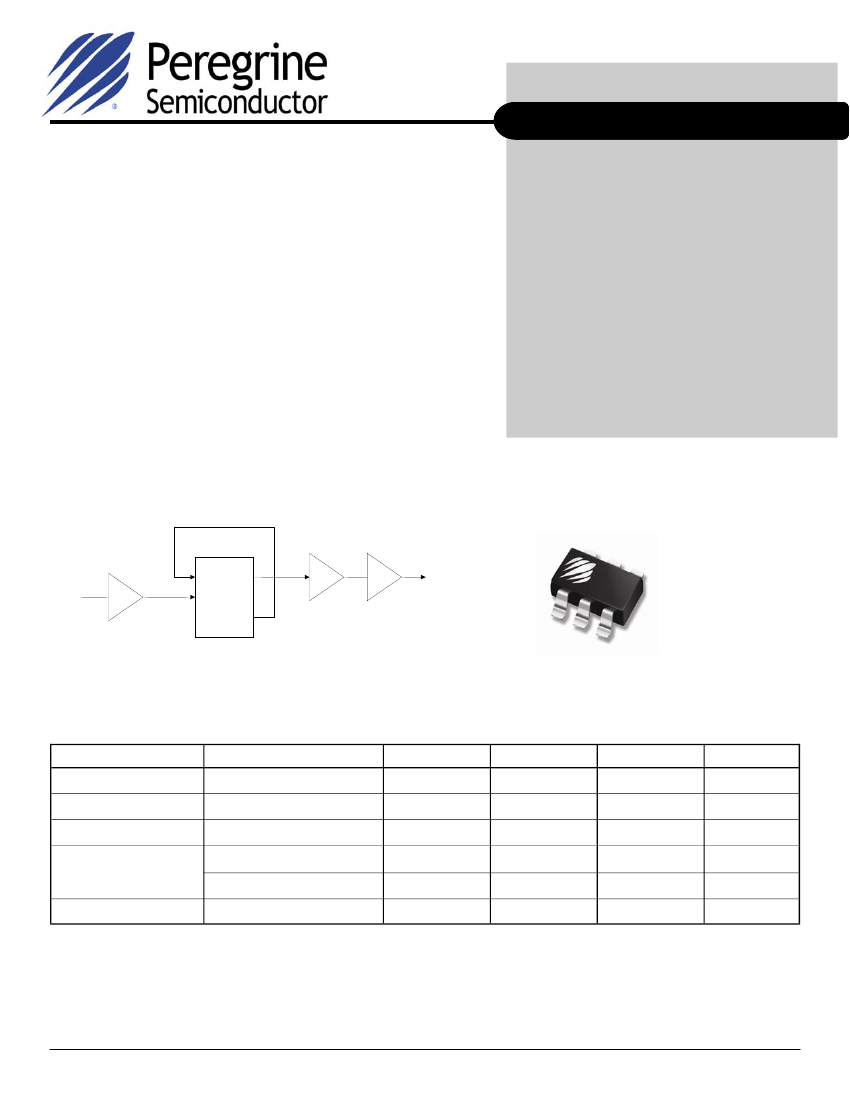

Product Description
The PE3511 is a high-performance static UltraCMOS™
prescaler with a fixed divide ratio of 2. Its operating frequency
range is DC to 1500 MHz. The PE3511 operates on a nominal
3 V supply and draws only 8 mA. The input and output
interfaces support both AC-coupled, low-Z RF as well as direct
connection to low voltage positive logic devices. It is packaged
in a small 6-lead SC-70 and is ideal for frequency scaling
solutions
The PE3511 is manufactured on Peregrine’s UltraCMOS™
process, a patented variation of silicon-on-insulator (SOI)
technology on a sapphire substrate, offering the performance
of GaAs with the economy and integration of conventional
CMOS.
1500 MHz Low Power UltraCMOS™
Divide-by-2 Prescaler
Features
DC to 1500 MHz operation
Fixed divide ratio of 2
Figure 1. Functional Schematic Diagram
D
IN
PREAMP
CLK

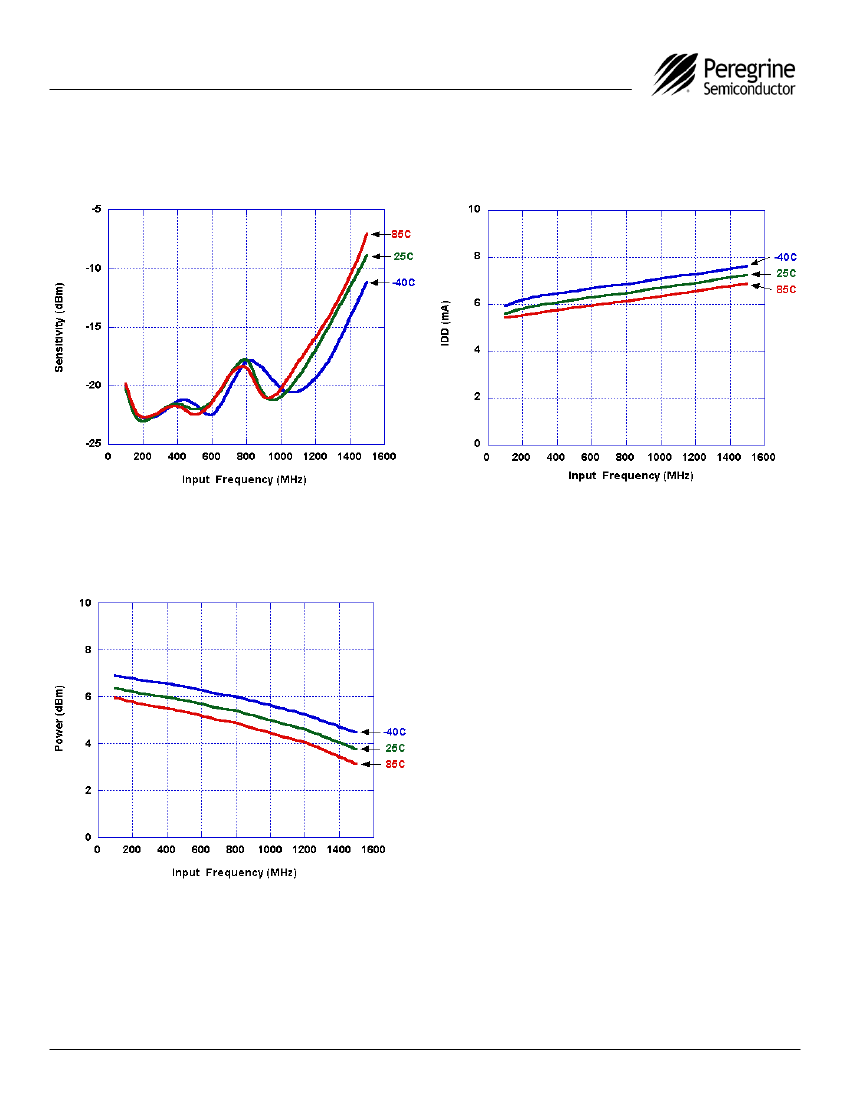

Table 1. Electrical Specifications
(Z
S
= Z
L
= 50
)
V
DD
= 3.0 V, -40° C
T
A
85° C, unless otherwise specified
BS
Parameter
Conditions
DC <
Fin
1000 MHz (Note 1)
1000 MHz < Fin
1500
DC < Fin
1500 MHz
O
Q
QB
DRIVER
LE
6-lead SC70
OUT
OUTPUT BUFFER
Minimum
2.85
Supply Voltage
Supply Current
O
Input Frequency (F
in
)
DC
-10
0
2
Input Power (P
in
)
Output Power (P
out
)
Note 1:
CMOS logic levels can be used to drive the reference input if DC coupled. Voltage input needs to be a minimum of 0.5 Vp-p. The
input edge rate should be faster than 80mV/ns from DC - 10 MHz.
Document No. 70-0106-06
www.psemi.com
TE
@ 3V
RF or LV Digital Interface
Low-power consumption: 8 mA typical
Ultra-small package: 6-lead SC-70
Figure 2. Package Type
Typical
3.0
8
Maximum
3.15
12
1500
+10
Units
V
mA
MHz
dBm
dBm
dBm
©2003-2008 Peregrine Semiconductor Corp. All rights reserved.
Page 1 of 9
