416-93-248-41-003 datasheet, PDF

Datasheet> All Categories > The connector> socket> 416-93-248-41-003

416-93-248-41-003: DescriptionIC Socket, SIP48, 48 Contact(s),; CategoryThe connector socket; File Size182KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com

Download Datasheet Parametric View All

416-93-248-41-003 Overview

IC Socket, SIP48, 48 Contact(s),

416-93-248-41-003 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Reach Compliance Code	compli
ECCN code	EAR99
Other features	SIP SOCKET
Contact to complete cooperation	GOLD (30) OVER NICKEL (100)
Contact completed and terminated	Tin/Lead (Sn/Pb)
Contact material	NOT SPECIFIED
Device slot type	IC SOCKET
Type of equipment used	SIP48
Shell material	GLASS FILLED POLYETHYLENE POLYESTER
JESD-609 code	e0
Number of contacts	48
Base Number Matches	1

Preview

Download Datasheet

View All

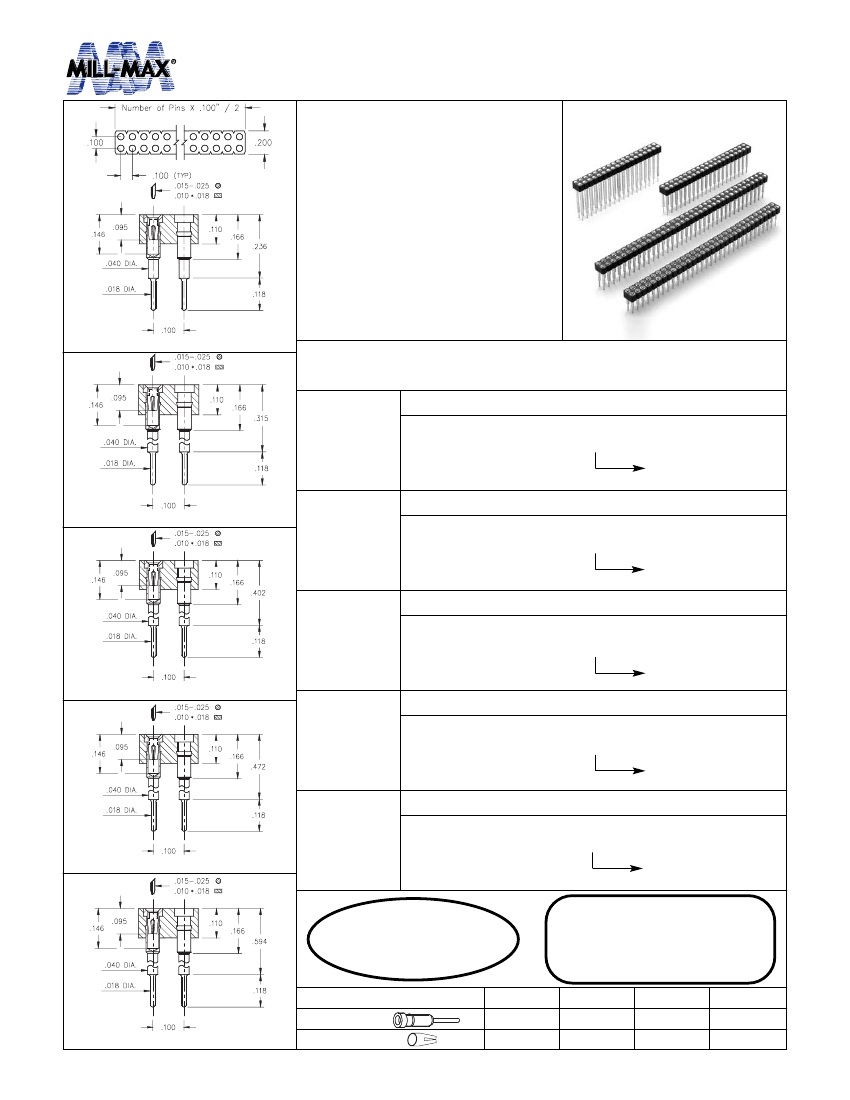

SINGLE-IN-LINE SOCKETS

Elevated

Double Row

•

Elevated sockets are available in

5 different standoff heights.

416...006 uses pin# 0153-1

416...003 uses pin# 0153-2

416...007 uses pin# 0153-3

416...008 uses pin# 0153-4

416...001 uses pin# 0153-5

See page 136 for details.

•

Hi-Rel, 4-finger BeCu #30 clip

rated at 3 amps. See page 208

for details.

Fig. 1

Series 416

Ordering Information

Series 416...006

Standoff Height = .236”

Fig. 1

416-XX-2_ _-41-006

Specify # of pins

02-64

Standoff Height = .315”

Fig. 2

Series 416...003

Fig. 2

416-XX-2_ _-41-003

Specify # of pins

Series 416...007

02-64

Standoff Height = .402”

Fig. 3

416-XX-2_ _-41-007

Specify # of pins

Series 416...008

02-64

Standoff Height = .472”

Fig. 4

416-XX-2_ _-41-008

Specify # of pins

Series 416...001

02-64

Standoff Height = .594”

Fig. 5

Fig. 4

416-XX-2_ _-41-001

Specify # of pins

02-64

XX= Plating Code

See Below

SPECIFY PLATING CODE XX=

For High Temperature

Insulators Add ‘100’

To End Of

Part Numbers

200µ” Sn/Pb

30µ” Au

Sleeve (Pin)

Fig. 5

Contact (Clip)

w w w. m i l l - m a x . c o m

516-922-6000
