Datasheet> All Categories > storage> storage> HM4-6514-9

Preview

HM4-6514-9: DescriptionStandard SRAM, 1KX4, 320ns, CMOS, CQCC18; Categorystorage storage; File Size179KB，6 Pages; ManufacturerHarris; Websitehttp://www.harris.com/

Download Datasheet Parametric Compare View All

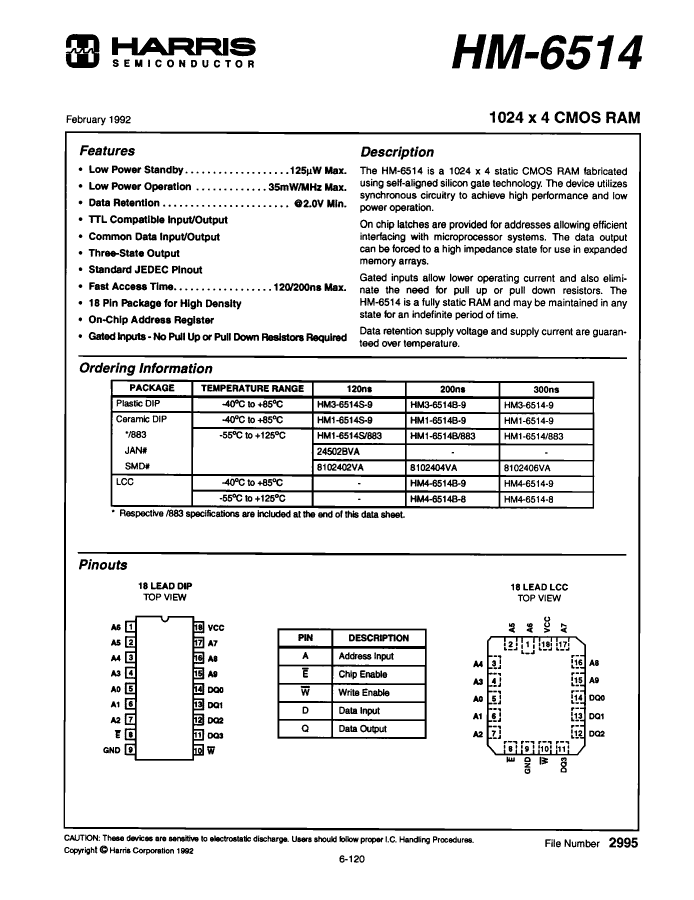

HM4-6514-9 Overview

Standard SRAM, 1KX4, 320ns, CMOS, CQCC18

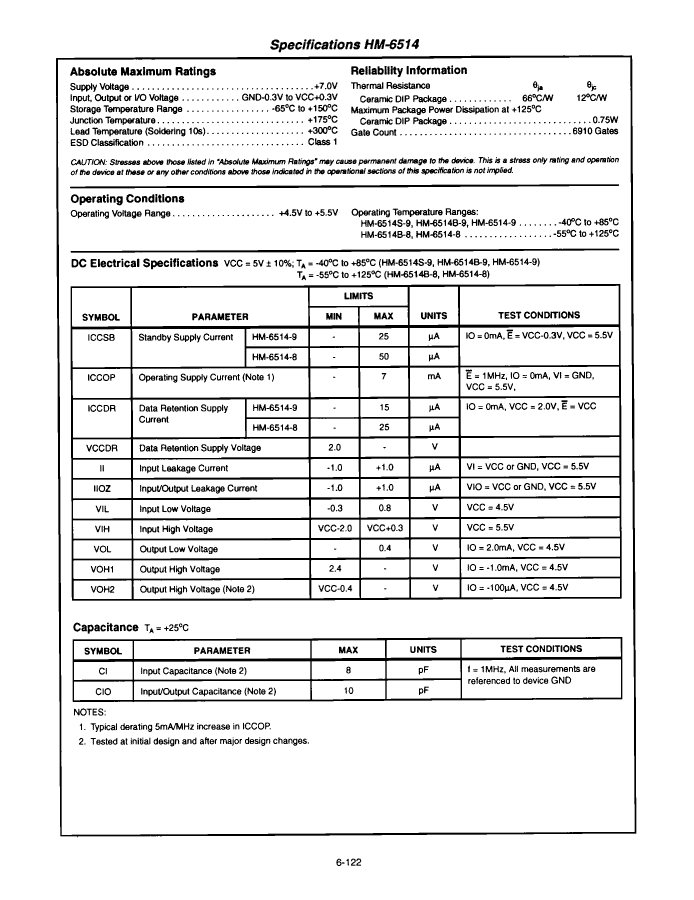

HM4-6514-9 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	QCCN, LCC18,.3X.35
Reach Compliance Code	unknown
ECCN code	EAR99

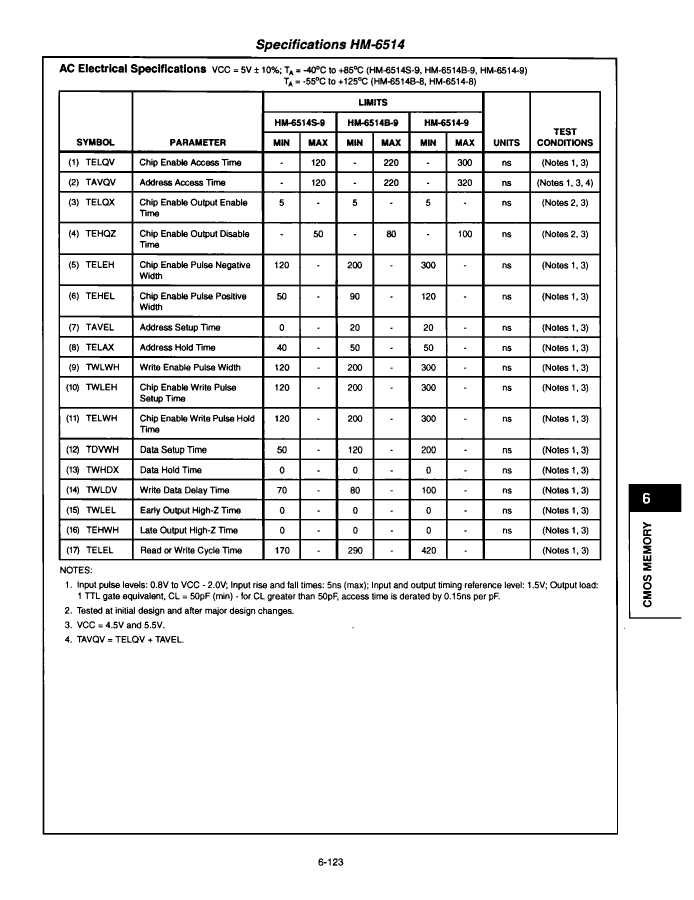

Maximum access time	320 ns
Other features	ADDRESS LATCH
I/O type	COMMON
JESD-30 code	R-CQCC-N18
JESD-609 code	e0
memory density	4096 bit
Memory IC Type	STANDARD SRAM
memory width	4
Number of functions	1
Number of ports	1
Number of terminals	18
word count	1024 words
character code	1000

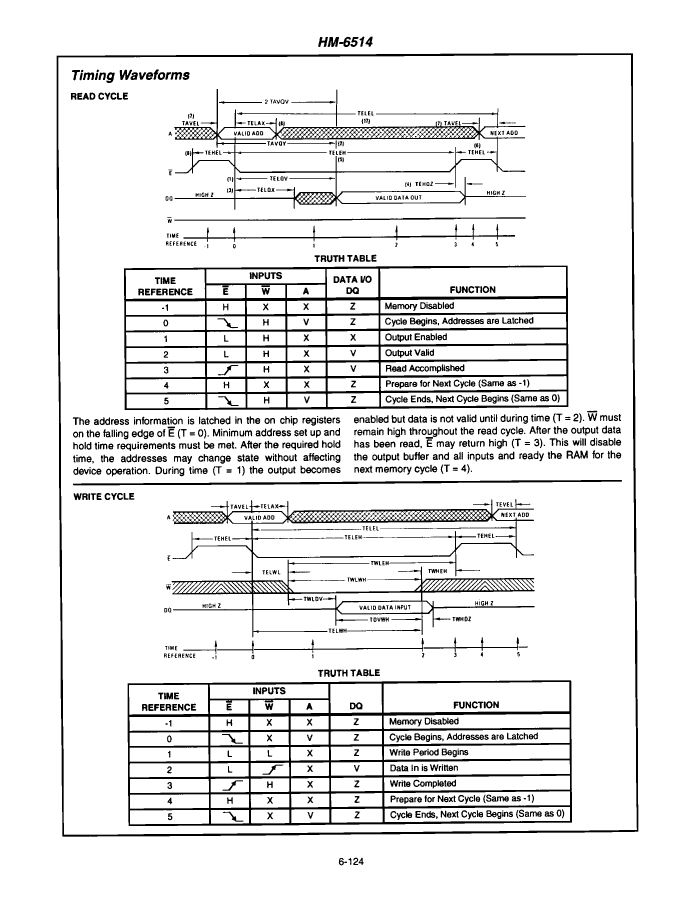

Operating mode	ASYNCHRONOUS
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
organize	1KX4
Output characteristics	3-STATE
Exportable	NO
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN
Encapsulate equivalent code	LCC18,.3X.35
Package shape	RECTANGULAR
Package form	CHIP CARRIER
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Certification status	Not Qualified
Maximum standby current	0.000015 A
Minimum standby current	2 V
Maximum slew rate	0.014 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
Base Number Matches	1

Preview

Download Datasheet

View All

HM4-6514-9 Related Products

	HM4-6514-9	HM4-6514B-9	HM4-6514B-8
Description	Standard SRAM, 1KX4, 320ns, CMOS, CQCC18	Standard SRAM, 1KX4, 220ns, CMOS, CQCC18	Standard SRAM, 1KX4, 220ns, CMOS, CQCC18
Is it Rohs certified?	incompatible	incompatible	incompatible
package instruction	QCCN, LCC18,.3X.35	QCCN, LCC18,.3X.35	QCCN, LCC18,.3X.35
Reach Compliance Code	unknown	unknown	unknown
ECCN code	EAR99	EAR99	3A001.A.2.C
Maximum access time	320 ns	220 ns	220 ns
Other features	ADDRESS LATCH	ADDRESS LATCH	ADDRESS LATCH
I/O type	COMMON	COMMON	COMMON
JESD-30 code	R-CQCC-N18	R-CQCC-N18	R-CQCC-N18
JESD-609 code	e0	e0	e0
memory density	4096 bit	4096 bit	4096 bit
Memory IC Type	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM
memory width	4	4	4
Number of functions	1	1	1
Number of ports	1	1	1
Number of terminals	18	18	18
word count	1024 words	1024 words	1024 words
character code	1000	1000	1000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	85 °C	85 °C	125 °C
Minimum operating temperature	-40 °C	-40 °C	-55 °C
organize	1KX4	1KX4	1KX4
Output characteristics	3-STATE	3-STATE	3-STATE
Exportable	NO	NO	NO
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN	QCCN	QCCN
Encapsulate equivalent code	LCC18,.3X.35	LCC18,.3X.35	LCC18,.3X.35
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL
power supply	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum standby current	0.000015 A	0.000015 A	0.000025 A
Minimum standby current	2 V	2 V	2 V
Maximum slew rate	0.014 mA	0.019 mA	0.019 mA
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V
surface mount	YES	YES	YES
technology	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD	NO LEAD	NO LEAD
Terminal pitch	1.27 mm	1.27 mm	1.27 mm
Terminal location	QUAD	QUAD	QUAD
Base Number Matches	1	1	-
Maker	-	Harris	Harris
