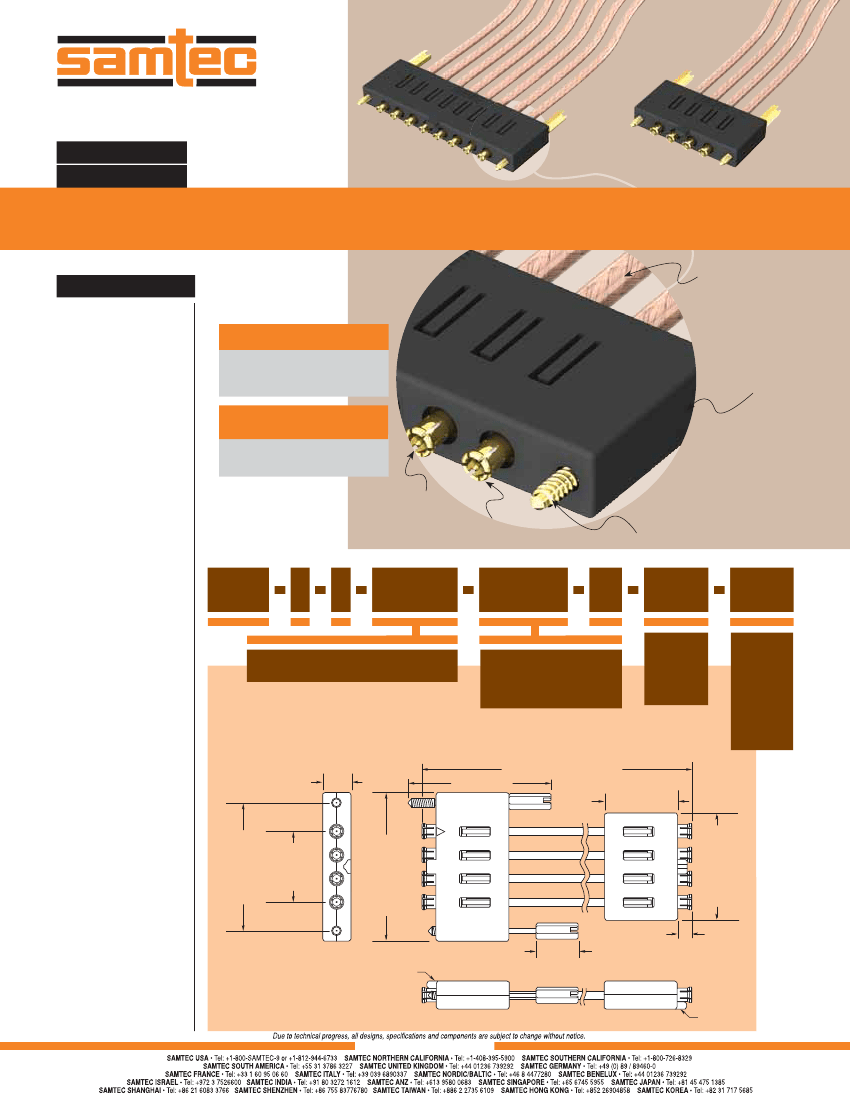

RF-13
(5,00 mm) .197"
GRF1-C SERIES
GRF1–P–C–08–1000–C1–S–S
GRF1–P–C–04–0600–C1–S–S
50Ω GANGED MICRO-MINI RF CABLE
SPECIFICATIONS
For complete specifications see
www.samtec.com?GRF1-C
Shell Material:
Brass
Insulator Material:
PTFE
Contact Material:
BeCu
Pin Material:
Brass
Plating:
30µ" (0,76 µm) Au over
50µ" (1,27 µm) Ni
Operating Temp Range:
-40°C to +90°C
Impedance:
50Ω
RoHS Compliant:
Yes
Mates with:
GRF1-J
High performance
26 AWG RG 316
coax cable
TOOLING
Application Tooling.
Contact atg@samtec.com
for more information.
Single or
Double Ended
OTHER
SOLUTIONS
• 50Ω Board-to-Board system
(see GRF1-J & GRF1-P Series)
MMCX-Scale
Connectors
2, 4, 6 or 8
Positions
Optional Captive
Panel Screws
RG 316 Cable:
Impedance:
50Ω
Capacitance:
96.432 pF/meter
Propagation Delay:
4.83 nsec/meter
Max Attenuation
(cable only):
1.25dB @ 1GHz for 1 meter
Conductor Size:
26 AWG, (0,51 mm) .020" dia.
Conductor Material:
Silver Plated Copper
Insulator Diameter:
(1,52 mm) .060"
Insulator Material:
PTFE
Shield Material:
Silver Plated Copper Clad Steel
Jacket Material:
FEP
Jacket Diameter:
(2,54 mm) .100"
Jacket Color:
Amber
RoHS Compliant:
Yes
GRF1
P
C
NO. OF
POSITIONS
ASSEMBLED
LENGTH
C1
END
OPTION
SCREW
OPTION
–S
–S
= Captive
Panel
Screws
(Leave
blank for
no Screw
Option)
–02, –04, –06, –08
–“XXXX”
= Assembled Length
in millimeters –0100 to –1000
(100 mm) 3.94" minimum
= Single
–D
= Double
(6,00)
.236
Assembled Length = XXXX
(28,58) 1.125
(15,50) .610
(No. of
Positions
(No. of
x
Positions -1)
(5,00)
x
.197)
(5,00)
+
.197
(7,20)
.283
No.
Positions
x
(5,00)
.197
+
(11,60)
.457
No.
Positions
x
(5,00)
.197
+
(4,60)
.181
–D
Note:
Cable lengths longer than
40.00" (1 meter) are not
supported with S.I. test data.
Note:
This Series is non-standard,
non-returnable.
–S OPTION
SHOWN
–D–S
Key Up
End 1
(8,89)
.350
(2,77)
.109
–D–S
–D
Key Down
End 2
WWW.SAMTEC.COM
