RURG3070CC, RURG3080CC,
RURG3090CC, RURG30100CC
30A, 700V - 1000V Ultrafast Dual Diodes
Package
JEDEC STYLE TO-247
ANODE 1
CATHODE
ANODE 2
April 1995
Features
• Ultrafast with Soft Recovery . . . . . . . . . . . . . . . . <110ns
• Operating Temperature . . . . . . . . . . . . . . . . . . . . +175
o
C
• Reverse Voltage Up to . . . . . . . . . . . . . . . . . . . . . . 1000V
• Avalanche Energy Rated
• Planar Construction
CATHODE
(BOTTOM SIDE
METAL)
Applications
• Switching Power Supplies
• Power Switching Circuits
• General Purpose
Symbol
K
Description
RURG3070CC,
RURG3080CC,
RURG3090CC
and
RURG30100CC are ultrafast dual diodes with soft recovery
characteristics (t
RR
< 110ns). They have low forward voltage
drop and are silicon nitride passivated ion-implanted epitaxial
planar construction.
These devices are intended for use as freewheel/clamping
diode and rectifiers in a variety of switching power supplies
and other power switching applications. Their low stored
charge and ultrafast recovery with soft recovery characteristic
minimizes ringing and electrical noise in many power switch-
ing circuits reducing power loss in the switching transistors.
PACKAGING AVAILABILITY
PART NUMBER
RURG3070CC
RURG3080CC
RURG3090CC
RURG30100CC
PACKAGE
TO-247
TO-247
TO-247
TO-247
BRAND
RURG3070C
RURG3080C
RURG3090C
URG30100C
A1
A2
NOTE: When ordering, use the entire part number.
Absolute Maximum Ratings
T
C
= +25
o
C, Unless Otherwise Specified
RURG3070CC RURG3080CC RURG3090CC RURG30100CC UNITS
Peak Repetitive Reverse Voltage. . . . . . . . . . . . . . . . . . . . . . . V
RRM
700
Working Peak Reverse Voltage . . . . . . . . . . . . . . . . . . . . . . . .V
RWM
700
DC Blocking Voltage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V
R
700
Average Rectified Forward Current (Per Leg) . . . . . . . . . . . . . I
F(AV)
30
o
C)
(T
C
= +117
60
Repetitive Peak Surge Current. . . . . . . . . . . . . . . . . . . . . . . . . . I
FSM
(Square Wave, 20kHz)
Nonrepetitive Peak Surge Current . . . . . . . . . . . . . . . . . . . . . . . I
FSM
300
(Halfwave, 1 Phase, 60Hz)
Maximum Power Dissipation . . . . . . . . . . . . . . . . . . . . . . . . . . . . P
D
125
Operating and Storage Temperature . . . . . . . . . . . . . . . . . .T
STG
, T
J
-65 to +175
800
800
800
30
60
300
125
-65 to +175
900
900
900
30
60
300
125
-65 to +175
1000
1000
1000
30
60
300
125
-65 to +175
V
V
V
A
A
A
W
o
C
Copyright
©
Harris Corporation 1995
6-37
File Number
2935.2
Specifications RURG3070CC, RURG3080CC, RURG3090CC, RURG30100CC
Electrical Specifications
T
C
= +25
o
C, Unless Otherwise Specified
LIMITS
TEST
CONDITION
I
F
= 30A
T
C
= +150
o
C
I
F
= 30A
T
C
= +25
o
C
I
R
at
V
R
= 700V
T
C
= +150
o
C
V
R
= 800V
V
R
= 900V
V
R
= 1000V
I
R
at
T
C
= +25
o
C
V
R
= 700V
V
R
= 800V
V
R
= 900V
V
R
= 1000V
t
RR
I
F
= 1A
I
F
= 30A
t
A
t
B
R
θJC
E
AVL
DEFINITIONS
V
F
= Instantaneous forward voltage (pw = 300µs, D = 2%).
I
R
= Instantaneous reverse current.
t
RR
= Reverse recovery time (See Figure 2), at dI
F
/dt = 100A/µs summation of t
A
+ t
B
.
t
A
= Time to reach peak reverse current at dI
F
/dt = 100A/µs (See Figure 2).
t
B
= Time from peak I
RM
to projected zero crossing of I
RM
based on a straight line from peak I
RM
through 25% of I
RM
(See Figure 2).
R
θJC
= Thermal resistance junction to case.
pw = pulse width.
D = duty cycle.
I
F
= 30A
I
F
= 30A
RURDG3070CC
MIN
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
TYP
-
-
-
-
-
-
-
-
-
-
-
-
90
45
-
-
MAX
1.50
1.80
1
-
-
-
500
-
-
-
110
150
-
-
1.2
30
RURG3080CC
MIN
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
TYP
-
-
-
-
-
-
-
-
-
-
-
-
90
45
-
-
MAX
1.50
1.80
-
1
-
-
-
500
-
-
110
150
-
-
1.2
30
RURG3090CC
MIN
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
TYP
-
-
-
-
-
-
-
-
-
-
-
-
90
45
-
-
MAX
1.50
1.80
-
-
1
-
-
-
500
-
110
150
-
-
1.2
30
RURG30100CC
MIN
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
TYP
-
-
-
-
-
-
-
-
-
-
-
-
90
45
-
-
MAX
1.50
1.80
-
-
-
1
-
-
-
500
110
150
-
-
1.2
30
UNITS
V
V
mA
mA
mA
mA
µA
µA
µA
µA
ns
ns
ns
ns
o
C/W
SYMBOL
V
F
mj
V
1
AMPLITUDE CONTROLS I
F
V
2
AMPLITUDE CONTROLS dI
F
/dt
R
1
L
1
= SELF INDUCTANCE OF R
4
+ L
LOOP
Q
1
+V
1
0
t
2
t
1
R
2
+V
3
Q
2
t
1
≥
5t
A(MAX)
t
2
> t
RR
t
3
> 0
L
1
t
A(MIN)
≤
R
4
10
L
LOOP
DUT
Q
4
0.25 I
RM
0
I
F
dI
F
dt
t
A
t
RR
t
B
t
3
C1
0
-V
2
R
3
Q
3
-V
4
V
RM
R
4
I
RM
V
R
FIGURE 1. t
RR
TEST CIRCUIT
FIGURE 2. t
RR
WAVEFORMS AND DEFINITIONS
6-38
RURG3070CC, RURG3080CC, RURG3090CC, RURG30100CC

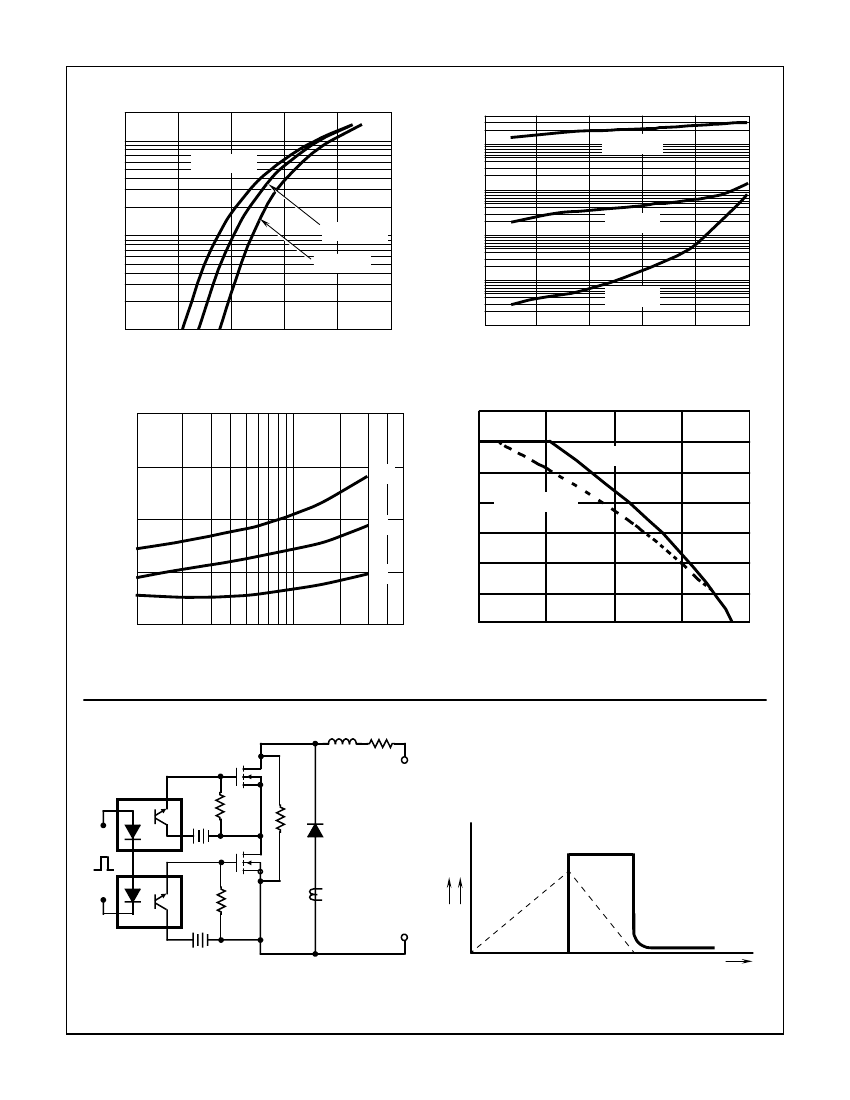

Typical Performance Curves
200
100
I
F
, FORWARD CURRENT (A)
T
J
= +175
o
C
I
R
, REVERSE CURRENT (µA)
200
100
T
J
= +175
o
C
10
T
J
= +100
o
C
1
10
T
J
= +100
o
C
T
J
= +25
o
C
0.1
T
J
= +25
o
C
1
0.0
0.5
1.0
1.5
2.0
2.5
V
F
, FORWARD VOLTAGE DROP (V)
0.01
0
200
400
600
800
1000
V
R
, REVERSE VOLTAGE (V)
FIGURE 3. TYPICAL FORWARD CURRENT vs FORWARD
VOLTAGE DROP
I
F(AVG)
, AVERAGE FORWARD CURRENT (A)
200
FIGURE 4. TYPICAL REVERSE CURRENT vs VOLTAGE
36
30
DC
25
20
15
10
5
0
100
120
140
160
180
T
C
, CASE TEMPERATURE (
o
C)
SQUARE WAVE
t, RECOVERY TIMES (ns)
150
t
RR
100
t
A
50
t
B
0
1
10
V
F
, FORWARD CURRENT (A)
50
FIGURE 5. TYPICAL t
RR
, t
A
AND t
B
CURVES vs FORWARD
CURRENT
FIGURE 6. CURRENT DERATING CURVE FOR ALL TYPES
R < 0.1Ω L = 40mH I
MAX
= 1A
E
AVL
= 1/2LI
2
[V
AVL
/(V
AVL
- V
DD
)]
Q
1
& Q
2
ARE 1000V MOSFETS
Q
1
L
R +
V
DD
130Ω
1MΩ
DUT
V
AVL
12V
Q
2
130Ω
CURRENT
SENSE
I V
V
DD
-
I
L
12V
t
0
t
1
t
2
t
FIGURE 7. AVALANCHE ENERGY TEST CIRCUIT
FIGURE 8. AVALANCHE CURRENT AND VOLTAGE WAVE-
FORMS
6-39
