N74F8963Y datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> N74F8963Y

N74F8963Y: DescriptionRegistered Bus Transceiver, F/FAST Series, 1-Func, 9-Bit, True Output, TTL, PQFP44; Categorylogic logic; File Size302KB，10 Pages; ManufacturerYAGEO; Websitehttp://www.yageo.com/

Download Datasheet Parametric Compare View All

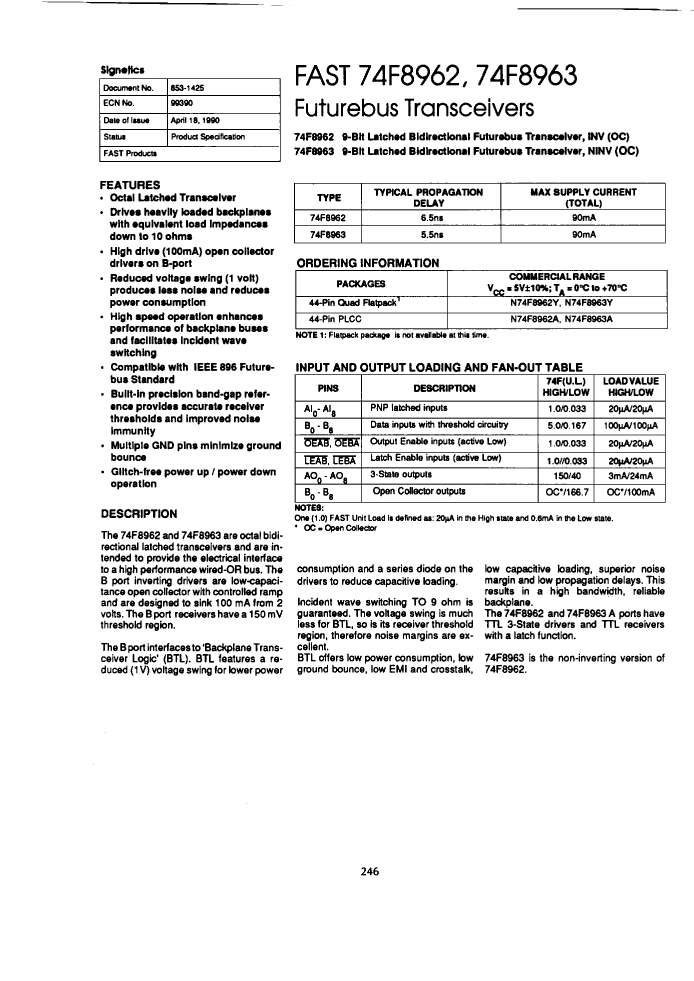

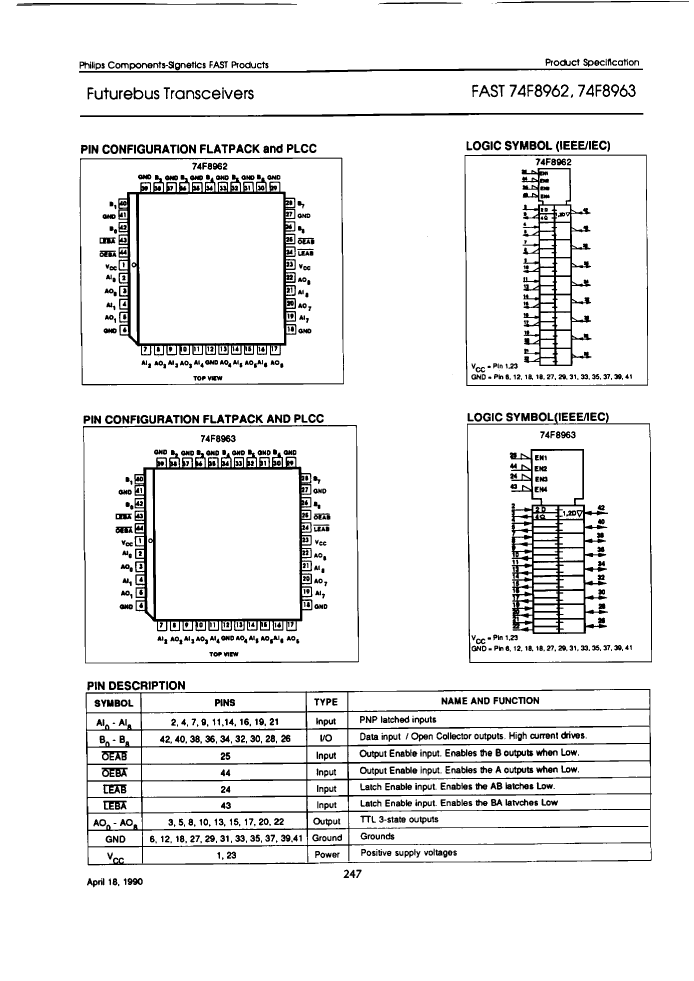

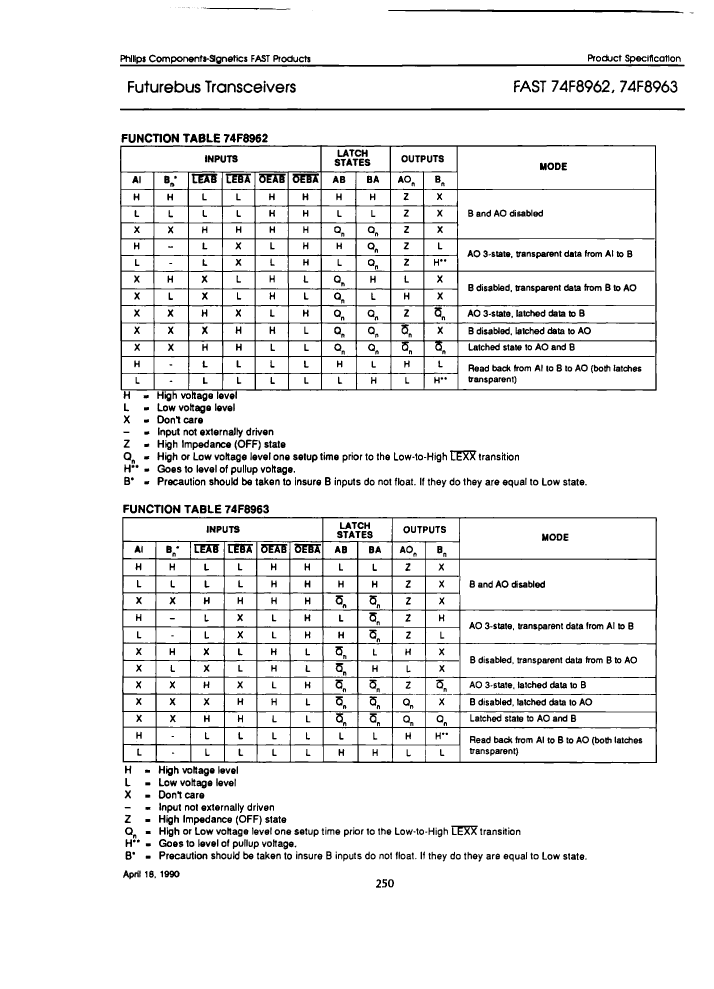

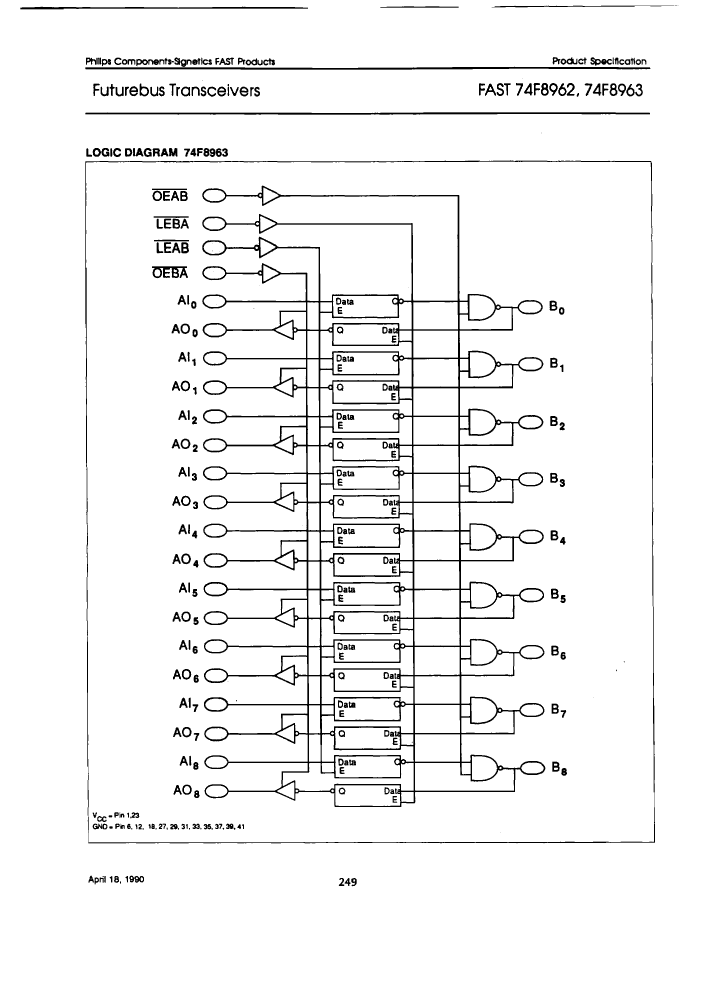

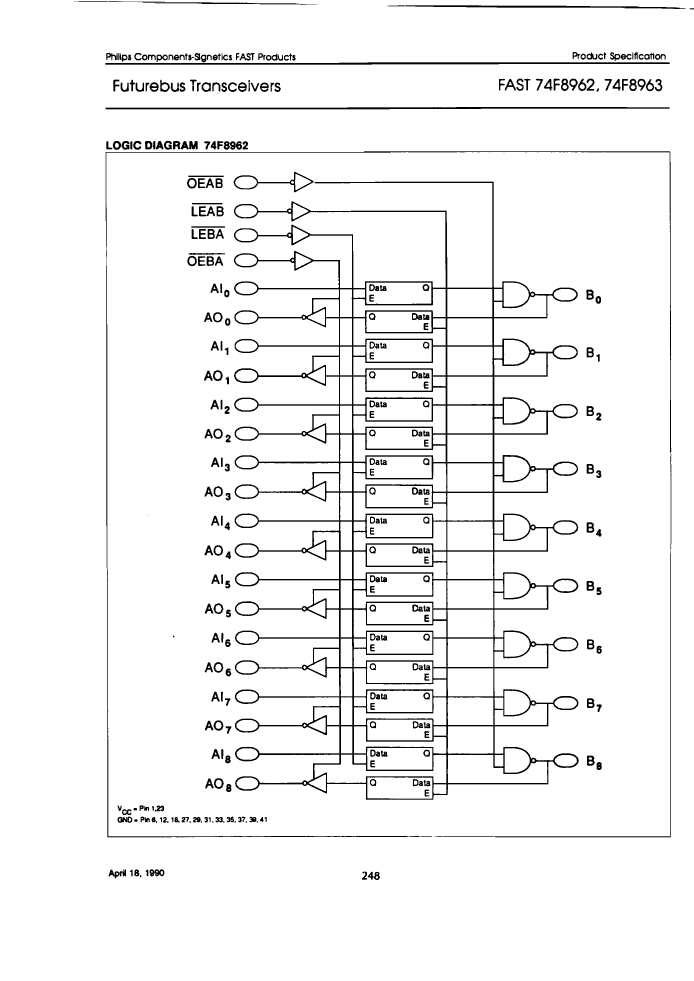

N74F8963Y Overview

Registered Bus Transceiver, F/FAST Series, 1-Func, 9-Bit, True Output, TTL, PQFP44

N74F8963Y Parametric

Parameter Name	Attribute value
package instruction	,
Reach Compliance Code	unknown
Other features	WITH DESIGNATED TTL AND BTL PORTS; COMPATIBLE WITH IEEE 896 FUTUREBUS STANDARDS
series	F/FAST
JESD-30 code	S-PQFP-G44
Load capacitance (CL)	50 pF
Logic integrated circuit type	REGISTERED BUS TRANSCEIVER
Number of digits	9
Number of functions	1
Number of ports	2
Number of terminals	44
Maximum operating temperature	70 °C
Minimum operating temperature
Output characteristics	OPEN-COLLECTOR/3-STATE
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
Package shape	SQUARE
Package form	FLATPACK
Maximum supply current (ICC)	145 mA
propagation delay (tpd)	9 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal location	QUAD
Base Number Matches	1

Preview

Download Datasheet

View All

N74F8963Y Related Products

	N74F8963Y	N74F8962A-T	N74F8962Y	N74F8962A	N74F8963A	N74F8963A-T
Description	Registered Bus Transceiver, F/FAST Series, 1-Func, 9-Bit, True Output, TTL, PQFP44	Registered Bus Transceiver, F/FAST Series, 1-Func, 9-Bit, Inverted Output, TTL, PQCC44	Registered Bus Transceiver, F/FAST Series, 1-Func, 9-Bit, Inverted Output, TTL, PQFP44	Registered Bus Transceiver, F/FAST Series, 1-Func, 9-Bit, Inverted Output, TTL, PQCC44	Registered Bus Transceiver, F/FAST Series, 1-Func, 9-Bit, True Output, TTL, PQCC44	Registered Bus Transceiver, F/FAST Series, 1-Func, 9-Bit, True Output, TTL, PQCC44
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Other features	WITH DESIGNATED TTL AND BTL PORTS; COMPATIBLE WITH IEEE 896 FUTUREBUS STANDARDS	WITH DESIGNATED TTL AND BTL PORTS; COMPATIBLE WITH IEEE 896 FUTUREBUS STANDARDS	WITH DESIGNATED TTL AND BTL PORTS; COMPATIBLE WITH IEEE 896 FUTUREBUS STANDARDS	WITH DESIGNATED TTL AND BTL PORTS; COMPATIBLE WITH IEEE 896 FUTUREBUS STANDARDS	WITH DESIGNATED TTL AND BTL PORTS; COMPATIBLE WITH IEEE 896 FUTUREBUS STANDARDS	WITH DESIGNATED TTL AND BTL PORTS; COMPATIBLE WITH IEEE 896 FUTUREBUS STANDARDS
series	F/FAST	F/FAST	F/FAST	F/FAST	F/FAST	F/FAST
JESD-30 code	S-PQFP-G44	S-PQCC-J44	S-PQFP-G44	S-PQCC-J44	S-PQCC-J44	S-PQCC-J44
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF
Logic integrated circuit type	REGISTERED BUS TRANSCEIVER	REGISTERED BUS TRANSCEIVER	REGISTERED BUS TRANSCEIVER	REGISTERED BUS TRANSCEIVER	REGISTERED BUS TRANSCEIVER	REGISTERED BUS TRANSCEIVER
Number of digits	9	9	9	9	9	9
Number of functions	1	1	1	1	1	1
Number of ports	2	2	2	2	2	2
Number of terminals	44	44	44	44	44	44
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
Output characteristics	OPEN-COLLECTOR/3-STATE	OPEN-COLLECTOR/3-STATE	OPEN-COLLECTOR/3-STATE	OPEN-COLLECTOR/3-STATE	OPEN-COLLECTOR/3-STATE	OPEN-COLLECTOR/3-STATE
Output polarity	TRUE	INVERTED	INVERTED	INVERTED	TRUE	TRUE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE
Package form	FLATPACK	CHIP CARRIER	FLATPACK	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER
Maximum supply current (ICC)	145 mA	145 mA	145 mA	145 mA	145 mA	145 mA
propagation delay (tpd)	9 ns	9.5 ns	9.5 ns	9.5 ns	9 ns	9 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	YES	YES
technology	TTL	TTL	TTL	TTL	TTL	TTL
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	GULL WING	J BEND	GULL WING	J BEND	J BEND	J BEND
Terminal location	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD
Base Number Matches	1	1	1	1	1	1
