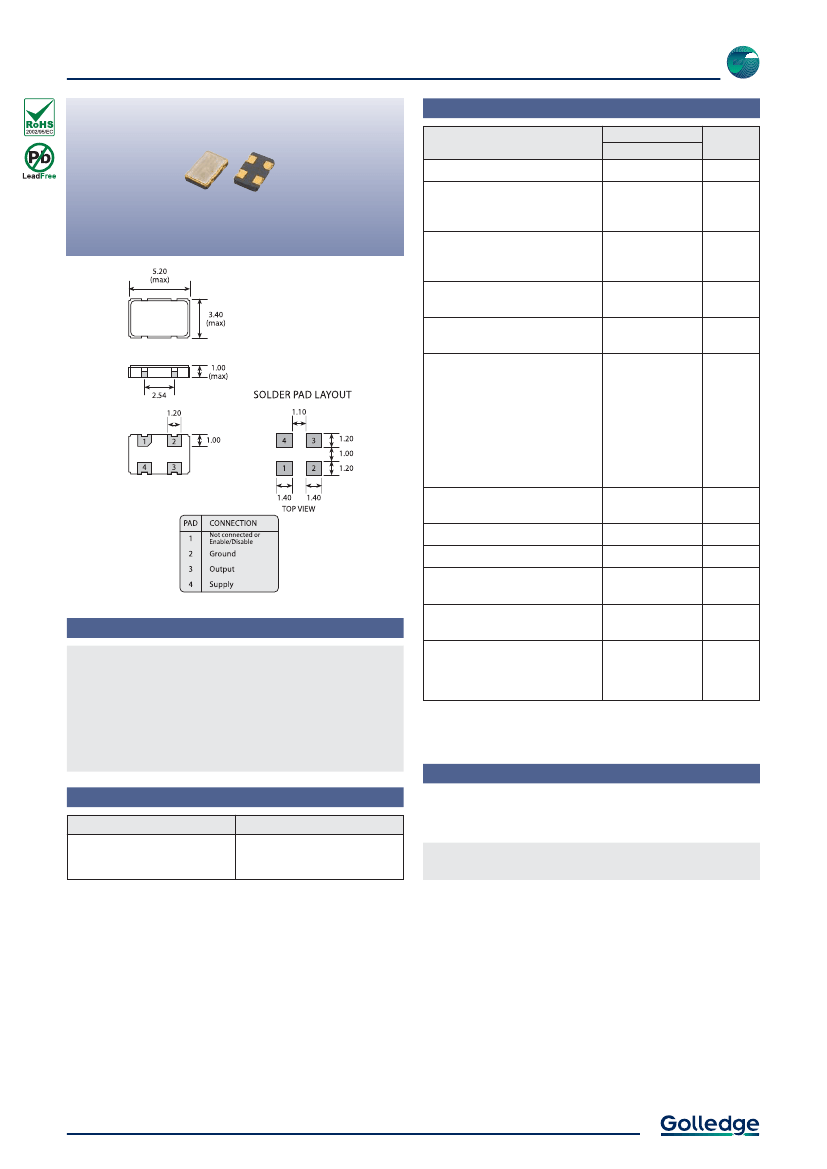

3.3V CMOS Oscillator
Specifications
GXO-5331
Parameters
Frequency range:
0.5 ~ 156.25MHz
Frequency stability:
±100ppm
±50ppm
±25ppm
Product
GXO-5331
N
B
A
Option
Codes
Operating temperature range:
-10 to +70°C
-40 to +85°C
Storage temperature range:
-55 to +125°C
Supply voltage (V
DD
):
+3.3V (±5%)
I
Supply current (max):
10mA (0.5 ~ 14.9MHz)
15mA (15.0 ~ 29.9MHz)
20mA (30.0 ~ 39.9MHz)
25mA (40.0 ~ 49.9MHz)
30mA (50.0 ~ 59.9MHz)
40mA (60.0 ~ 79.9MHz)
50mA (80.0 ~ 125MHz)
60mA (125.1 ~ 156.25MHz)
Logic levels:
‘0’
level = 10%V
DD
max
‘1’
level = 90%V
DD
min
Start up time:
Waveform symmetry:
10ms max
40:60 max
Driving ability:
15pF CMOS (*see note)
Features
Rise / fall time:
10ns max
7ns max (>40.0MHz)
Enable / disable function:
None (pad 1 not connected)
Standard tristate, no power saving
(E/D times 100ns / 100ns)
Ceramic package with metal lid
Standard frequencies held in stock
Enable / disable tristate function
Competitive pricing
Standard.
Optional - Please specify required code(s) when ordering
* Note: will drive up to 30pF, but figures for rise/fall and supply current may vary from
those shown. For details, contact our sales office.
Ordering Information
Enable / Disable Function
Input (pad 1)
Open
‘1’
level
‘0’
level
Output (pad 3)
Enabled
Enabled
High Impedance
Product name + option codes (if any) + frequency
eg:
GXO-5331 8.0MHz
3.3V, ±100ppm, -10+70°C, Tristate
GXO-5331/BIN 40.0MHz
3.3V, ±50ppm, -40+85°C, No tristate
Available on T&R - 1k pcs per reel.
Refer to our website for T&R and soldering details.
Tel:
+44 1460 256 100
30 Jun 2010
Fax:
+44 1460 256 101
E-mail:
sales@golledge.com
Web:
www.golledge.com
