EM428M1644RTA-5F datasheet, PDF

Datasheet> All Categories > EM428M1644RTA-5F

Preview

EM428M1644RTA-5F: Description128Mb (2M】4Bank】16) Double DATA RATE SDRAM; File Size344KB，20 Pages; ManufacturerEOREX; Websitehttp://www.eorex.com

Download Datasheet Compare View All

EM428M1644RTA-5F Overview

128Mb (2M】4Bank】16) Double DATA RATE SDRAM

Preview

Download Datasheet

View All

eorex

Features

• Internal Double-Date-Rate architecture with 2

Accesses per clock cycle.

• VDD/VDDQ= 2.5V

±0.2V

for (-75 and -6)

• VDD/VDDQ= 2.6V

±0.1V

for (-5 )

• 2.5V SSTL-2 compatible I/O

• Burst Length (B/L) of 2, 4, 8

• 2,2.5,3 Clock read latency

• Bi-directional,intermittent data strobe(DQS)

• All inputs except data and DM are sampled

at the positive edge of the system clock.

• Data Mask (DM) for write data

• Sequential & Interleaved Burst type available

• Auto Precharge option for each burst accesses

• DQS edge-aligned with data for Read cycles

• DQS center-aligned with data for Write cycles

• DLL aligns DQ & DQS transitions with CLK’s

• Auto Refresh and Self Refresh

• 4,096 Refresh Cycles / 64ms

EM428M1644RTA

128Mb (2M

4Bank

16)

Double DATA RATE SDRAM

Description

The EM428M1644RTA is high speed Synchronous

graphic RAM fabricated with ultra high performance

CMOS process containing 134,217,728 bits which

organized as 2Meg words x 4 banks by 16 bits.

The 128Mb DDR SDRAM uses a double data rate

architecture to accomplish high-speed operation.

The data path internally prefetches multiple bits and

It transfers the datafor both rising and falling edges

of the system clock.It means the doubled data

bandwidth can be achieved at the I/O pins.

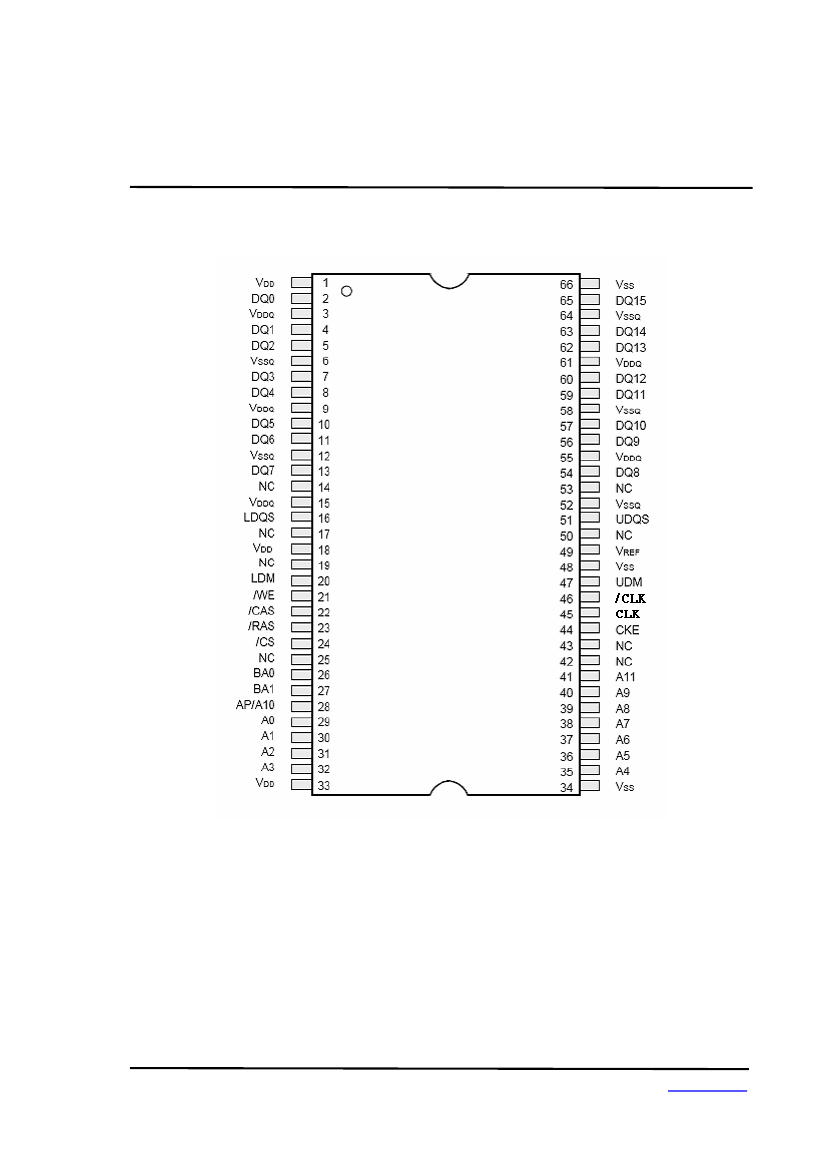

Available packages:TSOPII 66P 400mil.

Ordering Information

Part No

EM428M1644RTA-75F

EM428M1644RTA-6F

EM428M1644RTA-5F

Organization

8M X 16

Max. Freq

133MHz @CL2.5

166MHz @CL2.5

200MHz @CL3

Package

66pin TSOP(ll)

Grade

Commercial

Free

EM 42 8M 16 4 4 R T A - X F E

EOREX Memory

DDR SDRAM

Density

BM:

32 Mega

AM:

16 Mega

8M:

8 Mega

4M:

4 Mega

2M:

2 Mega

1M:

1 Mega

Organization

16:

x16

Refresh

Bank

4Bank

Grade

extended temp.

Package

Pb-free

Min Cycle Time (Max Freq.)

-5:

5ns (200MHz)

-6:

6ns (166MHz)

-75:

7.5ns (133MHz)

Revision

1st

Package

TSOP

Interface

2.5V

Apr. 2007

1/20

www.eorex.com
