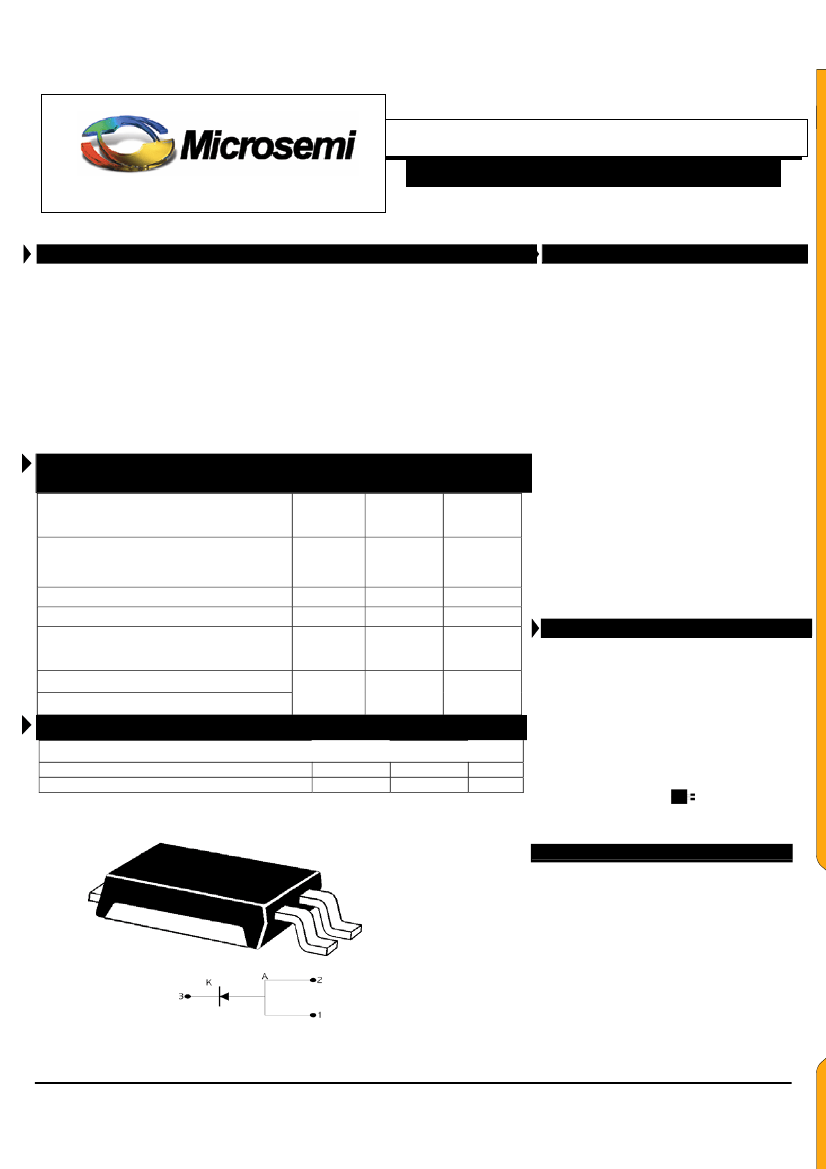

UPS540e3
5 A Schottky Barrier Rectifier
DESCRIPTION
KEY FEATURES
Very low thermal resistance package
RoHS Compliant with e3 suffix part
number
Guard-ring-die construction for transient
protection
Efficient heat path with Integral locking
bottom metal tab
Low forward voltage
Full metallic bottom eliminates flux
entrapment
Compatible with automatic insertion
Low profile-maximum height of 1mm
Options for screening in accordance with
MIL-PRF-19500 for JAN, JANTX, and
JANTXV are available by adding MQ, MX,
or MV prefixes respectively to part
numbers. For example, designate
MXUPS540e3 for a JANTX (consult
factory for Tin-Lead plating).
Optional 100% avionics screening
available by adding MA prefix for 100%
temperature cycle, thermal impedance
and 24 hours HTRB (consult factory for
Tin-Lead plating)
APPLICATIONS/BENEFITS
Switching and Regulating Power
Supplies.
Silicon Schottky (hot carrier) rectifier for
minimal reverse voltage recovery
Elimination of reverse-recovery
oscillations to reduce need for EMI
filtering
Charge Pump Circuits
Reduces reverse recovery loss with low
I
RM
Small foot print
190 X 270 mils (1:1 Actual size)

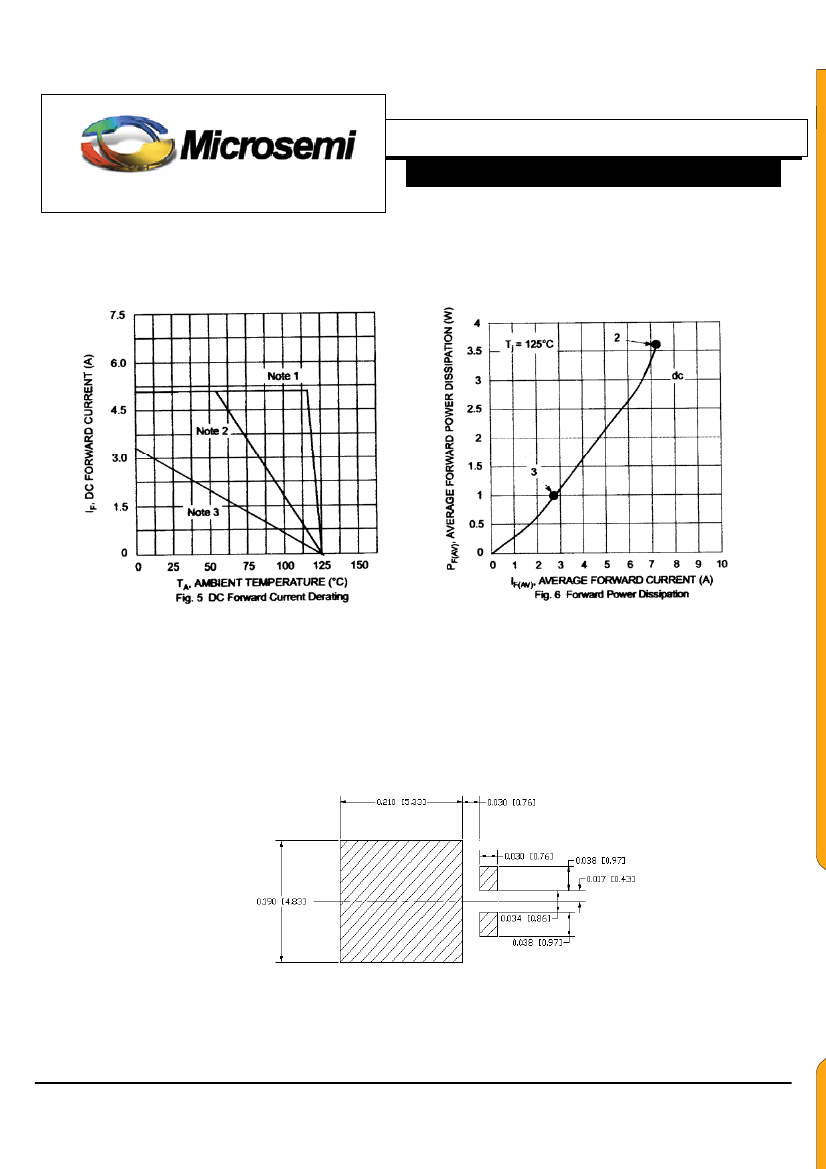

See mounting pad details on pg 3
MECHANICAL & PACKAGING
WWW .
Microsemi
.C
OM
This UPS540e3 in the Powermite3
®
package is a high efficiency Schottky
rectifier that is also RoHS compliant offering high current/power capabilities
previously found only in much larger packages. They are ideal for SMD
applications that operate at high frequencies. In addition to its size
advantages, the Powermite3
®
package includes a full metallic bottom that
eliminates the possibility of solder flux entrapment during assembly and a
unique locking tab act as an efficient heat path to the heat-sink mounting.
Its innovative design makes this device ideal for use with automatic insertion
equipment.
IMPORTANT:
For the most current data, consult
MICROSEMI’s
website:
http://www.microsemi.com

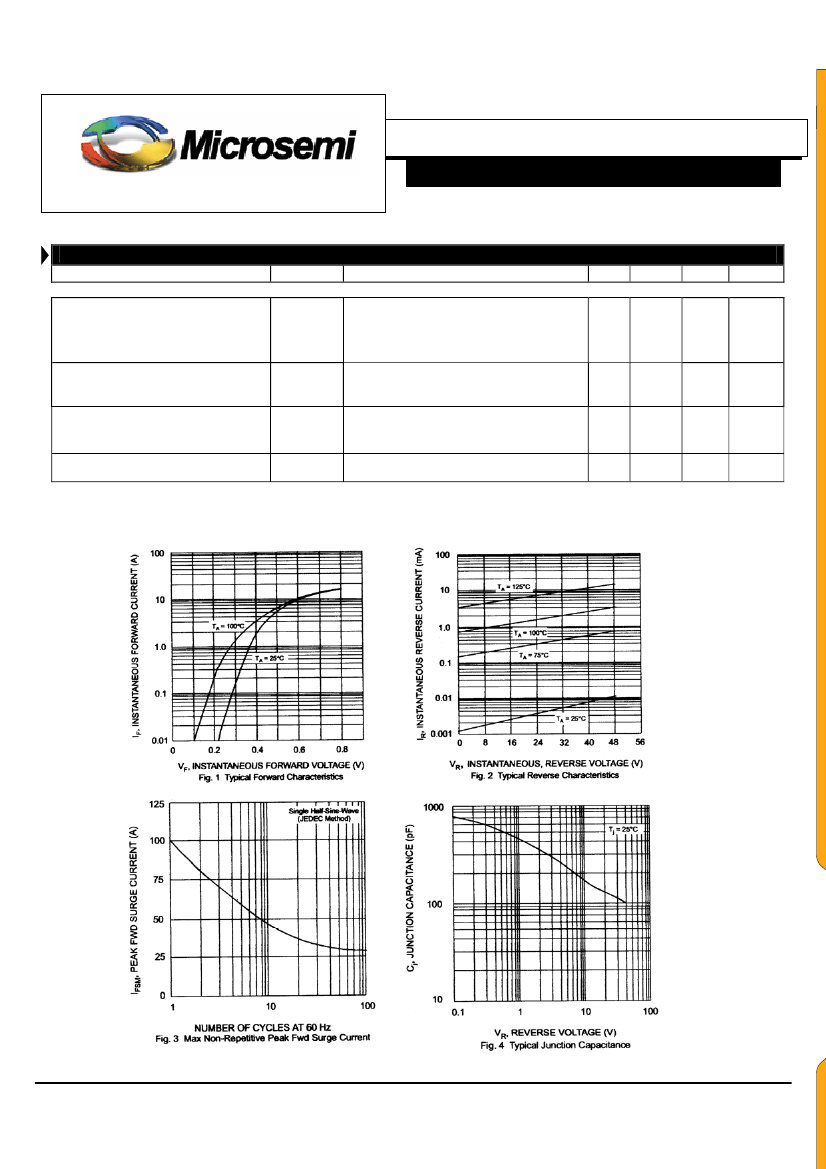

ABSOLUTE MAXIMUM RATINGS AT 25º C
(UNLESS OTHERWISE SPECIFIED)
Rating
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
RMS Reverse Voltage
Average Rectified Output Current
Non-Repetitive Peak Forward Surge Current
8.3ms Single half sine wave Superimposed
on Rated Load@ T
c
=90 ºC
Storage Temperature
Junction Temperature
Symbol
V
RRM
V
RWM
V
R
V
R (RMS)
I
o
I
FSM
T
STG
T
J
Value
Unit
40
28
5
100
-55 to +150
-55 to +125
V
V
A
A
ºC
ºC
THERMAL CHARACTERISTICS
Thermal Resistance
Junction-to-case (bottom)
Junction to ambient (1)
R
θJC
R
θJA
3.2
65
ºC/ Watt
ºC/ Watt
(1) When mounted on FR-4 PC board using 2 oz copper with recommended minimum foot print
Powermite 3™
•
•
•
•
•
•
•
CASE: Void-free transfer molded
thermosetting epoxy compound meeting
UL94V-0
FINISH: Annealed matte-Tin plating over
copper and readily solderable per MIL-
STD-750 method 2026 (consult factory
for Tin-Lead plating)
POLARITY: See figure (left)
MARKING: S540•
WEIGHT: 0.072 gram (approx.)

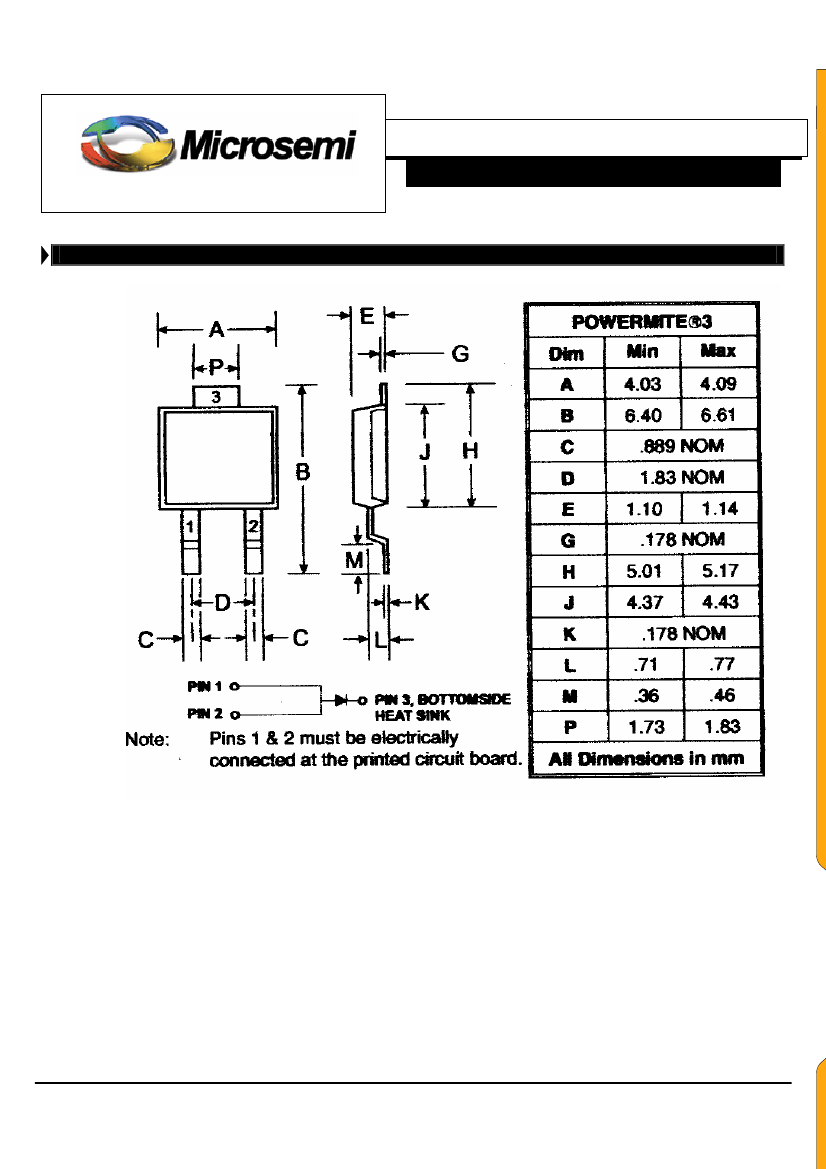

Package dimension on last page

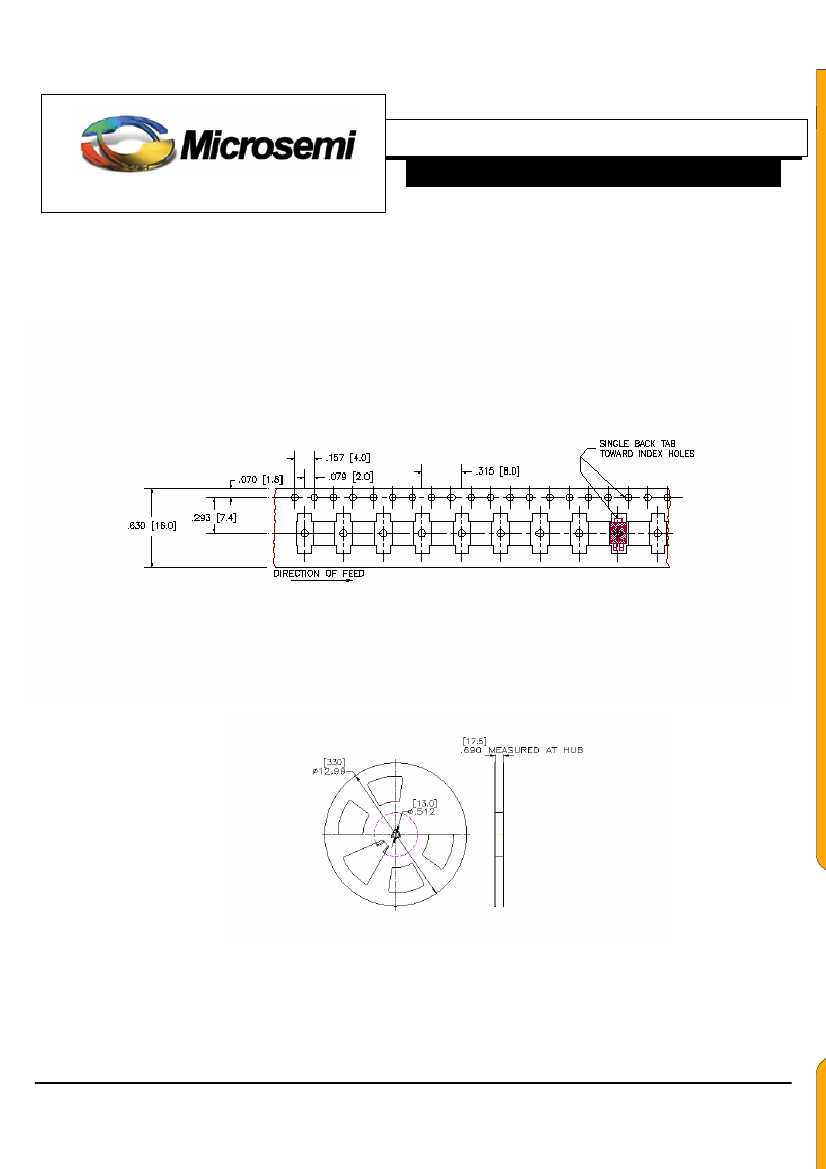

Tape & Reel option: 16 mm tape per
Standard EIA-481-B, 5000 on 13” reel
UPS340E3
Copyright
©
2007
6-26-2007 Rev D
