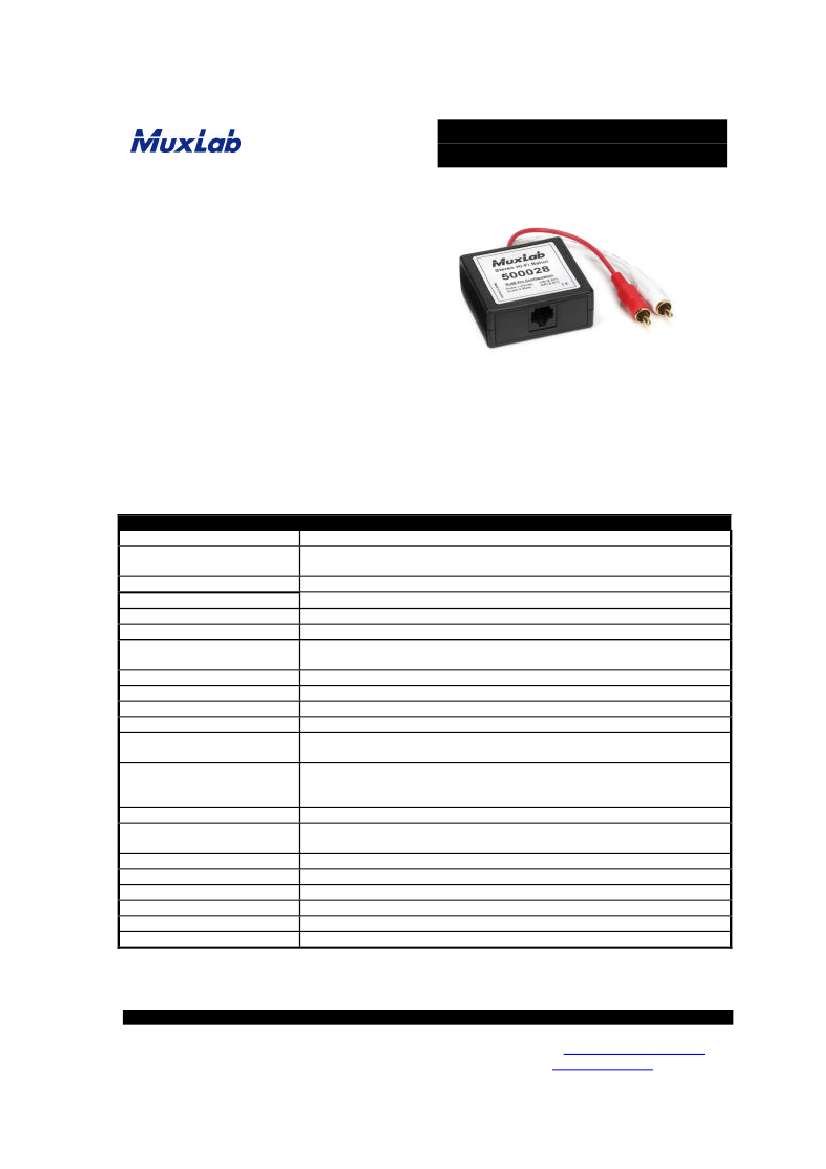

Stereo Hi-Fi Balun
500028
__________________________________________________________________________________
Overview
The Stereo Hi-Fi Balun allows unbalanced line
level stereo analogue audio to be transmitted
via Category 5 unshielded copper twisted pair
(UTP) in a point-to-point connection.
The
product is designed for audio applications
where full-range, hi-fidelity audio frequency
response is required.

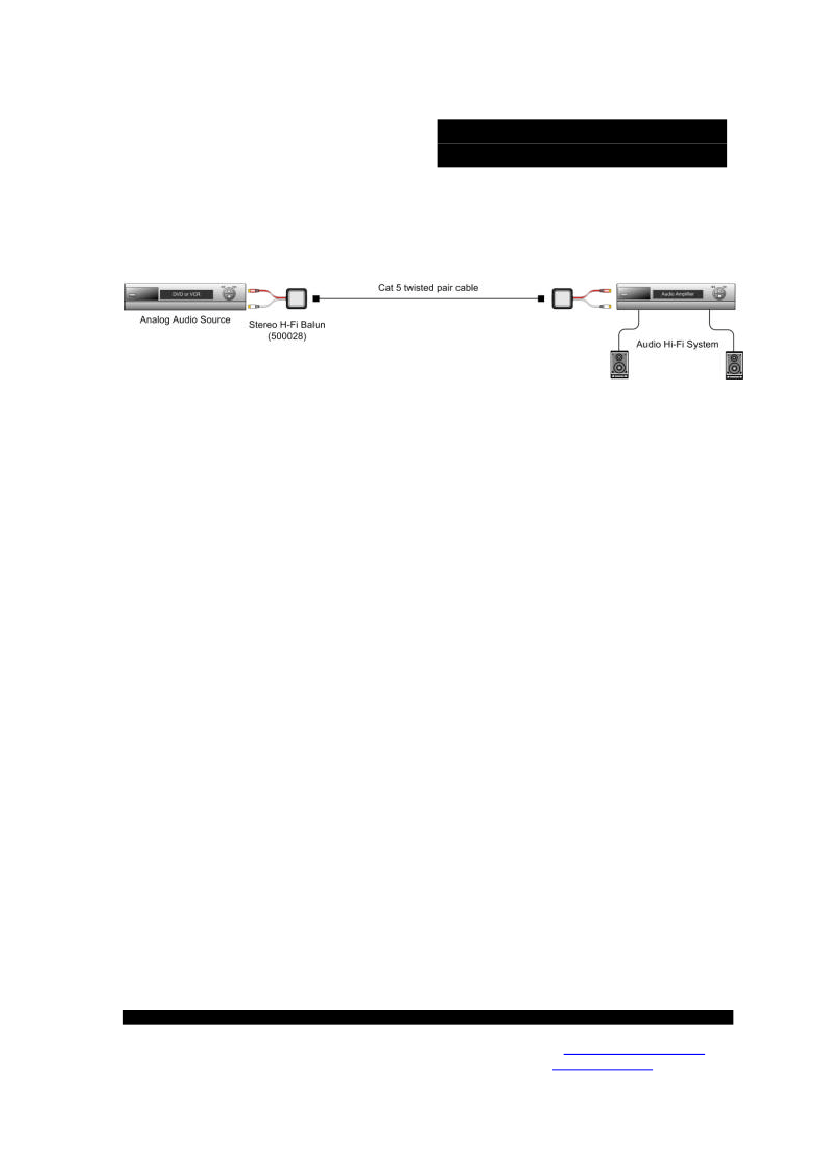

Used in pairs, the Stereo Hi-Fi Balun eliminates
costly and bulky coaxial cable, allowing audio
equipment to be connected or moved within a
structured cabling environment.
Applications
Boardroom systems, classroom training,
auditoriums, custom home installations and
intercom systems.
Features & Benefits
20 Hz to 20 KHz bandwidth
Cost-efficient cabling
Up to 3,250 ft (1km) via Cat 5 UTP
Color-coded RCA cable leads
Quicker moves, adds and changes
Specifications
Environment
Devices
Transmission
3dB Bandwidth
Maximum Input
Insertion Loss per balun pair
Common Mode Rejection
THD
Audio Source Impedance
Audio Receiver Impedance
Max. Distance – Cat 5 UTP
Pin Configuration (RJ45)
EIA 568 A or B
Cable – UTP
Cable – Coax
Connectors
Temperature
Enclosure
Dimensions
Weight
Warranty
Order Information
Line level unbalanced analogue audio
DVD players, satellite receivers, MPEG players, laptops, hi-fidelity stereo audio
amplifiers, audio switchers, AV monitors and other line level audio equipment
Transparent to the user.
20 Hz to 20 KHz over the distance range
1.1Vp-p (unbalanced)
Less than 2 dB over the frequency range.
Greater than 60 dB @ 1 KHz
Greater than 40 dB over the frequency and distance range
Maximum 0.007% @ 1 KHz over distance range.
100 ohms maximum
10 k ohms minimum
3,250 ft (1km)
Audio 1 (White): pins 1[R] & 2 [T]
Audio 2 (Red): pins 3 [R] & 6 [T]
24AWG or lower solid copper twisted pair wire
Impedance: 100 ohms at 1 MHz; Maximum capacitance: 20 pf/foot.
Attenuation: 6.6 dB/1000 ft at 1 MHz
Shielded audio cable
Two (2) RCA-M 6” cable leads
One (1) RJ45
Operating: 0º to 55º C. Storage:-20º to 85º C. Humidity: up to 95%
ABS. Fire retardant plastic
2.40” x 2.25” x 1.00” plus 6” audio lead
3.1 oz (89 gms)
Lifetime
500028
Stereo Hi-Fi Balun
© MuxLab Inc. 2006
Stereo Hi-Fi Balun
MuxLab Inc.
8114 Trans Canada Hwy, St. Laurent, Quebec,
H4S 1M5, Canada
Tel: (+1) 514 905 0588 Fax: (+1) 514 905 0589
Toll Free: 877 689-5228
E-mail:
videoease@muxlab.com
URL:
www.muxlab.com
