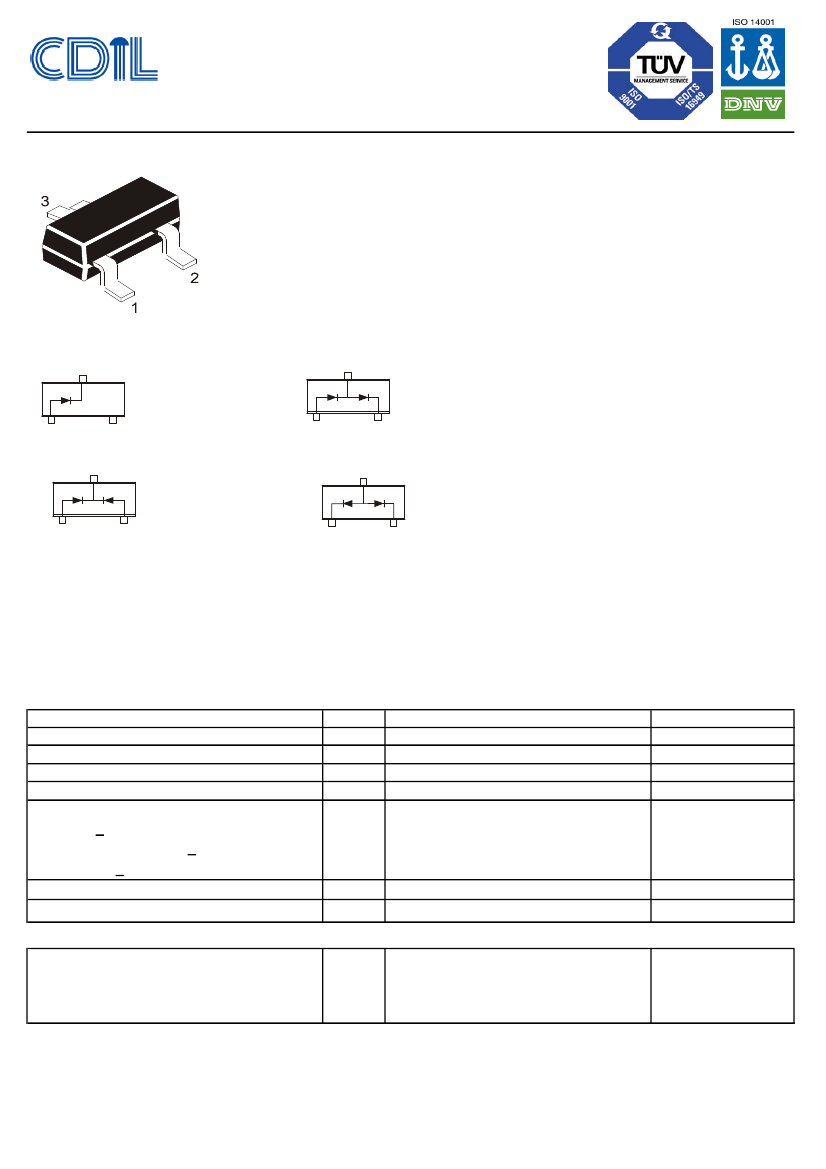

SILICON PLANAR SCHOTTKY DIODES
BAT64,
BAT64-04
BAT64-05, BAT64-06
SOT-23
Formed SMD Package
BAT64
3
3
BAT64-04
3
3
Pin Configuration
1 = ANODE
2 = NC
3 = CATHODE
Pin Configuration
1 = A N ODE
2 = CATHODE
3 = ANODE/
1
3
3
2
2
1
3
Pin Configuration
1 = ANODE
2 = ANODE
3 = CATHODE
2
2
CATHODE
BAT64-05
BAT64-06
3
Pin Configuration
1 = CATHODE
2 = CATHODE
3 = ANODE
1
2
2
1
2
2
MARKING
BAT64=63
BAT64-04=64
BAT64-05=65
BAT64-06=66
For Low-Loss, Fast Recovery, Meter Protection, Bias Isolation and Clamping Application
ABSOLUTE MAXIMUM RATINGS at T
a
=25ºC (per diode)
DESCRIPTION
SYMBOL
V
R
Reverse Voltage
I
F
Forward Current
I
FSM
Surge Forward Current t=10ms
I
F(AV)
Average Forward Current (50/60Hz, sinus)
P
D
Power Dissipation
BAT64 T
s
< 86ºC
BAT64-04, BAT64-06 T
s
< 61ºC
BAT64-05 T
s
< 36ºC
T
stg
Storage Temperature Range
T
j
Junction Temperature
VALUE
40
250
800
120
250
250
250
- 55 to +150
150
UNIT
V
mA
mA
mA
mW
mW
mW
o
C
o
C
THERMAL RESISTANCE
*R
th (j-s)
Junction to Soldering Point
255
BAT64
355
BAT64-04, BAT64-06
455
BAT64-05
*R
th (j-s)
For calculation of R
th(j-a)
please refer to Application Note Thermal Resistance
BAT64_06REV081105E
K/W
K/W
K/W
Continental Device India Limited
Data Sheet
Page 1 of 4
