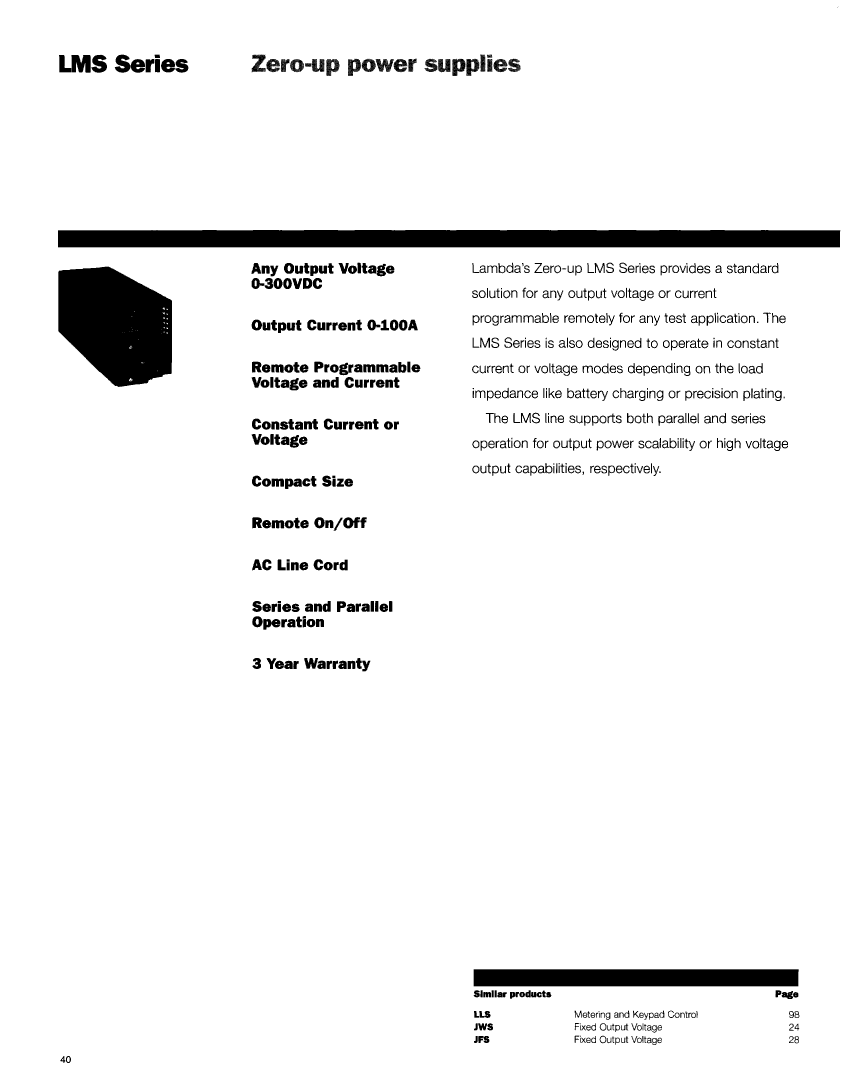

LMS-6300

Description
AC-DC Regulated Power Supply Module, 1 Output, 160W
CategoryPower/power management    The power supply circuit
File Size83KB，4 Pages
ManufacturerInternational Rectifier （ Infineon ）
Websitehttp://www.irf.com/
Download Datasheet Parametric Compare View All

LMS-6300 Overview

AC-DC Regulated Power Supply Module, 1 Output, 160W

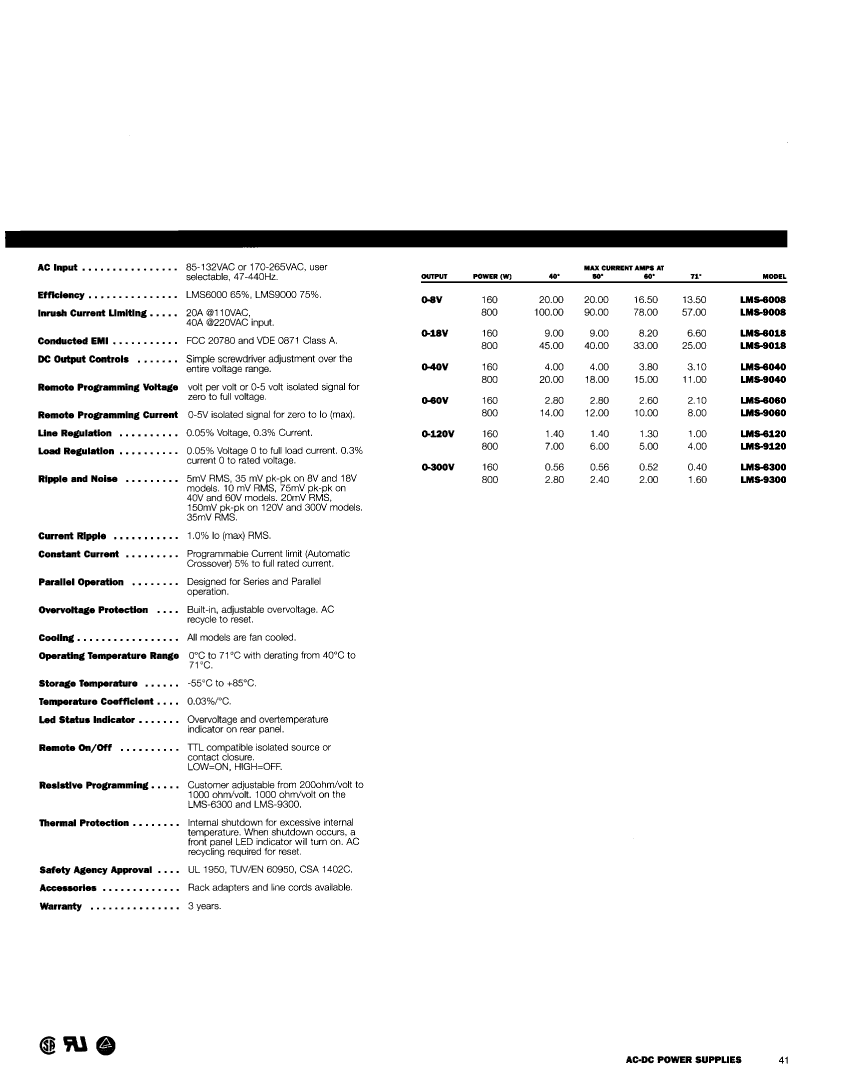

LMS-6300 Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
package instruction,
Reach Compliance Codecompliant
ECCN codeEAR99
Other featuresIT CAN ALSO OPERATE WITH INPUT RANGE OF 170-265 VAC
Analog Integrated Circuits - Other TypesAC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage132 V
Minimum input voltage85 V
Nominal input voltage110 V
JESD-30 codeR-XXMA-X
JESD-609 codee0
Number of functions1
Output times1
Maximum operating temperature40 °C
Minimum operating temperature
Maximum output voltage300 V
Minimum output voltage
Package body materialUNSPECIFIED
Package shapeRECTANGULAR
Package formMICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Certification statusNot Qualified
surface mountNO
Temperature levelCOMMERCIAL
Terminal surfaceTIN LEAD
Terminal formUNSPECIFIED
Terminal locationUNSPECIFIED
Maximum time at peak reflow temperatureNOT SPECIFIED
Maximum total power output160 W
Fine-tuning/adjustable outputNO
Base Number Matches1

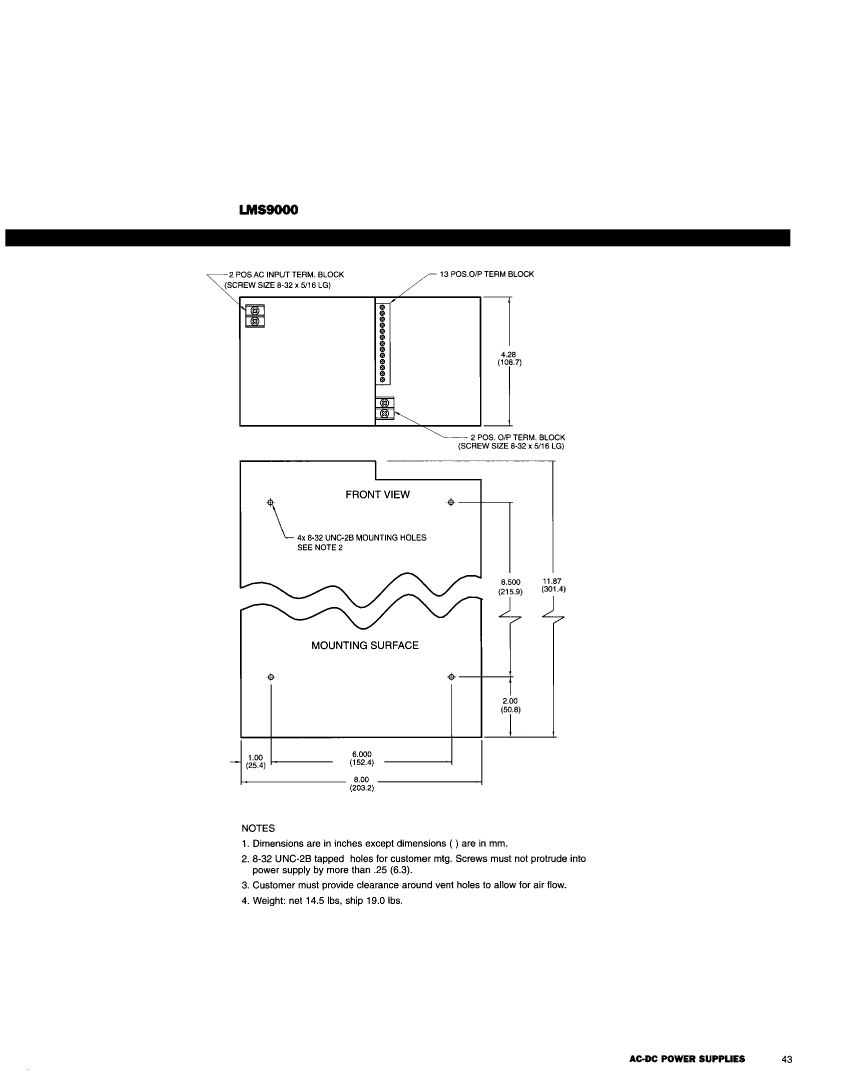

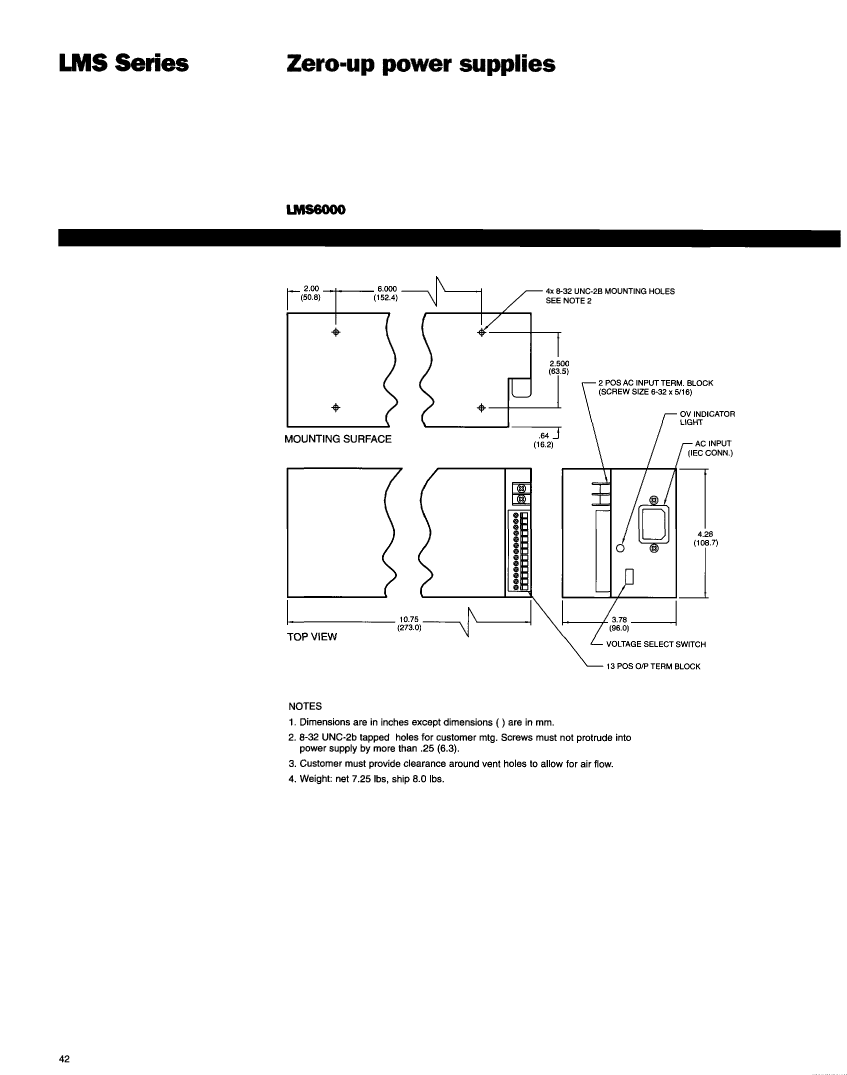

Preview

Download Datasheet

LMS-6300 Related Products

LMS-6300 LMS-6060 LMS-9008 LMS-9060 LMS-9300 LMS-6008 LMS-9018 LMS-9120 LMS-6120 LMS-9040
Description AC-DC Regulated Power Supply Module, 1 Output, 160W AC-DC Regulated Power Supply Module, 1 Output, 160W AC-DC Regulated Power Supply Module, 1 Output, 800W AC-DC Regulated Power Supply Module, 1 Output, 800W AC-DC Regulated Power Supply Module, 1 Output, 800W AC-DC Regulated Power Supply Module, 1 Output, 160W AC-DC Regulated Power Supply Module, 1 Output, 800W AC-DC Regulated Power Supply Module, 1 Output, 800W AC-DC Regulated Power Supply Module, 1 Output, 160W AC-DC Regulated Power Supply Module, 1 Output, 800W
Is it lead-free? Contains lead Contains lead Contains lead Contains lead Contains lead Contains lead Contains lead Contains lead Contains lead Contains lead
Reach Compliance Code compliant unknown unknown compliant compliant unknown unknown compliant unknown unknown
ECCN code EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99
Other features IT CAN ALSO OPERATE WITH INPUT RANGE OF 170-265 VAC IT CAN ALSO OPERATE WITH INPUT RANGE OF 170-265 VAC IT CAN ALSO OPERATE WITH INPUT RANGE OF 170-265 VAC IT CAN ALSO OPERATE WITH INPUT RANGE OF 170-265 VAC IT CAN ALSO OPERATE WITH INPUT RANGE OF 170-265 VAC IT CAN ALSO OPERATE WITH INPUT RANGE OF 170-265 VAC IT CAN ALSO OPERATE WITH INPUT RANGE OF 170-265 VAC IT CAN ALSO OPERATE WITH INPUT RANGE OF 170-265 VAC IT CAN ALSO OPERATE WITH INPUT RANGE OF 170-265 VAC IT CAN ALSO OPERATE WITH INPUT RANGE OF 170-265 VAC
Analog Integrated Circuits - Other Types AC-DC REGULATED POWER SUPPLY MODULE AC-DC REGULATED POWER SUPPLY MODULE AC-DC REGULATED POWER SUPPLY MODULE AC-DC REGULATED POWER SUPPLY MODULE AC-DC REGULATED POWER SUPPLY MODULE AC-DC REGULATED POWER SUPPLY MODULE AC-DC REGULATED POWER SUPPLY MODULE AC-DC REGULATED POWER SUPPLY MODULE AC-DC REGULATED POWER SUPPLY MODULE AC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage 132 V 132 V 132 V 132 V 132 V 132 V 132 V 132 V 132 V 132 V
Minimum input voltage 85 V 85 V 85 V 85 V 85 V 85 V 85 V 85 V 85 V 85 V
Nominal input voltage 110 V 110 V 110 V 110 V 110 V 110 V 110 V 110 V 110 V 110 V
JESD-30 code R-XXMA-X R-XXMA-X R-XXMA-X R-XXMA-X R-XXMA-X R-XXMA-X R-XXMA-X R-XXMA-X R-XXMA-X R-XXMA-X
Number of functions 1 1 1 1 1 1 1 1 1 1
Output times 1 1 1 1 1 1 1 1 1 1
Maximum operating temperature 40 °C 40 °C 40 °C 40 °C 40 °C 40 °C 40 °C 40 °C 40 °C 40 °C
Maximum output voltage 300 V 60 V 8 V 60 V 300 V 8 V 18 V 120 V 120 V 40 V
Package body material UNSPECIFIED UNSPECIFIED UNSPECIFIED UNSPECIFIED UNSPECIFIED UNSPECIFIED UNSPECIFIED UNSPECIFIED UNSPECIFIED UNSPECIFIED
Package shape RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
Package form MICROELECTRONIC ASSEMBLY MICROELECTRONIC ASSEMBLY MICROELECTRONIC ASSEMBLY MICROELECTRONIC ASSEMBLY MICROELECTRONIC ASSEMBLY MICROELECTRONIC ASSEMBLY MICROELECTRONIC ASSEMBLY MICROELECTRONIC ASSEMBLY MICROELECTRONIC ASSEMBLY MICROELECTRONIC ASSEMBLY
Certification status Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified
surface mount NO NO NO NO NO NO NO NO NO NO
Temperature level COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL
Terminal form UNSPECIFIED UNSPECIFIED UNSPECIFIED UNSPECIFIED UNSPECIFIED UNSPECIFIED UNSPECIFIED UNSPECIFIED UNSPECIFIED UNSPECIFIED
Terminal location UNSPECIFIED UNSPECIFIED UNSPECIFIED UNSPECIFIED UNSPECIFIED UNSPECIFIED UNSPECIFIED UNSPECIFIED UNSPECIFIED UNSPECIFIED
Maximum total power output 160 W 160 W 800 W 800 W 800 W 160 W 800 W 800 W 160 W 800 W
Fine-tuning/adjustable output NO NO NO NO NO NO NO NO NO NO
Maker - - - International Rectifier （ Infineon ） International Rectifier （ Infineon ） International Rectifier （ Infineon ） International Rectifier （ Infineon ） International Rectifier （ Infineon ） International Rectifier （ Infineon ） International Rectifier （ Infineon ）
