Ceramic SMD Crystal
Model: FX532 Series
Page 1 of 2
RoHS Compliant / Pb Free
Rev. 6/5/2008
http://www.foxonline.com/need_a_sample.htm
FEATURES
•
•
•
•
•
OPTIONS
Low Cost
• Tolerances to < 10 PPM (B Version)
Fundamental to 67 MHz
• Stabilities to < 10 PPM (B Version)
Resin Sealed (A Version)
• Temperatures to -40ºC ~ +85ºC
Seam Sealed (B Version)
Tape and Reel (2,000 pcs. STD)
• PART NUMBER SELECTION
Learn More - Internet Required
Part Number
419-Frequency-xxxxx
495-Frequency-xxxxx
Model Number
FX532A
FX532B
Frequency Range (MHz)
10.000 ~ 67.000
10.000 ~ 67.000
5 .0 ± 0.2
3 .2 ± 0.2
• STANDARD SPECIFICATIONS
1
PARAMETERS
Frequency Range
Frequency Tolerance, Ta=25ºC
10.000 ~ 40.000 MHz
40.000+ ~ 67.000 MHz
Frequency Stability
10.000 ~ 40.000 MHz (ref. @ 25ºC)
40.000+ ~ 67.000 MHz
Temperature Range
Operating (T
OPR
)
Storage
(T
STG
)
Shunt Capacitance
(Co)
Load Capacitance
(C
L
)
Drive Level
Aging
per year
1
FX532A - 0.8±0.2
FX532B - 0.7±0.1
MAX
(unless otherwise noted)
10.000 ~ 67.000 MHz
±50PPM
See Stability
1 .4 ± 0.2
FX532A
FX532B
3 .0 ± 0.2
1 .4 ± 0.2
2 .6 ± 0.2
±50 PPM
±100 PPM
2
Recommended
Solder Pad Layout
Recommended
Solder Pad Layout
-10ºC ~ +60ºC
-30ºC ~ +85ºC
7.0 pF
10 pF ~ Series
(Customer Specified)
0.1 mW
±5 PPM
1.7
1.8
2.6
1.2
1.8
1.1
2.0
All dimensions are in millimeters.
Other tolerances, stabilities & operating temperature ranges available. Consult Fox Customer
Service for specific requirements.
2
Inclusive of tolerance at 25ºC
All specifications subject to change without notice.
Note: Dimensional drawing is for reference to critical specifications defined by size
measurements. Certain non-critical visual attributes, such as side castellations, etc. may vary.
The above specifications, having been carefully prepared and checked, is believed to be
accurate at the time of publication; however, no responsibility is assumed by Fox Electronics
for inaccuracies
.
Frequency Range
(MHz)
10.000 ~ 14.000
14.000+ ~ 16.000
16.000+ ~ 67.000
Operating Mode
Fundamental
Fundamental
Fundamental
Max ESR
Ω
140
90
60
FOXElectronics
5570 Enterprise Parkway Fort Myers, Florida 33905 USA +1.239.693.0099 FAX +1.239.693.1554
http://www.foxonline.com
© 2009 FOX ELECTRONICS | ISO9001:2000 Certified
EMEA
Tel/Fax: +44 .1767.312632 |
Asia
Hong Kong Tel: +852.2854.4285 Fax +852.2854.4282 |
Japan
Tel: +81.3.3374.2079 Fax: +81.3.3374.5221
21
Ceramic SMD Crystal
Model: FX532 Series
Page 2 of 2
RoHS Compliant / Pb Free
Rev. 6/5/2008
http://www.foxonline.com/need_a_sample.htm

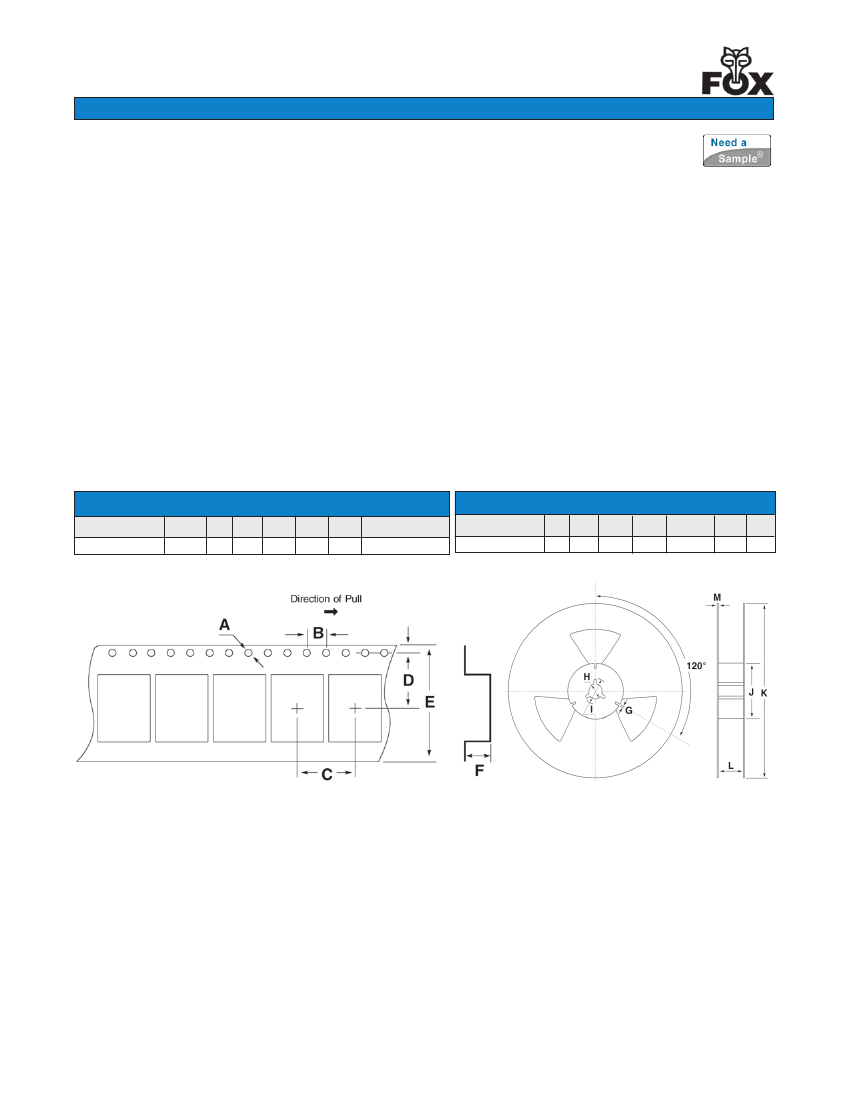

• TAPE SPECIFICATIONS
(millimeters)
MODEL
A B C
FX532 Series
∅1.5
4.0 8.0
• REEL SPECIFICATIONS
(millimeters)
G H
I
J
K
L
M
D
E
F
STD Reel QTY
MODEL
FX532 Series
2.0
∅13
21
∅80 ∅250
13.5 2.0
5.5 12.0 1.7
2,000
FOXElectronics
5570 Enterprise Parkway Fort Myers, Florida 33905 USA +1.239.693.0099 FAX +1.239.693.1554
http://www.foxonline.com
© 2009 FOX ELECTRONICS | ISO9001:2000 Certified
EMEA
Tel/Fax: +44 .1767.312632 |
Asia
Hong Kong Tel: +852.2854.4285 Fax +852.2854.4282 |
Japan
Tel: +81.3.3374.2079 Fax: +81.3.3374.5221
