BYX46-400R datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> BYX46-400R

BYX46-400R: DescriptionRectifier Diode, Avalanche, 1 Phase, 1 Element, 22A, Silicon; CategoryDiscrete semiconductor diode; File Size342KB，11 Pages; ManufacturerYAGEO; Websitehttp://www.yageo.com/

Download Datasheet Parametric Compare View All

BYX46-400R Overview

Rectifier Diode, Avalanche, 1 Phase, 1 Element, 22A, Silicon

BYX46-400R Parametric

Parameter Name	Attribute value
package instruction	O-MUPM-D1
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	LEAKAGE CURRENT IS NOT AT 25 DEG C
application	FAST SOFT RECOVERY
Shell connection	ANODE
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	2 V
JESD-30 code	O-MUPM-D1
Maximum non-repetitive peak forward current	300 A
Number of components	1
Phase	1
Number of terminals	1
Maximum operating temperature	165 °C
Maximum output current	22 A
Package body material	METAL
Package shape	ROUND
Package form	POST/STUD MOUNT
Certification status	Not Qualified
Maximum reverse current	4000 µA
Maximum reverse recovery time	0.2 µs
surface mount	NO
technology	AVALANCHE
Terminal form	SOLDER LUG
Terminal location	UPPER
Base Number Matches	1

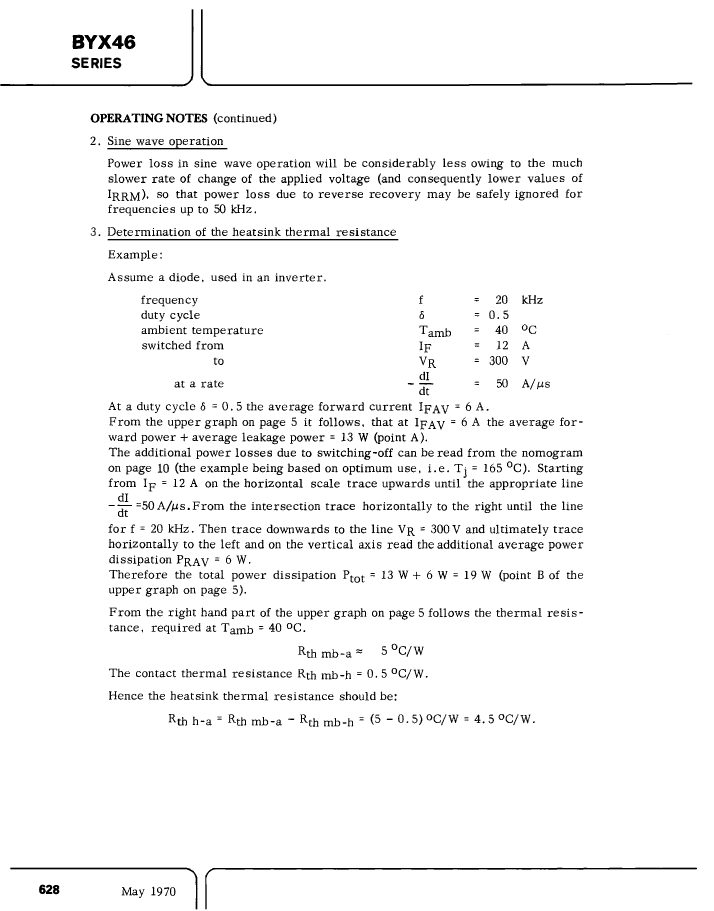

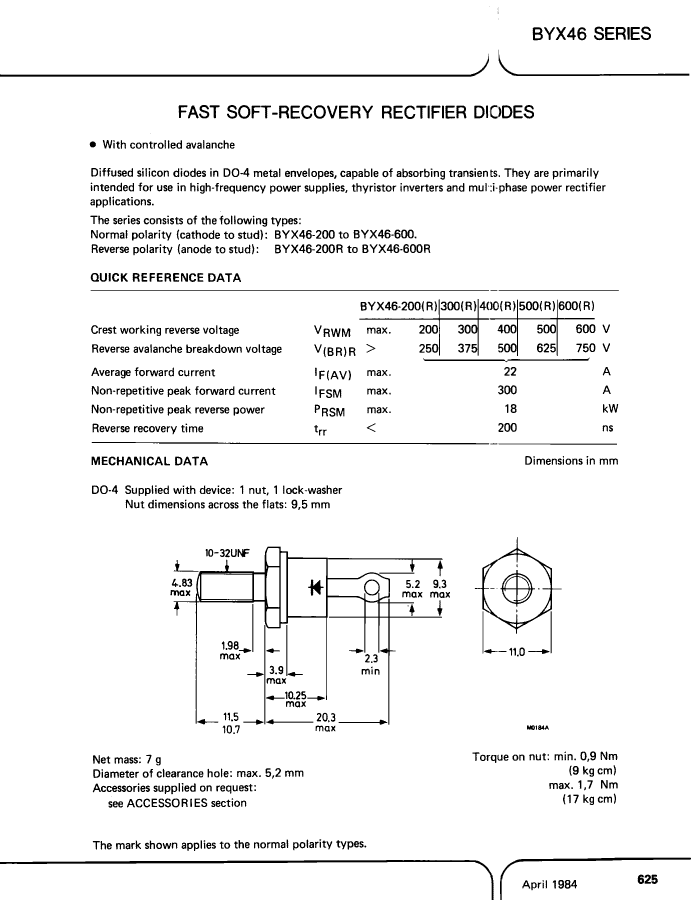

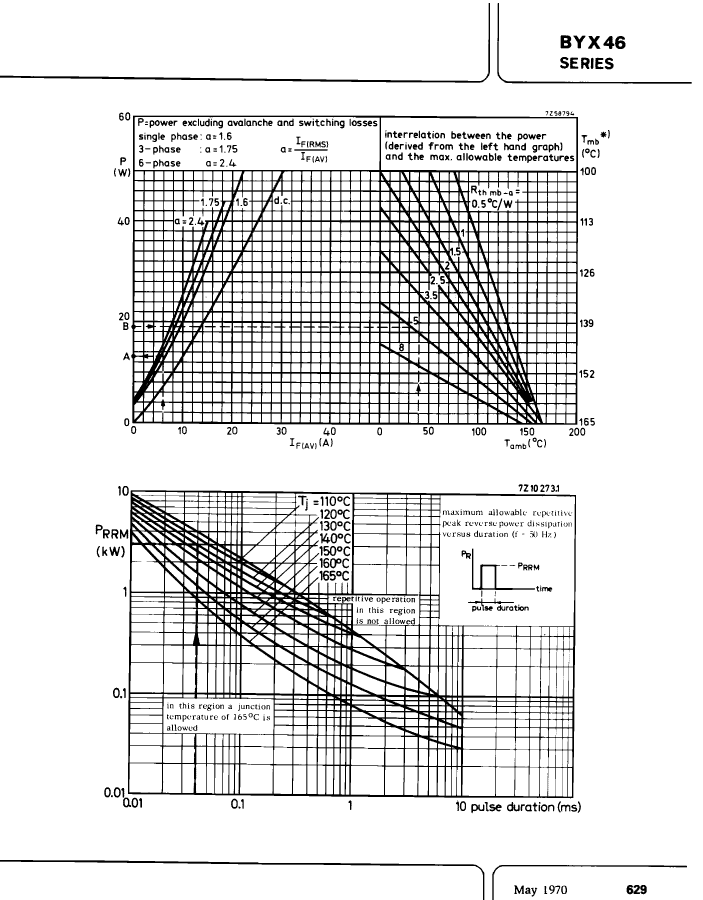

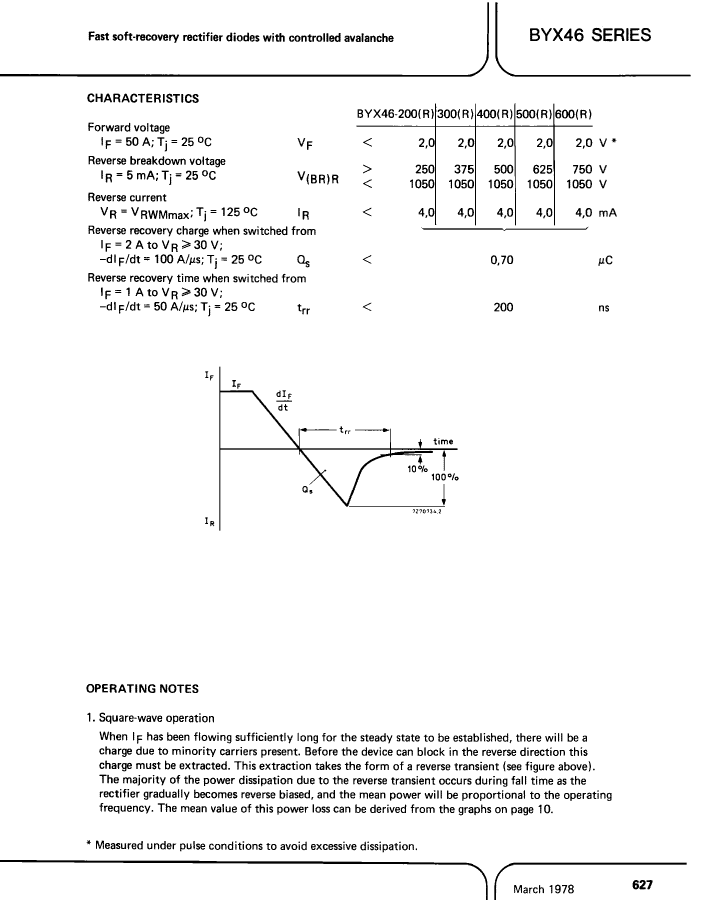

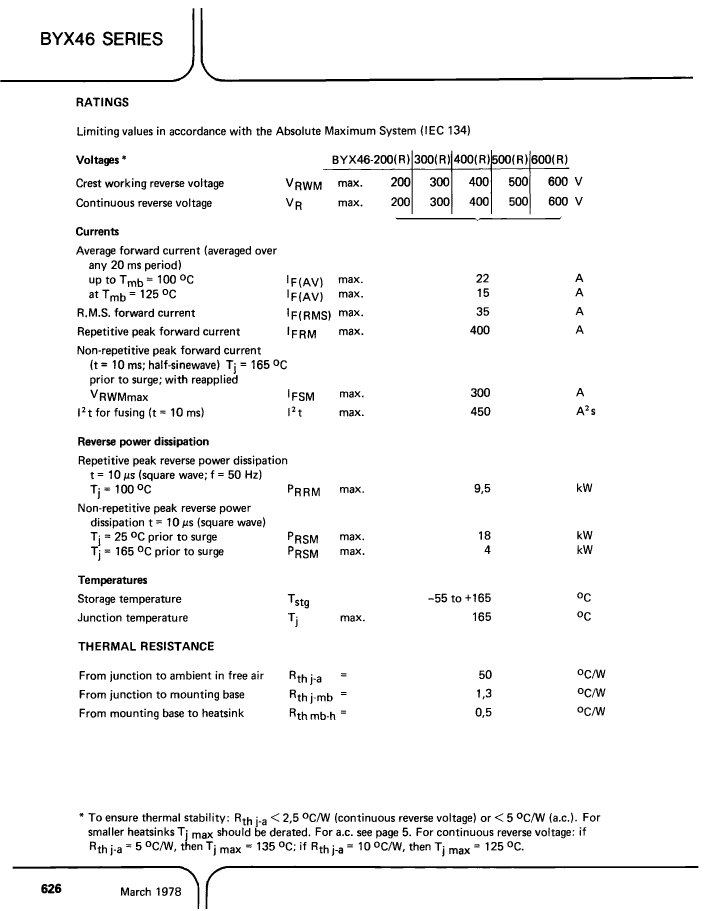

Preview

Download Datasheet

View All

BYX46-400R Related Products

	BYX46-400R	BYX46-400	BYX46-300R	BYX46-300	BYX46-600	BYX46-500	BYX46-500R	BYX46-600R	BYX46-200	BYX46-200R
Description	Rectifier Diode, Avalanche, 1 Phase, 1 Element, 22A, Silicon	Rectifier Diode, Avalanche, 1 Phase, 1 Element, 22A, Silicon	Rectifier Diode, Avalanche, 1 Phase, 1 Element, 22A, Silicon	Rectifier Diode, Avalanche, 1 Phase, 1 Element, 22A, Silicon	Rectifier Diode, Avalanche, 1 Phase, 1 Element, 22A, Silicon	Rectifier Diode, Avalanche, 1 Phase, 1 Element, 22A, Silicon	Rectifier Diode, Avalanche, 1 Phase, 1 Element, 22A, Silicon	Rectifier Diode, Avalanche, 1 Phase, 1 Element, 22A, Silicon	Rectifier Diode, Avalanche, 1 Phase, 1 Element, 22A, Silicon	Rectifier Diode, Avalanche, 1 Phase, 1 Element, 22A, Silicon
package instruction	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	LEAKAGE CURRENT IS NOT AT 25 DEG C	LEAKAGE CURRENT IS NOT AT 25 DEG C	LEAKAGE CURRENT IS NOT AT 25 DEG C	LEAKAGE CURRENT IS NOT AT 25 DEG C	LEAKAGE CURRENT IS NOT AT 25 DEG C	LEAKAGE CURRENT IS NOT AT 25 DEG C	LEAKAGE CURRENT IS NOT AT 25 DEG C	LEAKAGE CURRENT IS NOT AT 25 DEG C	LEAKAGE CURRENT IS NOT AT 25 DEG C	LEAKAGE CURRENT IS NOT AT 25 DEG C
application	FAST SOFT RECOVERY	FAST SOFT RECOVERY	FAST SOFT RECOVERY	FAST SOFT RECOVERY	FAST SOFT RECOVERY	FAST SOFT RECOVERY	FAST SOFT RECOVERY	FAST SOFT RECOVERY	FAST SOFT RECOVERY	FAST SOFT RECOVERY
Shell connection	ANODE	CATHODE	ANODE	CATHODE	CATHODE	CATHODE	ANODE	ANODE	CATHODE	ANODE
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	2 V	2 V	2 V	2 V	2 V	2 V	2 V	2 V	2 V	2 V
JESD-30 code	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1
Maximum non-repetitive peak forward current	300 A	300 A	300 A	300 A	300 A	300 A	300 A	300 A	300 A	300 A
Number of components	1	1	1	1	1	1	1	1	1	1
Phase	1	1	1	1	1	1	1	1	1	1
Number of terminals	1	1	1	1	1	1	1	1	1	1
Maximum operating temperature	165 °C	165 °C	165 °C	165 °C	165 °C	165 °C	165 °C	165 °C	165 °C	165 °C
Maximum output current	22 A	22 A	22 A	22 A	22 A	22 A	22 A	22 A	22 A	22 A
Package body material	METAL	METAL	METAL	METAL	METAL	METAL	METAL	METAL	METAL	METAL
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum reverse current	4000 µA	4000 µA	4000 µA	4000 µA	4000 µA	4000 µA	4000 µA	4000 µA	4000 µA	4000 µA
Maximum reverse recovery time	0.2 µs	0.2 µs	0.2 µs	0.2 µs	0.2 µs	0.2 µs	0.2 µs	0.2 µs	0.2 µs	0.2 µs
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
technology	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE
Terminal form	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG
Terminal location	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER
