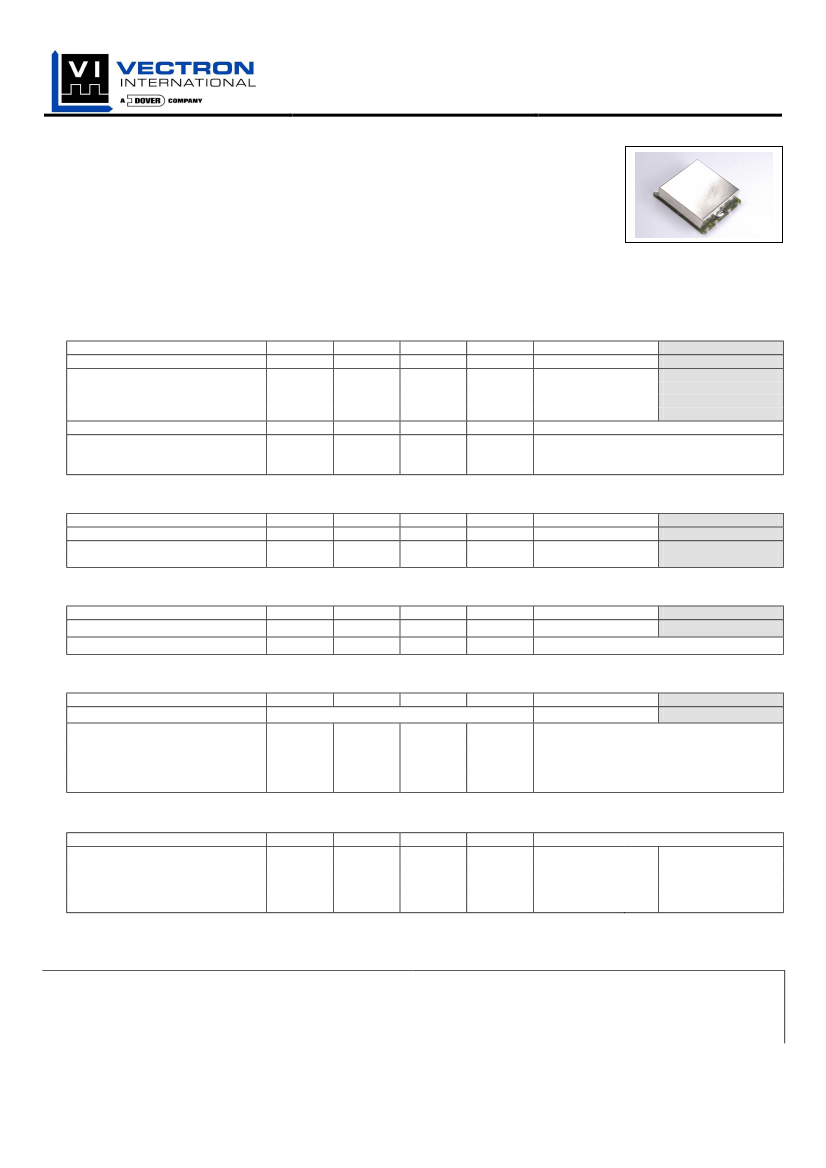

C3530
Typical Applications
Base Stations
FCXO
Features
Surface Mount Package
Reflow Process Compatible
Low Phase Noise
Build in PLL-Circuit
FCXO100
Previous Vectron Model Numbers
Output Frequency range
Standard frequencies
Reference Frequency
Parameter
Input frequency Pin 2
Standard input frequencies
Min
1
Typ
10
13
26
32,768
Typ
10 MHz – 200 MHz
52; 61.44MHz
Max.
160
Parameter
Reference Level
Reference Input Impedance
Harmonics
Min
0.5
2
Max.
1
-30
Units
MHz
MHz
MHz
MHz
MHz
Units
V
pp
kΩ
dBc
Condition
± 2 ppm
Ordering Code
X106
X136
X266
X326
Condition
@ 2 kΩ
5
Output Frequency
Parameter
output frequency Pin 4
Standard output frequencies
Min
10
Typ
52
61.44
Max.
200
Units
MHz
MHz
Condition
Ordering Code
X526
X616
5
Supply voltage (Vs)
Parameter
Supply voltage [Standard]
Current consumption
Min
3.135
Typ
3.3
Max.
3.465
50
Units
VDC
mA
Condition
Ordering Code
SV033
5
steady state @ +25°C & 3.3VDC
RF output
Parameter
Signal [Standard]
Load
Signal Level (Vol)
Signal Level (Voh)
Rise and Fall time
Duty cycle
Min
Typ
HCMOS
15
0.3
3.0
40
5
60
pF
VDC
VDC
ns
%
with Vs=3.3V and 15pF load
with Vs=3.3V and 15pF load
@ (Voh-Vol)/2
Max.
Units
Condition
Ordering Code
RFH
5
Additional parameters
Parameter
3
Phase Noise
Min
Typ
-80
-110
-135
-150
-155
Max.
Units
dBc/Hz
dBc/Hz
dBc/Hz
dBc/Hz
dBc/Hz
10
100
1
10
100
Condition
Hz
@ 61.44 MHz
Hz
Hz
kHz
kHz
Vectron International
·
www.vectron.com
Vectron International
Headquarters
267 Lowell Road
Hudson, New Hampshire 03051
+1-888-328-7661 tel
+1-888-329-8328 fax
Vectron International LLC.
100 Watts Street
Mount Holly Springs, PA 17065
USA
+1-717-486-3411 tel
+1-717-486-5920 fax
Vectron international GmbH & Co. KG
Landstrasse
D-74924 Neckarbischofsheim
Germany
+49-07268-801-0 tel
+49-07268-801-281 fax
v.2005-10-28 · page 1 of 6
Vectron Asia Pacific Sales Office
1F-2F, No 8 Workshop, No 308 Fenju Road,
WaiGaoQiao Free Trade Zone, Pudong,
Shanghai, P.R. China 200131
+86 21 5048 0777 tel.
+86 21 5048 1881 fax

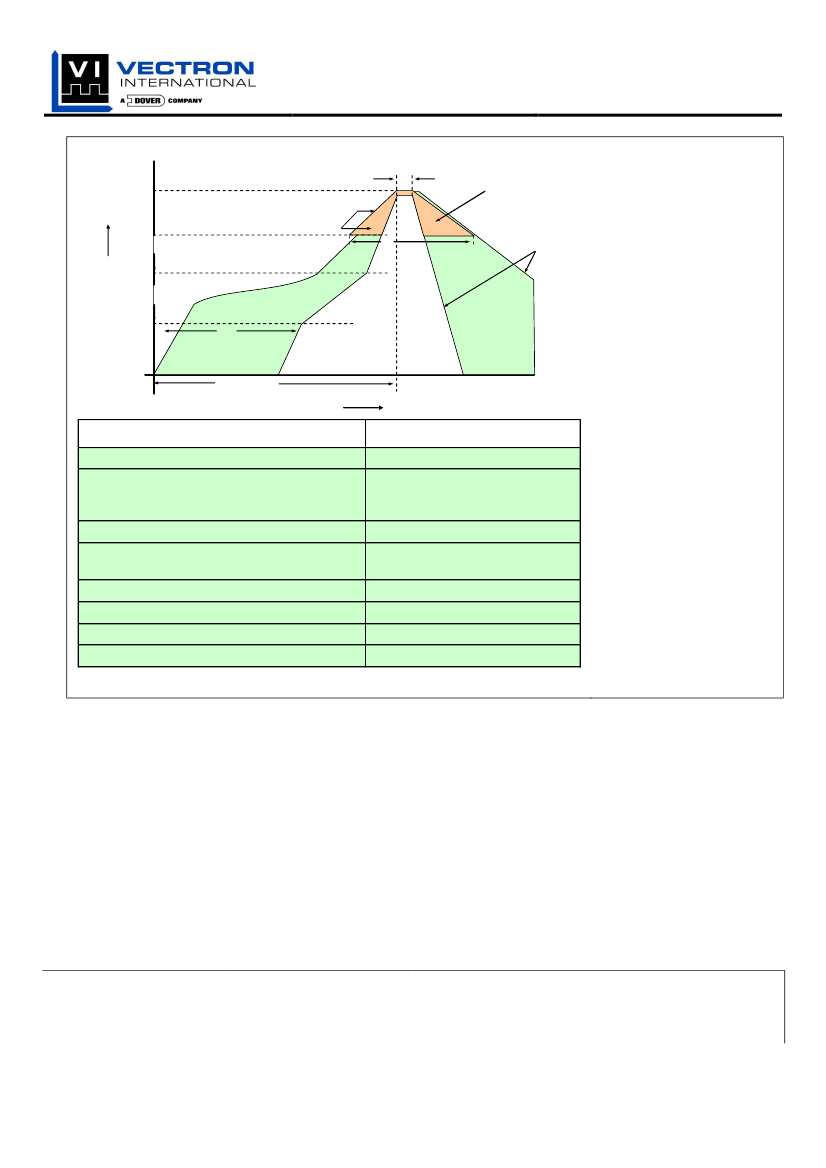

C3530
FCXO
Additional parameters
Parameter
VCXO Control PIN 7
Weight
Processing & Packing
Operating temperature range
Operable temperature range
Storage temperature range
Min
0.5
Max.
2.5
9
Handling & processing note
+70
+85
+125
Typ
Units
V
g
°C
°C
Condition
-20
-30
-55

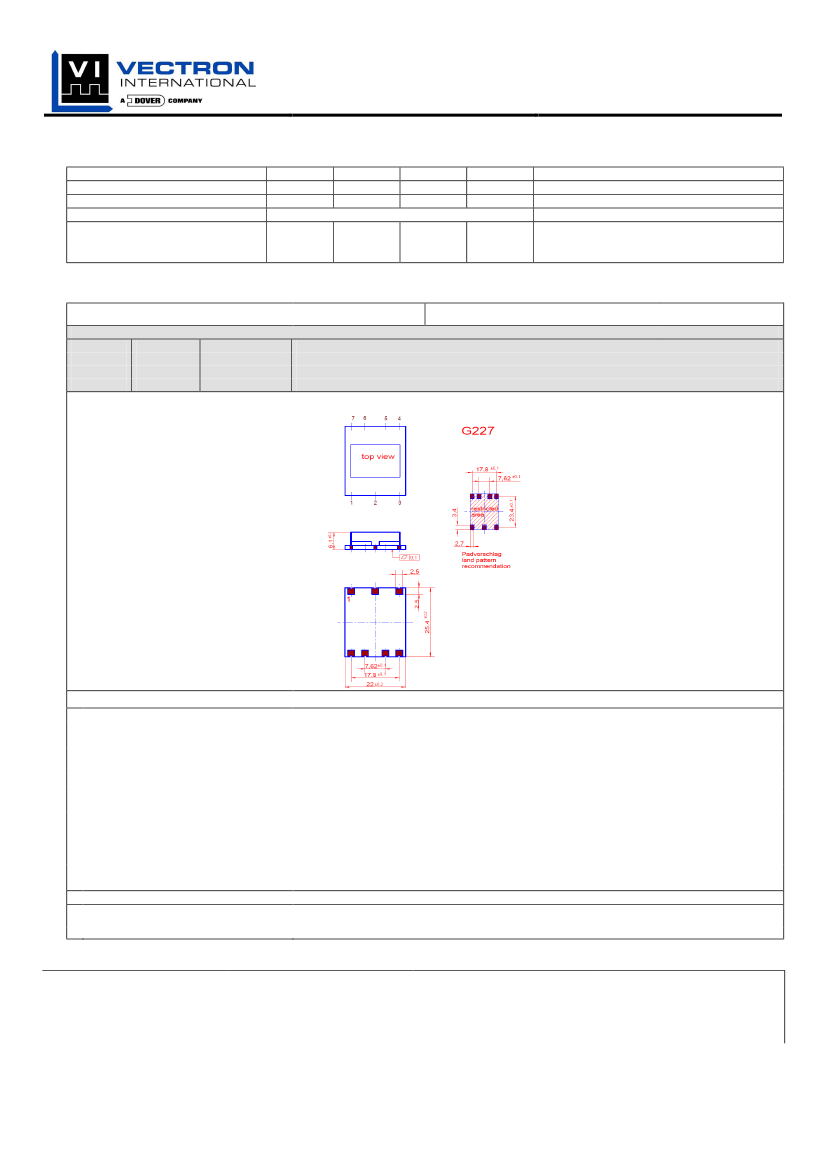

Enclosures
Type G227
Package Codes:
Code
Height “H”
NA
NA
Pin Length “L”
NA
Pin Connections
1
2
3
4
5
6
Description
Power supply pin. External low frequency bypass capacitor should be connected
High stabel input frequency for syncronisation, This input is AC coupled, so an external blocking
capacitor is not necessary.
Ground connection. Keep traces physically short and connect immediately to ground plane for best
performance
RF syncronised output.
Ground connection. Keep traces physically short and connect immediately to ground plane for best
performance
Test output
signal for PLL lock detected.
Low signal
à
PLL out of lock
High signal
à
PLL in lock
Only for modul test or observance
Test output
of the control voltage for the VCXO (0.5V to 2.8V)
Only for modul test or observance
Vs
Ref. Frequency in
GND
RF-OUT
GND
Lock Detector Output
7
VCXO Control
Marking
C3530A1-xxxx
Frequency
* VI AYYWW
Vectron International
·
www.vectron.com
Vectron International
Headquarters
267 Lowell Road
Hudson, New Hampshire 03051
+1-888-328-7661 tel
+1-888-329-8328 fax
Vectron International LLC.
100 Watts Street
Mount Holly Springs, PA 17065
USA
+1-717-486-3411 tel
+1-717-486-5920 fax
Vectron international GmbH & Co. KG
Landstrasse
D-74924 Neckarbischofsheim
Germany
+49-07268-801-0 tel
+49-07268-801-281 fax
v.2005-10-28 · page 2 of 6
Vectron Asia Pacific Sales Office
1F-2F, No 8 Workshop, No 308 Fenju Road,
WaiGaoQiao Free Trade Zone, Pudong,
Shanghai, P.R. China 200131
+86 21 5048 0777 tel.
+86 21 5048 1881 fax
C3530
FCXO
Absolute Maximum Ratings
Parameter
Supply voltage (Vs)
Maximum output load @ CMOS
Min
Typ
Max.
6.0
40
Units
V
pF
Condition

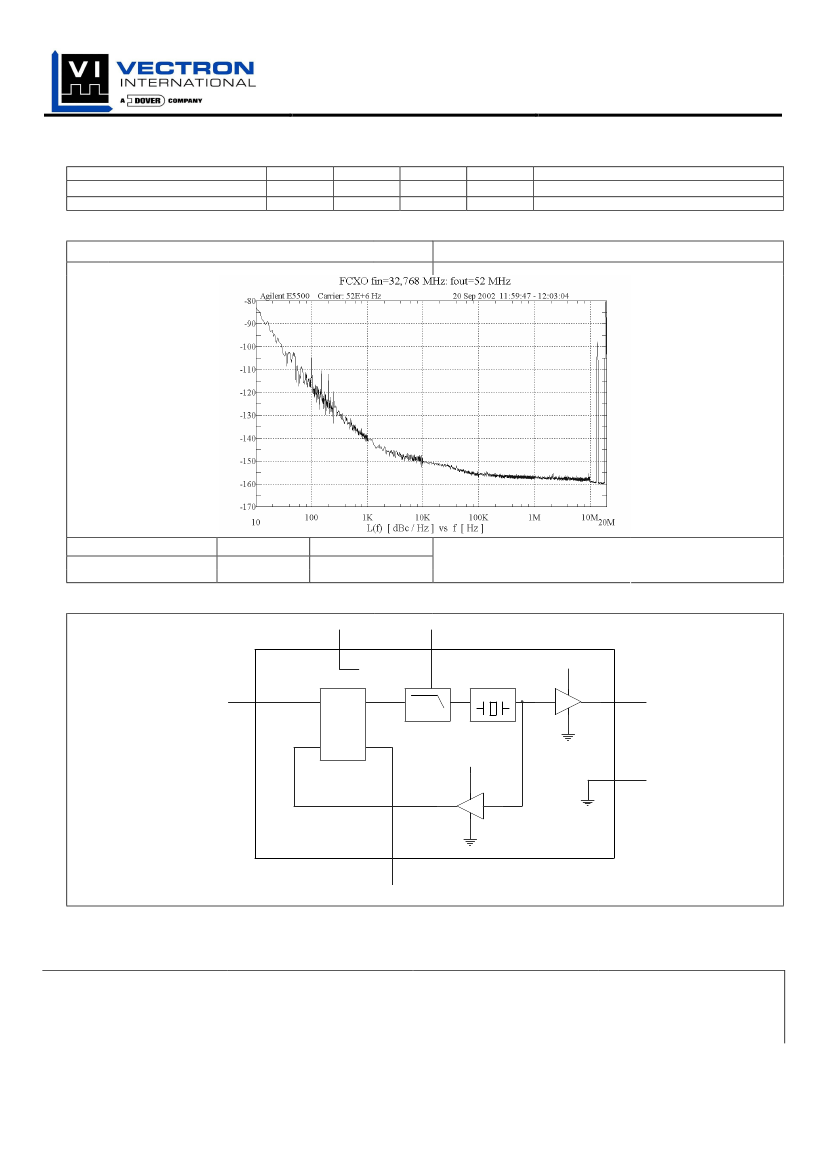

Typical measurement data
Phase Noise and Jitter
C3530A1 with 32.768MHz in &52MHz out
Frequency range [Hz]
100 Hz to 1.5 MHz
50 kHZ to 1.5MHz
Sφ(f) [dB]
-61,86
-62,07
Jitter [ps rms]
1.616 ps
1.578 ps
Block Diagramm
VS
VCXO
Control
VS
Reference
Frequency
PLL
Circuit
Loop
Filter
VCXO
0
5
1
VS
4
8
VCXO
VS
5
VCXO
8
4
0
1
0
Lock
Detector
Vectron International
·
www.vectron.com
Vectron International
Headquarters
267 Lowell Road
Hudson, New Hampshire 03051
+1-888-328-7661 tel
+1-888-329-8328 fax
Vectron International LLC.
100 Watts Street
Mount Holly Springs, PA 17065
USA
+1-717-486-3411 tel
+1-717-486-5920 fax
Vectron international GmbH & Co. KG
Landstrasse
D-74924 Neckarbischofsheim
Germany
+49-07268-801-0 tel
+49-07268-801-281 fax
v.2005-10-28 · page 3 of 6
Vectron Asia Pacific Sales Office
1F-2F, No 8 Workshop, No 308 Fenju Road,
WaiGaoQiao Free Trade Zone, Pudong,
Shanghai, P.R. China 200131
+86 21 5048 0777 tel.
+86 21 5048 1881 fax
C3530

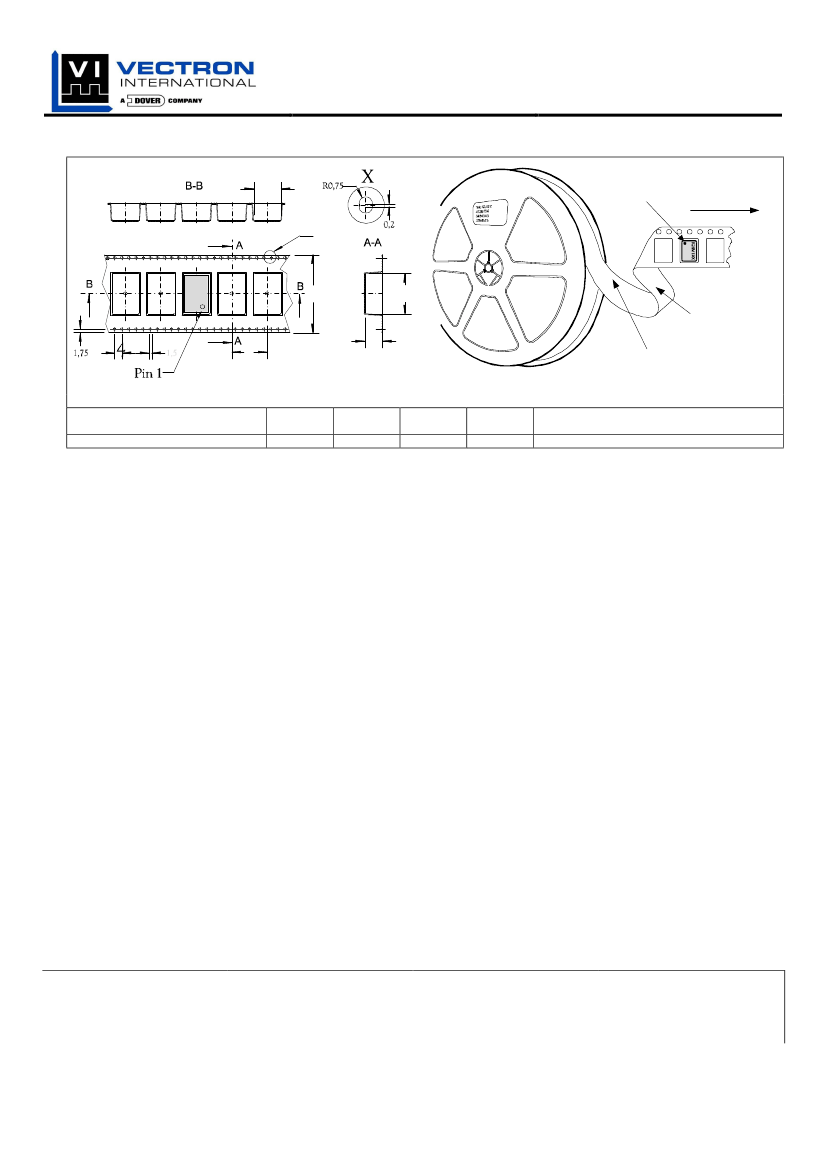

Standard Shipping Method
FCXO
A
X
B
P
K
*bei W
≤ 24
mm
nur untere Lochreihe
∗by
W
≤
24 mm only lower hole line
Lage im Gurt
Position in tape
Pin 1
Abwickelrichtung
Unwinding direction
Gurtunterseite
Tape buttom side
Gurtoberseite
Tape upper side
Production tolerance complying DIN IEC 286-3
Enclosure Type
Tape width
W [mm]
G185B
44
Quantity
per meter
37.5
Quantity
per reel
280
Dimension
P
32
Vectron International
·
www.vectron.com
Vectron International
Headquarters
267 Lowell Road
Hudson, New Hampshire 03051
+1-888-328-7661 tel
+1-888-329-8328 fax
Vectron International LLC.
100 Watts Street
Mount Holly Springs, PA 17065
USA
+1-717-486-3411 tel
+1-717-486-5920 fax
Vectron international GmbH & Co. KG
Landstrasse
D-74924 Neckarbischofsheim
Germany
+49-07268-801-0 tel
+49-07268-801-281 fax
v.2005-10-28 · page 4 of 6
Vectron Asia Pacific Sales Office
1F-2F, No 8 Workshop, No 308 Fenju Road,
WaiGaoQiao Free Trade Zone, Pudong,
Shanghai, P.R. China 200131
+86 21 5048 0777 tel.
+86 21 5048 1881 fax
C3530
FCXO
tp
T
p
Ramp up
Ts
Critical Zone
T
L
to T
p
T
L
Temperature
t
L
Ramp dow n
Ts
ts
preheat
25
t 25°C to peak
Time
Profile Feature
Average ramp-up rate (T
L
to Tp)
Preheat -Temperature Min Ts
min
)
-Temperature Min Ts
max
)
-Time (min to max) (ts)
Ts
max
to T
L
- Ramp-up Rate
Time maintainted above - Temperature (T
L
)
- Time (t
L
)
Peak Temperature (Tp)
Time within 5°C of actual Peak Temperature (tp)
Ramp-down Rate
Time 25°C to Peak Temperature
Pb-Free Assembly/Sn-Pb Assembly
3°C/second max.
150°c
200°c
60-180 seconds
3°C/second max.
217°C
60-150 seconds
max 260°C
20-40 seconds
6°C/second max.
8 minutes max.
SMD oscillators must be on the top
side of the PCB during the reflow
process.
Note: All temperatures refer to topside of the package, measured on the package body surface.
