ROS-ED9719/2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> oscillator> ROS-ED9719/2

ROS-ED9719/2: DescriptionVoltage Controlled Oscillator, 295MHz Min, 305MHz Max, CASE CK605, 16 PIN; CategoryPassive components oscillator; File Size147KB，1 Pages; ManufacturerMini-Circuits; Websitehttps://www.minicircuits.com

Download Datasheet Parametric Compare View All

ROS-ED9719/2 Overview

Voltage Controlled Oscillator, 295MHz Min, 305MHz Max, CASE CK605, 16 PIN

ROS-ED9719/2 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Reach Compliance Code	unknown
Other features	TAPE AND REEL
Maximum control voltage	4.5 V
Minimum control voltage	0.5 V
JESD-609 code	e0
Modulation sensitivity	12 MHz/V
Installation features	SURFACE MOUNT
offset frequency	1 kHz
Maximum operating frequency	305 MHz
Minimum operating frequency	295 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Oscillator type	VOLTAGE CONTROLLED OSCILLATOR
Output Power	-0.5 dBm
phase noise	-88 dBc/Hz
physical size	12.7mm x 12.7mm x 4.572mm
Maximum slew rate	25 mA
Nominal supply voltage	5 V
surface mount	YES
Terminal surface	Tin/Lead (Sn/Pb)
Base Number Matches	1

Preview

Download Datasheet

View All

Engineering Development Model

Voltage Controlled Oscillator

Important Note

This model has been designed, built and tested in our engineering

department. Performance data represents model capability.

At present it is a non-catalog model. On request, we can supply a

final specification sheet, part number and price/delivery information.

Please click "Back", and then click "Contact Us" for Applications support.

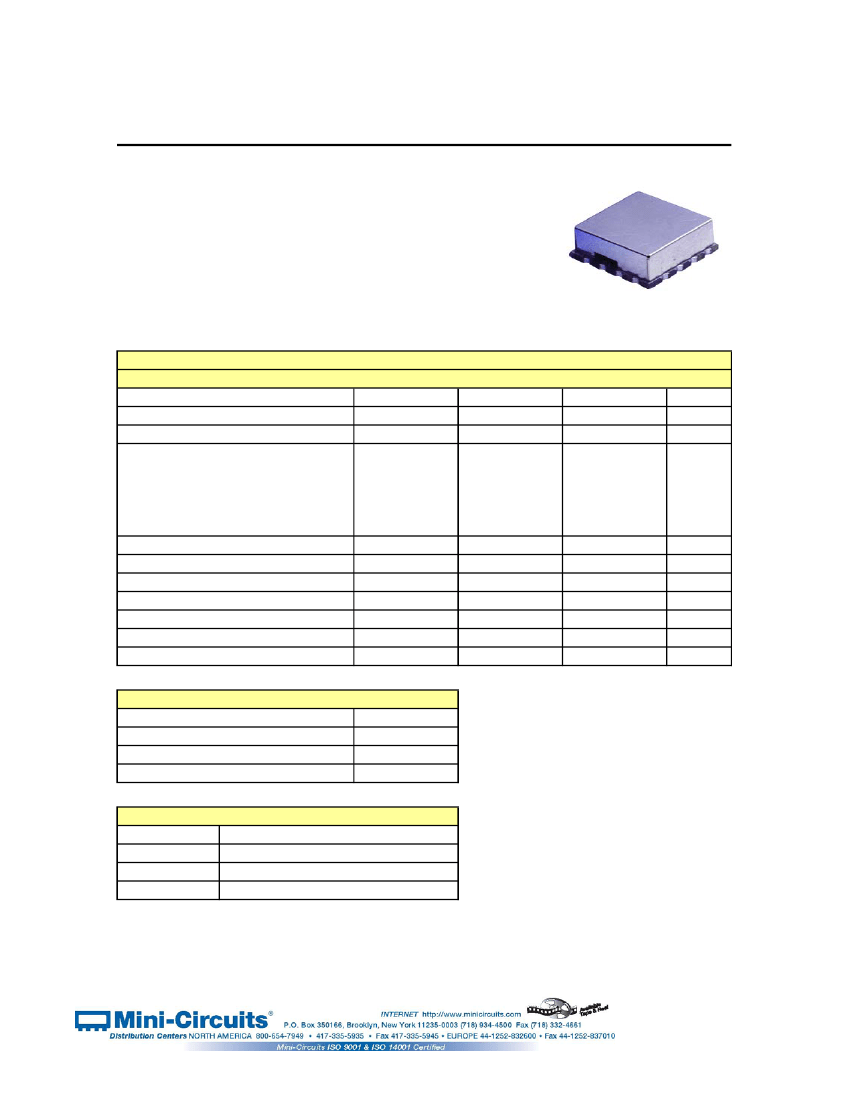

CASE STYLE : CK605

ROS-ED9719/2

ELECTRICAL SPECIFICATIONS 50Ω

Parameter

Frequency

Tuning

Voltage

Power Output

Min.

295

0.5

Typ.

Max.

305

4.5

-0.5

-88

-116

-136

-155

0.5

9 - 12

-25

2800

Units

MHz

dBm

dBc/Hz

MHz

MHz/V

dBc

kHz

Phase Noise

at 1 kHz offset

at 10 KHz offset

at 100 KHz offset

at 1000 kHz offset

Pulling at 12 dBr PK-PK all phases

Pushing at Vcc=5V±0.25V

Tuning Sensitivity

Harmonic Suppression

3 dB Modulation Bandwidth

Supply Voltage

Supply Current

MAXIMUM RATINGS

Operating Temperature

Storage Temperature

Absolute Supply Voltage (Vcc)

Absolute Tuning Voltage (Vtune)

-55°C to 85°C

-55°C to 100°C

+7V

+6.5V

RF OUT

VCC

V-TUNE

GROUND

PIN CONNECTIONS

1,3,4,5,6,7,8,9,11,12,13,15,16

REV. X1

ROS-ED9719/2

60522

ROS-ED9719/2 Related Products

	ROS-ED9719/2	ROS-ED9719/2+
Description	Voltage Controlled Oscillator, 295MHz Min, 305MHz Max, CASE CK605, 16 PIN	Voltage Controlled Oscillator, 295MHz Min, 305MHz Max, CASE CK605, 16 PIN
Is it lead-free?	Contains lead	Lead free
Is it Rohs certified?	incompatible	conform to
Reach Compliance Code	unknown	unknown
Other features	TAPE AND REEL	TAPE AND REEL
Maximum control voltage	4.5 V	4.5 V
Minimum control voltage	0.5 V	0.5 V
JESD-609 code	e0	e4
Modulation sensitivity	12 MHz/V	12 MHz/V
Installation features	SURFACE MOUNT	SURFACE MOUNT
offset frequency	1 kHz	1 kHz
Maximum operating frequency	305 MHz	305 MHz
Minimum operating frequency	295 MHz	295 MHz
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C
Oscillator type	VOLTAGE CONTROLLED OSCILLATOR	VOLTAGE CONTROLLED OSCILLATOR
Output Power	-0.5 dBm	-0.5 dBm
phase noise	-88 dBc/Hz	-88 dBc/Hz
physical size	12.7mm x 12.7mm x 4.572mm	12.7mm x 12.7mm x 4.572mm
Maximum slew rate	25 mA	25 mA
Nominal supply voltage	5 V	5 V
surface mount	YES	YES
Terminal surface	Tin/Lead (Sn/Pb)	Gold (Au) - with Nickel (Ni) barrier
Base Number Matches	1	1
