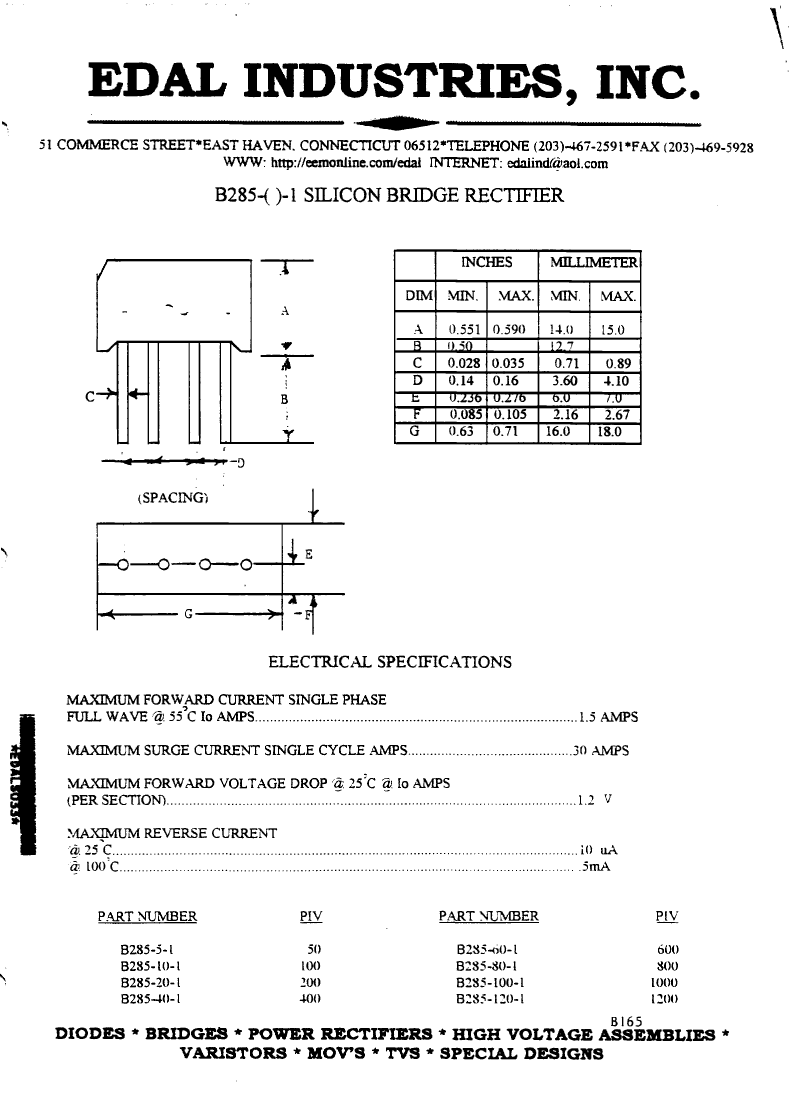

B285-100-1 datasheet, PDF - EEWORLD Datasheet

B285-100-1: DescriptionBridge Rectifier Diode, 1.5A, 1000V V(RRM),; CategoryDiscrete semiconductor diode; File Size32KB，1 Pages; ManufacturerEDAL; Websitehttp://www.edal.com/

Download Datasheet Parametric Compare View All

B285-100-1 Overview

Bridge Rectifier Diode, 1.5A, 1000V V(RRM),

Parameter Name	Attribute value
package instruction	R-PSIP-W4
Reach Compliance Code	unknown
ECCN code	EAR99
Configuration	BRIDGE, 4 ELEMENTS
Diode type	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1 V
JESD-30 code	R-PSIP-W4
Maximum non-repetitive peak forward current	60 A
Number of components	4
Number of terminals	4
Maximum output current	1.5 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	1000 V
surface mount	NO
Terminal form	WIRE
Terminal location	SINGLE
Base Number Matches	1

	B285-100-1	B285-5-1
Description	Bridge Rectifier Diode, 1.5A, 1000V V(RRM),	Bridge Rectifier Diode, 1.5A, 50V V(RRM),
package instruction	R-PSIP-W4	R-PSIP-W4
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
Configuration	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS
Diode type	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1 V	1 V
JESD-30 code	R-PSIP-W4	R-PSIP-W4
Maximum non-repetitive peak forward current	60 A	60 A
Number of components	4	4
Number of terminals	4	4
Maximum output current	1.5 A	1.5 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	1000 V	50 V
surface mount	NO	NO
Terminal form	WIRE	WIRE
Terminal location	SINGLE	SINGLE
Base Number Matches	1	1
