A764B-3UY-S530-A3 datasheet, PDF

Datasheet> All Categories > LED optoelectronic/LED> A764B-3UY-S530-A3

A764B-3UY-S530-A3: DescriptionT-1 SINGLE COLOR LED ARRAY, SUPER YELLOW, 3 mm; CategoryLED optoelectronic/LED; File Size131KB，7 Pages; ManufacturerEVERLIGHT; Websitehttp://www.everlight.com/

Download Datasheet Parametric Compare View All

A764B-3UY-S530-A3 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	A764B-3UY-S530-A3	-	-	View	Buy Now

A764B-3UY-S530-A3 Overview

T-1 SINGLE COLOR LED ARRAY, SUPER YELLOW, 3 mm

A764B-3UY-S530-A3 Parametric

Parameter Name	Attribute value
Maximum operating temperature	85 Cel
Minimum operating temperature	-40 Cel
Number of functions	3
Number of terminals	6
Viewing angle	60 deg
Processing package description	ROHS COMPLIANT PACKAGE-6
Lead-free	Yes
EU RoHS regulations	Yes
state	ACTIVE
terminal coating	NOT SPECIFIED
structure	SEPARATE, 3 ELEMENTS
Optoelectronic device type	SINGLE COLOR LED ARRAY
color	SUPER YELLOW
Maximum continuous forward current	25 mA
LED height	15.25 mm
lead gap	2.54 mm
Lens type	DIFFUSED
light intensity	32.0
Installation features	RADIAL MOUNT
peak wavelength	591
shape	ROUND
size	3 mm
T code	T-1

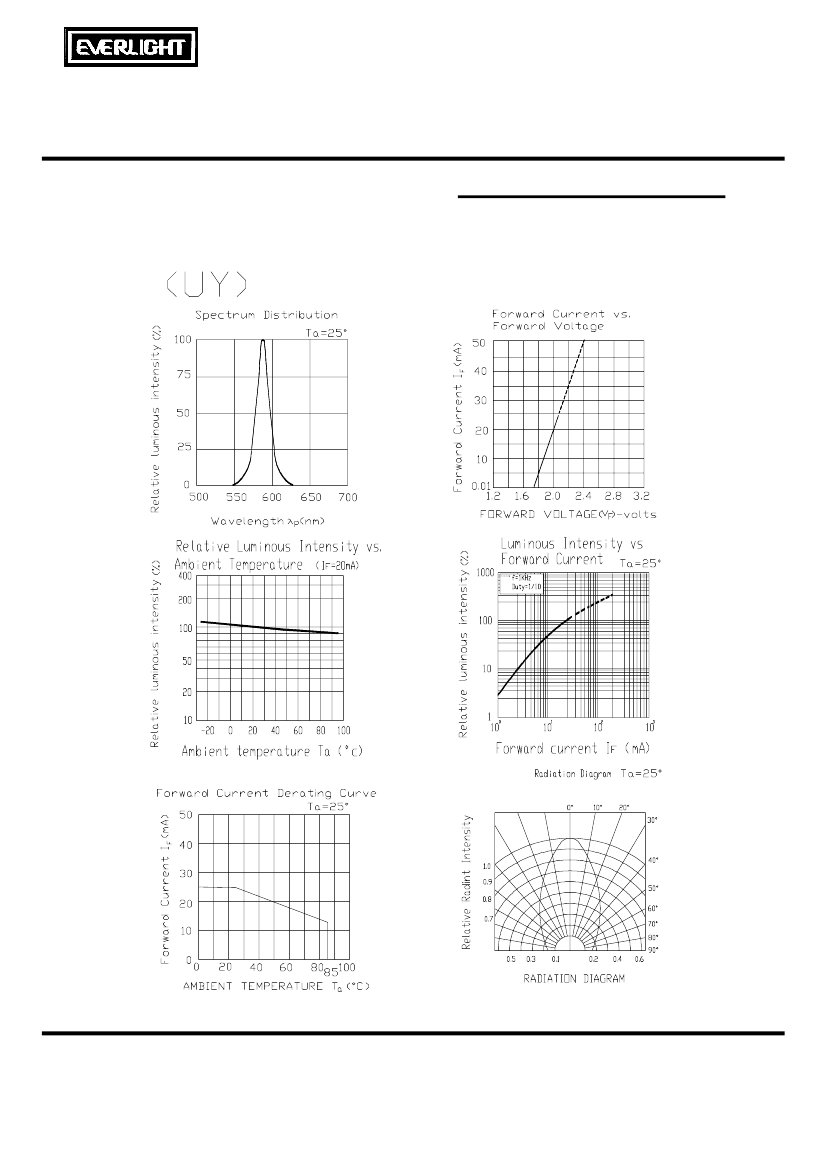

Preview

Download Datasheet

View All

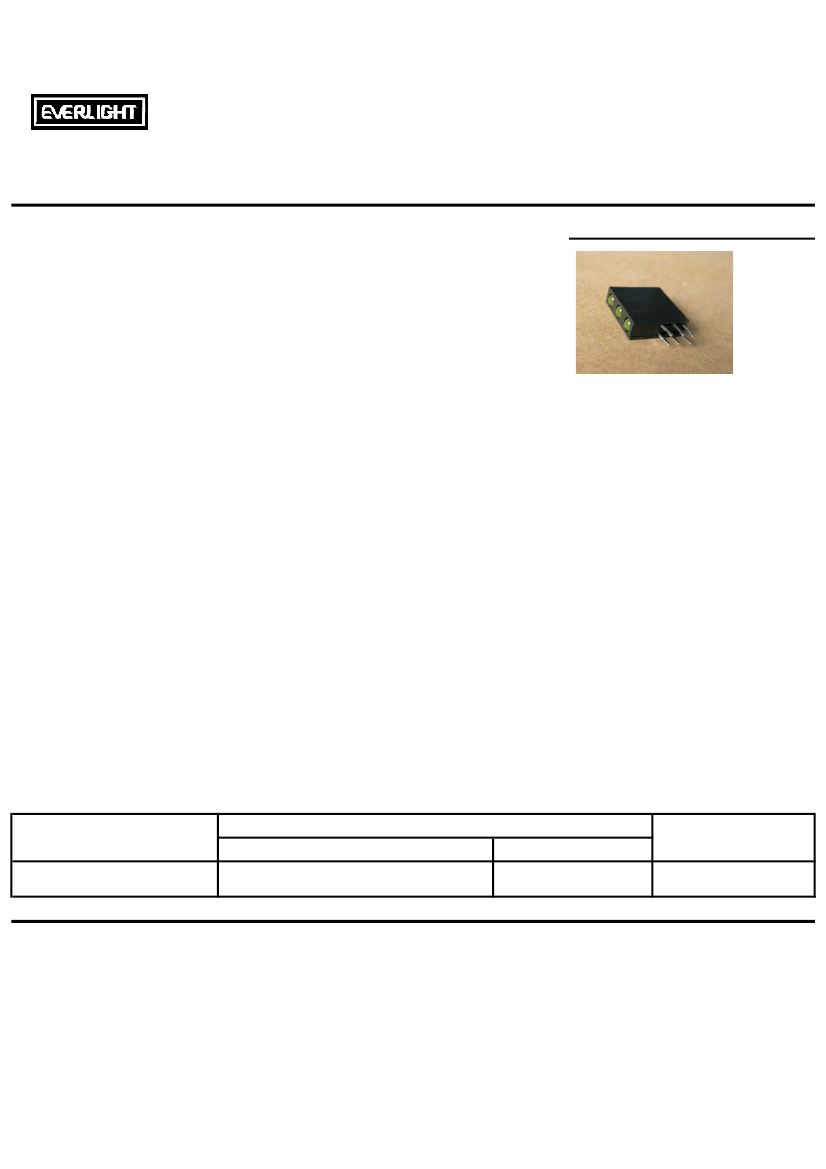

EVERLIGHT ELECTRONICS CO.,LTD.

DATA SHEET

PART NO.

DATE

：

A764B/3UY/S530-A3

2005/8/26

CHR&D1

DEPARTMENT ：

REVISION

：

RECEIVED

■ MASS PRODUCTION

□ PRELIMINARY

□ CUSTOMER DESIGN

CDAE-076-040

DEVICE NUMBER :

PAGE :

CUSTOMER

DESIGNER

CHECKER

APPROVER

REV.

Revision update

DESCRIPTION

2005/8/26

RELEASE DATE

OFFICE: 7C BUILDING, LIAN HUA PORT INDUSTRIAL DISTRICT, LIAN HUA SHAN

BONDED PRICESSING ZONE PAN YU, GUANG ZHU, CHINA

TEL. : (020)84860913,84860914

FAX : (020)84860600

http : //www.everlight.com

A764B-3UY-S530-A3 Related Products

	A764B-3UY-S530-A3	234-10UYD/S530-A3	A764B/3UY/S530-A3
Description	T-1 SINGLE COLOR LED ARRAY, SUPER YELLOW, 3 mm	T-1 SINGLE COLOR LED ARRAY, SUPER YELLOW, 3 mm	T-1 SINGLE COLOR LED ARRAY, SUPER YELLOW, 3 mm
Maximum operating temperature	85 Cel	85 °C	85 °C
Minimum operating temperature	-40 Cel	-40 °C	-40 °C
Number of functions	3	2	3
Number of terminals	6	4	6
color	SUPER YELLOW	SUPER YELLOW	SUPER YELLOW
Lens type	DIFFUSED	DIFFUSED YELLOW	DIFFUSED
Installation features	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT
peak wavelength	591	575 nm	591 nm
shape	ROUND	ROUND	ROUND
size	3 mm	3 mm	3 mm
T code	T-1	T-1	T-1
Is it lead-free?	-	Lead free	Lead free
Is it Rohs certified?	-	conform to	conform to
package instruction	-	ROHS COMPLIANT, PLASTIC PACKAGE-4	ROHS COMPLIANT PACKAGE-6
Reach Compliance Code	-	compli	compliant
Configuration	-	SEPARATE, 2 ELEMENTS	SEPARATE, 3 ELEMENTS
Maximum forward current	-	0.025 A	0.025 A
Nominal luminous intensity	-	50.0 mcd	32.0 mcd
Optoelectronic device types	-	SINGLE COLOR LED ARRAY	SINGLE COLOR LED ARRAY
total height	-	9.65 mm	15.25 mm
method of packing	-	BOX/CARTON	BULK
surface mount	-	NO	NO
Terminal pitch	-	2.54 mm	2.54 mm
perspective	-	60 deg	60 deg
Base Number Matches	-	1	1
