Addressable Manual Pull Station
Addressable
General

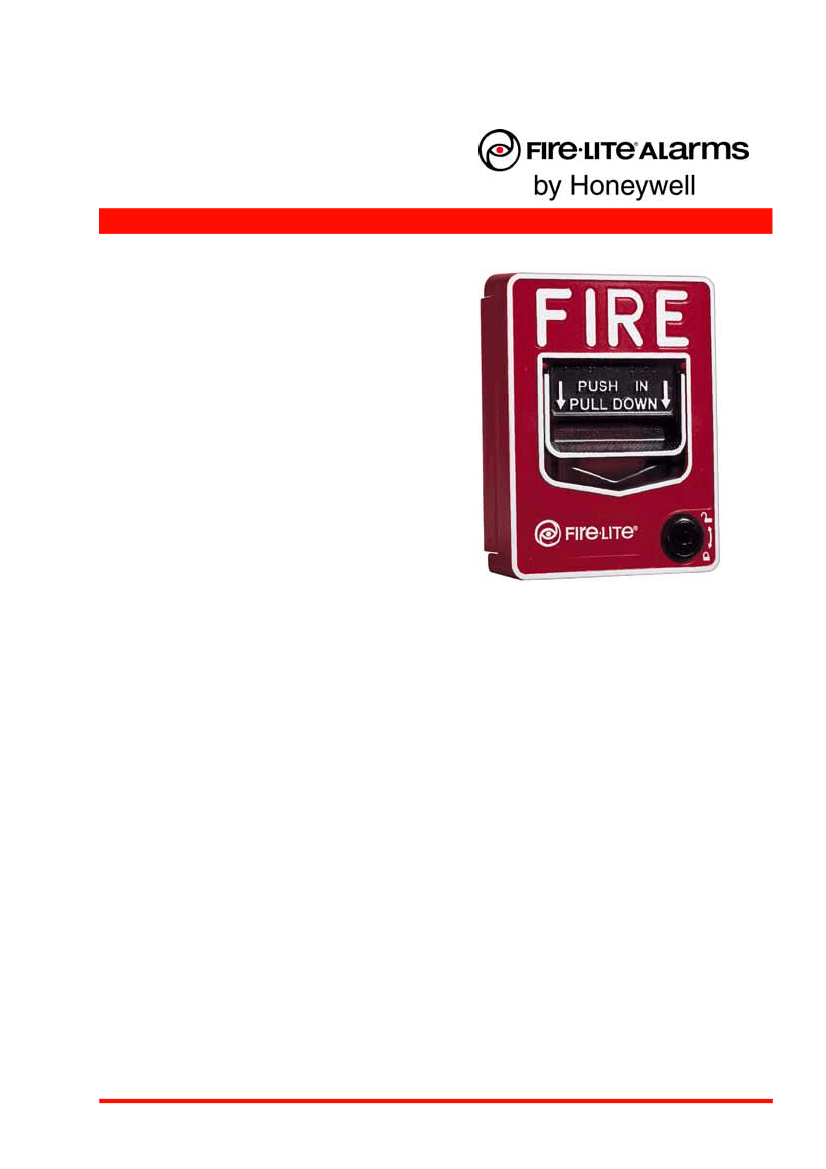

The Fire·Lite BG-12LX is a state-of-the-art, dual-action (i.e.,
requires two motions to activate the station) pull station that
includes an addressable interface (mounted inside) for
Fire·Lite’s addressable fire alarm control panels (FACPs).
Because the BG-12LX is addressable, the control panel can
display the exact location of the activated manual station. This
leads fire personnel quickly to the location of the alarm.
Features
• Maintenance personnel can open station for inspection and
address setting without causing an alarm condition.
• Built-in bicolor LED, which is visible through the handle of
the station, flashes in normal operation and latches steady
red when in alarm.
• Handle latches in down position and the word “ACTIVATED”
appears to clearly indicate the station has been operated.
• Captive screw terminals wire-ready for easy connection to
SLC loop (accepts up to 12 AWG/3.25 mm² wire).
• Can be surface mounted (with SB-10 or SB-I/O) or semi-
flush mounted. Semi-flush mount to a standard single-
gang, double-gang, or 4" (10.16 cm) square electrical box.
• Smooth dual-action design.
• Meets ADAAG controls and operating mechanicsms guide-
lines (Section 4.1.3[13]); meets ADA requirement for 5 lb.
maximum activation force.
• Highly visible.
• Attractive shape and textured finish.
• Key reset.
• Includes Braille text on station handle.
• Optional trim ring (BG12TR).
• Meets UL 38, Standard for Manually Actuated Signaling
Boxes.
Operation
Pushing in, then pulling down on the handle causes it to latch
in the down/activated position. Once latched, the word “ACTI-
VATED” (in bright yellow) appears at the top of the handle,
while a portion of the handle protrudes from the bottom of the
station. To reset the station, simply unlock the station with the
key and pull the door open. This action resets the handle; clos-
ing the door automatically resets the switch.
Each manual station, on command from the control panel,
sends data to the panel representing the state of the manual
switch. Two rotary decimal switches allow address settings
(1 – 159 with Breakaway Tab removed for MS-9600, 1 – 99
and MS-9200UDLS, 1 – 50 for MS-9050UD).
Construction
Shell, door, and handle are molded of durable LEXAN® (or
polycarbonate equivalent) with a textured finish.
Specifications
•
•
•
•
•
Normal operating voltage: 24 VDC.
Maximum SLC loop voltage: 28.0 VDC.
Maximum SLC loop current: 230 µA.
Ambient Temperature: 32°F to 120°F (0°C to 49°C)
Relative Humidity: 93% ± 2% RH (noncondensing) at 32°C
± 2°C (90°F ± 3°F)
• For use indoors in a dry location
Architectural/Engineering
Specifications
Manual Fire Alarm Stations shall be non-coded, with a key-
operated reset lock in order that they may be tested, and so
designed that after actual Emergency Operation, they cannot
be restored to normal except by use of a key. An operated sta-
tion shall automatically condition itself so as to be visually
detected as activated. Manual stations shall be constructed of
red-colored LEXAN (or polycarbonate equivalent) with clearly
visible operating instructions provided on the cover. The word
FIRE shall appear on the front of the stations in white letters,
1.00 inches (2.54 cm) or larger. Stations shall be suitable for
surface mounting on matching backbox SB-10 or SB-I/O; or
semi-flush mounting on a standard single-gang, double-gang,
or 4" (10.16 cm) square electrical box, and shall be installed
within the limits defined by the Americans with Disabilities Act
(ADA) or per national/local requirements. Manual Stations
shall be Underwriters Laboratories listed.
Installation
The BG-12LX will mount semi-flush into a single-gang, double-
gang, or standard 4" (10.16 cm) square electrical outlet box, or
will surface mount to the model SB-10 or SB-I/O surface back-
box. If the BG-12LX is being semi-flush mounted, then the
optional trim ring (BG12TR) may be used. The BG12TR is
usually needed for semi-flush mounting with 4" (10.16 cm) or
double-gang boxes (not with single-gang boxes).
DF-52013:A • 02/05/2008 — Page 1 of 2
Manual stations shall connect with two wires to one of the con-
trol panel SLC loops. The manual station shall, on command
from the control panel, send data to the panel representing the
state of the manual switch. Manual stations shall provide
address setting by use of rotary decimal switches.
BG12TR:
Optional trim ring.
17003:
Keys, set of two.
Agency Listings and Approvals
In some cases, certain modules or applications may not be
listed by certain approval agencies, or listing may be in pro-
cess. Consult factory for latest listing status.
•
•
•
•
UL Listed:
S711
MEA:
67-02-E
CSFM:
7150-0075:184
FM Approved
Product Line Information
BG-12LX:
Dual-action addressable pull station. Includes key
locking feature.
SB-10:
Surface backbox; metal.
SB-I/O:
Surface backbox; plastic.

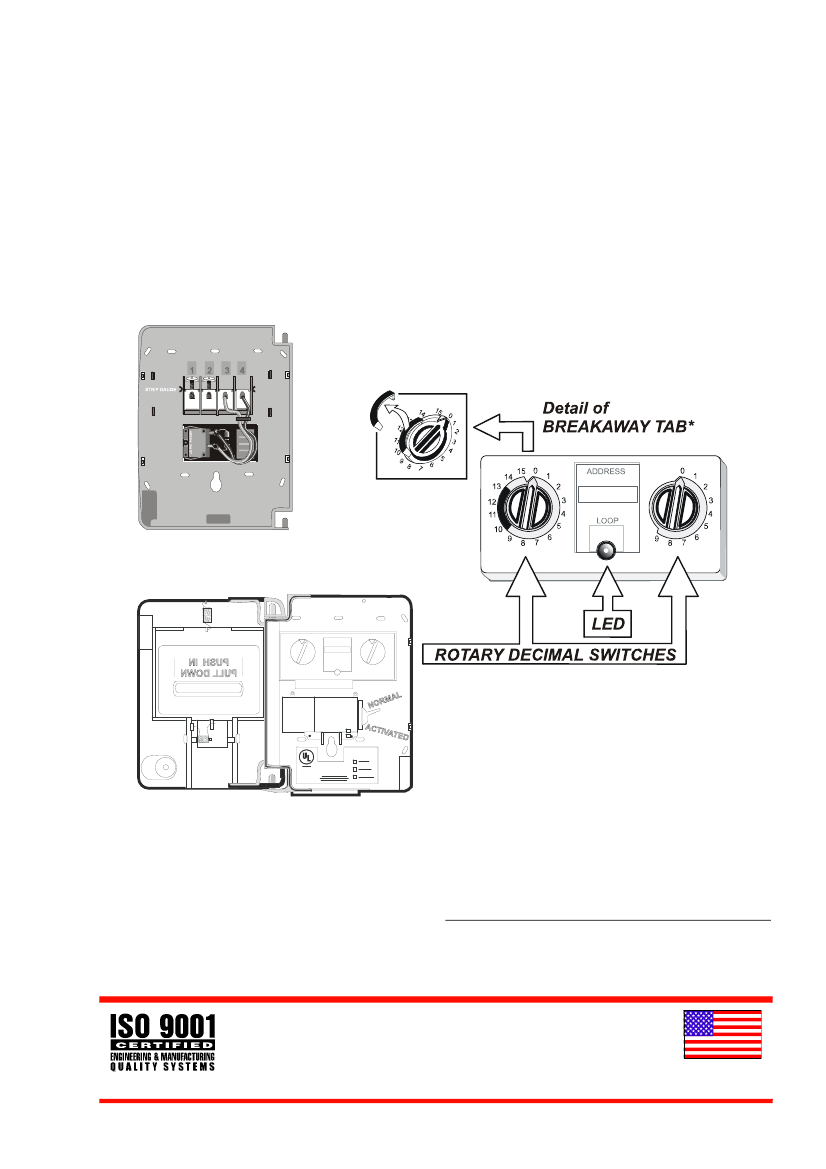

6726back.wmf
Back of station without door
Terminal Connections:
1 SLC (-); 2 SLC (+)
6726rtsw.wmf
* Remove tab to select
addresses above 99.
Cover open to show easy access to miniature
monitor module, rotary switch, and UL label.
Patented:
U.S. Patent No. D428,351; 6,380,846; 6,314,772; 6,632,108.
