Datasheet> All Categories > LED optoelectronic/LED> photoelectric> LCB127E

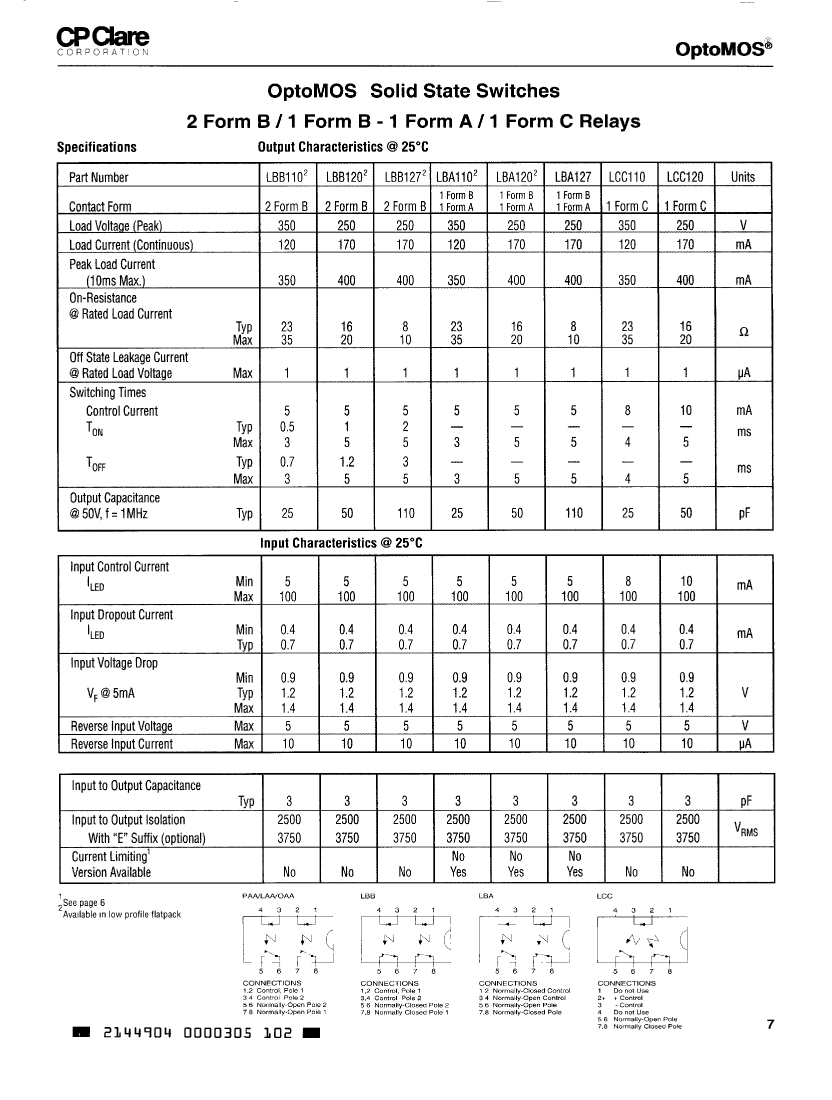

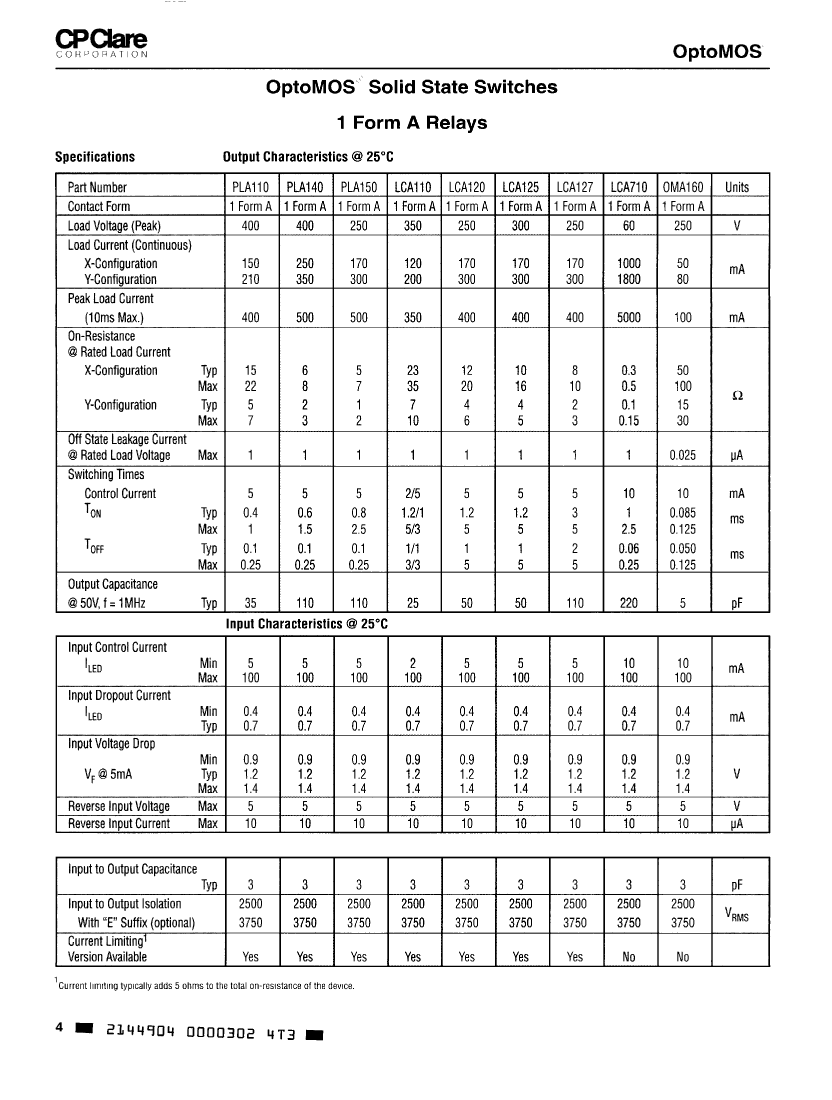

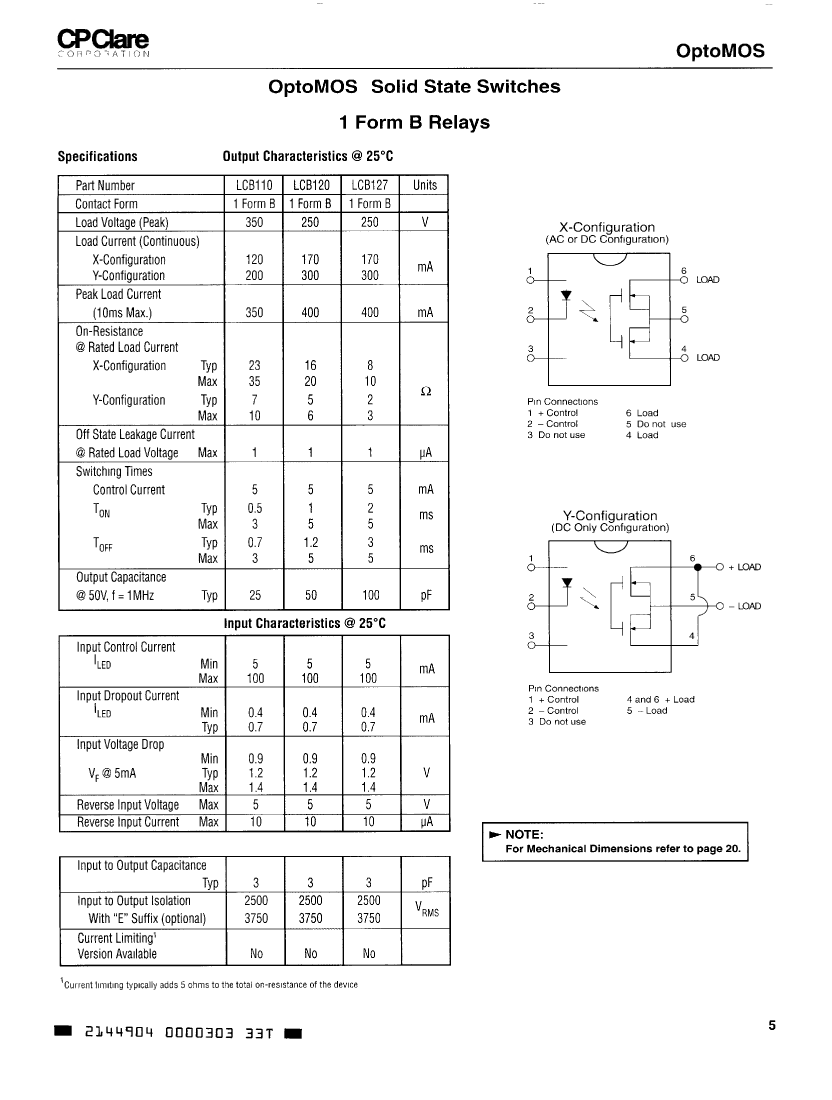

Preview

LCB127E: DescriptionTransistor Output SSR, 1-Channel, 3750V Isolation; CategoryLED optoelectronic/LED photoelectric; File Size637KB，10 Pages; ManufacturerIXYS

Download Datasheet Parametric Compare View All

LCB127E Overview

Transistor Output SSR, 1-Channel, 3750V Isolation

LCB127E Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Reach Compliance Code	compliant
Other features	UL RECOGNIZED
Configuration	SINGLE
control current	0.005 A
control voltage	0.9 V
Maximum forward current	0.1 A
input type	DC
Maximum insulation voltage	3750 V
Number of components	1
Maximum on-state current	0.17 A
Maximum on-state resistance	10 Ω
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	TRANSISTOR OUTPUT SSR
Output circuit type	MOSFET
total height	3 mm
total length	9 mm
Base Number Matches	1

Preview

Download Datasheet

View All

This Material Copyrighted By Its Respective Manufacturer

LCB127E Related Products

	LCB127E	LCA710E	PLA140E	LCB110E	OMA160E	LCA127E
Description	Transistor Output SSR, 1-Channel, 3750V Isolation	Transistor Output SSR, 1-Channel, 3750V Isolation	Transistor Output SSR, 1-Channel, 3750V Isolation	Transistor Output SSR, 1-Channel, 3750V Isolation	Solid State Relay, TRANSISTOR OUTPUT SOLID STATE RELAY, 3750 V ISOLATION-MAX	Transistor Output SSR, 1-Channel, 3750V Isolation
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	compliant	unknown	compliant	unknown	unknown	unknown
Other features	UL RECOGNIZED	UL RECOGNIZED, LOGIC COMPATIBLE	UL RECOGNIZED, LOGIC COMPATIBLE	UL RECOGNIZED	UL RECOGNIZED, LOGIC COMPATIBLE	UL RECOGNIZED, LOGIC COMPATIBLE
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
control current	0.005 A	0.01 A	0.005 A	0.005 A	0.01 A	0.005 A
control voltage	0.9 V	0.9 V	0.9 V	0.9 V	0.9 V	0.9 V
Maximum forward current	0.1 A	0.1 A	0.1 A	0.1 A	0.1 A	0.1 A
input type	DC	DC	DC	DC	DC	DC
Maximum insulation voltage	3750 V	3750 V	3750 V	3750 V	3750 V	3750 V
Number of components	1	1	1	1	1	1
Maximum on-state current	0.17 A	1 A	0.25 A	0.12 A	0.05 A	0.17 A
Maximum on-state resistance	10 Ω	0.5 Ω	8 Ω	35 Ω	100 Ω	10 Ω
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Optoelectronic device types	TRANSISTOR OUTPUT SSR	TRANSISTOR OUTPUT SSR	TRANSISTOR OUTPUT SSR	TRANSISTOR OUTPUT SSR	TRANSISTOR OUTPUT SSR	TRANSISTOR OUTPUT SSR
Output circuit type	MOSFET	MOSFET	MOSFET	MOSFET	MOSFET	MOSFET
total height	3 mm	3 mm	3 mm	3 mm	3 mm	3 mm
total length	9 mm	9 mm	9 mm	9 mm	9 mm	9 mm
Maker	-	IXYS	IXYS	IXYS	-	IXYS
JESD-609 code	-	e0	e0	-	e0	e0
Terminal surface	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
