Its optically coupled outputs, which use the patented
OptoMOS architecture, are controlled by a highly
efficient GaAIAs infrared LED.
Use the LCA110L to replace mechanical relays,
and gain the superior reliability associated with
semiconductor devices, which, because they have no
moving parts, can offer faster, bounce-free switching
in a more compact surface mount or through-hole
package.
Approvals
•
UL Recognized Component: File E76270
•
CSA Certified Component: Certificate 1175739
•
EN/IEC 60950-1 Certified Component:
TUV Certificate B 09 07 49410 004
Ordering Information
Part #
LCA110L
LCA110LS
LCA110LSTR
Description
6 Pin DIP (50/Tube)
6 Pin Surface Mount (50/Tube)
6 Pin Surface Mount (1000/Reel)
LCA110L
Features
•
Built-in Current Limiting
•
3750V
rms
Input/Output Isolation
•
Low Drive Power Requirements
(TTL/CMOS Compatible)
•
No Moving Parts
•
High Reliability
•
Arc-Free With No Snubbing Circuits
•
No EMI/RFI Generation
•
Machine Insertable, Wave Solderable
•
Small 6-Pin Package
•
Flammability Classification Rating: V-0
•
Surface Mount, Tape & Reel Version Available
Applications
•
Telecommunications
•
Telecom Switching
•
Tip/Ring Circuits
•
Modem Switching (Laptop, Notebook, Pocket Size)
•
Hook Switch
•
Dial Pulsing
•
Ground Start
•
Ringing Injection
•
Instrumentation
•
Multiplexers
•
Data Acquisition
•
Electronic Switching
•
I/O Subsystems
•
Meters (Watt-Hour, Water, Gas)
•
Medical Equipment—Patient/Equipment Isolation
•
Security
•
Aerospace
•
Industrial Controls
Pin Configuration
AC/DC Configuration
+ Control
– Control
NC
1
2
3
6
5
4
Load
Do Not Use
Load
DC Only Configuration
+ Control
– Control
NC
1
2
3
6
5
4
+ Load
– Load
Switching Characteristics of
Normally Open (Form A) Devices
Form-A
I
F
90%
I
LOAD
t
on
10%
t
off
Pb
DS-LCA110L-R04
e
3
www.ixysic.com
1
I
NTEGRATED
C
IRCUITS
D
IVISION
Absolute Maximum Ratings @ 25ºC
Parameter
Blocking Voltage
Reverse Input Voltage
Input Control Current
Peak (10ms)
Input Power Dissipation
1
Total Power Dissipation
2
Isolation Voltage, Input to Output
Operational Temperature
Storage Temperature
1
2
LCA110L
Ratings
350
5
50
1
150
800
3750
-40 to +85
-40 to +125
Units
V
P
V
mA
A
mW
mW
V
rms
°C
°C
Absolute Maximum Ratings are stress ratings. Stresses in
excess of these ratings can cause permanent damage to
the device. Functional operation of the device at conditions
beyond those indicated in the operational sections of this
data sheet is not implied.
Derate linearly 1.33 mW / °C
Derate linearly 6.67 mW / °C
Electrical Characteristics @ 25ºC
Parameter
Output Characteristics
Load Current, Continuous
AC/DC Configuration
DC Configuration
Load Current Limiting, AC/DC Configuration
On-Resistance
1
AC/DC Configuration
DC Configuration
Off-State Leakage Current
Switching Speeds
Turn-On
Turn-Off
Output Capacitance
Input Characteristics
Input Control Current to Activate
Input Control Current to Deactivate
Input Voltage Drop
Reverse Input Current
Common Characteristics
Input to Output Capacitance
1
Conditions
Symbol
Min
Typ
Max
Units
-
I
F
=2mA, V
L
=8V
I
L
=120mA
I
L
=200mA
V
L
=350V
P
I
F
=5mA, V
L
=10V
V
L
=50V, f=1MHz
I
L
=120mA
-
I
F
=5mA
V
R
=5V
-
I
L
I
CL
R
ON
I
LEAK
t
on
t
off
C
OUT
I
F
I
F
V
F
I
R
C
I/O
-
±130
-
±170
19
7
-
-
-
25
1.1
1.0
1.2
-
3
120
200
±210
35
10
1
3
3
-
2
-
1.4
10
-
mA
rms
& mA
DC
mA
DC
mA
µA
-
-
-
-
-
0.4
0.9
-
-
ms
pF
mA
mA
V
µA
pF
Measurement taken within 1 second of on-time.
2
www.ixysic.com
R04
I
NTEGRATED
C
IRCUITS
D
IVISION
PERFORMANCE DATA @25ºC (Unless Otherwise Noted)*
Typical LED Forward Voltage Drop
(N=50, I
F
=5mA)
Typical Turn-On Time
(N=50, I
F
=5mA, I
L
=120mA
DC
)
LCA110L
Typical Turn-Off Time
(N=50, I
F
=5mA, I
L
=120mA
DC
)
25
20
15
10
5
0
35
30
Device Count (N)
25
20
15
10
5
0
25
20
15
10
5
0
Device Count (N)
Device Count (N)
1.17
1.19
1.21
1.23
1.25
0.15
0.25
LED Forward Voltage Drop (V)
0.35 0.45 0.55 0.65
Turn-On Time (ms)
0.75
0.025
0.075
0.125
0.175
0.225
Turn-Off Time (ms)
Typical I
F
for Switch Operation
(N=50, I
L
=120mA
DC
)
25
20
15
10
5
0
0.45
0.75
1.05 1.35 1.65
LED Current (mA)
1.95
2.25
25
20
15
10
5
0
Typical I
F
for Switch Dropout
(N=50, I
L
=120mA
DC
)
35
30
Device Count (N)
25
20
15
10
5
0
Typical On-Resistance Distribution
(N=50, I
F
=2mA, I
L
=120mA
DC
)
Device Count (N)
Device Count (N)
0.45
0.75
1.05 1.35 1.65 1.95
LED Current (mA)
2.25
17.0
17.4
17.8 18.2 18.6 19.0
On-Resistance ( )
19.4
Typical Blocking Voltage Distribution
(N=50)
35
30
Device Count (N)
25
20
15
10
5
0
376.3 382.8 389.3 395.8 402.3 408.8 415.3
Blocking Voltage (V
P
)
Typical LED Forward Voltage Drop
vs. Temperature
LED Forward Voltage Drop (V)
1.8
Turn-On Time (ms)
1.6
1.4
1.2
1.0
0.8
-40
-20
0
20
40
60
80
Temperature (ºC)
100
120
1.0
0.9
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0
0
5
Typical Turn-On Time
vs. LED Forward Current
(I
L
=120mA
DC
)
0.35
0.30
Turn-Off Time (ms)
0.25
0.20
0.15
0.10
0.05
0
Typical Turn-Off Time
vs. LED Forward Current
(I
L
=120mA
DC
)
I
F
=50mA
I
F
=30mA
I
F
=20mA
I
F
=10mA
I
F
=5mA
10
15
20
25
30
35
40
45
50
0
5
LED Forward Current (mA)
10 15 20 25 30 35 40
LED Forward Current (mA)
45
50
*The Performance data shown in the graphs above is typical of device performance. For guaranteed parameters not indicated in the written specifications, please contact our application
department.
R04
www.ixysic.com
3
I
NTEGRATED
C
IRCUITS
D
IVISION

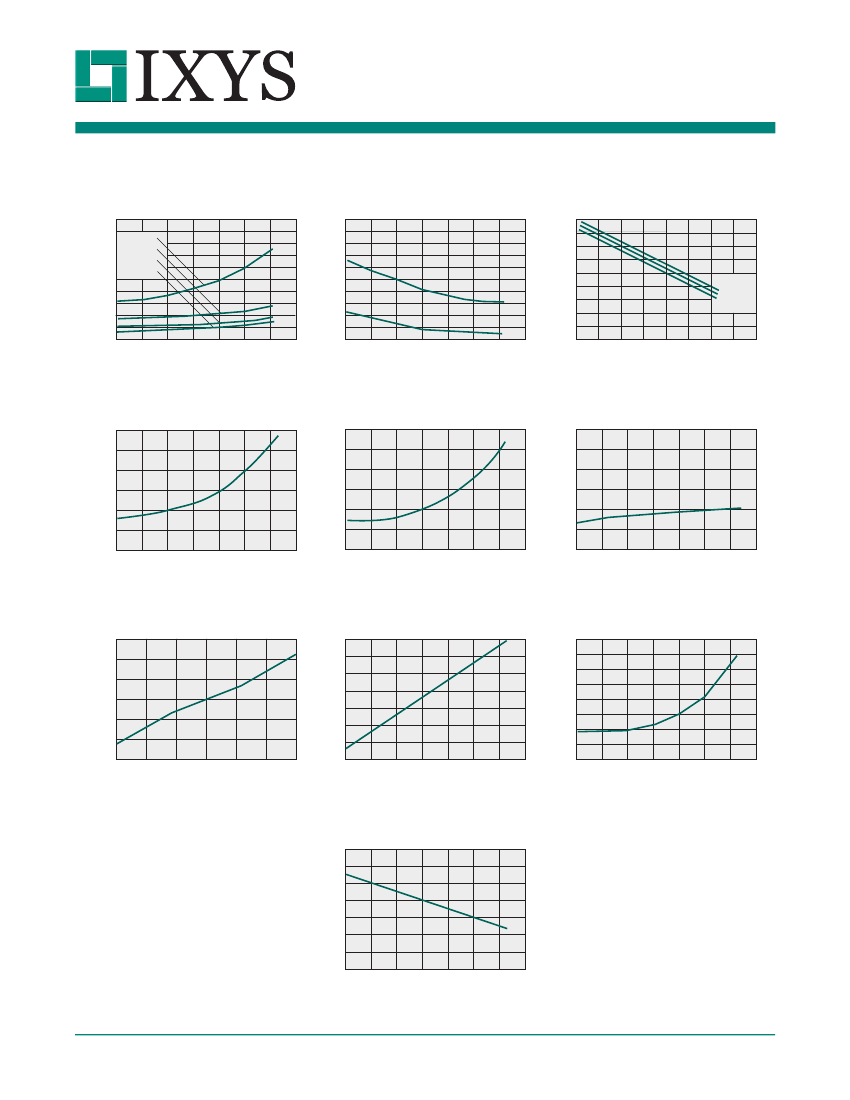

PERFORMANCE DATA @25ºC (Unless Otherwise Noted)*
Typical Turn-On Time
vs. Temperature
(I
L
=120mA
DC
)
Turn-Off TIme (ms)
I
F
=2mA
I
F
=5mA
I
F
=10mA
I
F
=20mA
LCA110L
2.0
1.8
1.6
1.4
1.2
1.0
0.8
0.6
0.4
0.2
0
-40
1.0
0.9
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0
-40
-20
Typical Turn-Off Time
vs. Temperature
(I
F
=120mA
DC
)
Maximum Load Current
vs. Temperature
180
160
Load Current (mA)
140
120
100
80
60
40
20
0
-40
-20
0
20
40
60
80
Temperature (ºC)
100
120
I
F
=10mA
I
F
=5mA
I
F
=2mA
Turn-On Time (ms)
I
F
=2mA
I
F
=5mA
0
20
40
60
Temperature (ºC)
80
100
-20
0
20
40
60
Temperature (ºC)
80
100
3.0
2.5
LED Current (mA)
2.0
1.5
1.0
0.5
0
-40
Typical I
F
for Switch Operation
vs. Temperature
(I
L
=120mA
DC
)
3.0
2.5
LED Current (mA)
2.0
1.5
1.0
0.5
0
-40
Typical I
F
for Switch Dropout
vs. Temperature
(I
L
=120mA
DC
)
60
On-Resistance ( )
50
40
30
20
10
0
Typical On-Resistance vs. Temperature
(I
F
=2mA, I
L
=120mA
DC
)
-20
0
20
40
60
Temperature (ºC)
80
-20
0
20
40
60
Temperature (ºC)
80
100
-40
-20
0
20
40
60
80
100
Temperature (ºC)
Typical Load Current vs. Load Voltage
(I
F
=2mA)
150
Blocking Voltage (V
P
)
Load Current (mA)
100
50
0
-50
420
410
Typical Blocking Voltage
vs. Temperature
16
14
Leakage (nA)
12
10
8
6
4
2
-40
-20
0
20
40
60
Temperature (ºC)
80
100
0
-40
Typical Leakage vs. Temperature
Measured across Pins 4 & 6
400
390
380
370
360
-100
-150
-3
-2
-1
0
1
Load Voltage (V)
2
3
-20
0
20
40
60
Temperature (ºC)
80
100
Typical Current Limiting
vs. Temperature
(I
F
=2mA)
350
300
Current (mA)
250
200
150
100
50
0
-40
-20
0
20
40
60
Temperature (ºC)
80
100
*The Performance data shown in the graphs above is typical of device performance. For guaranteed parameters not indicated in the written specifications, please contact our application
department.
4
www.ixysic.com
R04
I
NTEGRATED
C
IRCUITS
D
IVISION
Manufacturing Information
Moisture Sensitivity
LCA110L
All plastic encapsulated semiconductor packages are susceptible to moisture ingression. IXYS Integrated
Circuits Division classified all of its plastic encapsulated devices for moisture sensitivity according to
the latest version of the joint industry standard,
IPC/JEDEC J-STD-020,
in force at the time of product
evaluation. We test all of our products to the maximum conditions set forth in the standard, and guarantee proper
operation of our devices when handled according to the limitations and information in that standard as well as to any
limitations set forth in the information or standards referenced below.
Failure to adhere to the warnings or limitations as established by the listed specifications could result in reduced
product performance, reduction of operable life, and/or reduction of overall reliability.
This product carries a
Moisture Sensitivity Level (MSL) rating
as shown below, and should be handled according
to the requirements of the latest version of the joint industry standard
IPC/JEDEC J-STD-033.
Device
LCA110L / LCA110LS
Moisture Sensitivity Level (MSL) Rating
MSL 1
ESD Sensitivity
This product is
ESD Sensitive,
and should be handled according to the industry standard
JESD-625.
Reflow Profile
This product has a maximum body temperature and time rating as shown below. All other guidelines of
J-STD-020
must be observed.
Device
LCA110L / LCA110LS
Maximum Temperature x Time
250ºC for 30 seconds
Board Wash
IXYS Integrated Circuits Division recommends the use of no-clean flux formulations. However, board washing to
remove flux residue is acceptable. Since IXYS Integrated Circuits Division employs the use of silicone coating as
an optical waveguide in many of its optically isolated products, the use of a short drying bake could be necessary
if a wash is used after solder reflow processes. Chlorine- or Fluorine-based solvents or fluxes should not be used.
Cleaning methods that employ ultrasonic energy should not be used.
[i=s]This post was last edited by eric123456ok on 2020-5-28 22:58[/i] Introduction: 3C lithium batteries have the advantages of large capacity, good cycle life, and no memory effect. They are widely u...
2015 Latest National Undergraduate Electronic Design Competition Test Paper Template[/color][/b][/size][/align] 2015 Latest National Undergraduate Electronic Design Competition Test Paper Template[/co...
Many mobile phone users currently use their phones only for making calls and sending SMS (text messages), but more and more people are using bandwidth-intensive services such as surfing the web, downl...
introduction
Bluetooth technology is a short-range wireless communication technology designed to replace wired cables. It is a wireless communication technology standard developed by the SIG, ...[Details]
Some time ago, I attended the 4th Energy Chemistry Forum of the Chinese Chemical Society and learned about high-energy-density and high-safety batteries. I would like to summarize and share this wi...[Details]
The mass production process of the new generation of cockpit platform has started, and the smart cockpit market has entered a new bonus cycle of technology iteration and platform upgrade.
...[Details]
Limited vocabulary recognition
According to the number of characters, words or short sentences in the vocabulary, it can be roughly divided into: less than 100 is small vocabulary; 100-1000 is...[Details]
Recently,
Xpeng Motors and Xinlian Integrated Circuit jointly announced the mass production of China's first hybrid silicon carbide product.
Designed and developed by Xpeng Motors and joint...[Details]
When discussing autonomous driving technology, there are often two extremes: on the one hand, there's the vision of "fully autonomous driving," while on the other, there's concern about potential s...[Details]
On August 21st, Zhiyuan Robotics revealed at its first partner conference that it expects shipments to reach thousands of units this year and tens of thousands next year. The company hopes to reach...[Details]
Electric vehicles are now widespread, but they've brought with them a host of problems, the most prominent of which is charging. Small electric vehicles (EVs) are a new form of transportation in a ...[Details]
The 2025 China International Automotive Testing Exhibition will be held at the Shanghai World Expo Exhibition and Convention Center from August 27 to 29, 2025.
Clacton Seafront, UK, ...[Details]
According to foreign media reports, Ford Motor has applied to the U.S. Patent and Social Security Office (USPTO) for a patent for a door anti-collision system that may be used in future Ford vehicl...[Details]
Over the past decade, the narrative surrounding fuel vehicles has been one of decline and replacement. Under the onslaught of new energy vehicles, traditional automakers have been forced to acceler...[Details]
In the field of intelligent driving, regulations are becoming increasingly stringent, and the technical threshold continues to rise. Especially after the traffic accident in March 2025, the Ministr...[Details]
In daily life, when we purchase a transformer, we are faced with the installation and wiring procedures. Generally speaking, large transformers such as power transformers are equipped with speciali...[Details]
Plug-in hybrid vehicles (PHEVs) utilize two powertrains. Their pure electric range is typically inferior to that of pure electric vehicles, often reaching less than half that. Currently, mainstream...[Details]
As the range of electric vehicles continues to increase, driving electric vehicles for long-distance travel has become a trend. For high-speed travel, how much impact will high-speed driving of ele...[Details]
Test/Measurement
京公网安备 11010802033920号
EEWORLD
